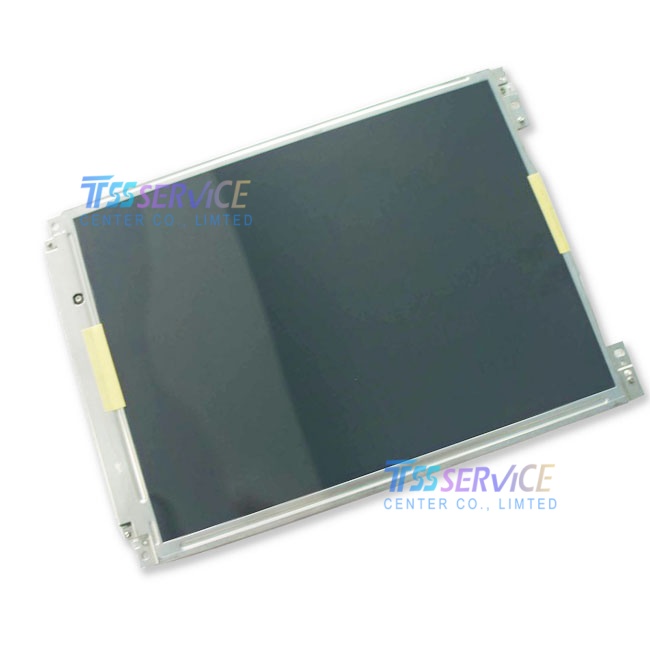

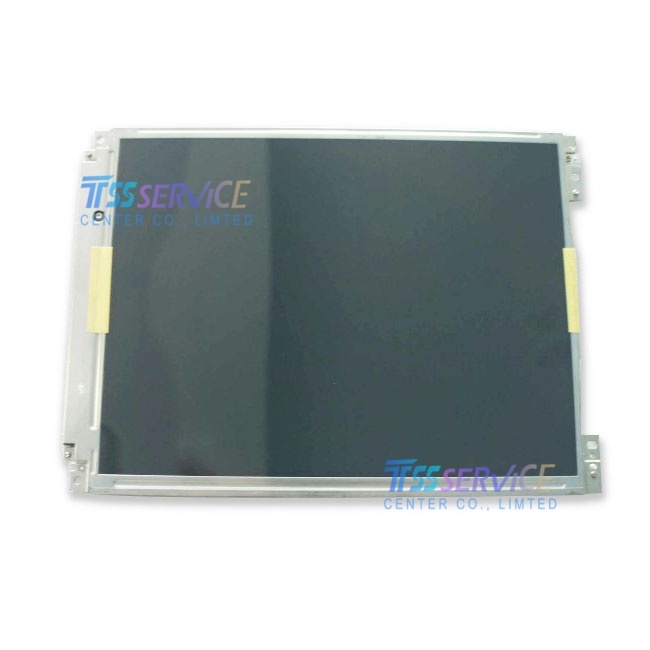

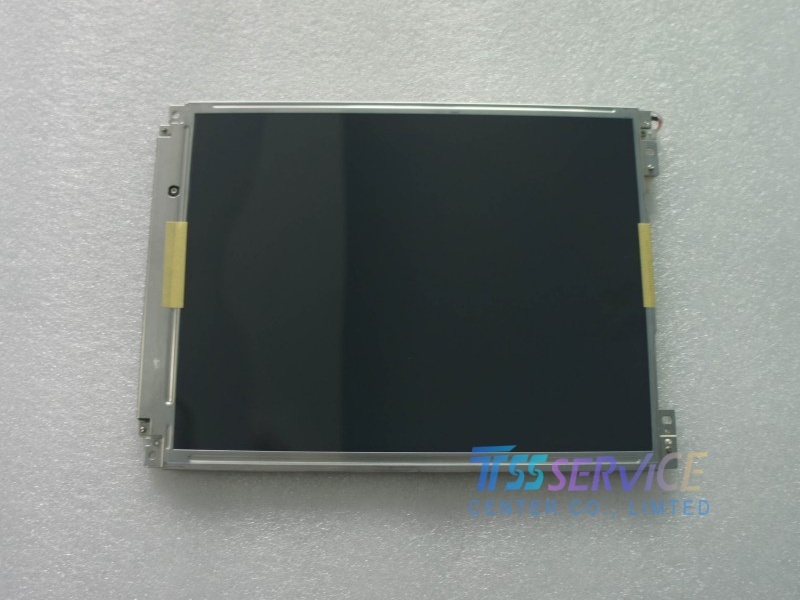

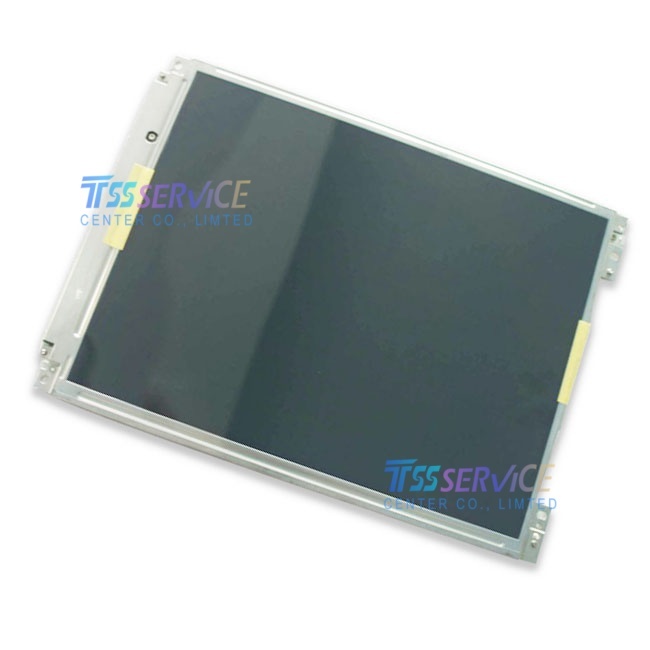

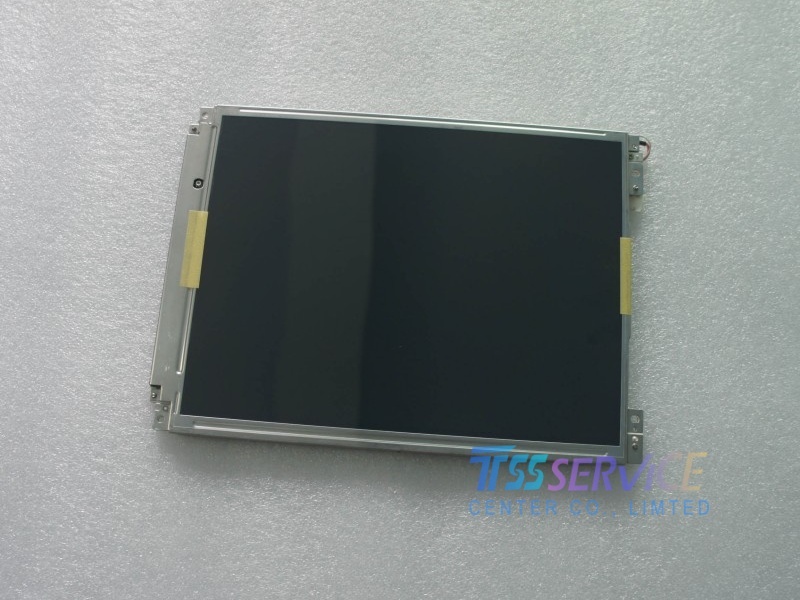

HLD1027 / 6091L-0040A | Hosiden + LG.Philips 10.4" VGA Industrial CCFL TFT LCD Module
HLD1027 is the Hosiden internal series name, while 6091L-0040A is the LG.Philips OEM part number for the same 10.4-inch VGA industrial transmissive TFT LCD module. It adopts TN Normally White display technology, single side CCFL backlight, single-channel 6-bit parallel RGB 31-pin FPC interface, matte anti-glare 3H hard coating and metal anti-interference frame. Typical brightness reaches 220 cd/m² with 400:1 contrast ratio, standard operating temperature 0℃~+50℃, no built-in touch panel and compatible with external 4-wire resistive touch overlay. This discontinued industrial panel is widely used for laboratory centrifuges, medical analytical equipment, factory automation HMI, legacy industrial controllers and equipment maintenance replacement screens.
| Parameter Item |
Specification Details |
| Full Dual Model |
HLD1027 (Hosiden series) / 6091L-0040A (LG.Philips OEM PN) |
| Manufacturer |
Hosiden (Original Design) / LG Display (LG.Philips OEM Production) |
| Diagonal Size |
10.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
640(H) × 480(V) pixels (VGA, 76 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.330 mm (H) × 0.330 mm (V) |
| Active Area (AA) |
211.2 mm (W) × 158.4 mm (H) |
| Overall Outline Dimension |
246.5 mm (W) × 179.4 mm (H) × 10.8 mm (Thickness) |
| Typical Brightness |
220 cd/m² |
| Typical Contrast Ratio |
400:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
60° / 60° / 40° / 50°, optimal viewing direction: 6 o'clock |
| Response Time (Tr / Td Typical) |
30 ms / 50 ms |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
Single CCFL lamp, service life ≥10,000 hours, external inverter required |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 31-pin standard FPC connector |
| Logic Supply Voltage |
3.3 VDC (Typical VDD) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Housing Structure |
Reinforced metal shielding frame, anti-electromagnetic interference |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Net Weight |
Approx. 560 g |
| Compliance Standard |
RoHS compliant industrial grade |
| Production Status |
Fully discontinued original production, only surplus stock for maintenance retrofit |
| Interchange Note |
HLD1027 and 6091L-0040A are identical panel, fully pin-to-pin in |
