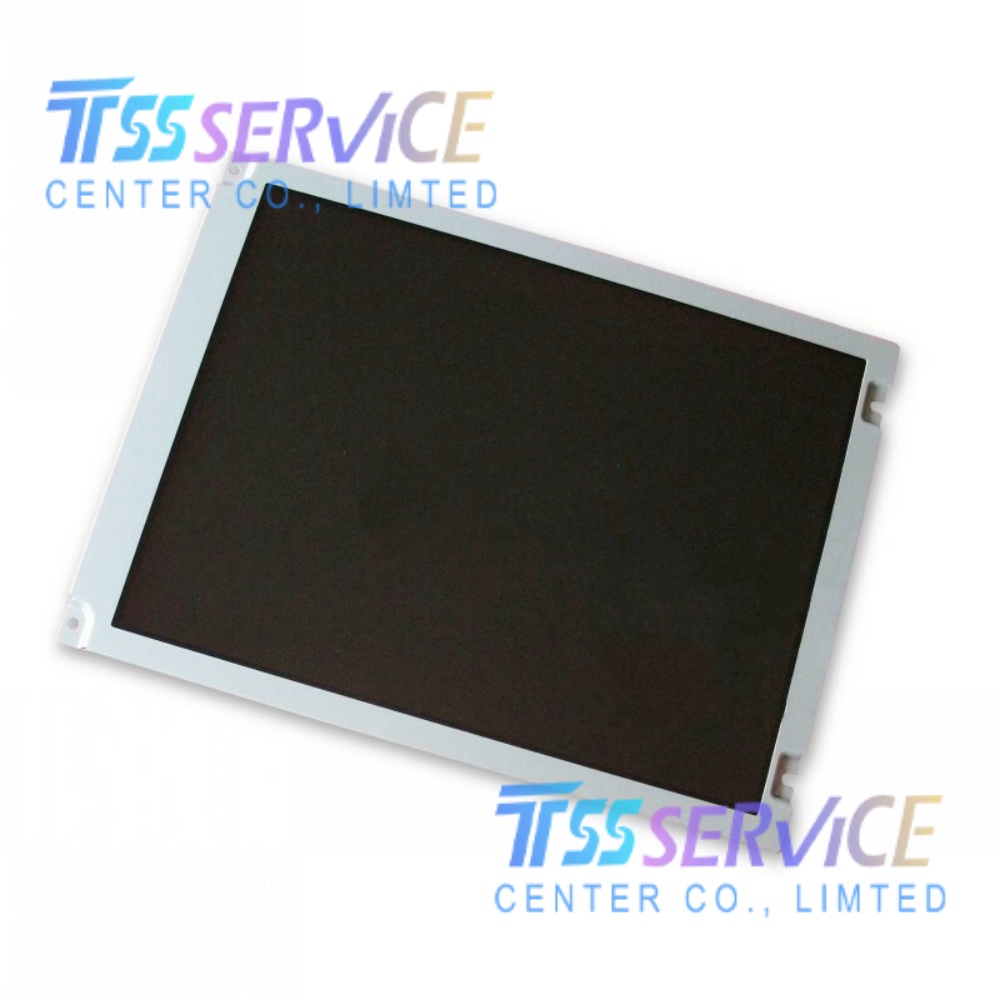

HLD1045E-HIBRITE 10.4 inch LCD Panel Screen For Industrial

Name: HLD1045E-HIBRITE 10.4 inch LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: HLD1045E-HIBRITE
Price: 168 USD
Availability: InStock

SKU: HLD1045E-HIBRITE

Model: HLD1045E-HIBRITE
Size: 10.4 inch
Resolution: VGA 640×480 (4:3)
Display Type: a-Si TFT-LCD, transmissive

0.0 (0 Reviews)

0 Sold

~~$170.00~~ $168.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

HLD1045E-HIBRITE 10.4 inch LCD Panel Screen For Industrial

Specification	Details
Model	HLD1045E-HIBRITE
Size	10.4 inch, VGA 640×480 (4:3)
Display Type	a-Si TFT-LCD, transmissive, LED backlight
Brightness	600 cd/m² (high brightness)
Colors	262K (6-bit RGB)
Interface	30-pin RGB (TTL), 5V power
Touch Panel	Without touch function
Active Area	211.2 × 158.4 mm (H×V)
Outline Size	243.0 × 185.0 × 12.5 mm (W×H×D)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Features	Industrial grade, high brightness, wide viewing angle, RoHS compliant

Typical Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, CNC machinery, industrial PCs
Outdoor & Bright Environment Displays: Kiosks, outdoor signage, vending machines, ticket terminals
Medical Equipment: Diagnostic devices, patient monitors, medical imaging systems
Marine & Vehicle Displays: Ship control panels, heavy-duty vehicle dashboards, construction equipment
Retail & POS Systems: Point-of-sale terminals, self-service checkout, inventory management screens
