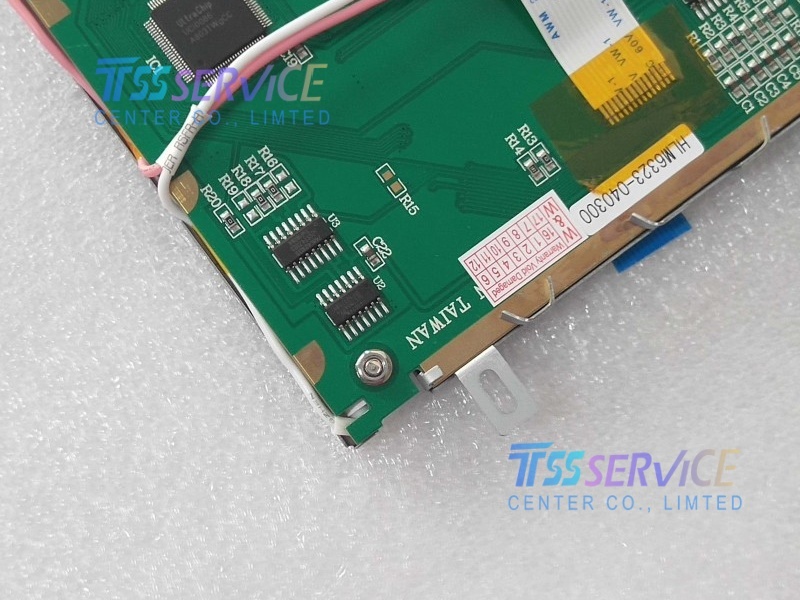

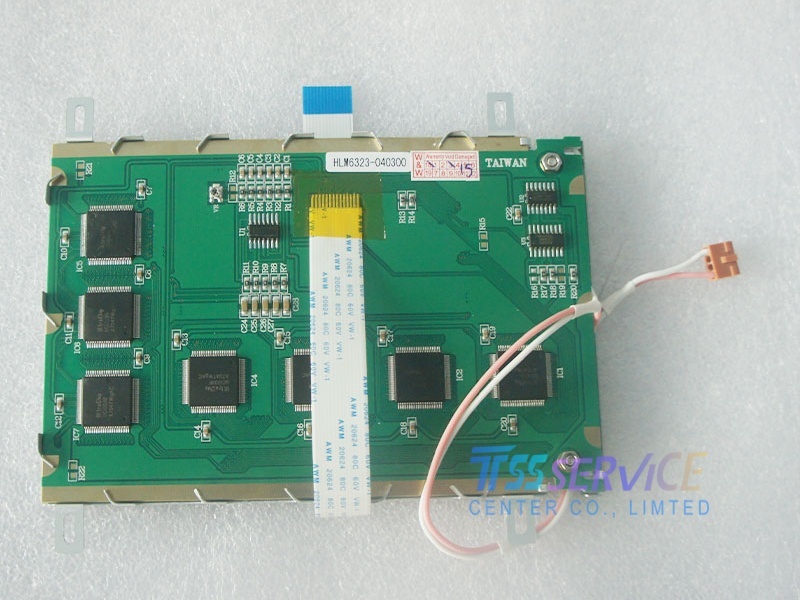

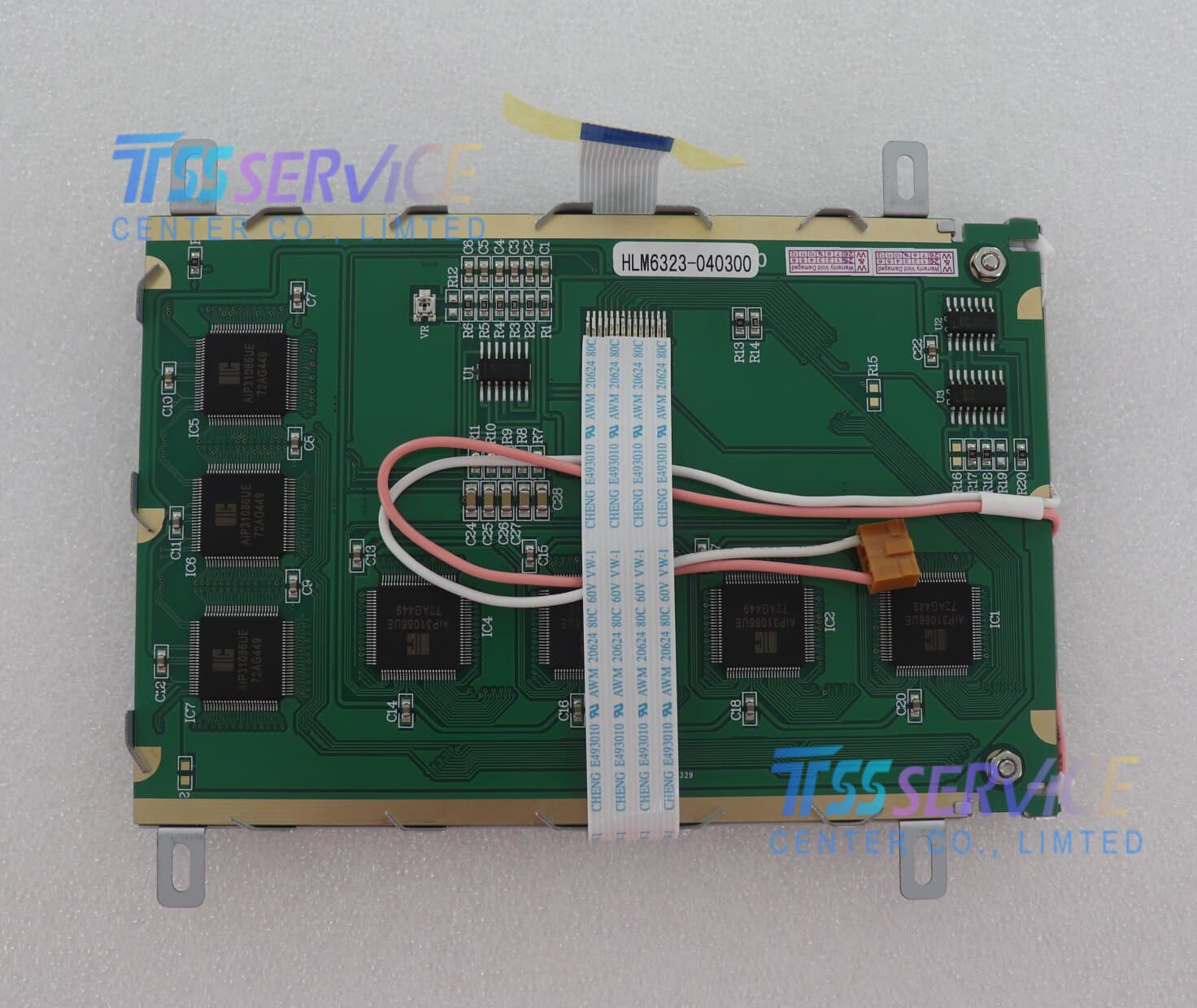

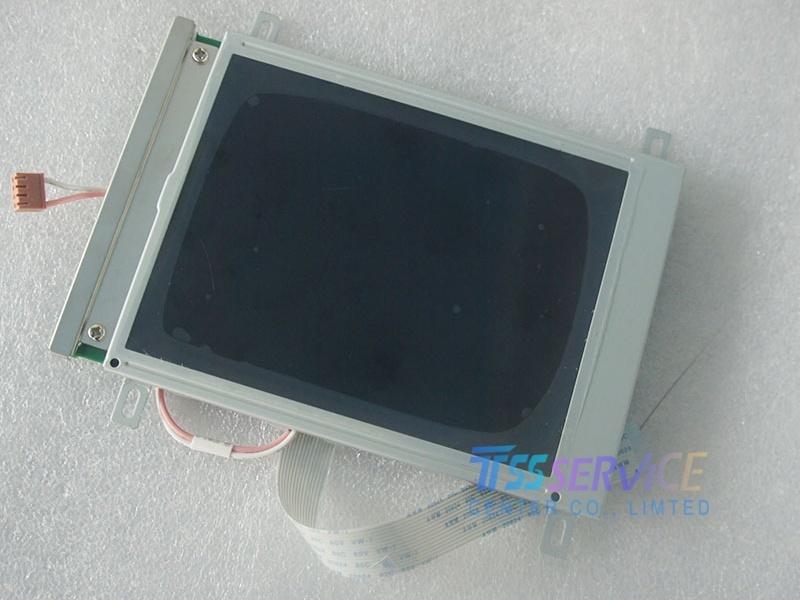

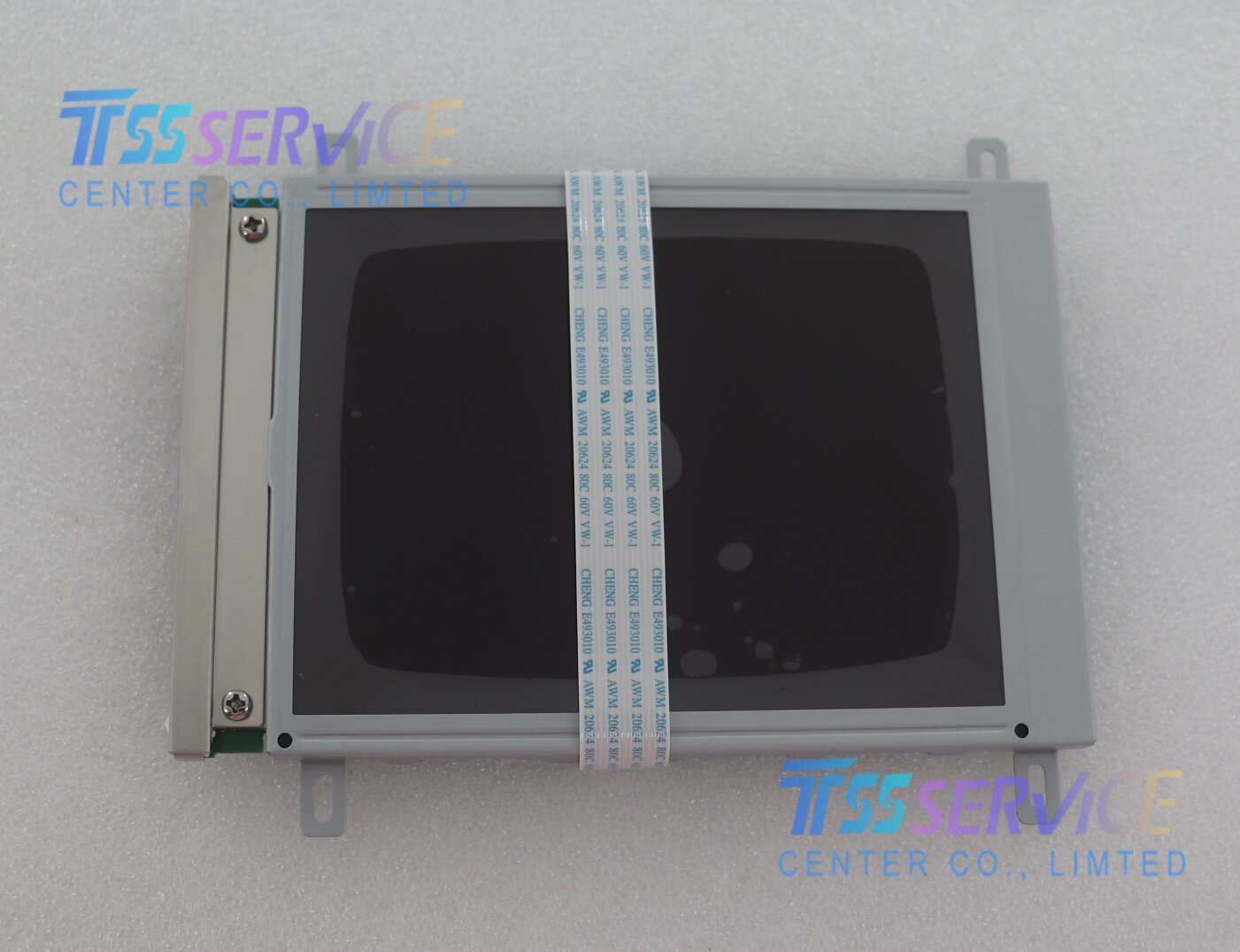

HLM6323-040300 5.7 inch 320×240 LCD Display Screen For Industrial
| Parameter |
Details |
| Manufacturer |
Hosiden |
| Model Name |
HLM6323-040300 |
| Display Size |
5.7" |
| Panel Type |
FSTN-LCD, LCM |
| Resolution |
320×240, QVGA, 4:3 Aspect Ratio |
| Dot Layout |
Rectangle |
| Display Area |
115.17(W) × 86.37(H) mm (4.53 × 3.40 inch) |
| Display Mode |
STN (Super Twisted Nematic) |
| Display Colors |
Monochrome |
| Light Source |
1 pcs CCFL, Without Driver |
| Interface |
Parallel Data (1ch, 4-bit) |
Typical Applications
This 5.7" monochrome FSTN-LCD panel is designed for:
- Industrial Control Panels: STN displays are known for their wide viewing angles and low power draw, making them ideal for factory automation, PLCs, and machinery control units.
- Medical Devices: Monochrome displays with CCFL backlighting are commonly found in older patient monitors, diagnostic equipment, and portable medical devices due to their reliability.
- Legacy POS/ATM Systems: QVGA resolution and parallel 4-bit interface are typical for older point-of-sale terminals and vending machine controllers.
- Test & Measurement Instruments: The monochrome format is well-suited for displaying numerical data, graphs, and status information in oscilloscopes, multimeters, and industrial testers.
- Portable Industrial Equipment: Its simple parallel interface and monochrome design make it a cost-effective choice for rugged, battery-powered devices requiring basic visual feedback.
