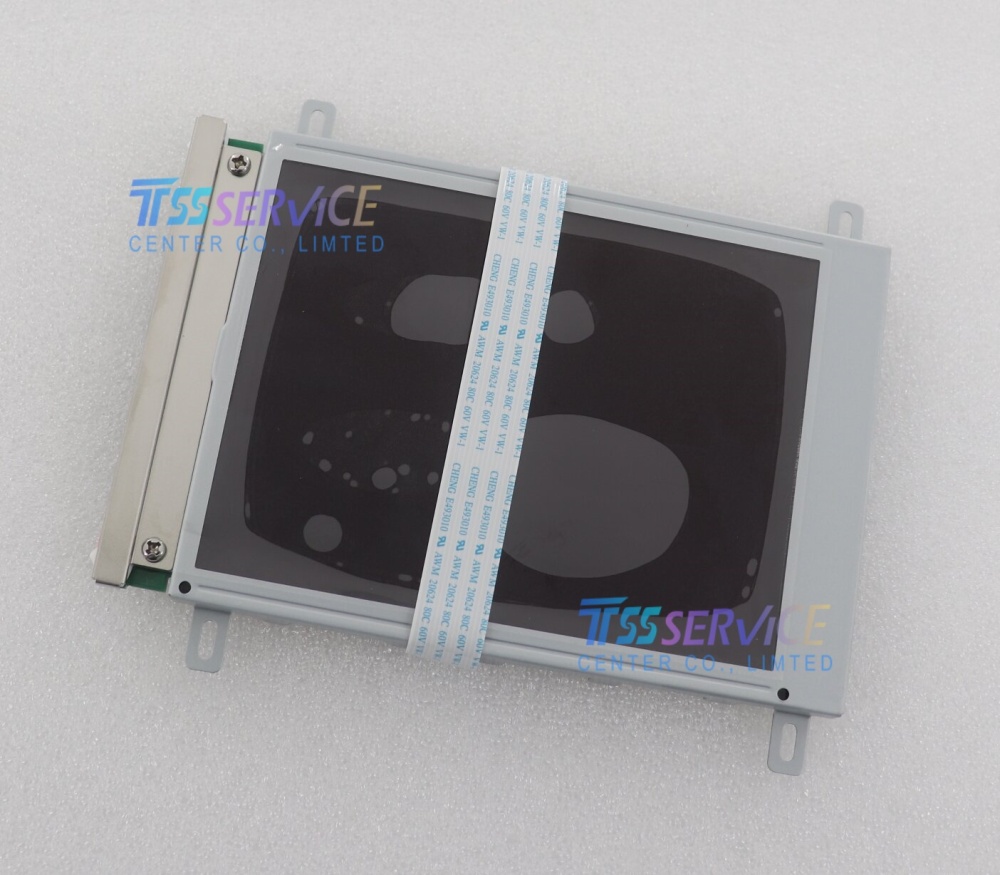

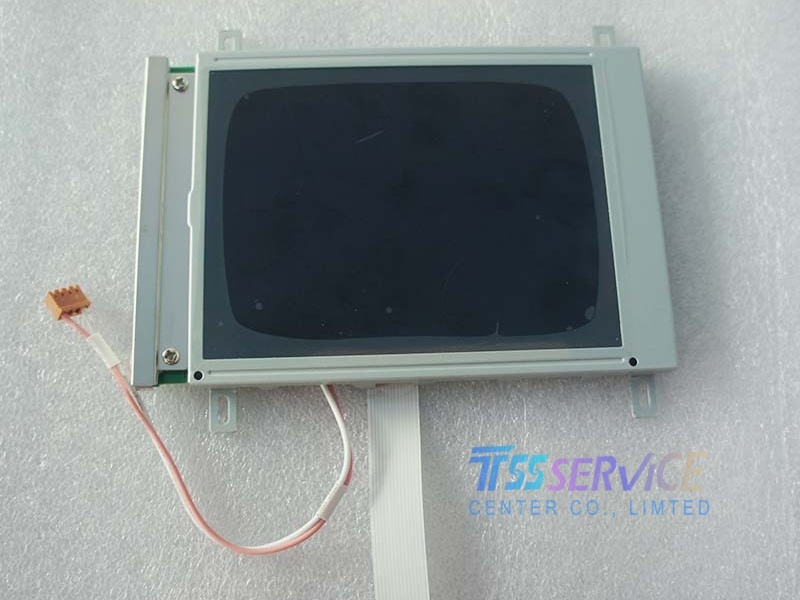

Hosiden 5.7 inch 320×240 HLM8620 LCD Display Screen For Industrial
| Parameter |
Details |
| Brand |
Hosiden |
| Model |
HLM8620 |
| Diagonal Size |
5.7 inch |
| Panel Type |
FSTN-LCD, LCM |
| Resolution |
320×240, QVGA, 4:3 Aspect Ratio |
| Pixel Format |
Rectangle |
| Active Area |
115.17(H) × 86.37(V) mm (4.53 × 3.40 inch) |
| Physical Size |
157.5(H) × 121.6(V) × 12.7(D) mm (6.20 × 4.79 × 0.50 inch) |
| Mass |
185g (Typical) (0.41 lb) |
| Luminance |
250 cd/m² (Typical) |
| Contrast Ratio |
25:1 (Typical, TM) |
| View Direction |
12 o'clock |
| Response Time |
200/150 ms (Typical, Tr/Td) |
| Display Mode |
STN, Black/White (Negative), Transmissive |
| Color Support |
Monochrome |
| Light Source |
1 pcs CCFL, 50,000 hours lifespan, Without Driver |
| Frame Rate |
75Hz |
| Touch Panel |
Without touch function |
| Interface Type |
Parallel Data (1ch, 4-bit), 14-pin FPC connector |
| Power Supply |
5.0V (Typical) |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
Typical Applications
This 5.7" monochrome FSTN-LCD panel is designed for:
- Industrial Control Systems: Ideal for factory automation, PLCs, and process control equipment due to its robust design and 0–50°C operating range.
- Medical & Laboratory Equipment: Suited for diagnostic tools, patient monitors, and test instruments requiring reliable monochrome displays.
- Legacy POS/ATM Terminals: The parallel 4-bit interface and QVGA resolution match many older point-of-sale and vending machine controllers.
- Test & Measurement Instruments: Well-suited for oscilloscopes, multimeters, and industrial testers that require basic numerical and graphical data display.
- Rugged Portable Devices: The monochrome design, wide operating temperature range, and 50,000-hour CCFL backlight make it suitable for field and industrial environments.
