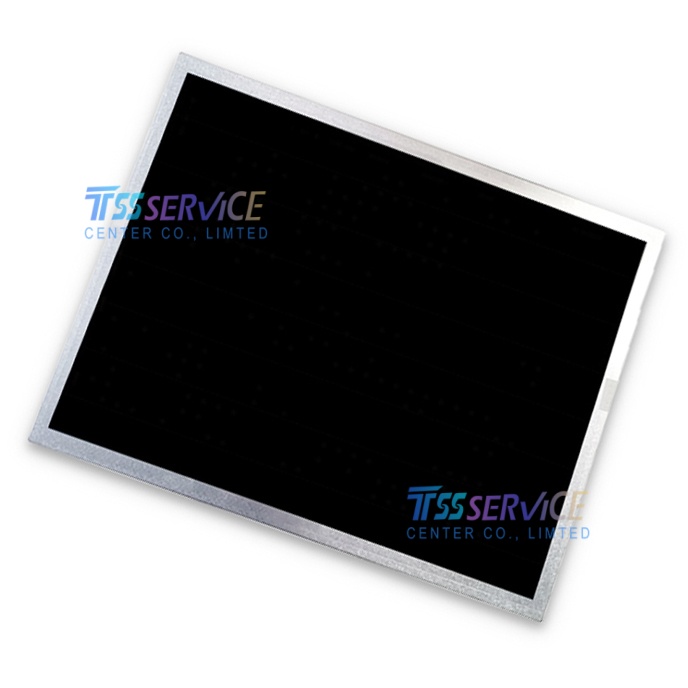

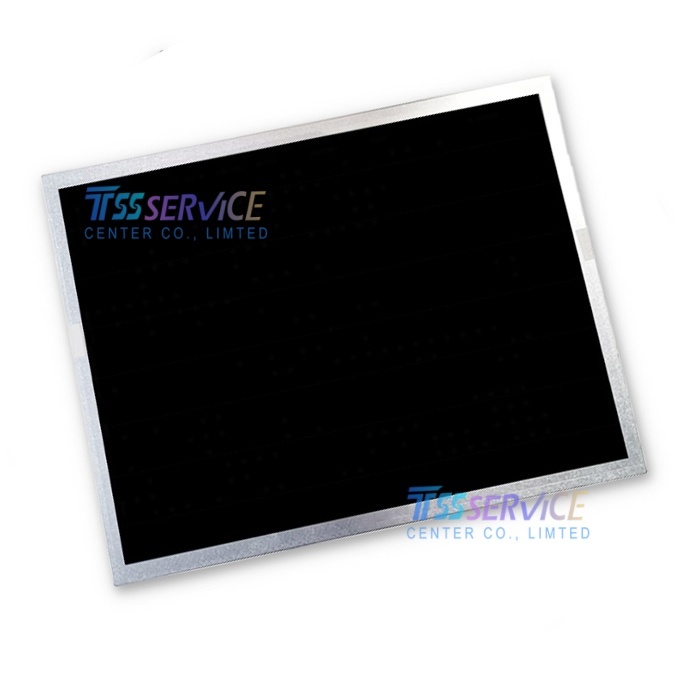

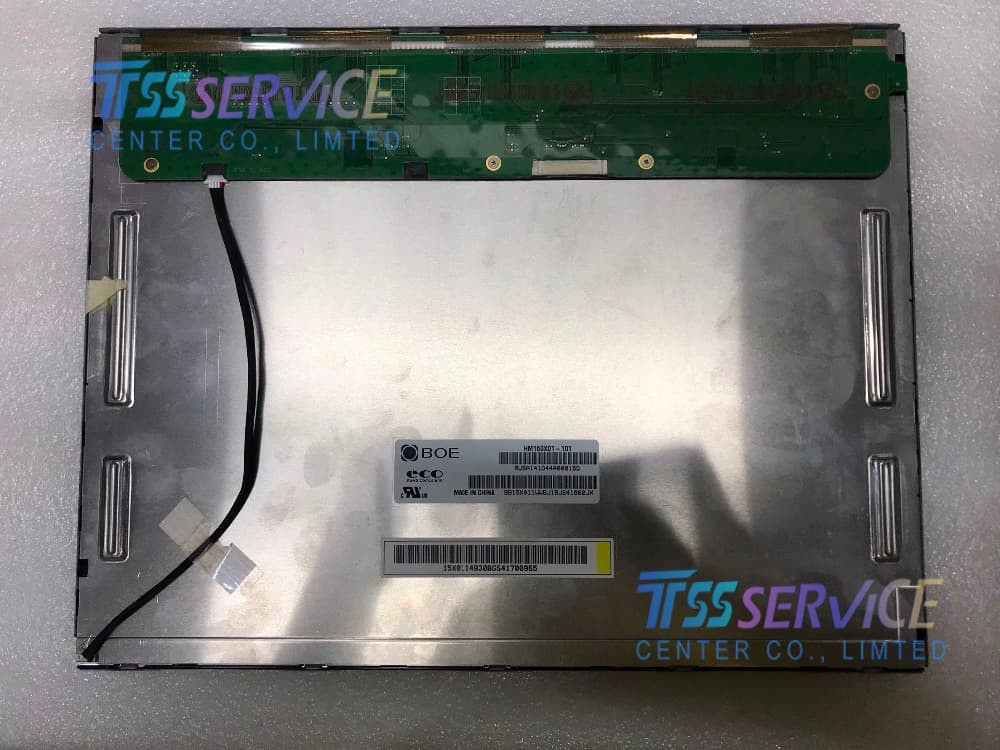

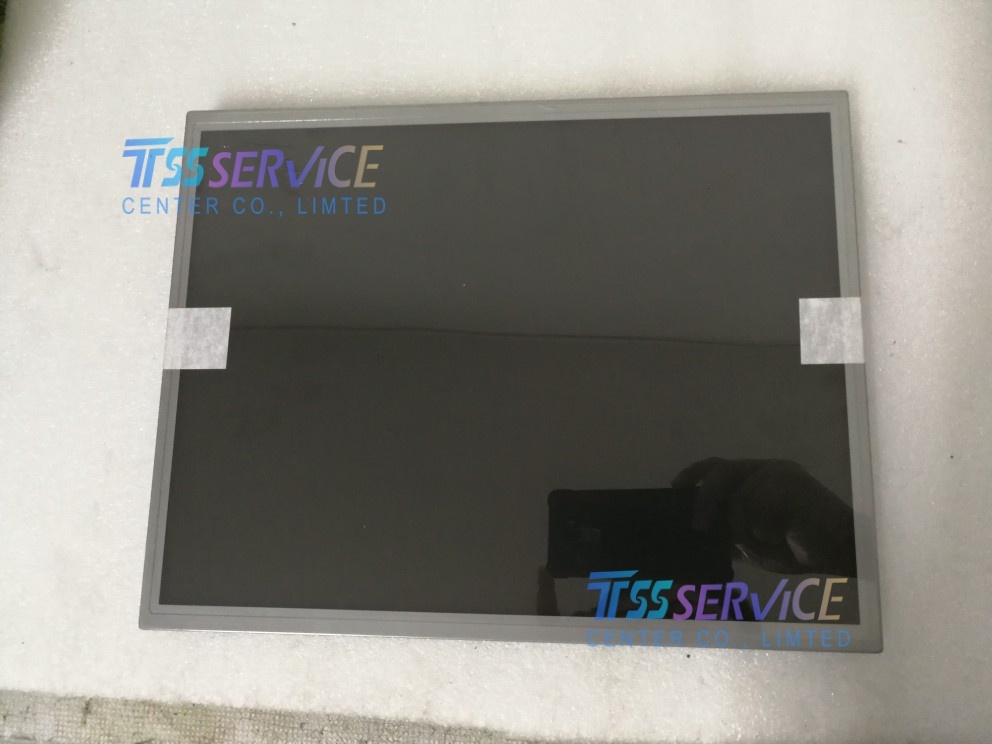

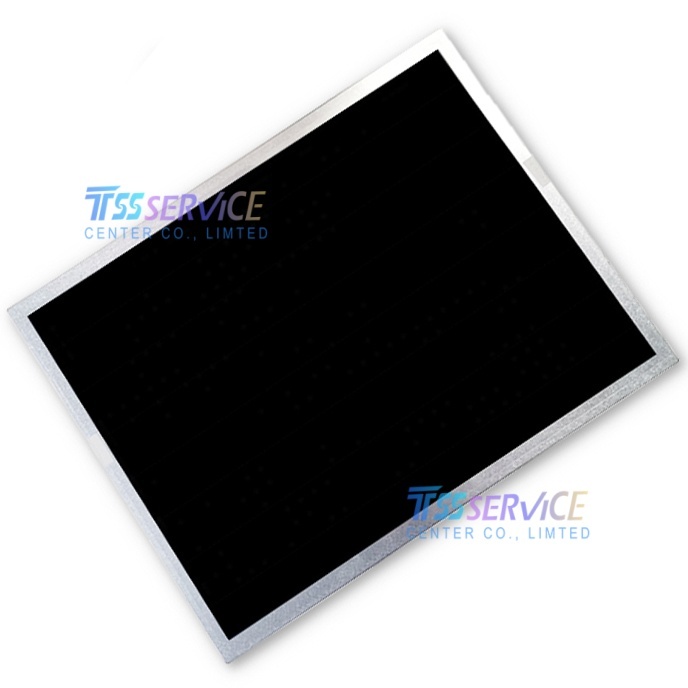

BOE HM150X01-101 15 Inch 1024×768 TFT LCD Panel Industrial Monitor HMI Display Screen
| Item |
Detailed Parameter |
| Manufacturer |
BOE |
| Model Number |
HM150X01-101 |
| Diagonal Screen Size |
15.0 Inch |
| Panel Type |
a-Si TFT-LCD, LCM Module |
| Native Resolution |
1024(RGB) × 768 (XGA), 4:3 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe, 85 PPI |
| Active Display Area |
304.128(W) × 228.096(H) mm |
| Overall Outline Dimension |
326.5(W) × 253.5(H) × 11.9(D) mm |
| Typical Brightness |
300 cd/m² |
| Display Mode |
TN, Normally White, Transmissive |
| Signal Interface |
LVDS (1 Channel, 8-bit), 20 Pins FPC Connector |
| Backlight Source |
WLED, With Built-in LED Driver IC |
| Refresh Rate |
60Hz |
| Touch Function |
Without Touch Screen |
| Supply Voltage |
3.3V (Typical) |
| Operating Temperature |
-0 ℃ ~ +60 ℃ |
| Storage Temperature |
-20 ℃ ~ +70 ℃ |
| Surface Treatment |
Standard Flat Surface |
Application Scenarios
Industrial Automation & Machine Control
- CNC lathe/milling machine operation HMI panels
- Injection molding machine control display screens
- Packaging, textile and printing equipment man-machine interfaces
- PLC industrial monitoring desktop monitors
- Assembly line real-time data display terminals
Medical Equipment
- Hospital medical auxiliary monitoring displays
- Laboratory testing & analysis equipment operation screens
- Rehabilitation therapy machine control panels
- Medical beauty equipment parameter display modules
Commercial & Embedded Devices
- 15-inch industrial all-in-one PC replacement screens
- Factory workshop dedicated industrial monitors
- Small-size self-service information inquiry kiosks
- Security monitoring industrial display terminals
