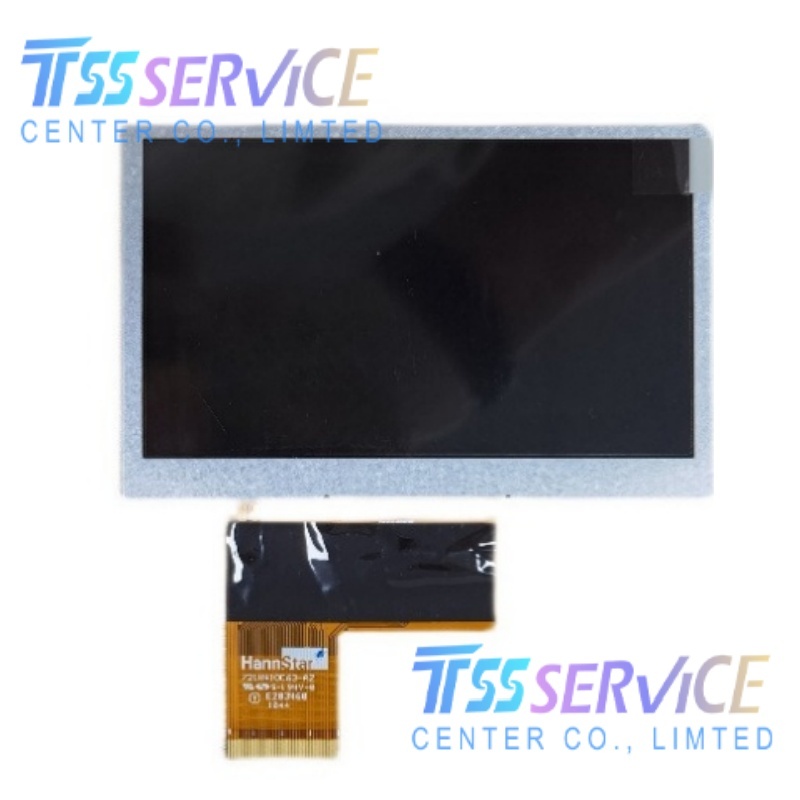

HannStar HSD043I9W1-A01 4.3 inch 480×272 LCD Panel Display For Industrial

Name: HannStar HSD043I9W1-A01 4.3 inch 480×272 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: HSD043I9W1-A01
Price: 45 USD
Availability: InStock

SKU: HSD043I9W1-A01

Model P/N: HSD043I9W1-A01
Diagonal Size: 4.3"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 480(RGB)×272, WQVGA, 16:9
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$46.00~~ $45.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

HannStar HSD043I9W1-A01 4.3 inch 480×272 LCD Panel Display For Industrial

Parameter	Specification
Part Number	HSD043I9W1-A01
Manufacturer	HannStar
Display Type	a‑Si TFT-LCD Module
Diagonal Size	4.3"
Resolution	480(RGB) × 272 (WQVGA)
Aspect Ratio	16:9
Active Area	95.04×53.856 mm (H×V)
Outline Dimensions	105.5×67.2×3.2 mm (H×V×D)
Display Mode	TN, Normally White, Transmissive
Brightness	500 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	75/75/60/70° (L/R/U/D)
Response Time	3/7 ms (Tr/Td)
Colors	16.7M (8-bit)
Backlight	WLED, 6S2P
Interface	RGB 1-channel 8-bit, 40-pin FPC
Supply Voltage	3.3V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Surface Treatment	Anti-glare, 3H Hard Coating
Touch Panel	None
