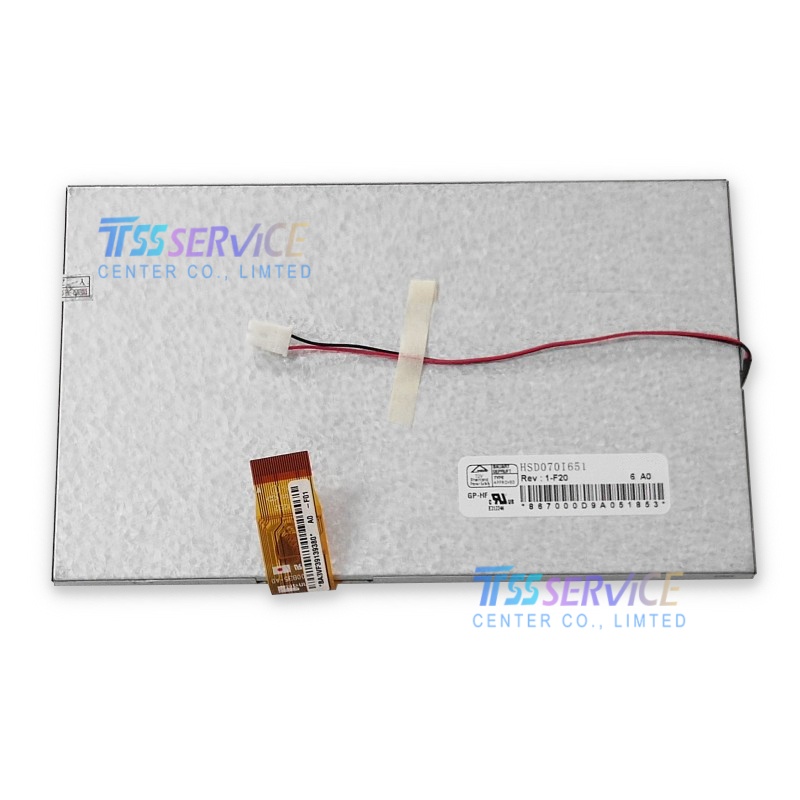

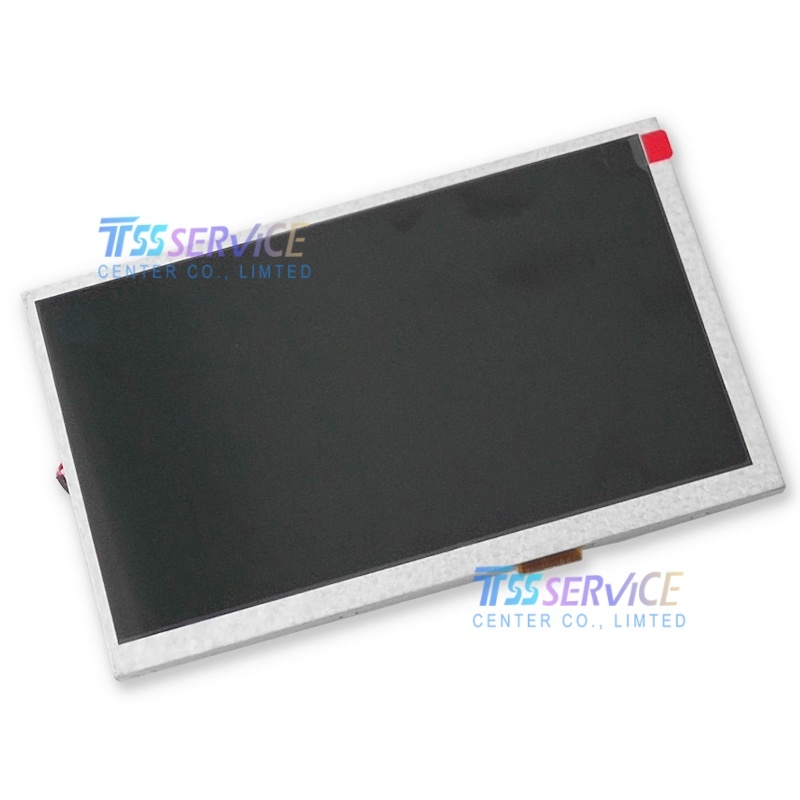

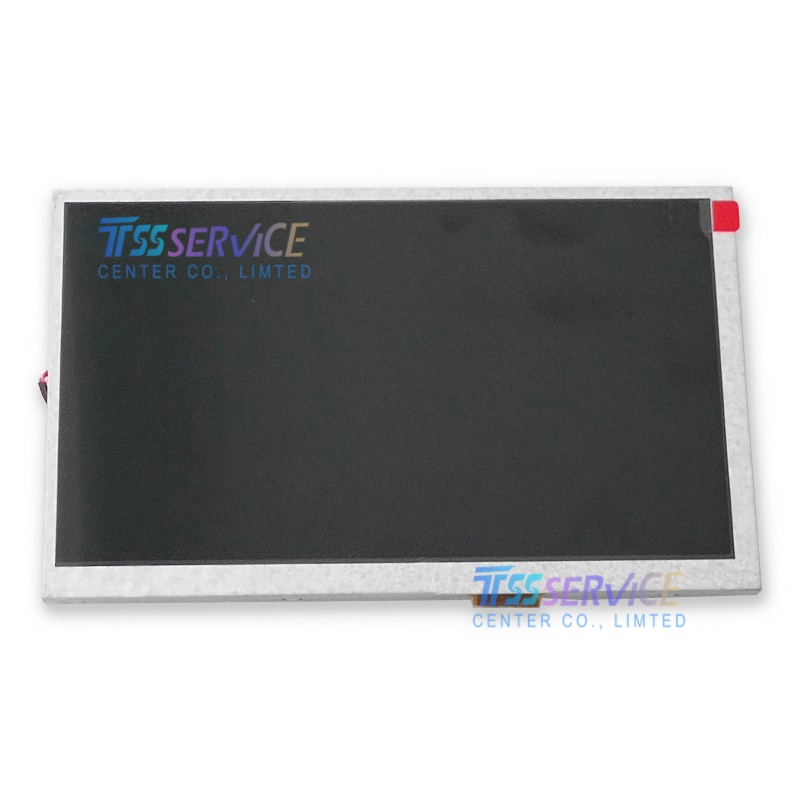

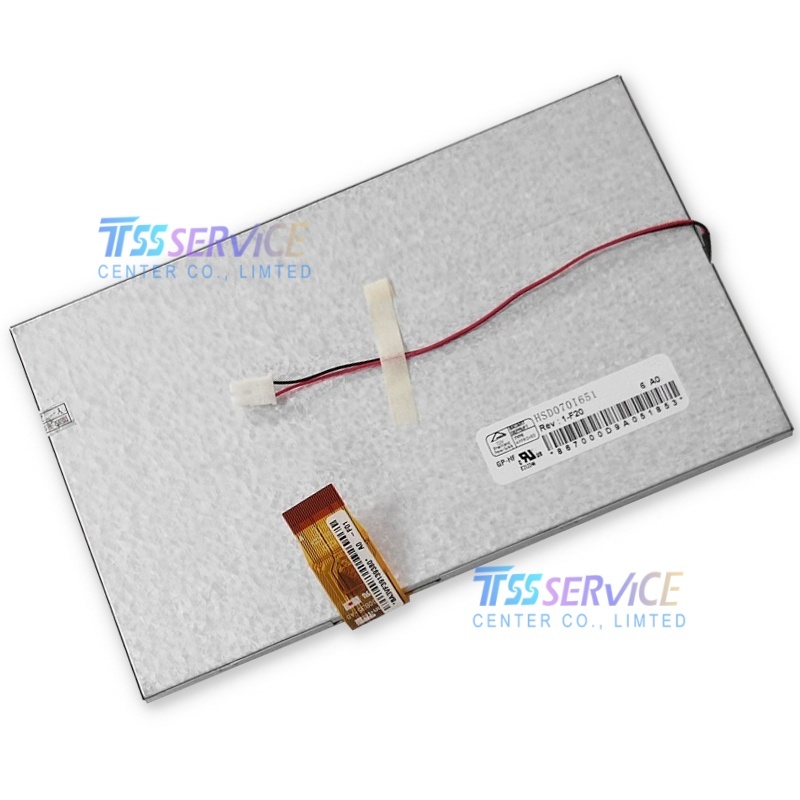

HSD070I651 HannStar 7 INCH 480×234 LCD Display Screen For Industrial
| Parameter |
Details |
| Brand |
HannStar |
| Model |
HSD070I651 (suffix variants: A00/C01/F00 etc.) |
| Diagonal Size |
7.0 inch |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
480(RGB) × 234 (76 PPI) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
154.08(W) × 86.58(H) mm (6.07 × 3.41 inch) |
| Luminance |
200–500 cd/m² (Typ., variant-dependent) |
| Contrast Ratio |
500:1 (Typ.) |
| Viewing Angle |
70°/70°/65°/65° or 60°/60°/40°/60° (Typ., variant-dependent) |
| Color Support |
Full color (typically 262K) |
| Backlight |
WLED (some variants with CCFL), 20,000+ hours lifespan |
| Interface Type |
Analog RGB, 26-pin FPC connector |
| Touch Panel |
Without touch function |
| Power Supply |
3.3V (Typ. for VCC) |
| Operating Temperature |
-10 ~ 60 °C (some variants: -20 ~ 70 °C) |
| Storage Temperature |
-20 ~ 70 °C (some variants: -30 ~ 80 °C) |
Typical Applications
This 7.0-inch TFT-LCD panel is commonly used in:
- Portable DVD Players & Car Headrest Monitors: Its analog RGB interface and wide operating range are ideal for in-car entertainment systems.
- Video Door Phones & Security Monitors: The compact size and reliable performance make it suitable for intercom and surveillance devices.
- Digital Photo Frames & Low-End Tablets: The 480×234 resolution meets the basic display needs of consumer photo and media devices.
- Industrial Control & Embedded Systems: The wide temperature tolerance (-10~60°C) supports use in factory automation and embedded equipment.
- Portable Media Players: Low power consumption and compact form factor make it a popular choice for battery-powered devices.
