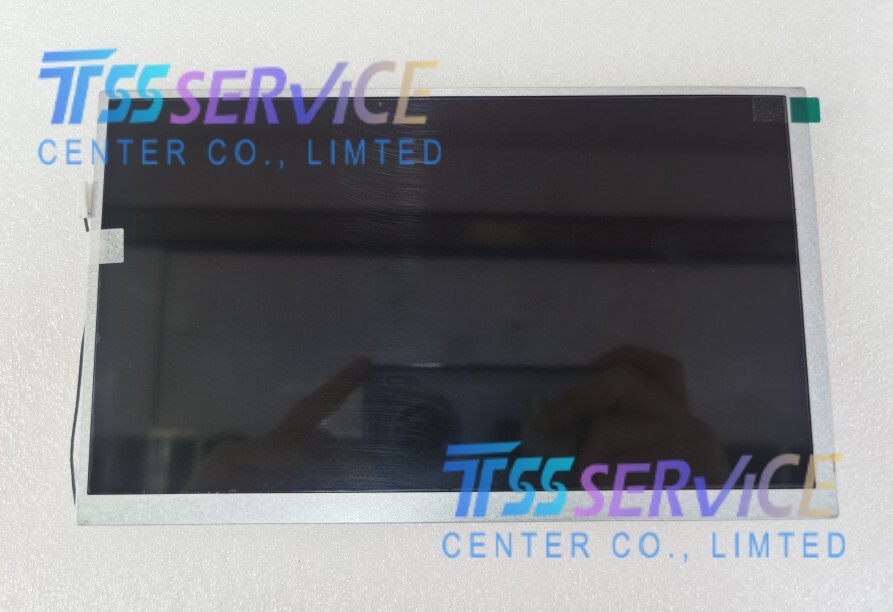

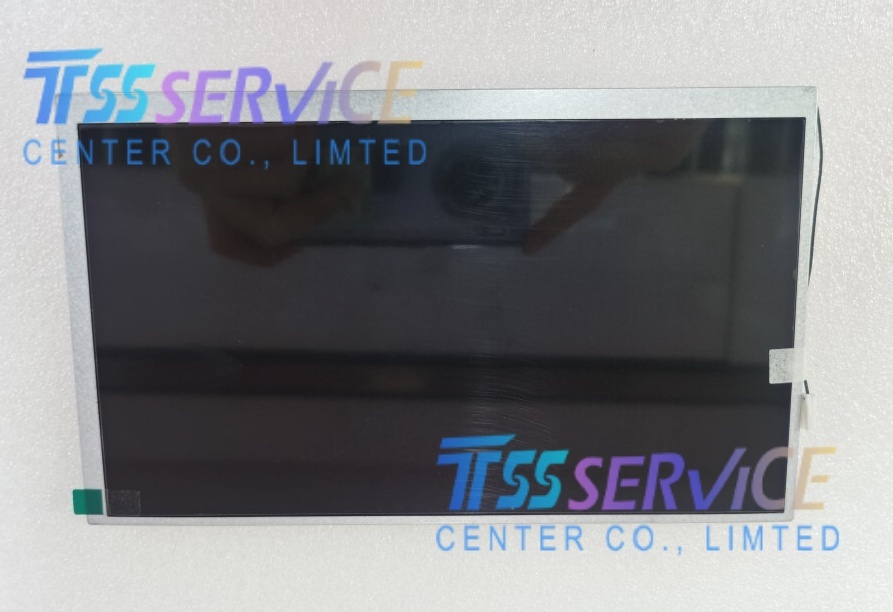

HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial

SKU: HSD090IDW1-A00
Model: HSD090IDW1-A00
Brand: HannStar
Display Type: a-Si TFT-LCD, TN, Normally White, Transmissive
Screen Size: 9.0 inches (diagonal), 16:9
Resolution: 800 (RGB) × 480 pixels (WVGA), 104 PPI
0.0 (0 Reviews)
0 Sold
$40.00 $39.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
1/1
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
  • Description
HannStar 9 inch 800×480 LCD screen panel HSD090IDW1-A00 For Industrial
Item Description
Model HSD090IDW1-A00
Brand HannStar
Display Type a-Si TFT-LCD, TN, Normally White, Transmissive
Screen Size 9.0 inches (diagonal), 16:9
Resolution 800 (RGB) × 480 pixels (WVGA), 104 PPI
Active Area (AA) 198.0 × 112.08 mm
Module Size 210.7 × 126.4 × 5.3 mm (±0.3 mm)
Dot Pitch 0.2475 × 0.2335 mm
Backlight WLED (3S7P), long life
Brightness 250 cd/m² (typ.)
Contrast Ratio 500:1 (typ., CR≥10)
Viewing Angle 70°/70°/50°/60° (L/R/U/D)
Response Time 5.5/10.5 (Typ.)(Tr/Td)
Display Colors 262K (6-bit RGB) / 16.2M (8-bit)
Surface Treatment Antiglare (AG), Hard coating (3H)
Interface TTL Parallel (1 ch, 6/8-bit), 26-pin FPC
Supply Voltage 3.3V (logic) / 10~15V (analog) / -7V (VGL)
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Vibration Resistance 2.9G (28.4 m/s²)
Weight 240 g (typ.)
Status Mass production, industrial grade, RoHS compliant

Typical Applications (English)

  • Industrial Control Panels: Factory automation HMI, PLC workstations, process monitoring terminals (stable wide-temperature operation for harsh environments).
  • Injection Molding Machinery: Operator displays for Haitian, Chen Hsong, and other industrial injection molding equipment (direct drop-in replacement for legacy 9" WVGA panels).
  • Medical Devices: Patient monitors, diagnostic equipment, and rehabilitation instruments (reliable brightness/contrast for critical data readability; AG surface reduces glare in clinical settings).
  • Automotive & Marine Displays: Car navigation, vehicle dashboards, and marine instrumentation (wide temperature tolerance and anti-interference capability for in-vehicle use).
  • Smart Home & Commercial Terminals: Wall-mounted control panels, video intercoms, and vending machine displays (compact 5.3mm thickness for space-constrained installations).
  • Portable Industrial Equipment: Data loggers, environmental monitoring devices, and field test instruments (low power WLED backlight for extended battery life).
