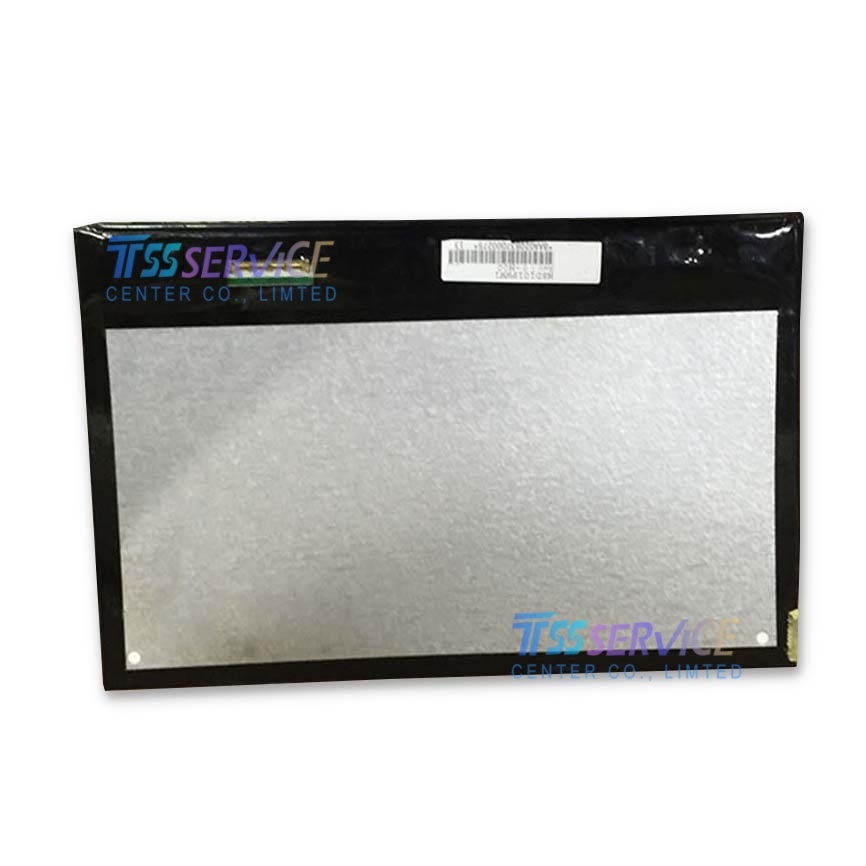

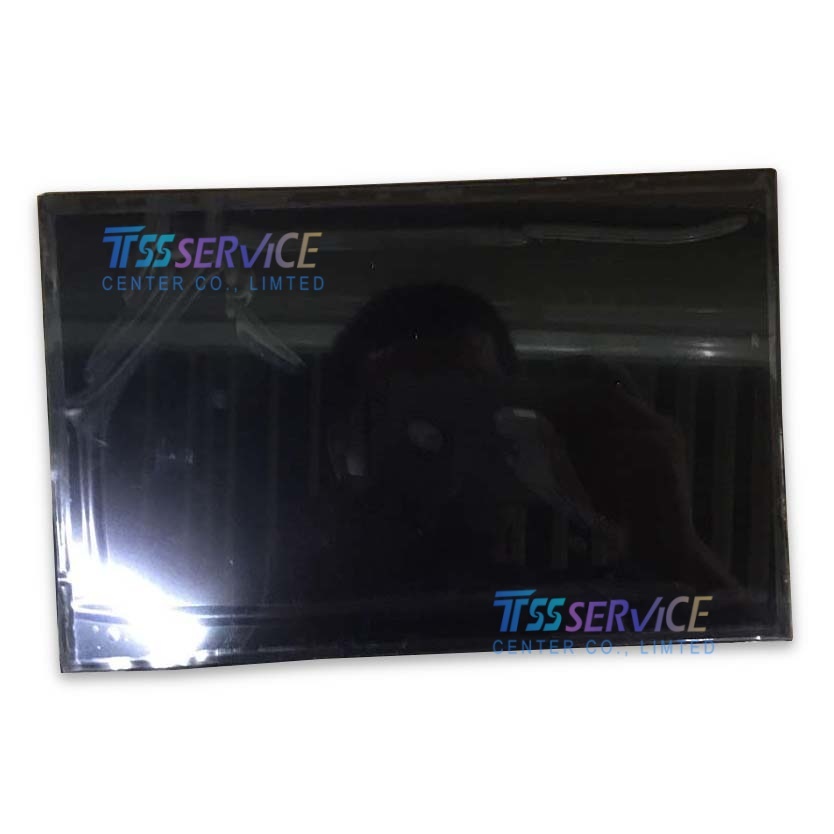

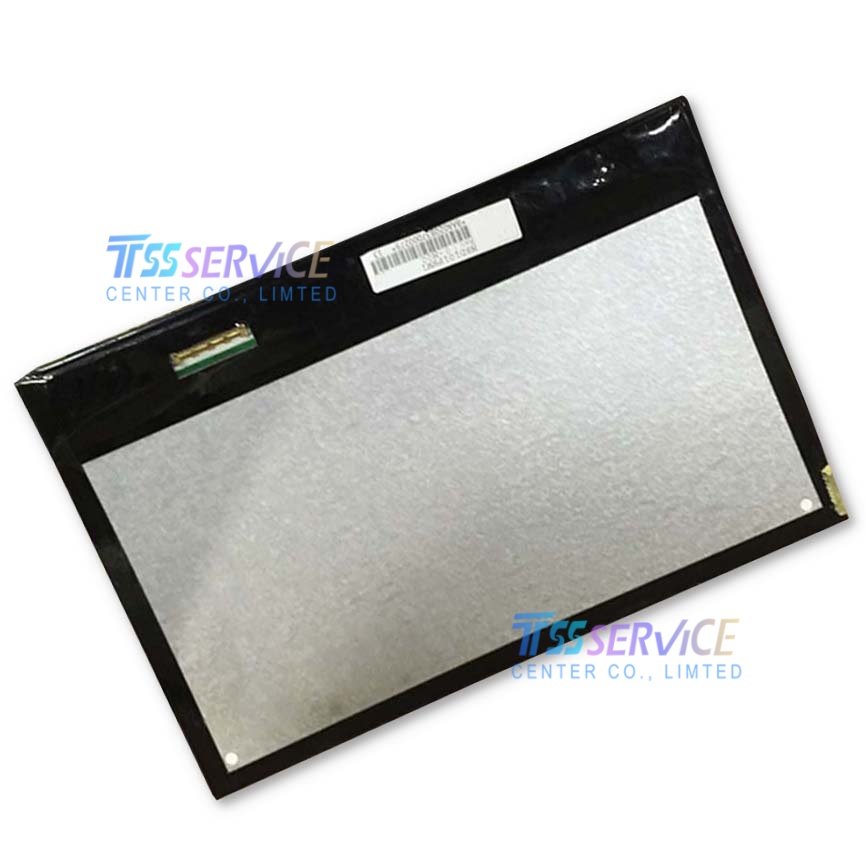

HannStar HSD101PWW1-H00 10.1-inch 1280×800 WXGA TFT-LCD Panel

Name: HannStar HSD101PWW1-H00 10.1-inch 1280×800 WXGA TFT-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: HSD101PWW1-H00
Price: 47 USD
Availability: InStock

SKU: HSD101PWW1-H00

1，Condition: New，Grade A

2，Description: HSD101PWW1-H00 10.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$50.00~~ $47.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The HannStar HSD101PWW1-H00 is a high-quality 10.1-inch diagonal a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for industrial, medical, and consumer applications. Featuring WXGA (1280×800) resolution with an RGB vertical stripe pixel arrangement and IPS Pro technology, this display delivers exceptional image quality with wide viewing angles, high pixel density, and accurate color reproduction.

Category	Details
Brand	HannStar
Model P/N	HSD101PWW1-H00
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Outline (mm)	229.46×149.2×5.2 (H×V×D)
Treatment	Hard coating
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS Pro, Normally Black, Transmissive
Color Depth	262K 45% NTSC
Backlight	WLED, 10K hours, With LED Driver
Mass	198g (Max.)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Storage Temp.	-20 ~ 60 °C
Operating Temp.	0 ~ 50 °C

Typical Applications

Industrial control panels and HMI (Human-Machine Interface)
Medical equipment and patient monitoring systems
Portable medical devices
Tablet computers and mobile devices
Automotive infotainment displays
Point-of-sale (POS) terminals
Consumer electronics
Embedded systems requiring high-resolution, wide-viewing-angle displays
