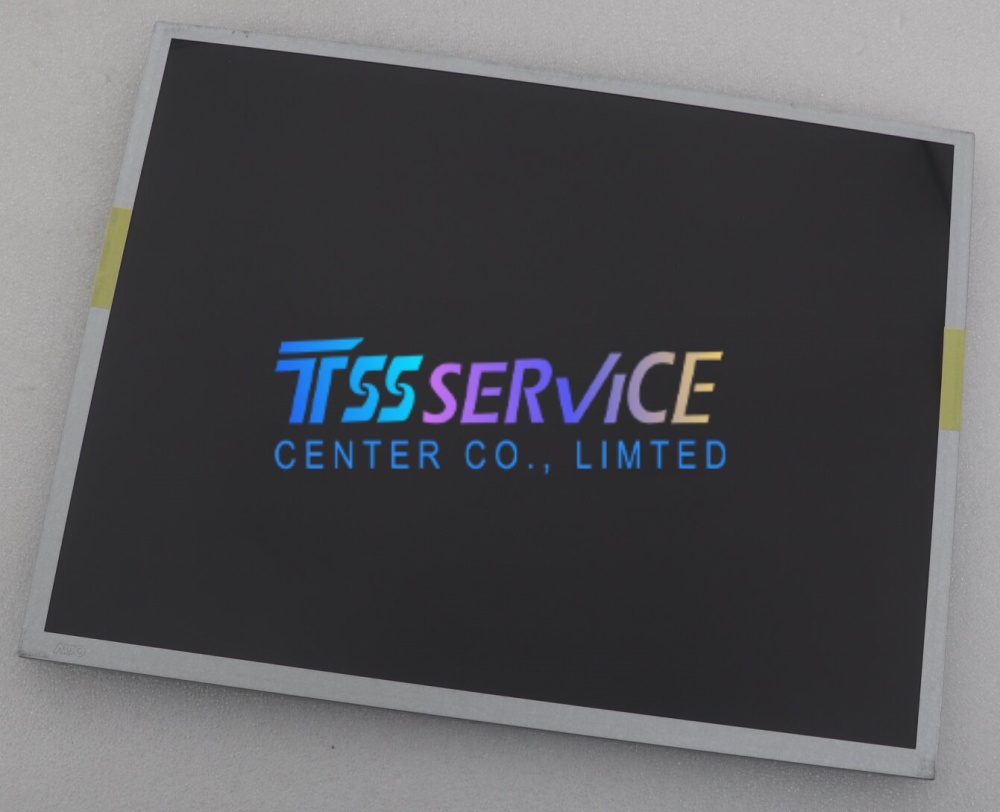

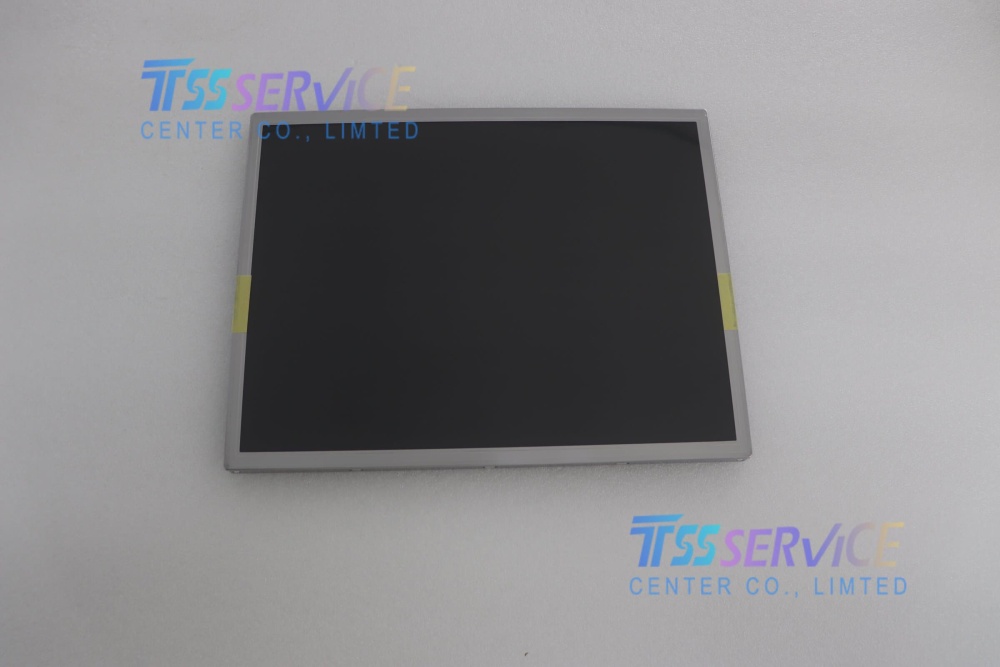

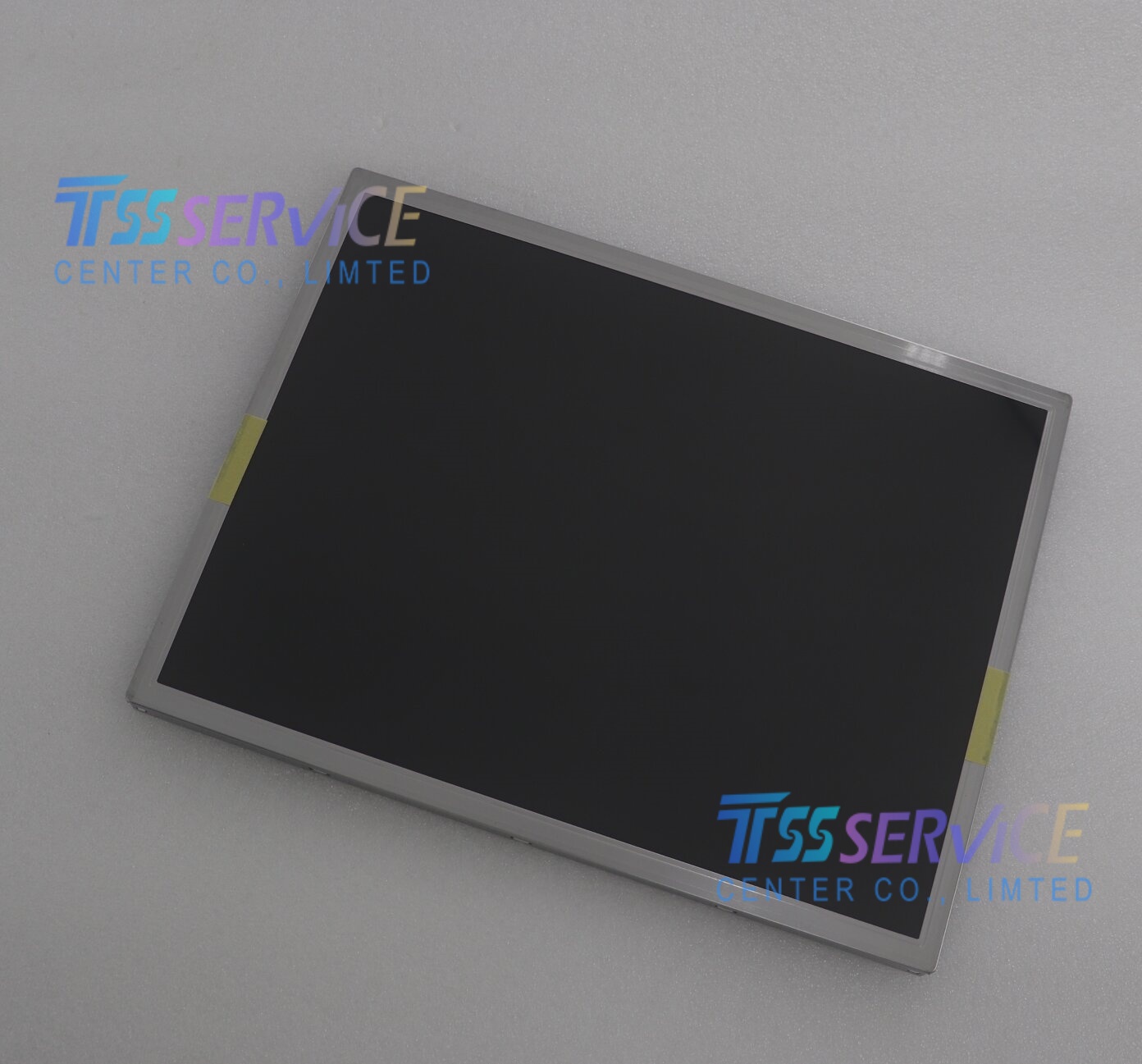

HannStar HSD150MX17-A02 15 inch 1024×768 LCD panel Display For Industrial

Name: HannStar HSD150MX17-A02 15 inch 1024×768 LCD panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: HSD150MX17-A02
Price: 138 USD
Availability: InStock

SKU: HSD150MX17-A02

Model P/N: HSD150MX17-A02
Diagonal Size: 15"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 1024(RGB)×768, XGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$140.00~~ $138.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

HannStar HSD150MX17-A02 15 inch 1024×768 LCD panel Display For Industrial

Item	Specification	Unit
Manufacturer	HannStar	–
Model	HSD150MX17-A02	–
Display Size	15.0 (Diagonal)	inch
Resolution	1024 × 768 (XGA, RGB Vertical Stripe)	dots
Aspect Ratio	4:3 (Landscape)	–
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive	–
Active Area	304.128 × 228.096	mm
Outline Dimensions	326.5 × 253.5 × 10.9 (Typ.)	mm
Pixel Pitch	0.297 × 0.297	mm
Brightness	250 (Typ.)	cd/m²
Contrast Ratio	600:1 (Typ.)	–
Viewing Angle (L/R/U/D)	65/65/45/55 (CR≥10)	deg
Response Time (Tr+Td)	16 (Typ.)	ms
Backlight	CCFL (1 lamp)	–
Interface	LVDS (1 ch, 8-bit)	–
Surface Treatment	Antiglare, Hard coating (3H)	–
Weight	Approx. 1.0	kg
Operating Temperature	0 ~ +50	°C
Storage Temperature	-20 ~ +60	°C
Power Supply	3.3 V (Logic)	–
RoHS Compliance	Yes	–

General Applications

Industrial Control & HMI: Factory automation, PLC panels, CNC machinery, and industrial workstations.
Medical Equipment: Diagnostic systems, patient monitors, and medical imaging displays requiring stable color reproduction.
Retail & POS: Point-of-sale terminals, kiosks, and self-service systems in retail and hospitality.
Office Automation: Industrial monitors, printers, copiers, and document scanners.
Test & Measurement: Oscilloscopes, data loggers, and laboratory analysis equipment.
