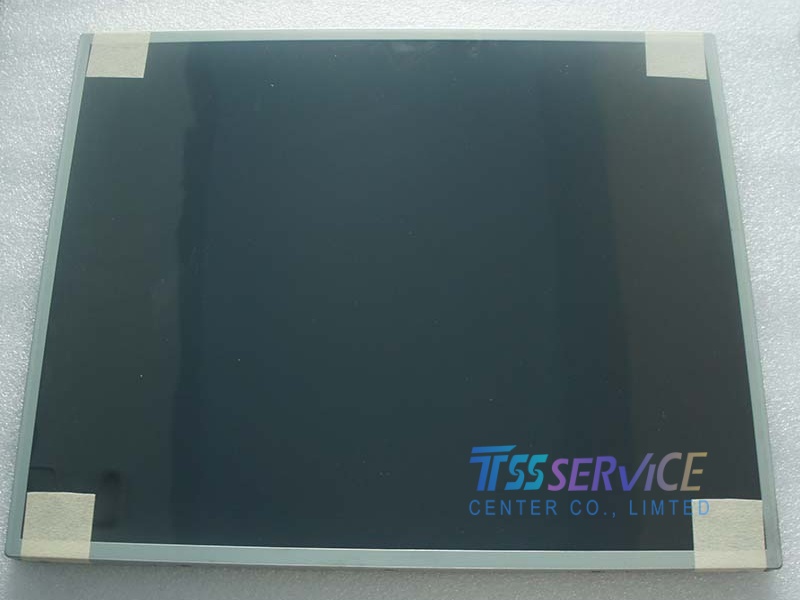

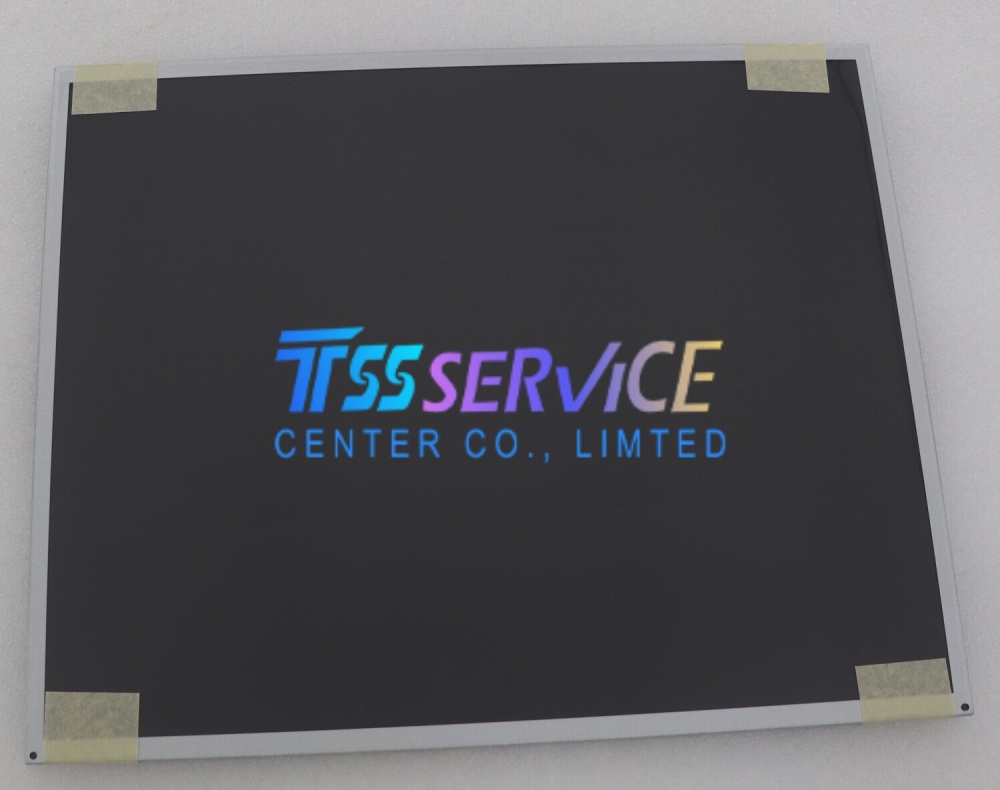

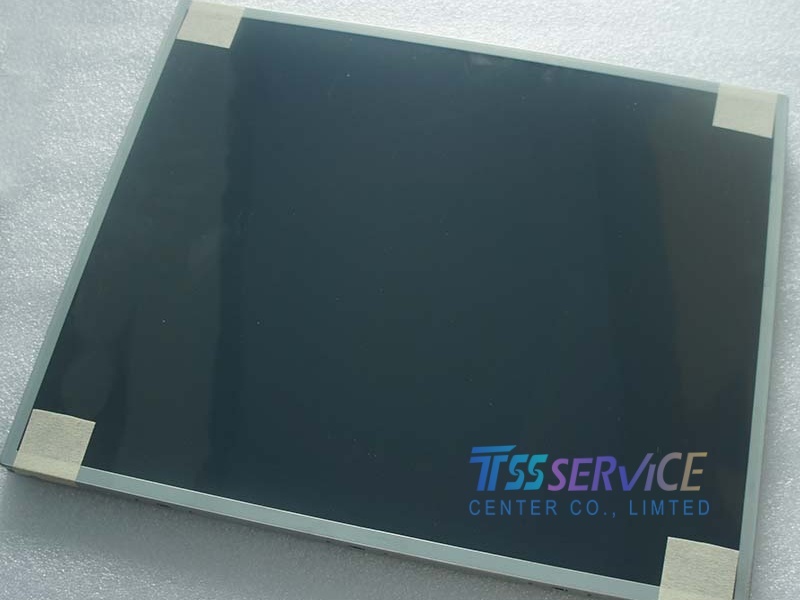

HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial

SKU: HSD190MEN4-A03
Model P/N: HSD190MEN4-A03
Diagonal Size: 19"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 1280(RGB)×1024, 5:4, SXGA
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$110.00 $108.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
1/1
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
  • Description
HannStar HSD190MEN4-A03 19 inch 1280×1024 LCD panel Display For Industrial
Item Specification Unit
Manufacturer HannStar
Model HSD190MEN4-A03
Display Size 19.0 (Diagonal) inch
Resolution 1280 × 1024 (SXGA, RGB Vertical Stripe) dots
Aspect Ratio 5:4 (Landscape)
Display Type a-Si TFT-LCD, TN, Normally White, Transmissive
Active Area 376.32 × 301.056 mm
Outline Dimensions 396 × 324 × 17 (Typ.) mm
Pixel Pitch 0.294 × 0.294 mm
Brightness 250 (Typ.) cd/m²
Contrast Ratio 800:1 (Typ.)
Viewing Angle (L/R/U/D) 85/85/75/85 (CR≥10) deg
Response Time (Tr+Td) 5 (Typ.) ms
Backlight 2 × CCFL (Top/Bottom Edge)
Interface LVDS (2 ch, 8-bit)
Surface Treatment Antiglare, Hard coating (3H)
Weight Approx. 1.86 kg
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Power Supply 5.0 V (Logic)
Power Consumption 3.5 (Logic) / 9.9 (Backlight) (Typ.) W
Color Gamut 16.7M Colors (6-bit + FRC)
RoHS Compliance Yes

General Applications

  • Industrial Workstations & HMI: Factory automation, CNC machinery, and industrial control rooms requiring high-resolution displays.
  • Medical Imaging & Diagnostics: Radiology, ultrasound, and laboratory equipment needing accurate color and sharp detail reproduction.
  • Retail & Kiosk Systems: POS terminals, self-service kiosks, and digital signage in shopping malls, banks, and airports.
  • Office & Enterprise Displays: Industrial monitors, desktop terminals, and video conferencing systems.
  • Test & Measurement: Oscilloscopes, data acquisition systems, and industrial test equipment with detailed graphical interfaces.
