| Product Type | Industrial HDMI IPS TFT Display Module |
| Attribute | Specification |
|---|---|
| Screen Size | 12.1 inches |
| Resolution | 1024 × 768 pixels (XGA) |
| Display Type | IPS TFT - Color |
| Brightness | 1200 cd/m² (Sunlight Readable) |
| Backlight Type | LED |
| Backlight Lifespan | 70,000 hours typical |
| Active Area (W × H) | 245.76 × 174.2 mm |
| Viewing Direction | All directions |
| Attribute | Specification |
|---|---|
| Video Interface | HDMI, DVI (via HDMI) |
| Touch Interface | USB (for touchscreen, if equipped) |
| Command Protocol | HDMI with automatic EDID |
| Input Voltage | 12 VDC (±?) |
| Controller | TFP401A + LPC11U23 |
| Attribute | Specification |
|---|---|
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Module Dimensions (W × H) | 260.5 × 203 mm |
| Touchscreen | None (optional upgrade) |
Plug and play HDMI display
Automatic resolution detection
Upgradable touch driver firmware
Semi-custom designs available
If your device is a complete touchscreen computer (with Windows OS), this is the correct match.
| Category | Specification |
|---|---|
| Manufacturer | WOKE (Guangxi Woke Technology) |
| Product Type | Industrial Panel PC / All-in-one Touch Computer |
| Attribute | Specification |
|---|---|
| Screen Size | 12.1 inches |
| Resolution | 1024 × 768 pixels (XGA) |
| Brightness | 300 cd/m² |

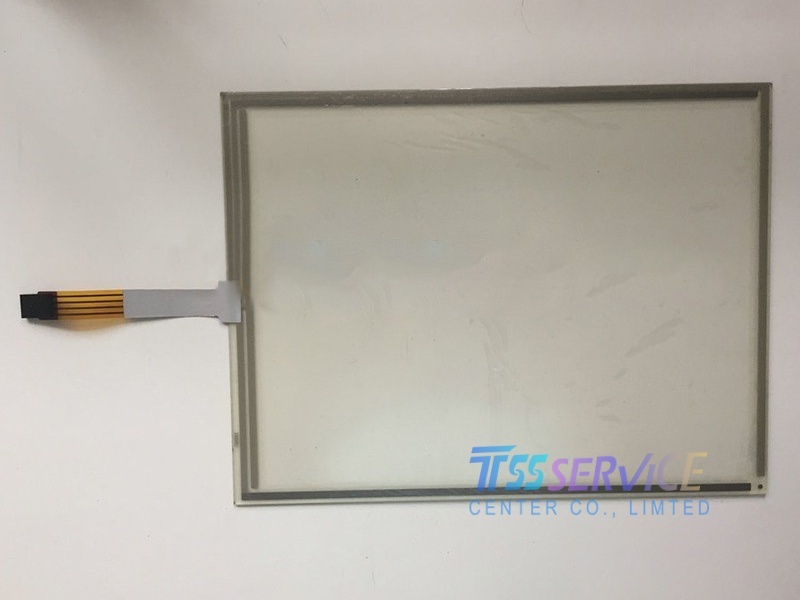

| Touchscreen | Resistive (optional) |
| Attribute | Specification |
|---|---|
| Processor | Intel Atom N270 1.6GHz |
| Chipset | Intel 945GSE + ICH7M |
| Graphics Engine | Intel GMA 950 |
| System Memory | Up to 2GB DDR2 |
| Storage | Not specified |
| Attribute | Specification |
|---|---|
| Serial Ports | 4 × RS-232 |
| Ethernet | 2 × Intel 82574L GbE LAN |
| Audio | 2-channel HD Audio with 6W amplifier |
| Power Input | 12V DC (4A adapter) |
| Attribute | Specification |
|---|---|
| External Dimensions (D × W × H) | 340 × 260 × 90.3 mm |
| Chassis Material | 8mm anodized aluminum alloy panel |
| Chassis Color | Black |
| Mounting | Multiple mounting options supported |
| Cooling | Fanless (low power) |
