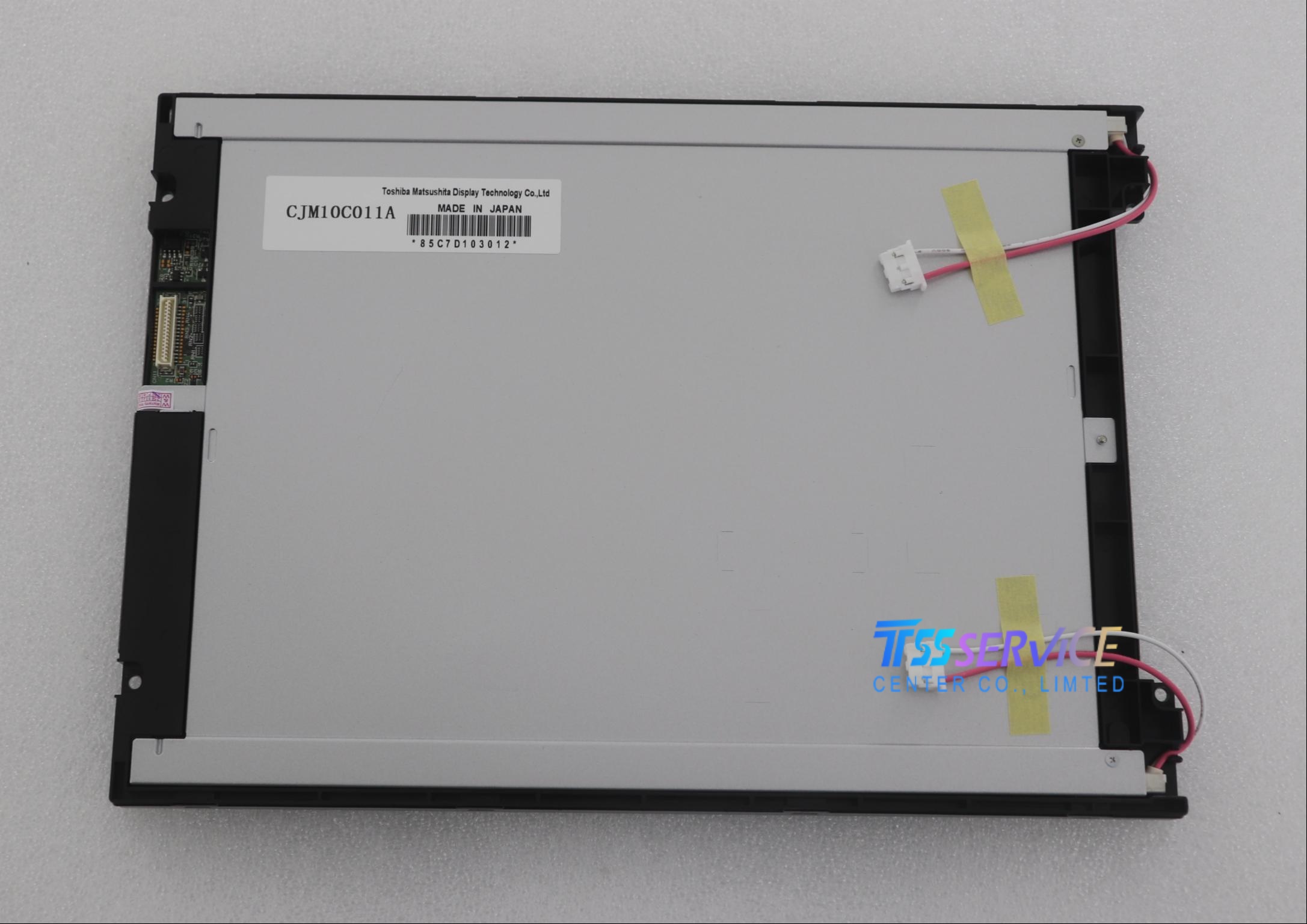

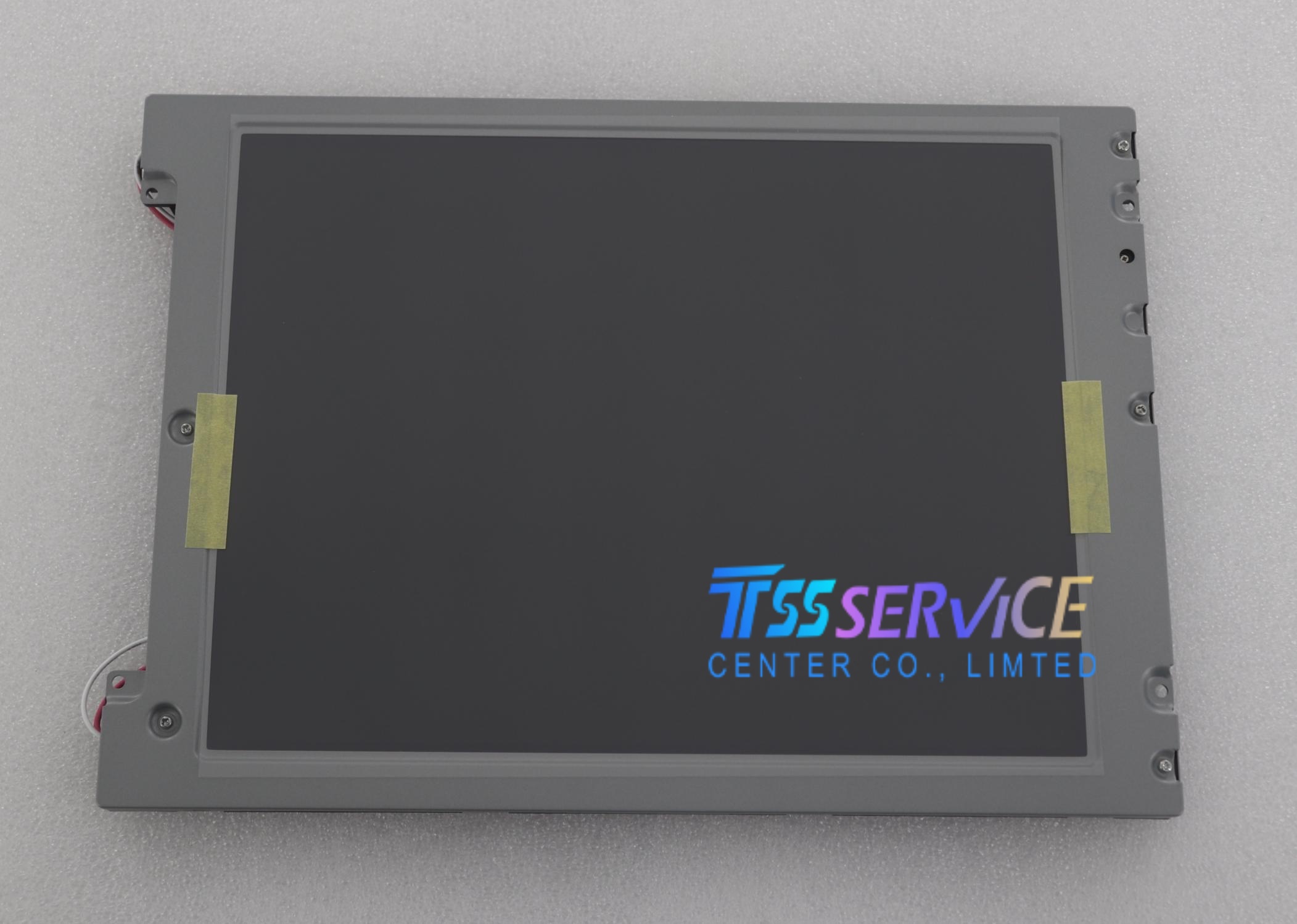

JLCX 10.4 INCH LCD PANEL DISPLAY CJM10C011A USE FOR INDUSTRIAL
Specifications
| Brand |
JLCX |
Model |
CJM10C011A |
| Size |
10.4 Inch |
Pixel Format |
RGB Vertical Stripe |
| Active Area |
- 211.2 mm (W) × 158.4 mm (H)
|
Outline Size |
265.0 × 188.8 mm |
| Brightness |
250 cd/m² |
Contrast Ratio |
200:1 |
| Resolution |
640×480 |
Lamp |
CCFL |
| Surface |
anti-glare hard coating |
Frequency |
60Hz |
| Panel Type |
a-Si TFT-LCD, LCM |
Touch screen |
without |
| Signal Interface |
- Parallel TTL RGB, 31-pin FPC connector
|
Environment |
- Operating Temp.:0 ℃ ~ +50 ℃ ; Storage Temp.: -20 ℃ ~ +60 ℃
|
Typical Applications
1.Factory Automation HMI
Injection molding machine operation panels, CNC machine tool displays, assembly line control terminals, old PLC human.machine screens
2.Medical Auxiliary Equipment
Portable vital sign detectors, medical testing instrument display terminals, rehabilitation equipment control screens
3.Construction & Logistics Machinery
Forklift monitoring screens, small engineering machinery operation displays
4.Test & Measurement Instruments
Industrial inspection equipment, laboratory analyzers, signal testing devices
5.Kiosk & Special Control Equipment
Vending machine master screens, small industrial access control panels, old industrial monitoring equipment
6.Marine & Light Special Vehicle On-board Displays
Small ship auxiliary control screens, agricultural machinery operation terminal
