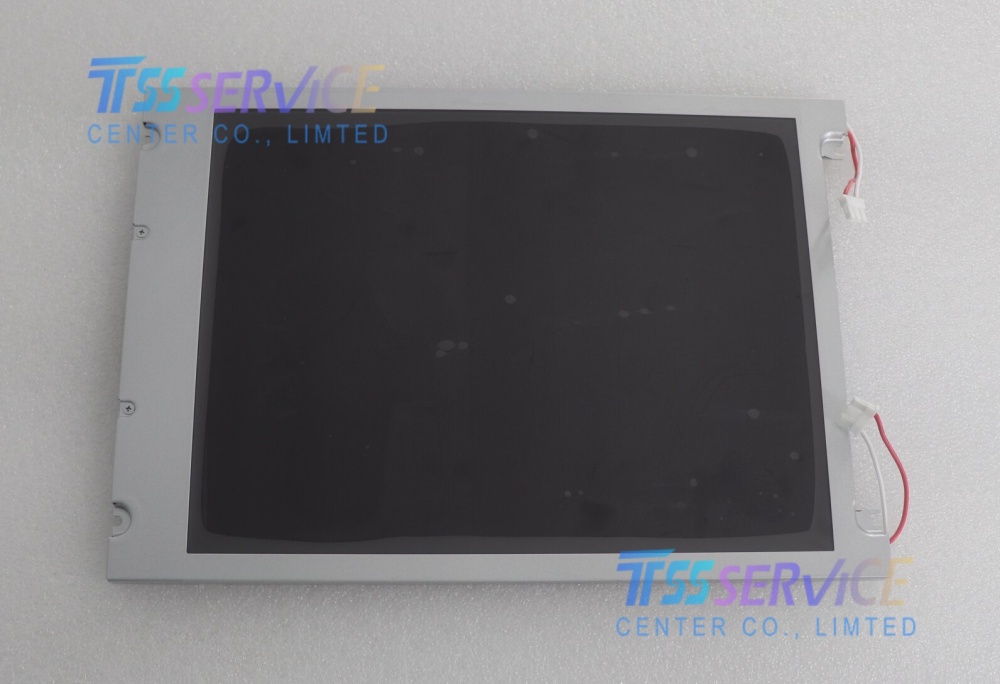

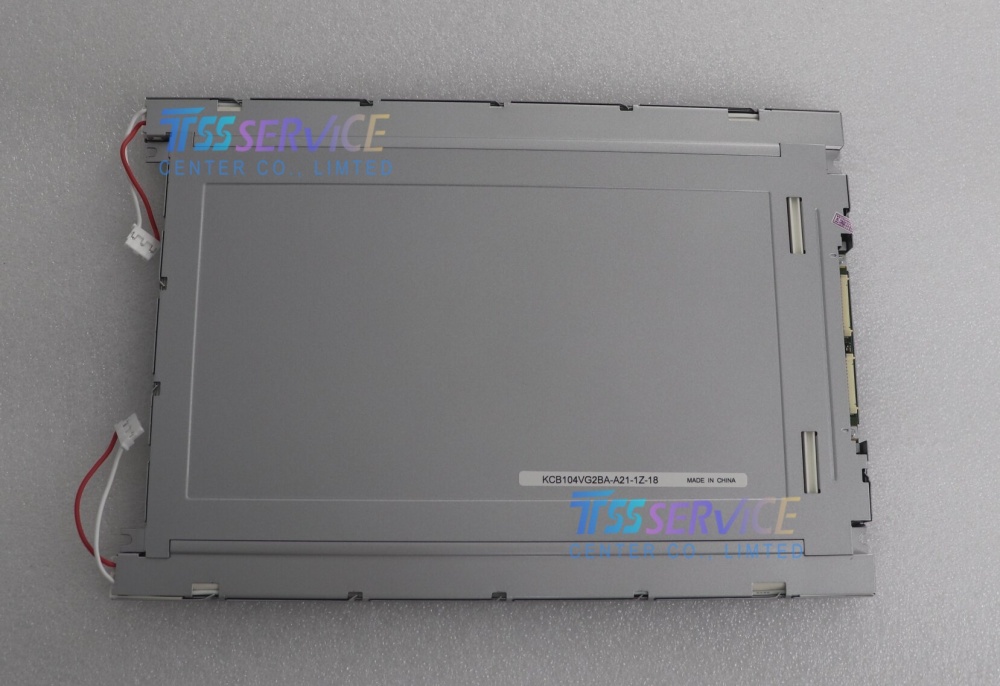

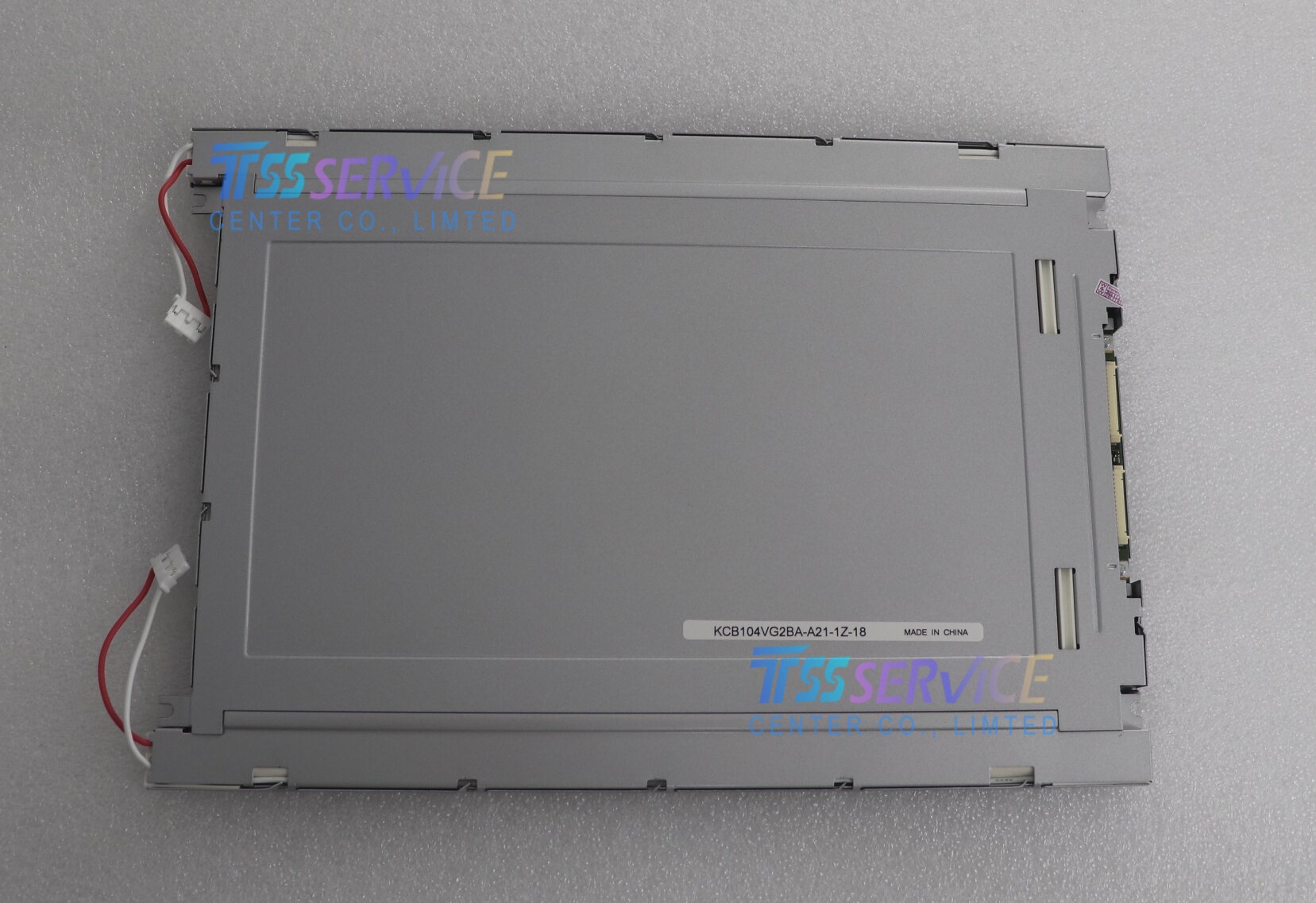

The Kyocera KCB104VG2BA-A21 is a 10.4-inch CSTN-LCD (Color Super-Twisted Nematic) display module designed for industrial applications . It features a classic VGA resolution of 640×480 pixels with an RGB vertical stripe arrangement, delivering clear and stable image output at a 75Hz refresh rate.
| Parameter |
Value |
| Brand |
Kyocera |
| Model P/N |
KCB104VG2BA-A21 |
| Diagonal Size |
10.4" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
640(RGB)×480, VGA 76PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
217.2(W)×164.4(H) mm |
| Outline (mm) |
264×183×9 (H×V×D) |
| Treatment |
Antiglare |
| Luminance |
150 cd/m² (Typ.) |
| Contrast Ratio |
20 : 1 (Typ.) (TM) |
| Viewing Angle |
45/45/35/20 (Typ.)(CR≥2) |
| Response |
16/80 (Typ.)(Tr/Td) ms |
| Work Mode |
STN, Normally Black, Transmissive |
| Color Depth |
Color 39% NTSC |
| Backlight |
2 pcs CCFL, 60K hours , Optional |
| Mass |
540g (Typ.) |
| Refresh Rate |
75Hz |
| Touchscreen |
Without |
| Signal Type |

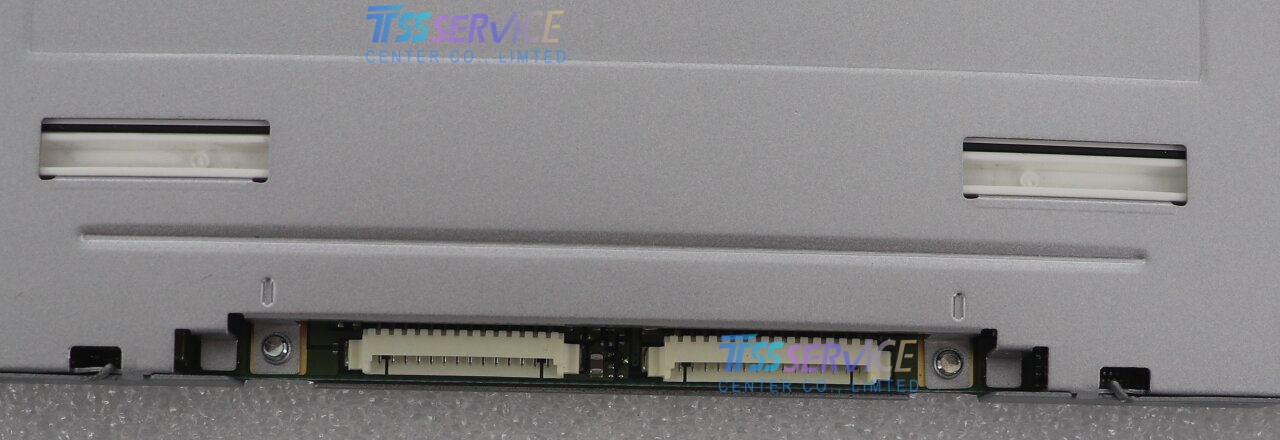

Parallel Data (1ch, 8-bit), Connector 29 pins |
| Voltage Supply |
5.0V (Typ.) |
| Max. Ratings |
Storage Temp.: -20 ~ 60 °C; Operating Temp.: 0 ~ 40 °C |
Key Applications
The KCB104VG2BA-A21 is specifically engineered for reliability in demanding environments, making it suitable for a variety of industrial and commercial uses:
-
Industrial Automation & Machine Control: Commonly used as Human-Machine Interface (HMI) displays for industrial equipment, including PLC interfaces, CNC machine tools, and injection molding machines
-
Industrial Panel PCs: Integrated into industrial panel PCs and control terminals for factory automation and process control
-
Banking & Financial Terminals: Suitable for use in banking kiosks and self-service terminals where reliable display performance is required
-
Specialized Vehicle-Mounted Systems: Can be deployed in vehicle-mounted terminals and equipment used in logistics and transportation applications
-
Legacy System Upgrades: Often used as a drop-in replacement or upgrade solution for older industrial equipment that originally used VGA-resolution displays .
