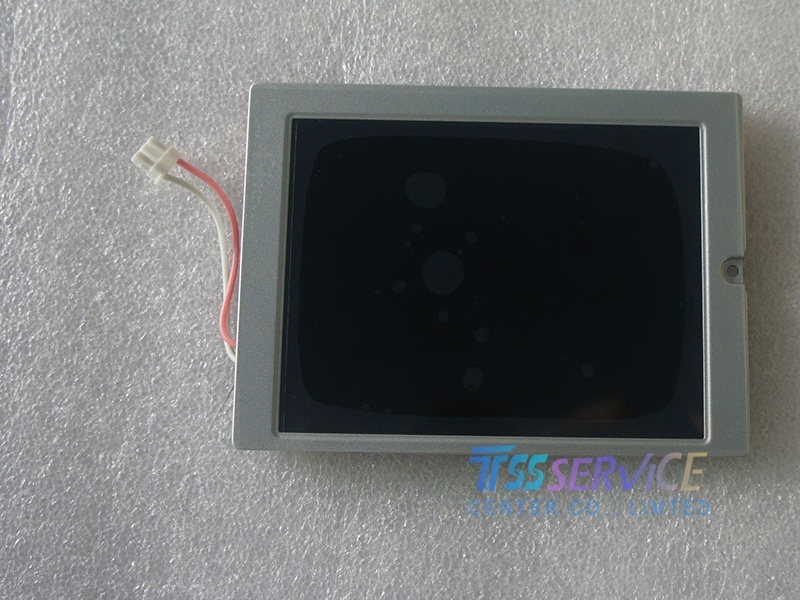

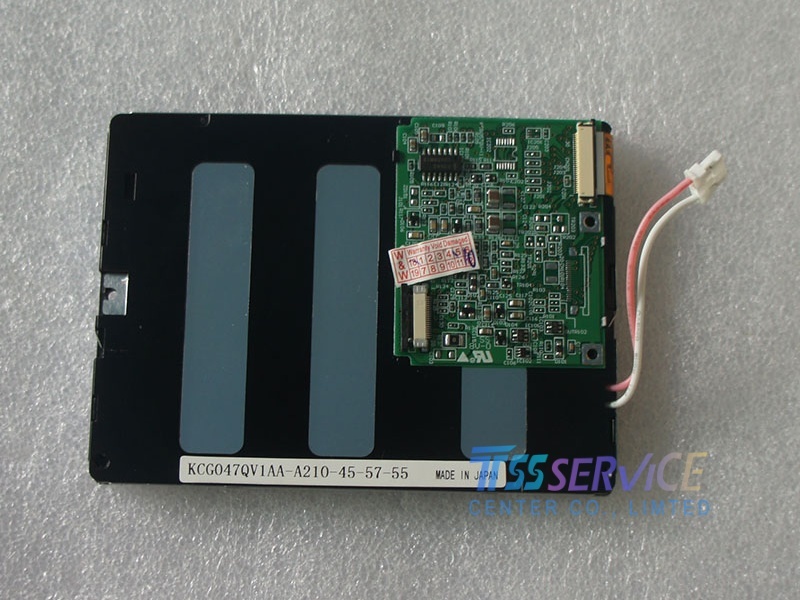

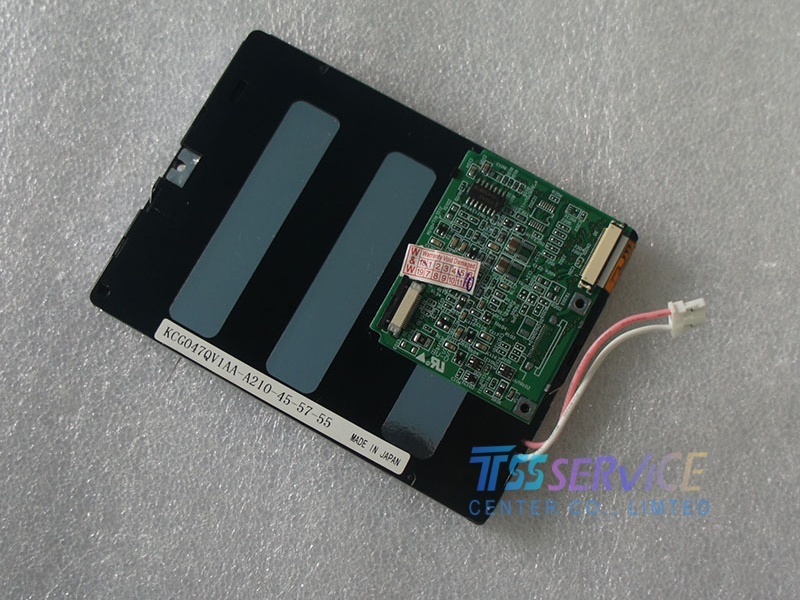

The KCG047QV1AA-A210 is a compact and reliable 4.7-inch TFT LCD module produced by Kyocera . Featuring a standard QVGA resolution, this panel is engineered for applications that require a clear, durable display in a small form factor, commonly used in industrial, medical, and embedded systems where consistent performance is critical.
| Parameter | Specification |
|---|---|
| Model Number | KCG047QV1AA-A210 |
| Manufacturer | Kyocera |
| Display Type | a-Si TFT LCD, Transmissive |
| Screen Size | 4.7 inches (diagonal) |
| Active Area | 95.98(W)×71.98(H) mm |
| Resolution | 320(RGB)×240, QVGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Color Depth | 262K colors (6-bit + FRC typical) |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 450:1 (typical) |
| Viewing Angle | 50/50/15/35 (Typ.)(CR≥2) |
| Response Time | 20 ms (typical, rise + fall) |
| Backlight Type | LED |
| Backlight Lifetime | 50,000 hours (typical to half-brightness) |
| Interface | Parallel Data |
| Supply Voltage | 3.3V (Logic), 5.0V or 3.3V (Backlight, depending on variant) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Module Dimensions | 122.4×90×11.4 (H×V×D) |
| Weight | ~85g (typical) |
