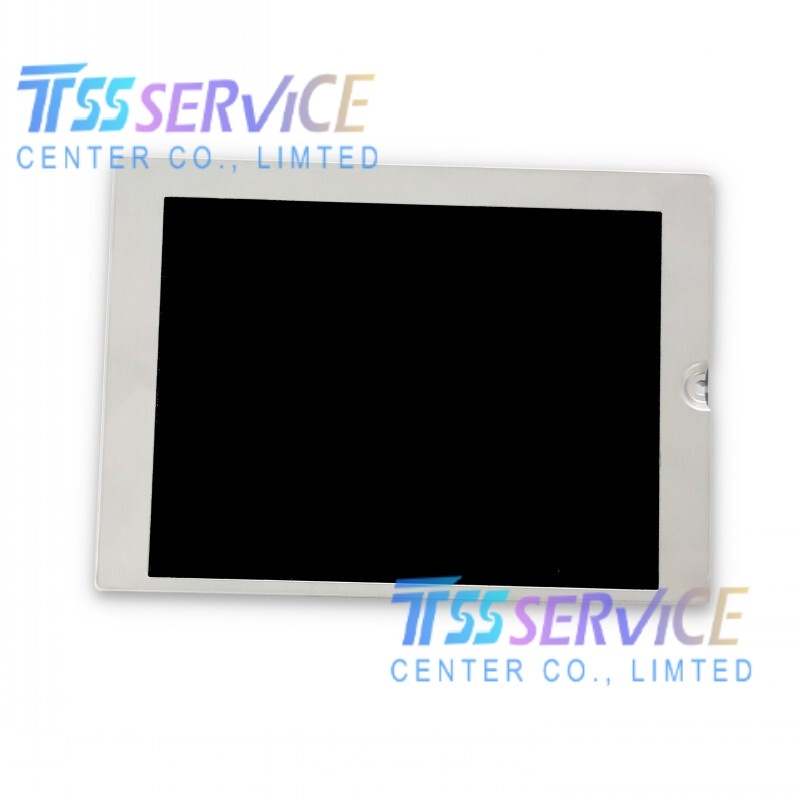

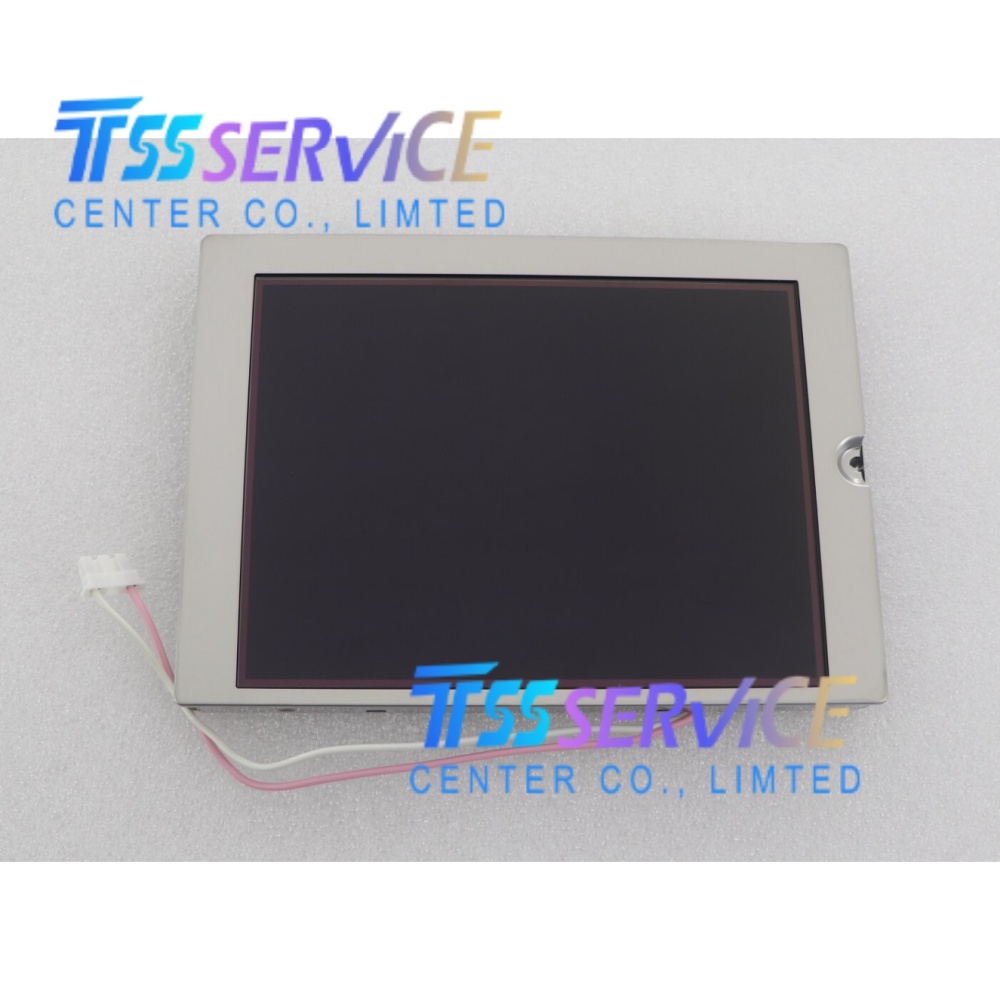

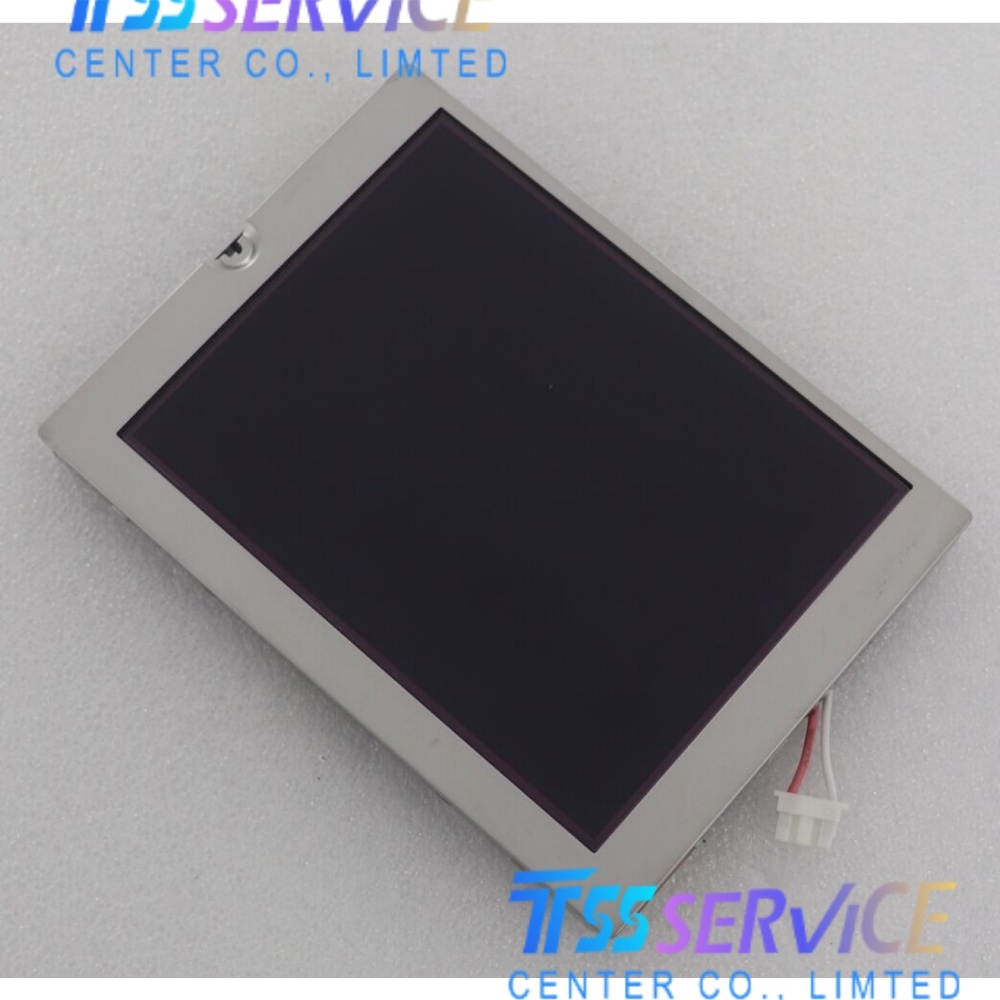

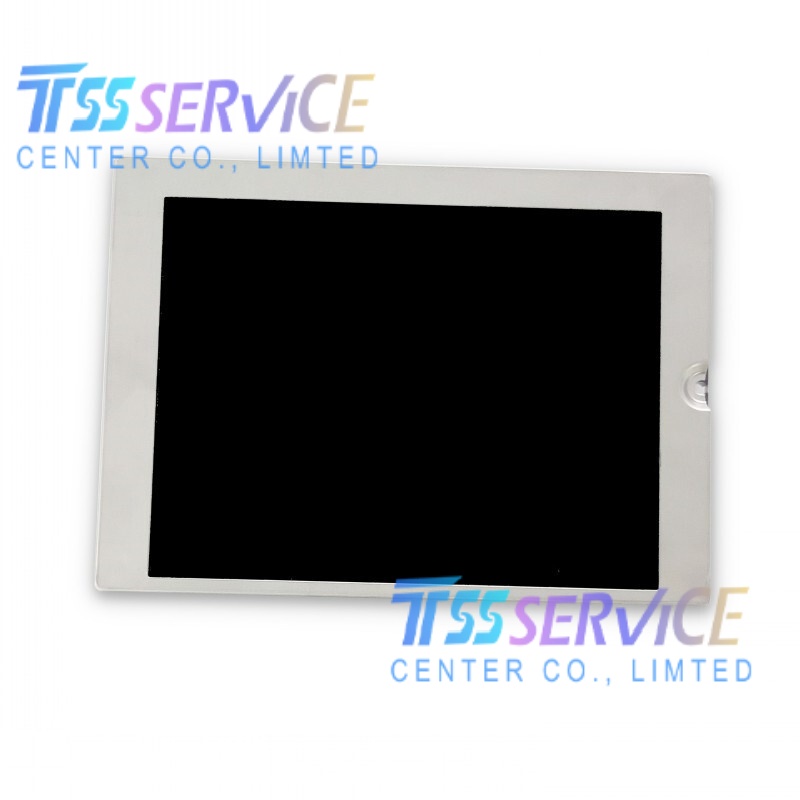

KYOCERA KCG057QV1DB-G070 5.7 Inch 320×240 LCD Module Industrial Display Screen
| Spec Item |
Detailed Parameter |
| Manufacturer |
KYOCERA (Japan Original) |
| Model Number |
KCG057QV1DB-G070 (Alias: KCG057QV1DB-G70) |
| Screen Size |
5.7 inch Landscape |
| Panel Type |
Color CSTN-LCD LCM, Transmissive, Normally Black |
| Native Resolution |
320(RGB) × 240, QVGA, 4:3 Aspect Ratio, 70PPI |
| Active Display Area |
115.2(W) × 86.4(H) mm |
| Overall Outline Dimension |
144(W) × 104.8(H) × 13.2(D) mm |
| Net Weight |
Approx 175g |
| Typical Luminance |
400 cd/m² |
| Contrast Ratio (Typ.) |
55:1 (TM Mode) |
| Viewing Angle (CR≥2) |
Left 50° / Right 50° / Up 20° / Down 35° |
| Response Time (Tr/Td) |
180ms / 170ms Typical |
| Refresh Rate |
75Hz |
| Display Color |
Color CSTN, Multi-Color Graphic Output |
| Surface Feature |
Glossy Surface (Haze 0%) |
| Backlight |
Single Side CCFL Lamp, 75,000 Hours Lifespan, Separate Inverter Required |
| Signal Interface |
1 Channel 8-bit Parallel CPU Data, 20Pin FPC Connector |
| Supply Voltage (VDD) |
3.3V / 5.0V Dual Support |
| Touchscreen |
Without Touch Function |
| Operating Temperature |
0 ~ 60 ℃ Industrial Grade |
| Storage Temperature |
-20 ~ 70 ℃ |
| RoHS Compliance |
RoHS Compliant |
| Compatible Series |
Interchangeable with KCG057QV1DB-G770 / G870 series |
Application
1. CNC & Plastic Molding Automation Equipment
Legacy CNC machine tool operation HMI panels, injection molding machine parameter display screens, blow molding machinery control terminals, textile printing equipment monitoring panels, die-casting machine operation interfaces.
2. Factory PLC & Industrial Control Terminals
Small PLC production line monitoring units, industrial weighing control panels, packaging machine parameter displays, factory environmental gas detector host screens.
3. Laboratory & Portable Testing Instruments
Industrial electrical fault diagnostic testers, laboratory aging analysis equipment, optical inspection measuring devices, mechanical defect detection control panels.
4. Building & Safety Control Systems
Fire alarm host color display terminals, elevator car operation control screens, central air-conditioner parameter monitoring panels, factory access control display units.
5. Equipment Refurbishment & Aftermarket Maintenance
Direct original replacement spare screen for broken KYOCERA KCG057QV1DB series LCD modules, premium Japanese spare parts for discontinued industrial machinery, second-hand automation equipment renovation projects.
