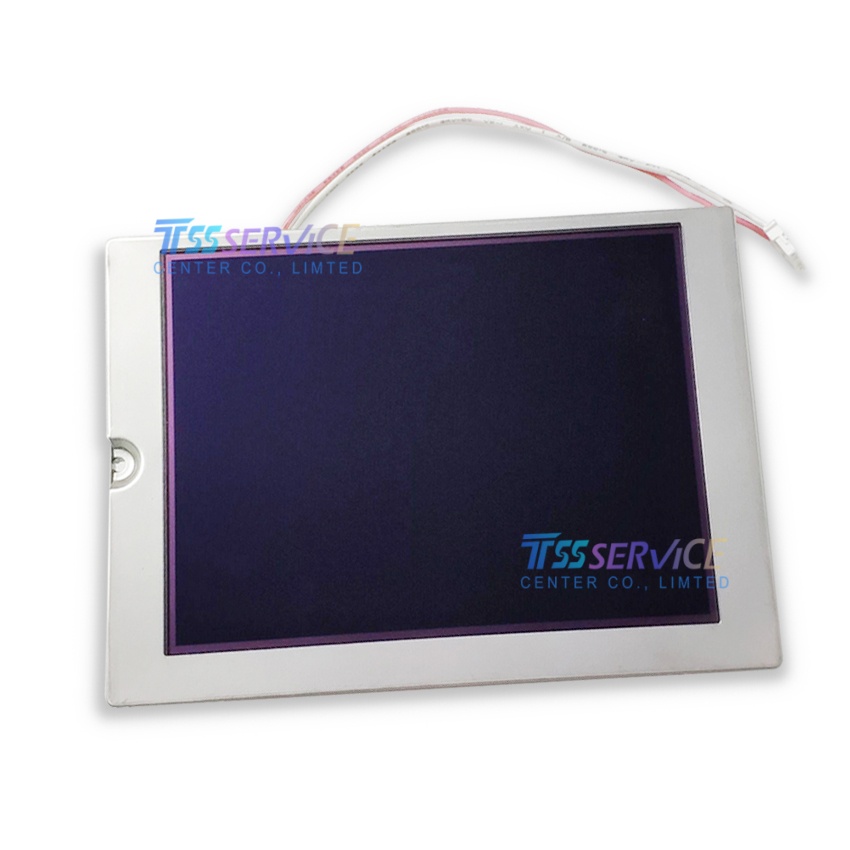

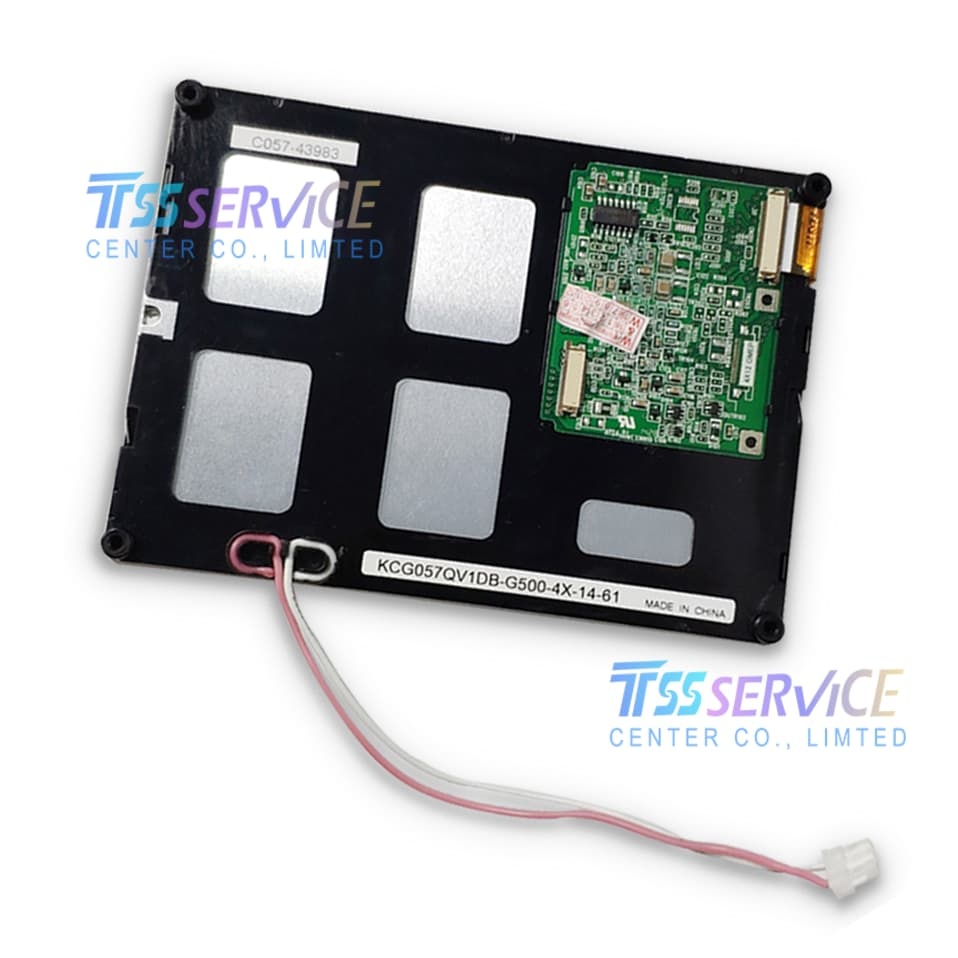

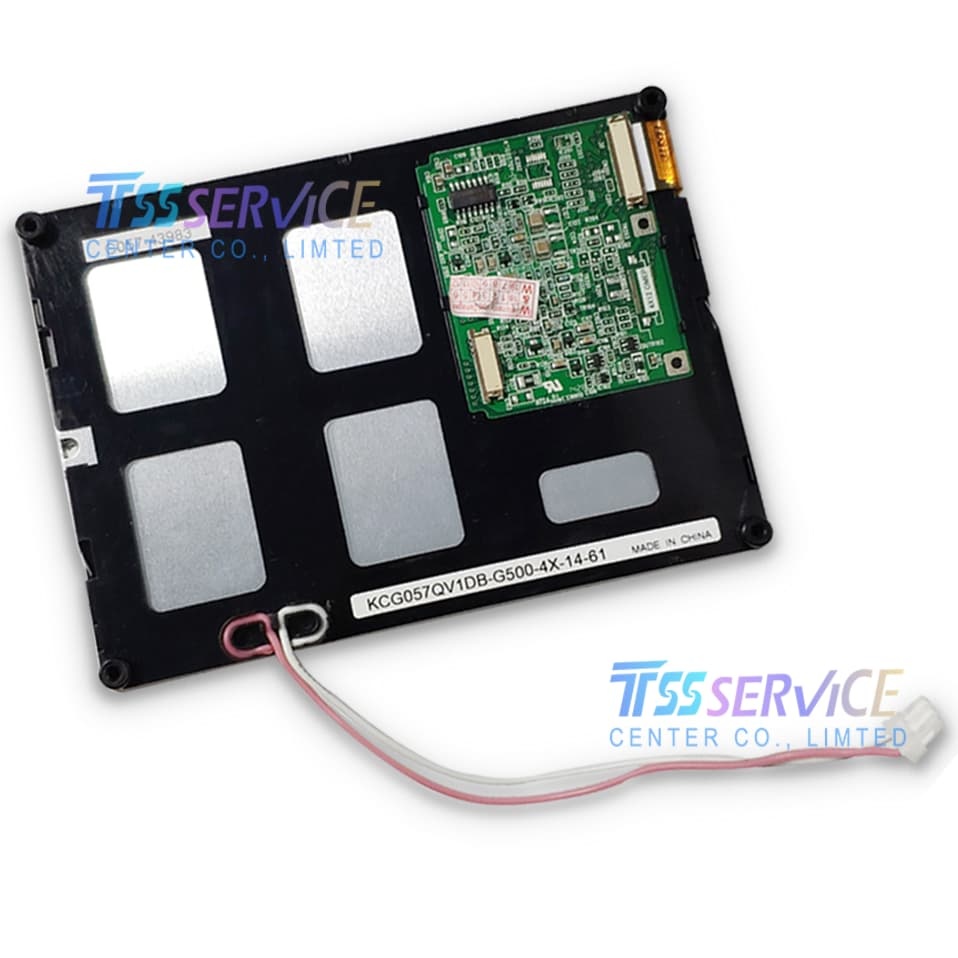

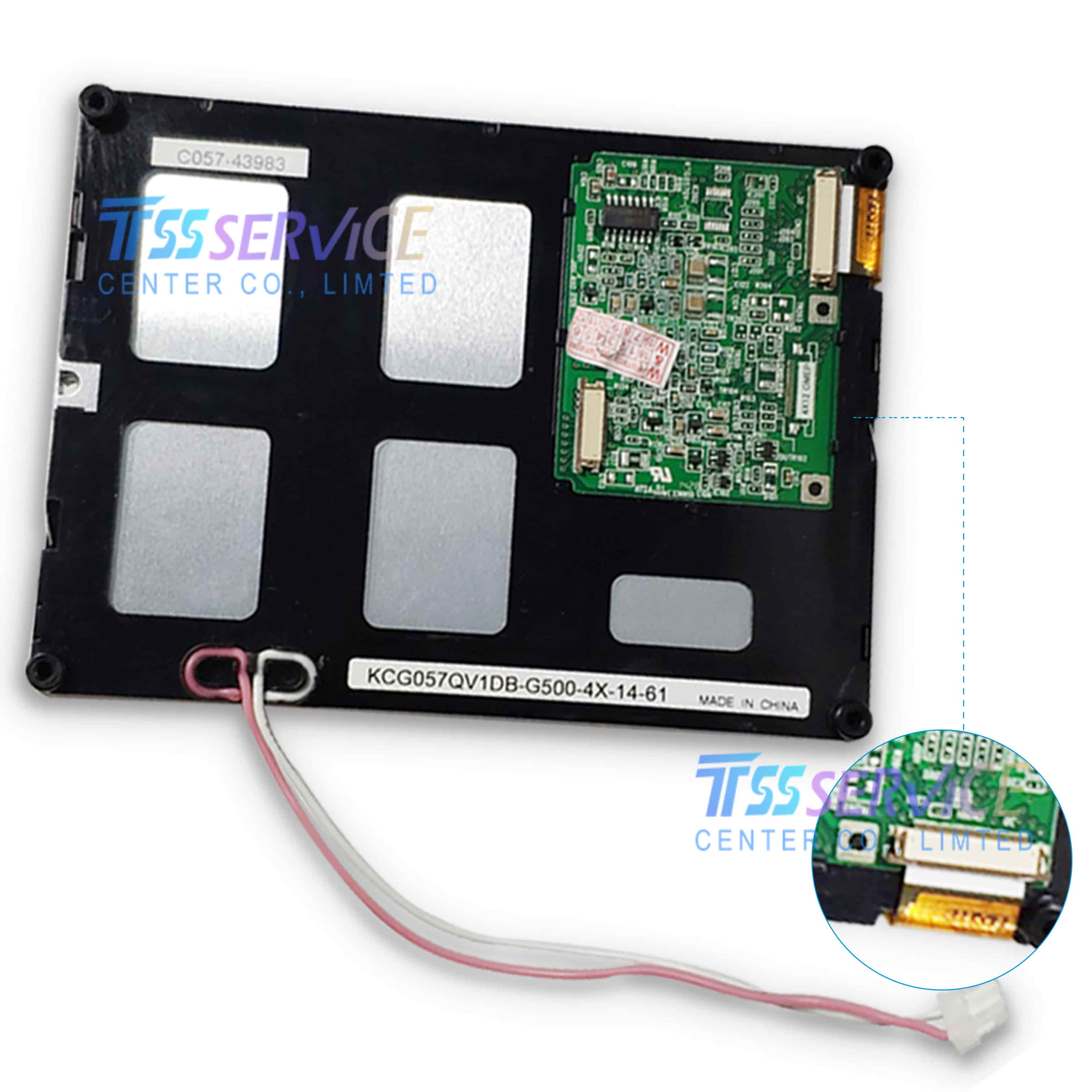

The KCG057QV1DB-G500 is a 5.7-inch amorphous silicon (a-Si) Color Super Twisted Nematic (CSTN) Liquid Crystal Display (LCD) module manufactured by Kyocera Corporation . Engineered for reliable performance in industrial applications, this module delivers clear visibility, robust durability, and stable operation in demanding environments, making it a trusted choice for factory automation, industrial control systems, and measurement equipment.
| Parameter |
Value |
| Brand |
Kyocera |
| Model P/N |
KCG057QV1DB-G500 |
| Diagonal Size |
5.7" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA 70PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
119.4(W)×90.6(H) mm |
| Outline Dim. |
144(H)×104.8(V)×13.2(D) mm |
| Treatment |
Glare (Haze 0%) |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
55:1 (Typ.) (TM) |
| View Direction |
- |
| Response Time |
180/170 (Typ.)(Tr/Td) |
| Viewing Angle |
50/50/20/35 (Typ.)(CR≥2) |
| Operating Mode |
STN, Normally Black, Transmissive |
| Support Color |
Color 38% NTSC |
| Light Source |
CCFL [1 pcs], 75K hours, W/O Driver |
| Weight |
175g |
| Frame Rate |
75Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel Data (1ch, 8-bit), 20 pins Connector |
| Power Supply |
3.3/5.0V (Typ.)(VDD) |
| Environment |
Operating Temperature: 0 ~ 60 °C; Storage Temperature: -20 ~ 60 °C |
Applications
The KCG057QV1DB-G500 is ideally suited for a wide variety of industrial and commercial applications where reliability and longevity are critical, including:
-
Industrial Control Systems and human-machine interfaces (HMI)
-
Factory Automation (FA) equipment
-
CNC machinery and industrial equipment interfaces
-
Medical devices and patient monitors
-
Test and measurement equipment .
