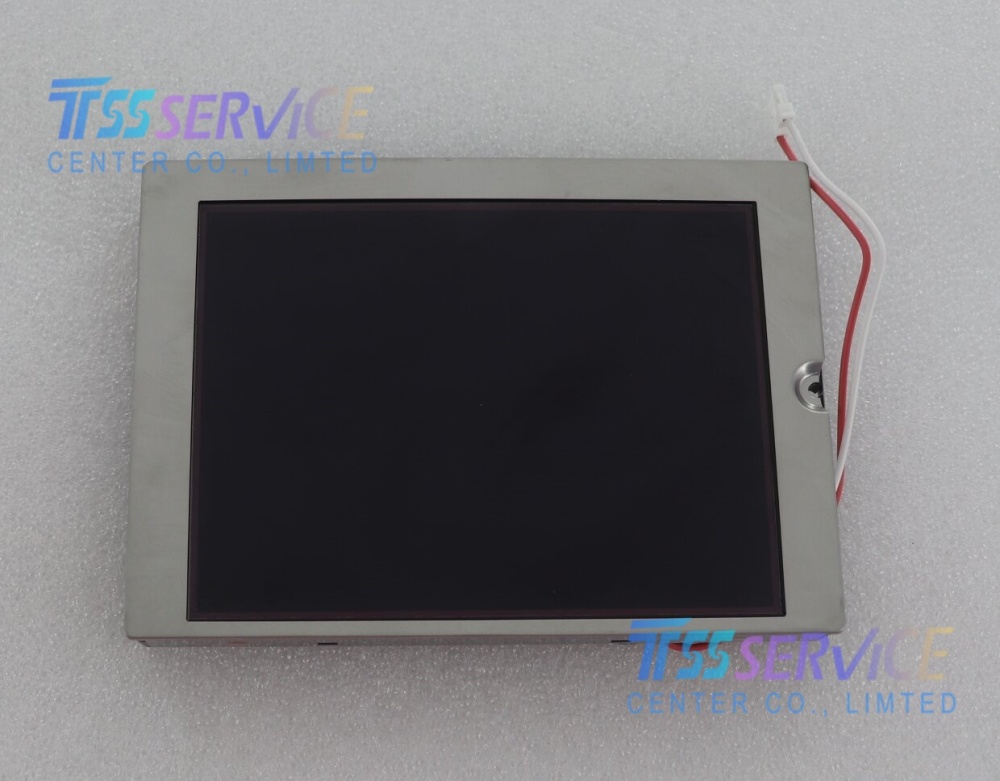

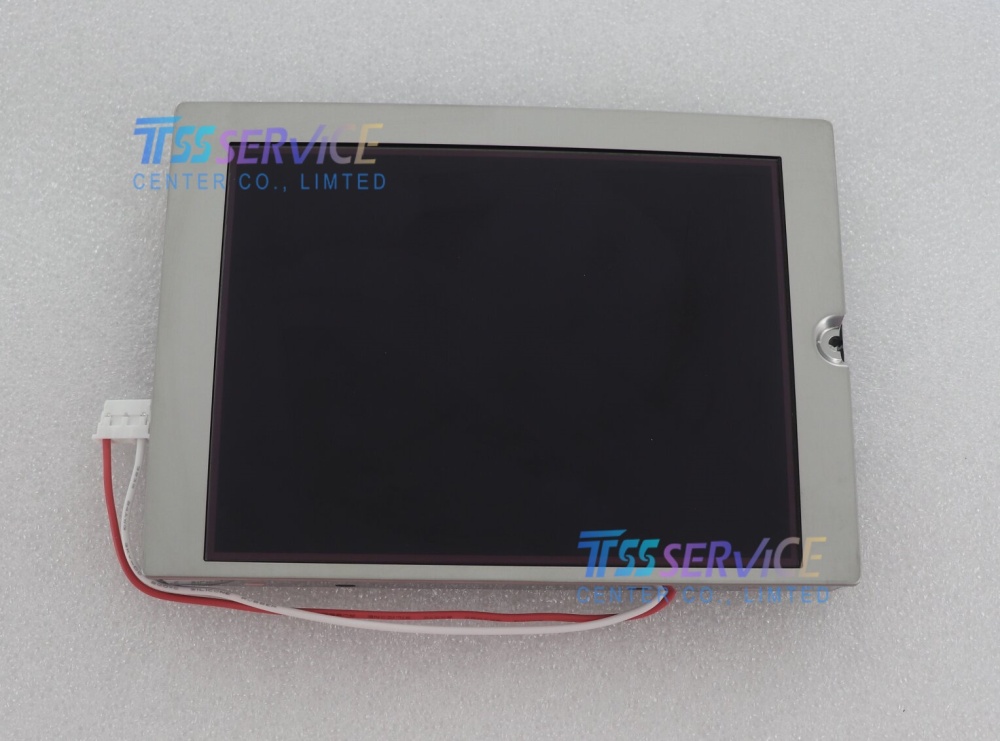

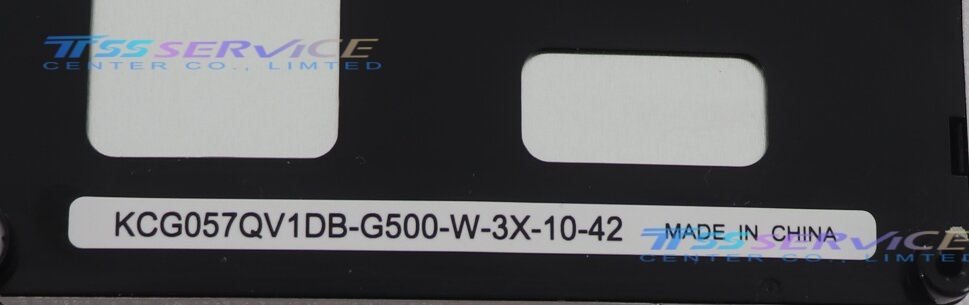

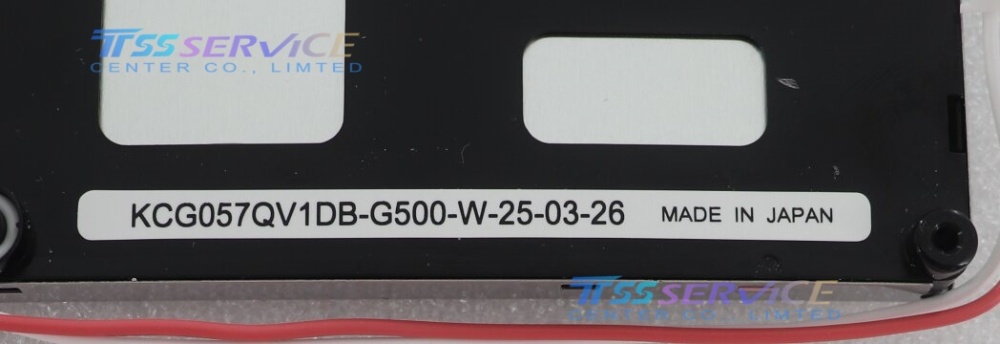

KCG057QV1DB-G500-W | Kyocera 5.7” QVGA CSTN-LCD Panel
KCG057QV1DB-G500-W is a 5.7-inch QVGA (320×240) color CSTN-LCD panel by Kyocera, featuring CCFL backlight, parallel interface, and cost-effective rugged performance for industrial embedded and HMI applications.
| Parameter Item |
Specification Details |
| Part Number |
KCG057QV1DB-G500-W |
| Manufacturer |
Kyocera |
| Display Size |
5.7 inch, landscape |
| Native Resolution |
320 × 240 pixels (QVGA), RGB vertical stripe |
| Display Technology |
CSTN-LCD, normally black, transmissive |
| Active Area |
115.2 mm (W) × 86.4 mm (H) |
| Outline Dimension |
144 mm (W) × 104.8 mm (H) × 13.2 mm (D) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
55:1 (Typ., CR≥2) |
| Viewing Angle |
50°/50°/20°/35° (L/R/U/D, CR≥2) |
| Response Time |
180 ms (Tr) / 170 ms (Td) (Typ.) |
| Display Colors |
Color (38% NTSC) |
| Backlight |
1×CCFL, 75,000 hours lifespan |
| Interface |
8-bit parallel data, 20-pin connector |
| Supply Voltage |
3.3V / 5.0V (Typ., VDD) |
| Operating Temperature |
0°C ~ +60°C |
| Storage Temperature |
-20°C ~ +60°C |
| Surface Treatment |
Glossy (Haze 0%) |
| Weight |
Approx. 175 g |
| Certifications |
RoHS compliant |
