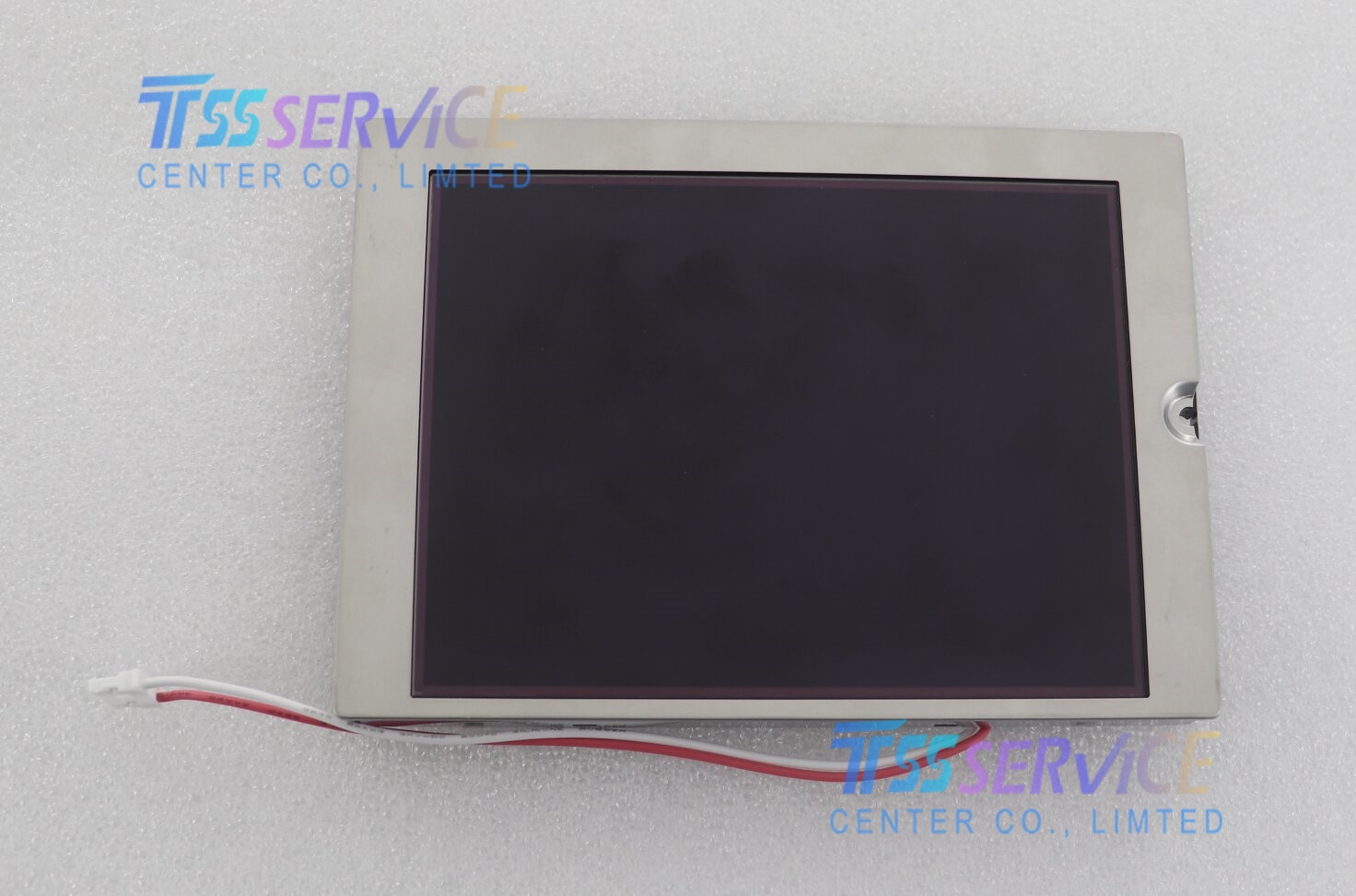

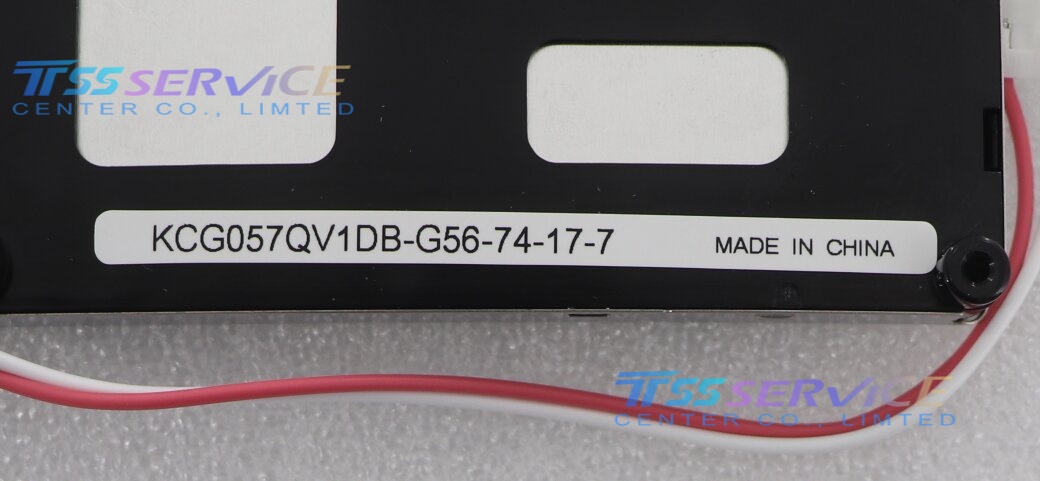

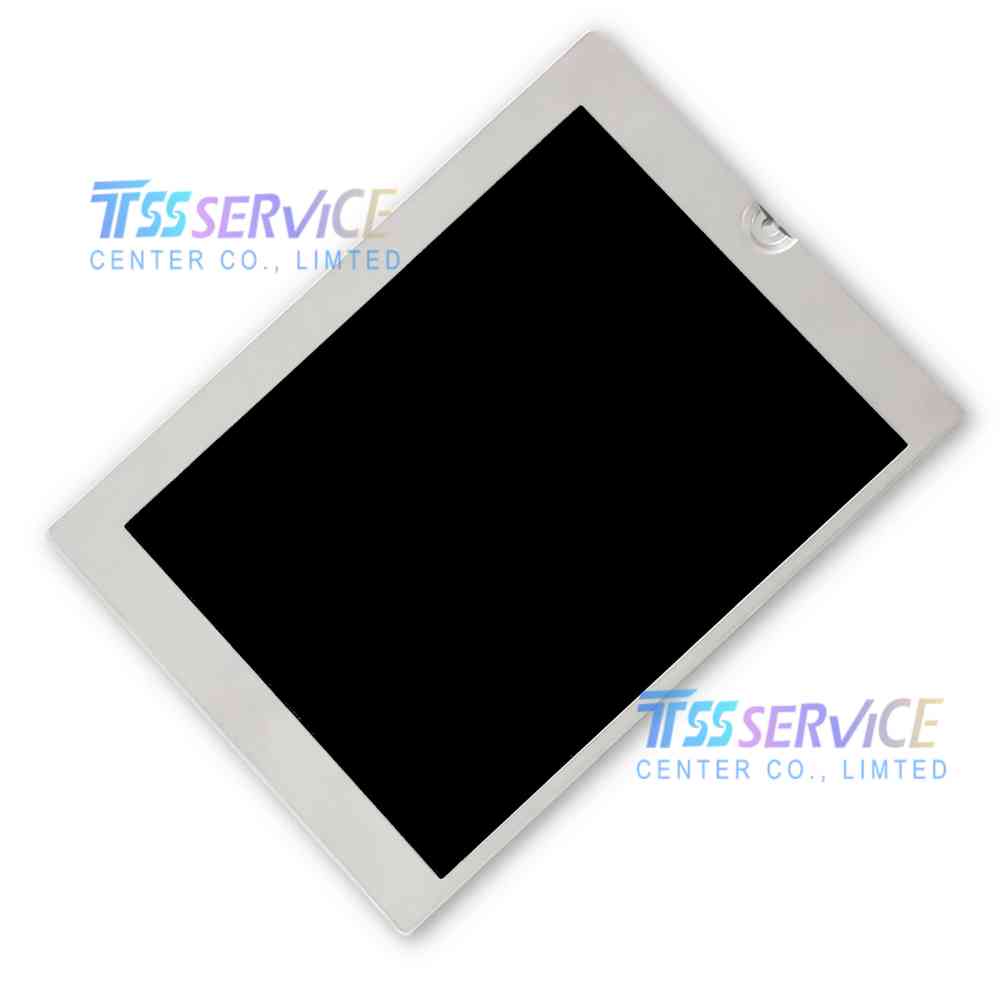

5.7inch 320×240 Kyocera Lcd Display Panel KCG057QV1DB-G56

Name: 5.7inch 320×240 Kyocera Lcd Display Panel KCG057QV1DB-G56
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG057QV1DB-G56
Price: 105 USD
Availability: InStock

SKU: KCG057QV1DB-G56

Model P/N: KCG057QV1DB-G56
Diagonal Size: 5.7"
Panel Type: CSTN-LCD, LCM
Resolution: 320(RGB)×240, QVGA 70PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $105.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The KCG057QV1DB-G56 is a 5.7-inch Color Super-Twisted Nematic (CSTN) Liquid Crystal Display (LCD) module manufactured by Kyocera Corporation. Specifically engineered for reliable performance in demanding industrial environments, this module delivers consistent visual clarity, robust durability, and stable operation, making it a trusted choice for factory automation, industrial control systems, and measurement equipment where long-term operational stability is a primary design criterion .

Parameter	Specification
Brand	Kyocera
Model P/N	KCG057QV1DB-G56
Diagonal Size	5.7"
Panel Type	CSTN-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	119.4(W)×90.6(H) mm
Outline (mm)	144 × 104.8 × 13.2 (H×V×D)
Contrast Ratio	60 : 1 (Typ.) (TM)
Viewing Angle	50/50/20/35 (Typ.)(CR≥2)
Response Time	180/170 (Typ.)(Tr/Td) ms
Work Mode	STN, Normally Black, Transmissive
Color Depth	Color
Backlight	1 pcs CCFL, Optional
Refresh Rate	75Hz
Touchscreen	Without
Signal Type	Parallel Data (1 ch, 8-bit), 20 pins Connector

Applications

The KCG057QV1DB-G56 is ideally suited for a wide variety of industrial and commercial applications where long-term reliability and proven technology are paramount， including:
