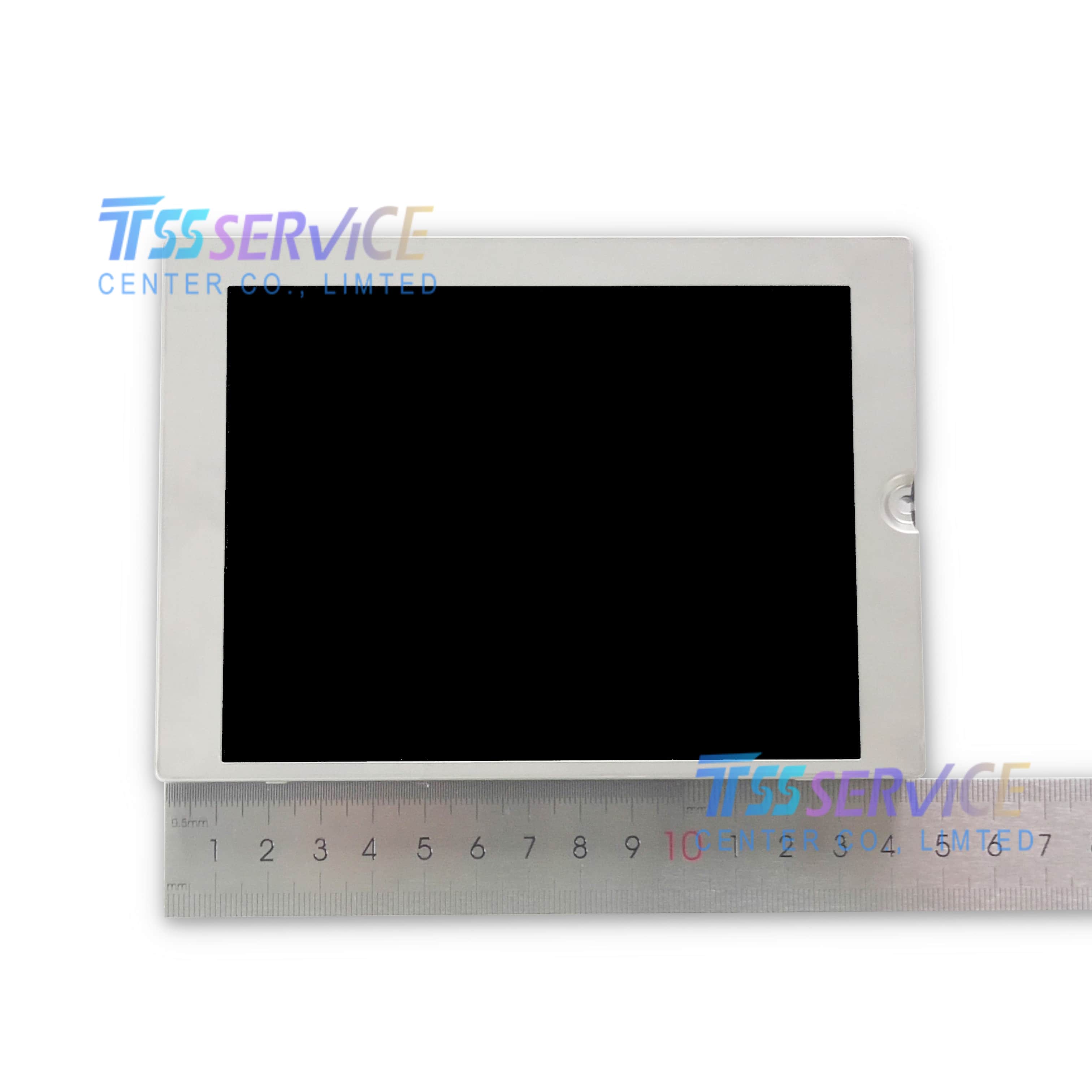

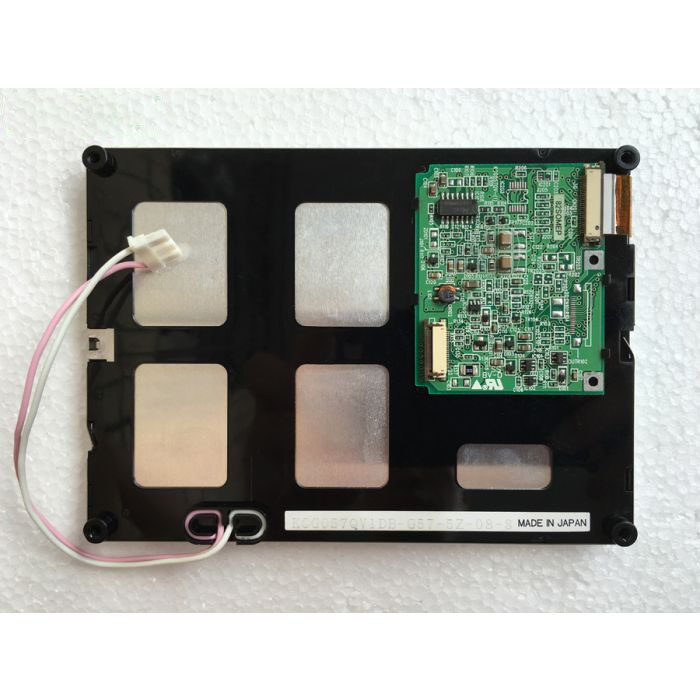

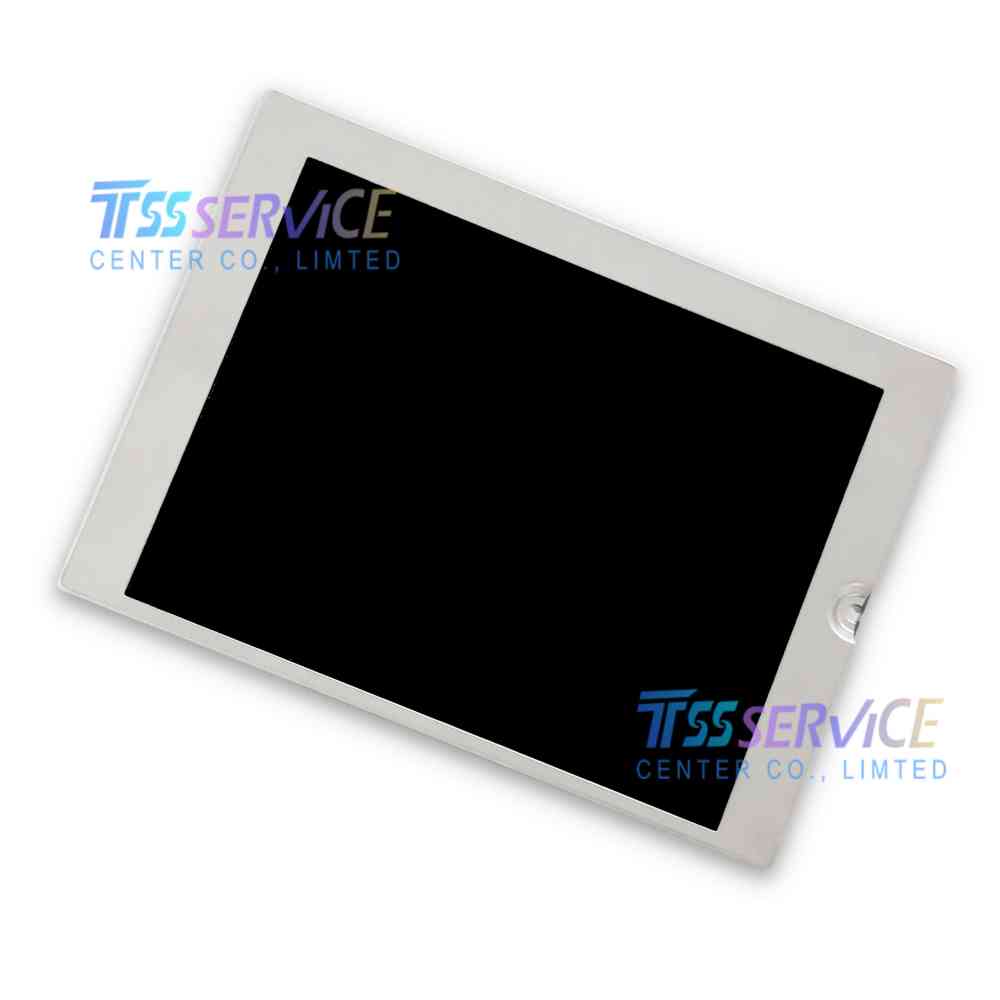

KCG057QV1DB-G57 5.7inch 320×240, QVGA Lcd panel for Kyocera

Name: KCG057QV1DB-G57 5.7inch 320×240, QVGA Lcd panel for Kyocera
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG057QV1DB-G57
Price: 98 USD
Availability: InStock

SKU: KCG057QV1DB-G57

Model P/N: KCG057QV1DB-G57
Diagonal Size: 5.7"
Panel Type: CSTN-LCD, LCM
Resolution: 320(RGB)×240, QVGA 70PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The KCG057QV1DB-G57 is a 5.7-inch Color Super-Twisted Nematic (CSTN) Liquid Crystal Display (LCD) module manufactured by Kyocera Corporation . Specifically engineered for reliable performance in industrial applications, this module delivers consistent visual clarity and stable operation, making it a trusted choice for factory automation, industrial control systems, and measurement equipment where proven technology and long-term operational stability are primary design criteria.

Parameter	Specification
Brand	Kyocera
Model P/N	KCG057QV1DB-G57
Diagonal Size	5.7"
Panel Type	CSTN-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	—
Brightness	—
Contrast Ratio	60:1 (Typ.) (TM)
Viewing Angle	50/50/20/35 (Typ.)(CR≥2)
Display Mode	STN, Normally Black, Transmissive
Best View on	—
Response Time	180/170 (Typ.)(Tr/Td) ms
Display Colors	Color
Lamp Type	1 pcs CCFL, Optional
Frequency	75Hz
Touch Screen	Without
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 60 °C

Applications

The KCG057QV1DB-G57 is ideally suited for a wide variety of industrial applications where proven technology and reliable performance are paramount, including :

Industrial Control Systems and human-machine interfaces (HMI)
Factory Automation (FA) equipment and control panels
CNC machinery and industrial equipment interfaces (e.g., FANUC, Siemens, Mitsubishi displays) -
Test and measurement equipment and portable diagnostic tools
Medical devices and patient monitors
Legacy system upgrades where QVGA resolution is the established standard.
