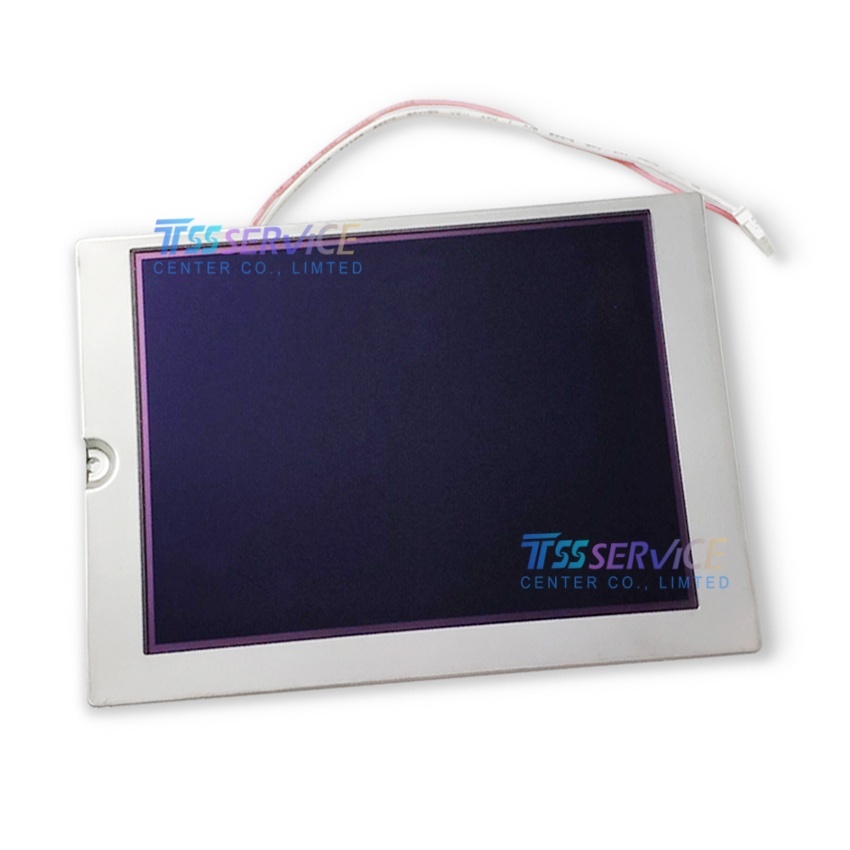

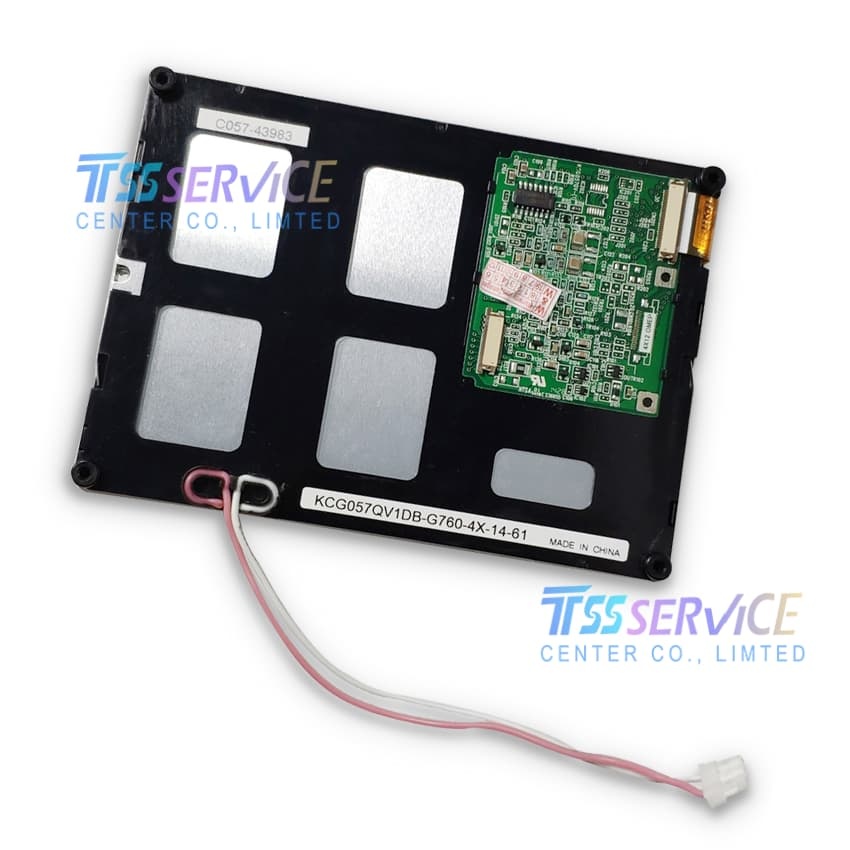

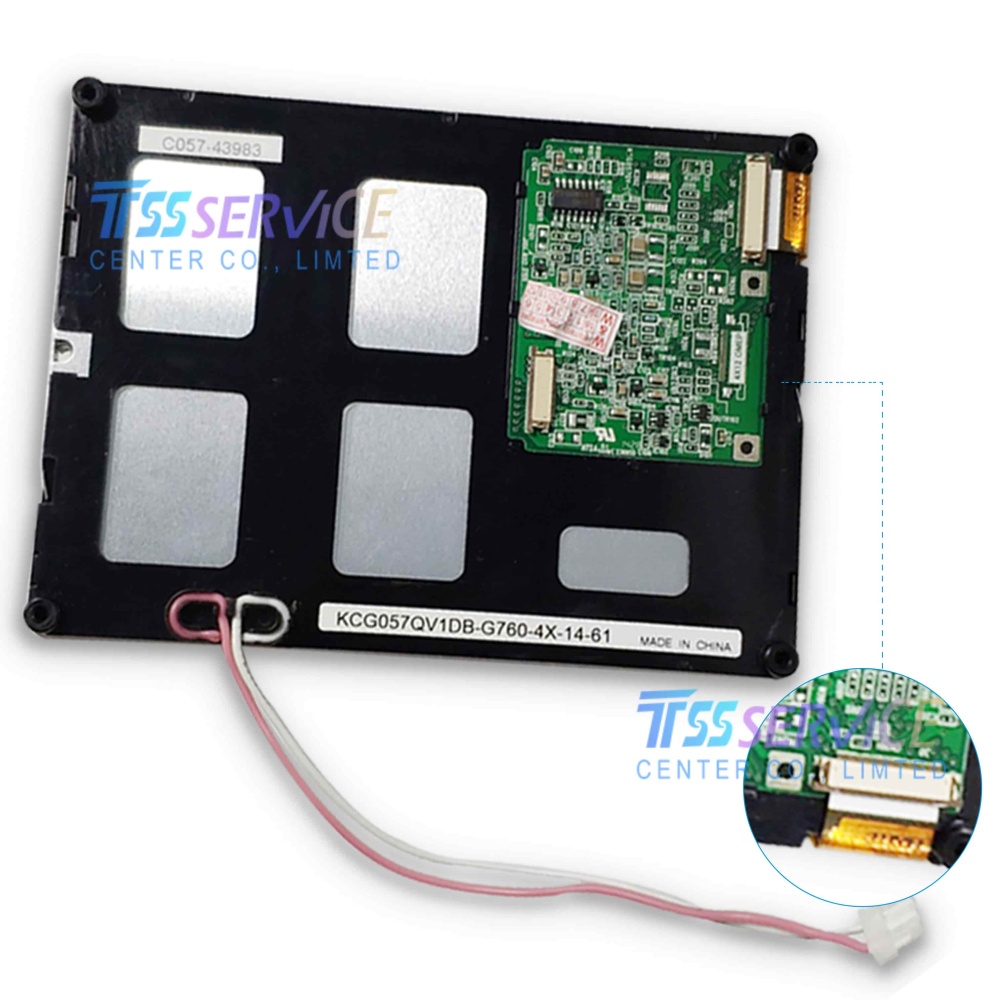

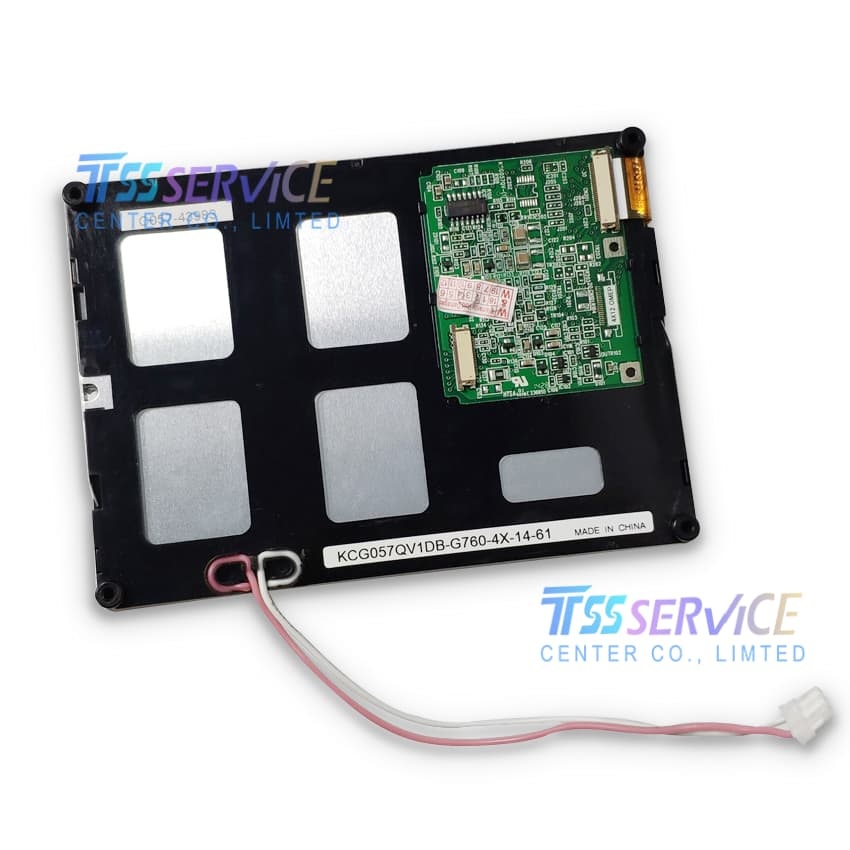

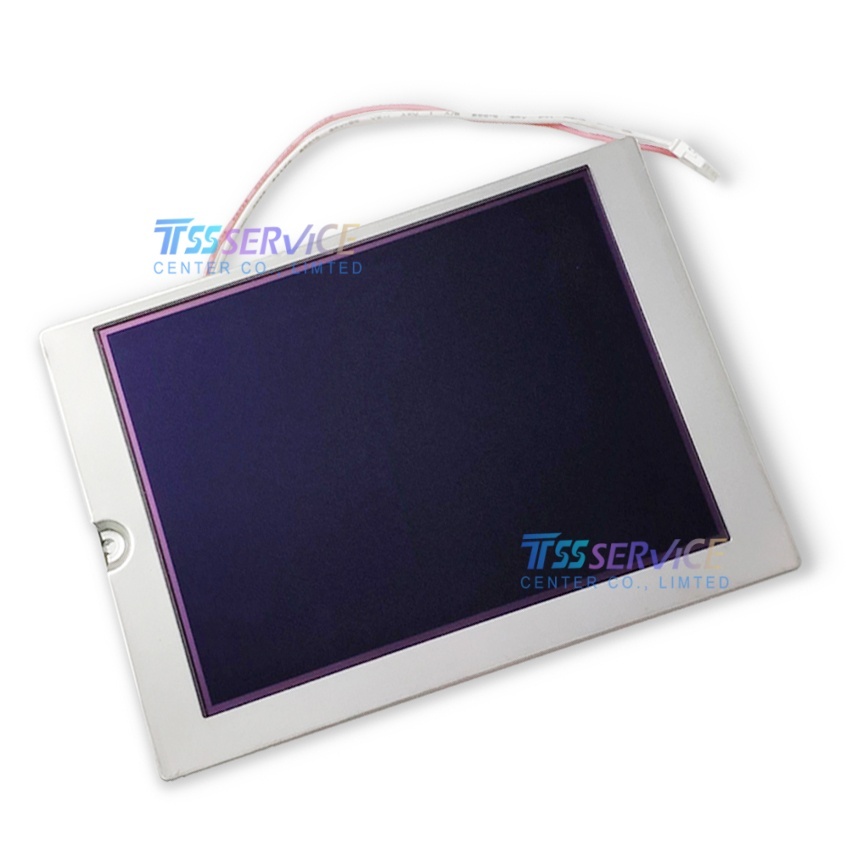

KCG057QV1DB-G760 Kyocera 5.7inch 320x240 for Industrial CSTN-LCD Display Panel Module
KCG057QV1DB-G760 is an original 5.7-inch industrial STN-LCD display module from Kyocera, designed for reliable performance in demanding environments. Featuring a QVGA resolution of 320 × 240 pixels, it delivers clear and functional text and graphics for industrial interfaces, portable devices, instrumentation, and control systems. Built with STN technology for cost-efficiency and energy savings, this module ensures stable operation and long-term durability. Kyocera’s high manufacturing standards provide robust construction and consistent visual performance, making it a dependable choice for professional applications where reliability and efficiency are essential.
| Brand |
KYOCERA |
| Model |
KCG057QV1DB-G760 |
| Panel-type |
CSTN-LCD , LCM |
| Size |
5.7" |
| Resolution |
320(RGB)×240 , QVGA |
| Aspect Ratio |
4:3(H:V) |
| Dot Pitch(mm) |
0.120×0.360 (H×V)
|
| Pixel Pitch(mm) |
0.360×0.360 (H×V)
|
| Display Area |
115.2(H) × 86.4(V) |
| Bezel Opening |
119.4(H) × 90.6(V)
|
| Outline Size |
144(H) × 104.8(V)
|
| Display Mode |
STN, Normally Black, Transmissive |
| Brightness |
380 cd/m² (Typ.) |
| Contrast Ratio |
40:1 (Typ.) (TM) |
| Response Time |
250/200 (Typ.)(Tr/Td) ms |
| Viewing Angle |
50/50/50/70 (Typ.)(CR≥2) |
| Display Colors |
Color |
| Lamp Type |
CCFL [1 pcs] , 75K hours , Optional |
| Signal Interface |
Parallel Data (8-bit) , 20 pins , Connector |
| Touch Screen |
Without |
| Input Voltage |
3.3/5.0V (Typ.)(VDD) |
| Operating Temp |
0 ~ 60 °C |
| Storage Temp |
-20 ~ 60 °C |
Specific Applications:
-
Industrial Automation & Control Systems
- CNC Machine Interfaces: Widely used in Human-Machine Interfaces (HMI) for Computer Numerical Control (CNC) machines (e.g., FANUC, Mitsubishi, Siemens systems). It displays tool paths, coordinates, and machine status.
- PLC Panels: Used in Programmable Logic Controller panels for monitoring manufacturing lines and process control variables.
- Factory Equipment: Integrated into injection molding machines, robotic arm controllers, and assembly line monitoring stations.
-
Medical Instrumentation
- Patient Monitoring: Used in bedside monitors to display vital signs (ECG, heart rate, blood pressure) due to its stable contrast and readability.
- Diagnostic Equipment: Found in ultrasound machines, X-ray consoles, and laboratory analysis devices where clear grayscale or pseudo-color imaging is required.
-
Commercial & Financial Terminals
- ATMs (Automated Teller Machines): Serves as the primary user interface for banking transactions, chosen for its durability and ability to operate continuously.
- Point of Sale (POS) Systems: Used in retail checkout counters and restaurant ordering systems.
- Self-Service Kiosks: Ticket vending machines (transportation), information kiosks, and check-in terminals.
-
Transportation & Marine
- Marine Electronics: Integrated into fish finders, GPS chart plotters, and ship navigation displays, as these modules often withstand wider temperature ranges and vibration better than consumer screens.
- Vehicle Telematics: Used in specialized heavy machinery dashboards (forklifts, excavators) to display operational data.
-
Test & Measurement Equipment
- Oscilloscopes & Analyzers: Used in benchtop electronic testing equipment to visualize waveforms and data readings.
- Environmental Chambers: Display panels for temperature and humidity testing units.
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
