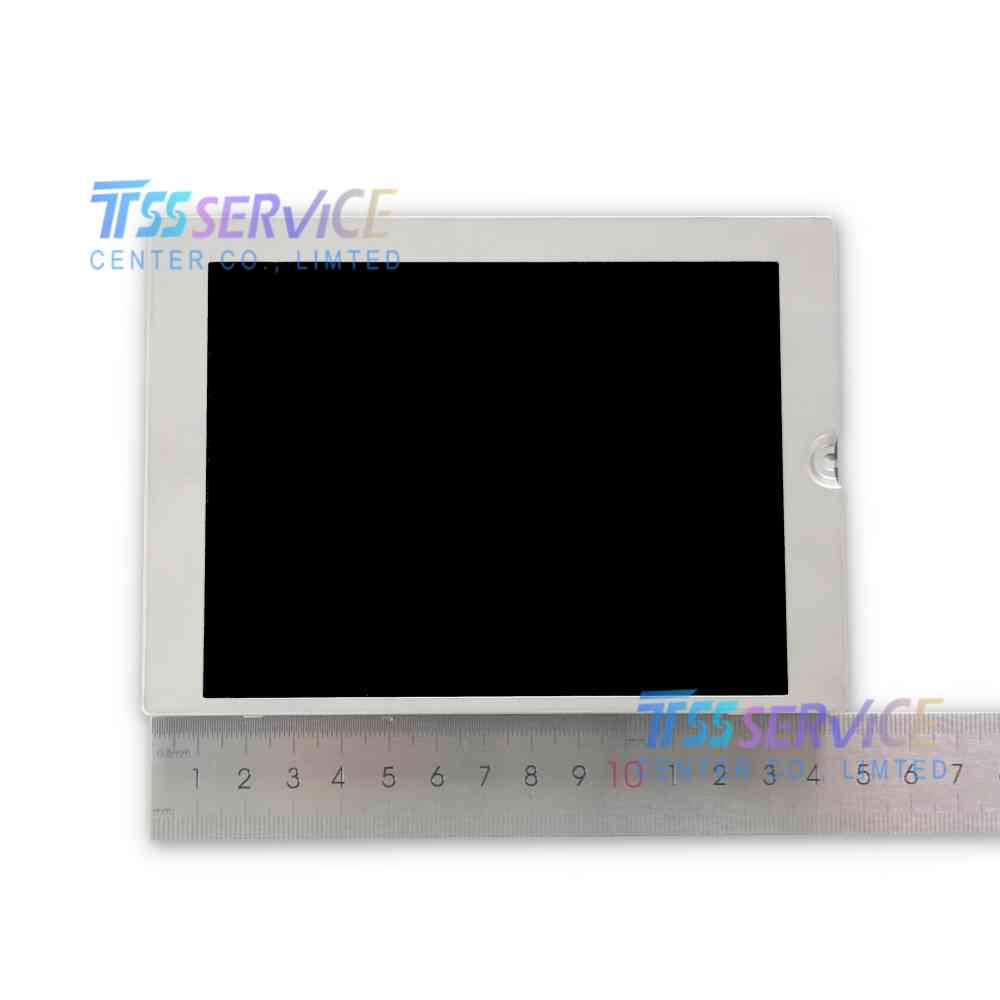

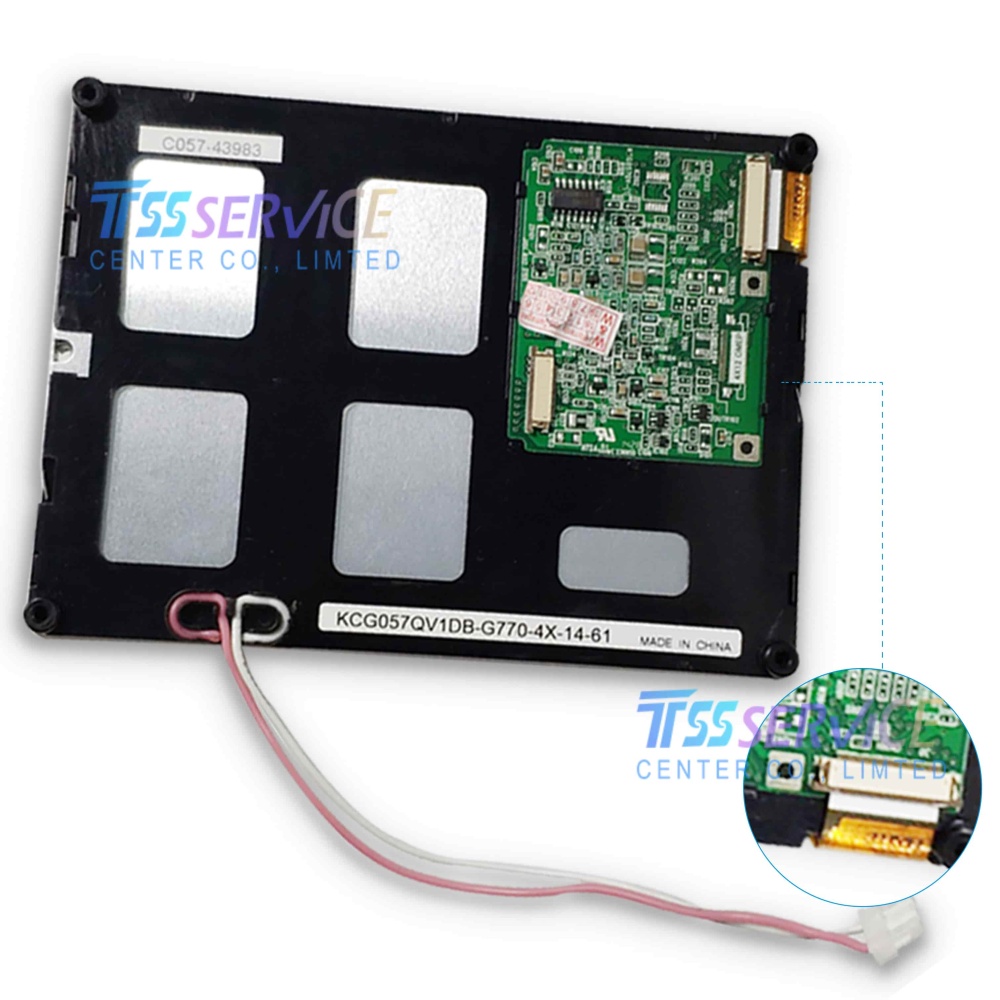

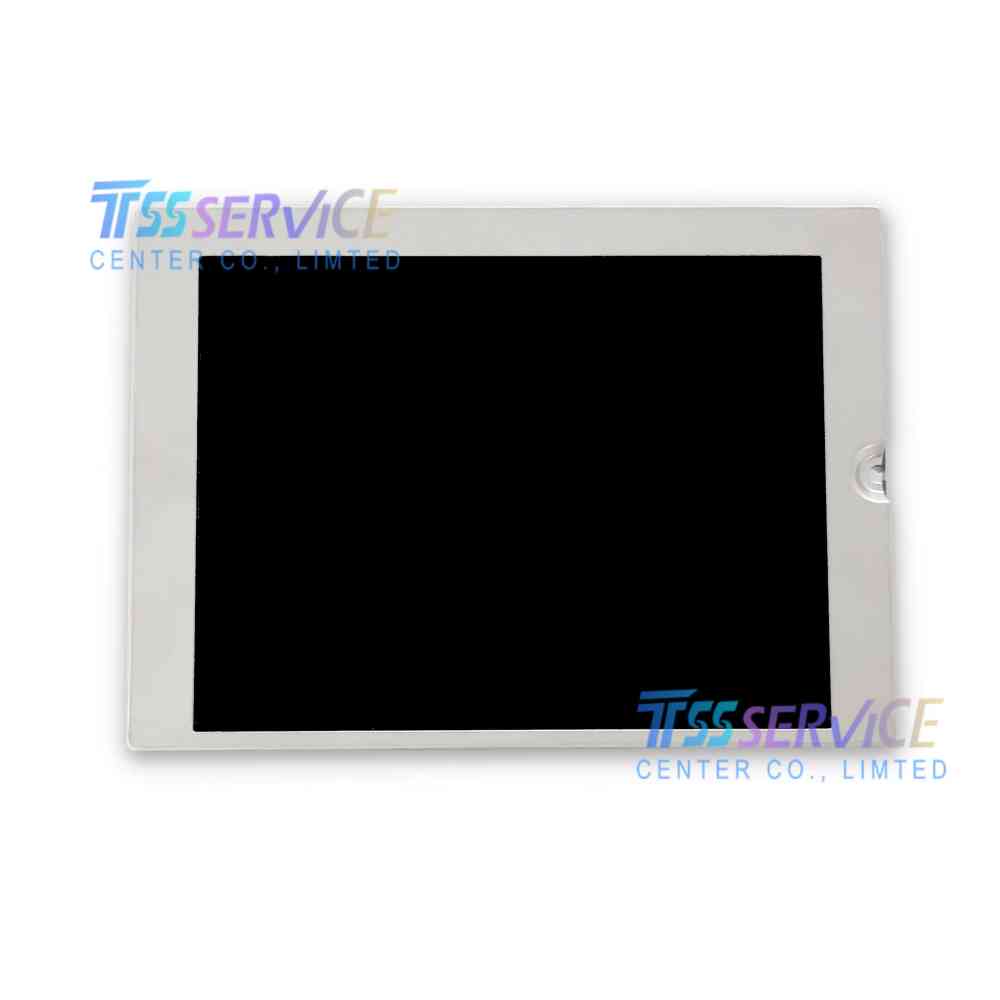

The KCG057QV1DB-G88 is a 5.7-inch Color Super-Twisted Nematic (CSTN) Liquid Crystal Display (LCD) module manufactured by Kyocera Corporation . Engineered for reliable performance in industrial applications, this module delivers consistent visual clarity and stable operation, making it a suitable choice for factory automation, industrial control systems, and measurement equipment where long-term operational stability is a primary design criterion.
| Parameter |
Specification |
| Brand |
Kyocera |
| Model P/N |
KCG057QV1DB-G88 |
| Diagonal Size |
5.7" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA 70PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Work Mode |
STN, Normally Black, Transmissive |
| Color Depth |
Color |
| Backlight |
1 pcs CCFL, Optional |
| Refresh Rate |
75Hz |
| Storage Temperature |
-20 ~ 60 °C |
| Operating Temperature |
0 ~ 50 °C |
Applications
The KCG057QV1DB-G88 is ideally suited for a variety of industrial applications where proven technology and reliable performance are paramount, including:
-
Industrial Control Systems and human-machine interfaces (HMI)
-
Factory Automation (FA) equipment and control panels
-
Industrial PC displays for monitoring applications
-
Test and measurement equipment
-
Legacy system upgrades where QVGA resolution is the established standard.
