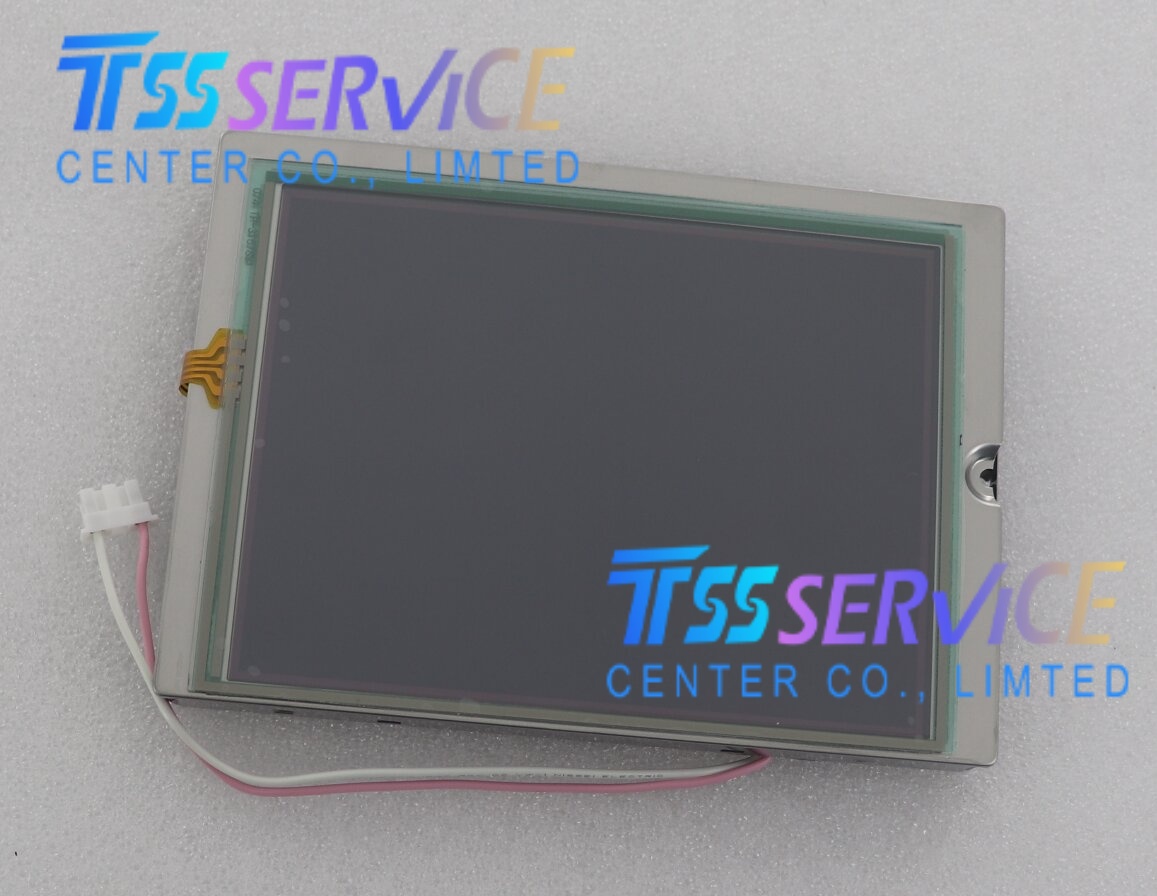

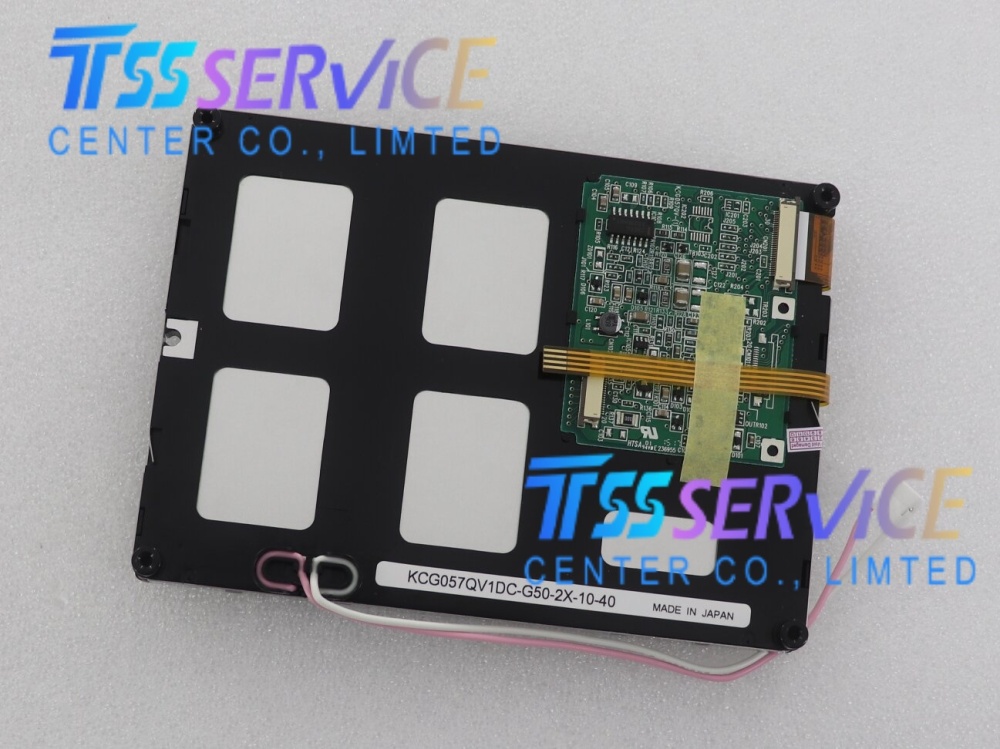

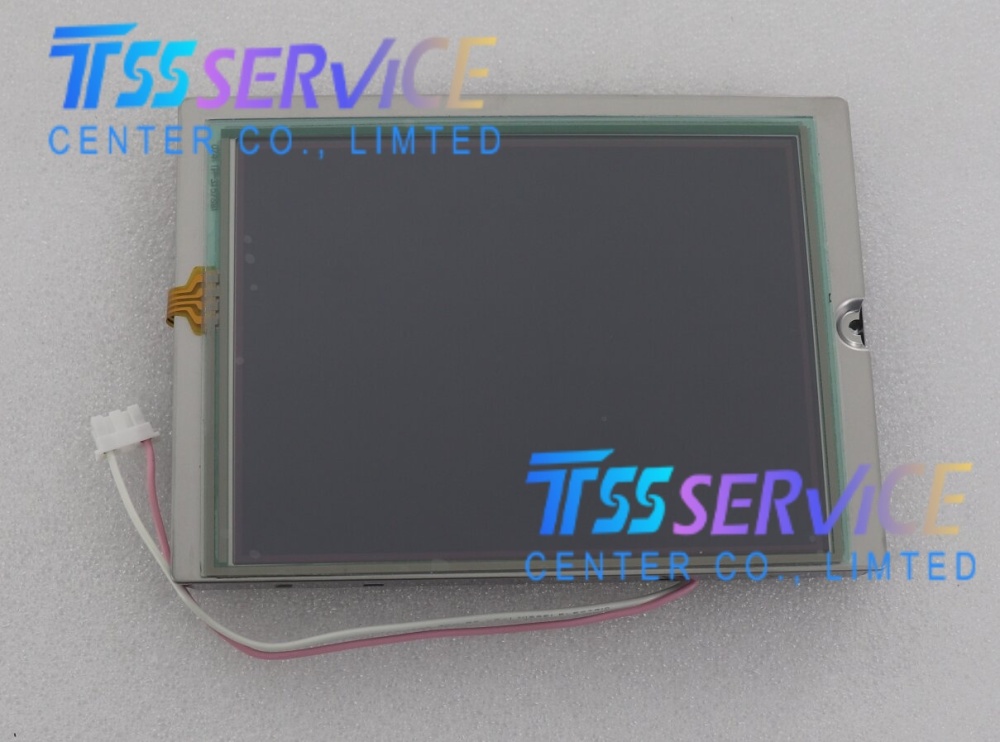

KYOCERA NEW 5.7 inch LCD Display Panel KCG057QV1DC-G50 for Industrial
| Parameter |
Specification |
Details/Notes |
| Model Number |

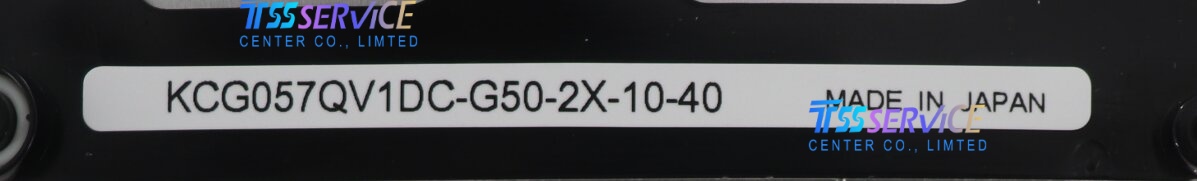

KCG057QV1DC-G50 |
Kyocera / Optrex Industrial Series |
| Display Type |
CSTN (Color Super Twisted Nematic) |
Transmissive, Normally Black (typically) |
| Screen Size |
5.7 inches |
Diagonal |
| Resolution |
320 (RGB) × 240 dots |
QVGA Format |
| Pixel Pitch |
~0.36 mm (H) × 0.36 mm (V) |
Approximate (Standard for 5.7" QVGA CSTN) |
| Active Area |
115.2 mm (W) × 86.4 mm (H) |
Standard 4:3 aspect ratio |
| Outline Dimensions |
Approx. 154.6 mm × 114.8 mm × 9.0 mm |
Includes bezel and touch panel thickness |
| Color Depth |
4096 colors (12-bit) or 256 colors |
Typical for CSTN; varies by driving mode |
| Interface |
Parallel (8-bit or 16-bit) |
TTL/CMOS levels, typically 5V logic |
| Touch Panel |
4-Wire Resistive |
Integrated on front surface (Key feature of "DC" variant) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) |
Requires high-voltage inverter (~600-800V AC) |
| Brightness |
Typically 200 ~ 280 cd/m² |
Lower than modern LED/TFT modules |
| Contrast Ratio |
Typically 50:1 to 55:1 |
Characteristic of CSTN technology |
| Viewing Angle |
Limited (e.g., 30°~50°) |
Narrower than TFT; best viewed from center |
| Response Time |
Slow (e.g., 100ms+ rise/fall) |
Not suitable for fast-moving video |
| Operating Temp. |
-10°C to +50°C (Typical)
or -20°C to +70°C |
CSTN performance degrades significantly at low temps |
| Storage Temp. |
-20°C to +60°C |
|
| Power Supply |
5.0V (Logic), High Voltage (Backlight) |
Separate supply needed for CCFL inverter |
| Driver IC |
Integrated Controller |
Specific to Kyocera CSTN panels |
| Compliance |
RoHS (depending on production date) |
CCFL contains mercury; disposal regulations apply |
Due to its integrated touch screen, rugged construction, and cost-effectiveness for static or slow-changing displays, the KCG057QV1DC-G50 is commonly found in:
-
Industrial Control & Automation (Legacy Systems):
- CNC Machine Controllers: Display panels for lathes, mills, and routers where high refresh rates are not needed.
- PLC HMI Panels: Human-Machine Interfaces for monitoring factory processes.
- Textile Machinery: Control units for embroidery machines and looms.
- Injection Molding Machines: Operator interfaces for setting parameters and monitoring cycles.
-
Medical Equipment (Non-Critical):
- Patient Monitoring Displays: For vital signs where data updates slowly.
- Infusion Pumps: User interface for setting flow rates.
- Diagnostic Devices: Handheld or benchtop analyzers with simple menu structures.
-
Instrumentation & Measurement:
- Power Supply Units: Front panel displays for voltage/current settings.
- Environmental Test Chambers: Control panels for temperature/humidity ovens.
- Weighing Scales: Industrial floor scales with graphic displays.
-
Transportation & Marine:
- Marine Instrumentation: GPS plotters or depth sounders (older models).
- Vehicle Diagnostic Tools: Handheld OBD scanners with touch input.
-
Consumer & Appliance (High-End/Legacy):
- Vending Machines: Selection screens with touch input.
- Home Appliances: Control panels for high-end washing machines or microwaves (older designs).
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
