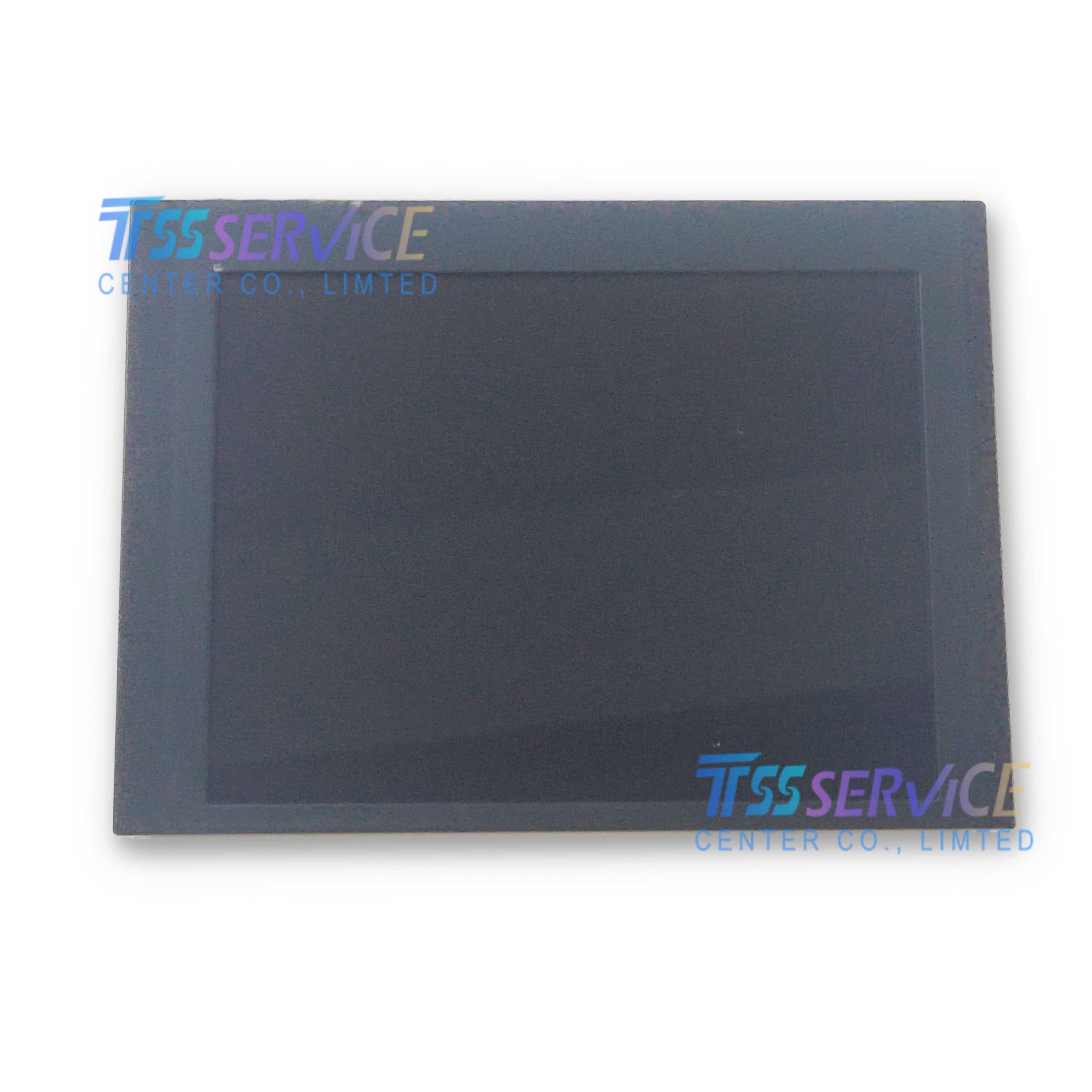

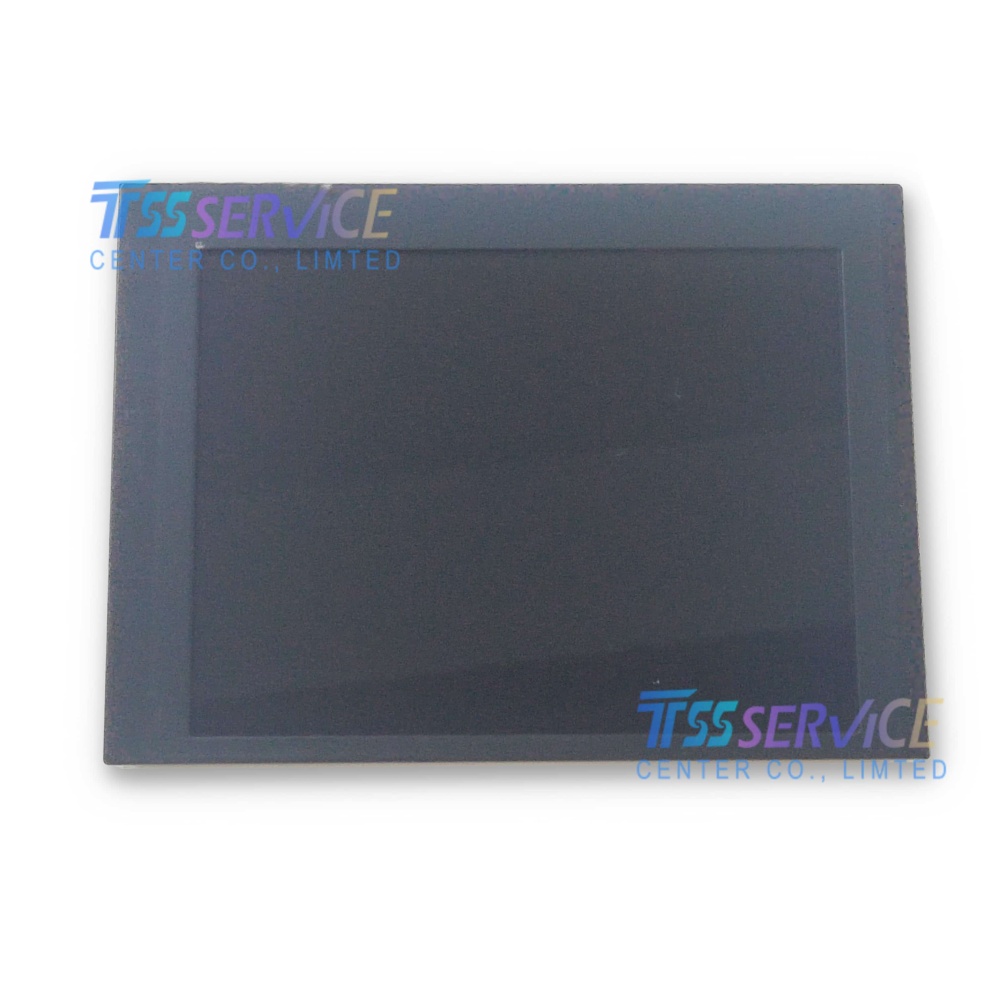

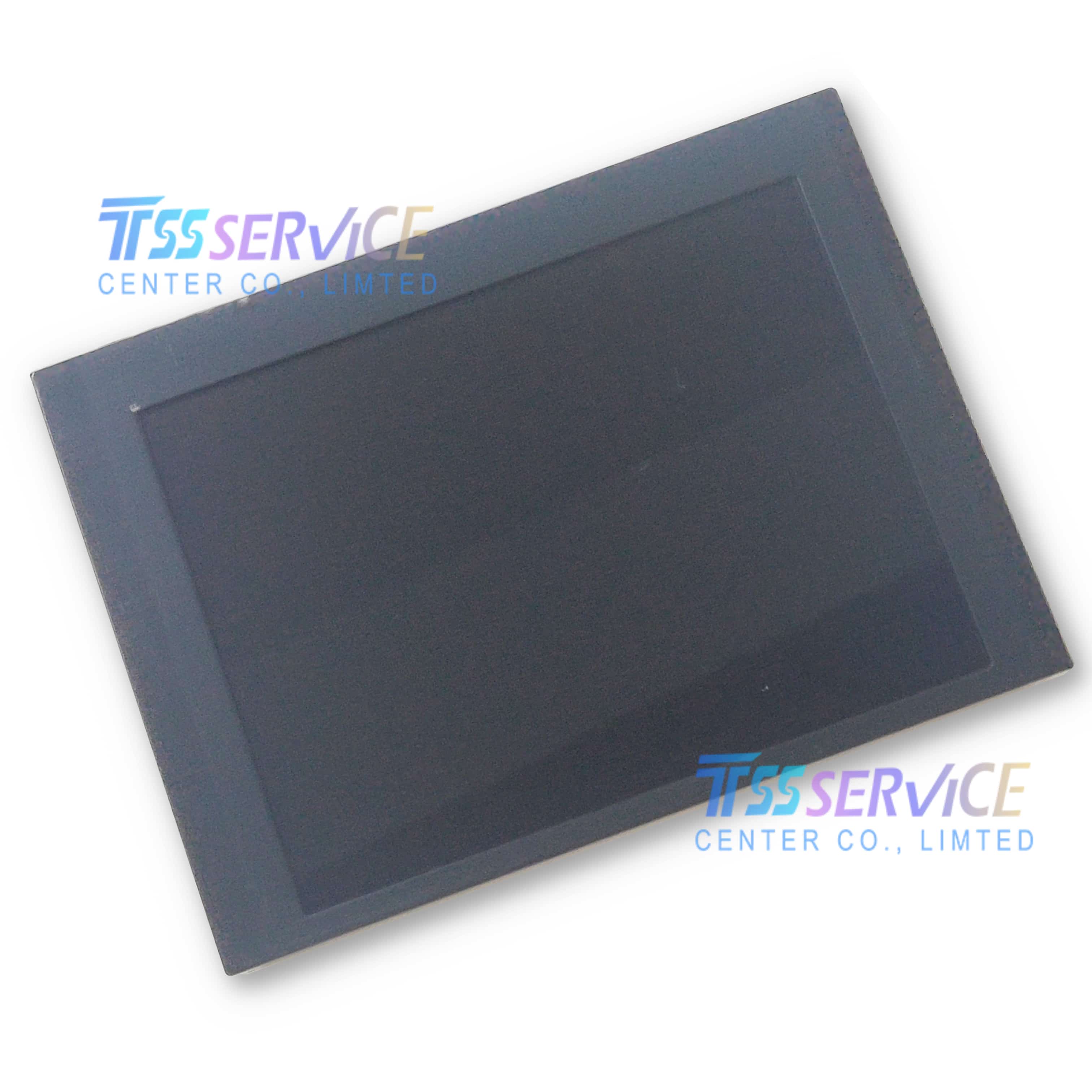

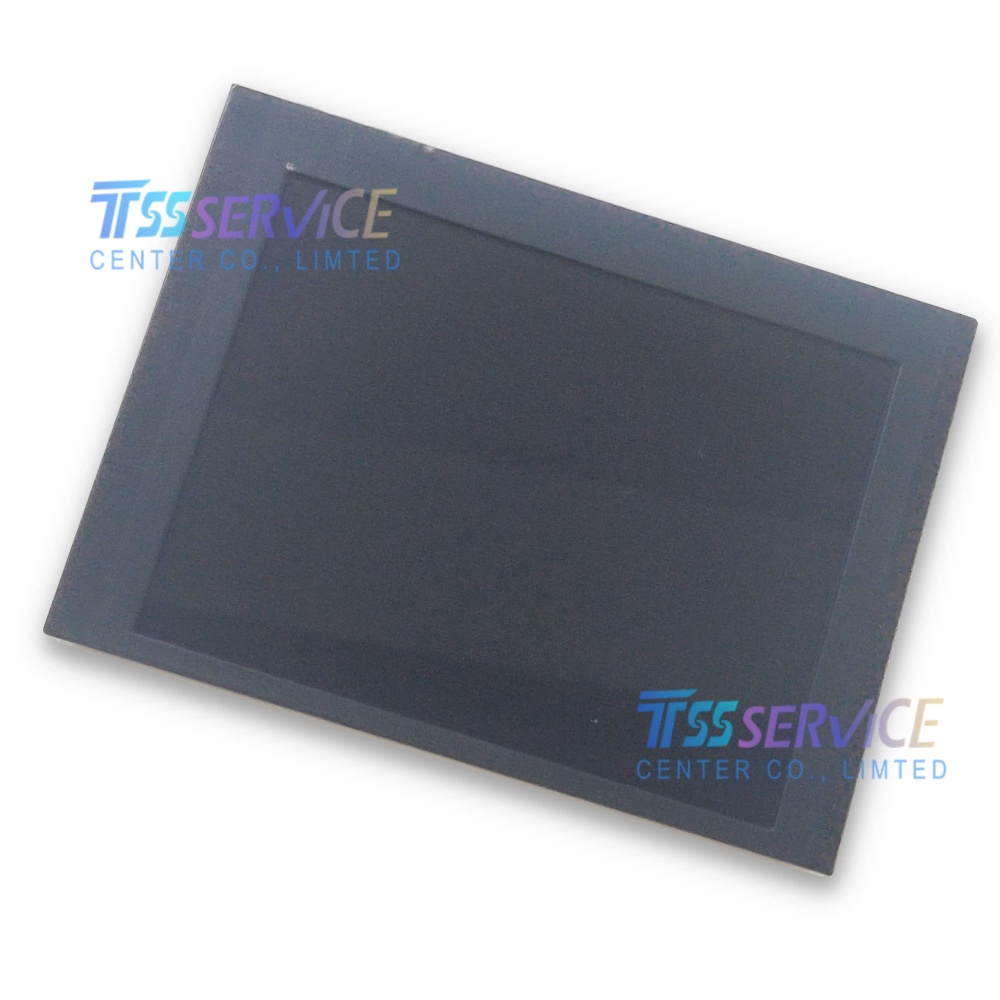

KCS057QV0AN-G20 Kyocera 5.7 inch 320×240 LCD Display Panel Screen For Industrial

Name: KCS057QV0AN-G20 Kyocera 5.7 inch 320×240 LCD Display Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCS057QV0AN-G20
Price: 78 USD
Availability: InStock

SKU: KCS057QV0AN-G20

Model P/N: KCS057QV0AN-G20
Diagonal Size: 5.7"
Panel Type: CSTN-LCD, Transmissive
Pixel Number: 320 × 240 (QVGA)

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KCS057QV0AN-G20 Kyocera 5.7 inch 320×240 LCD Display Panel Screen For Industrial

Parameter	Specification
Model	KCS057QV0AN-G20
Brand	Kyocera
Diagonal Size	5.7 inches
Resolution	320 × 240 (QVGA)
Display Type	CSTN-LCD, Transmissive, Color
Display Mode	Normally Black
Active Area	115.2 × 86.4 mm
Pixel Pitch	0.36 × 0.36 mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	40:1 (Typ.)
Viewing Angle	50°/50°/30°/30° (L/R/U/D)
Response Time	220/110 ms (Tr/Td)
Interface	Parallel Data (8-bit), 15 pins
Input Voltage	5.0V (Typ.)
Backlight	CCFL (Cold Cathode Fluorescent Lamp)
Surface	Glossy
Operating Temperature	0°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Outline Dimensions	120.2 × 91.4 mm

Applications

Industrial HMI & Control Panels: Compatible with KEYENCE VT-5SB and other industrial control systems.
Factory Automation: PLC interfaces, machine tool displays, and industrial control terminals.
Medical Equipment: Portable diagnostic devices, patient monitors, and medical instrument displays.
Instrumentation & Test Equipment: Industrial meters, analyzers, and measurement devices.
Embedded Systems: Compact industrial computers, embedded control panels, and IoT devices.
Automotive & Transportation: Vehicle-mounted displays, industrial vehicle dashboards.
