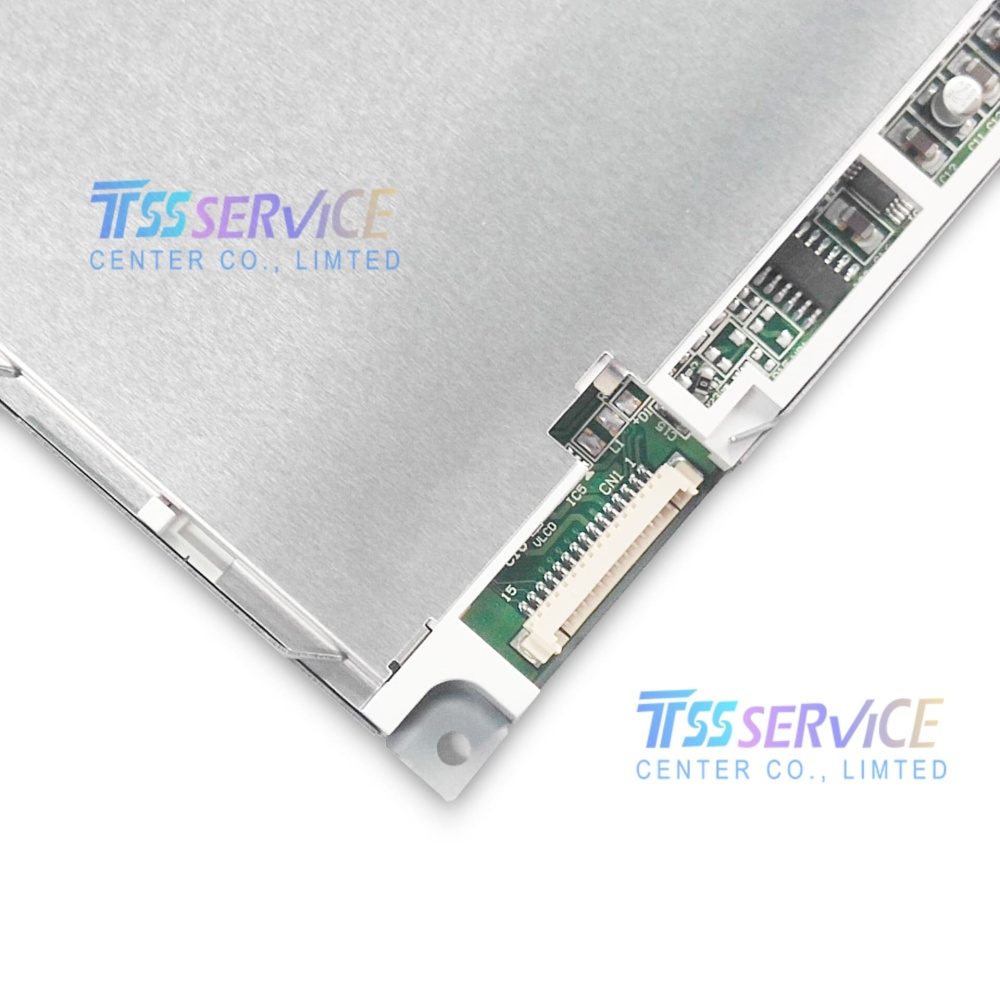

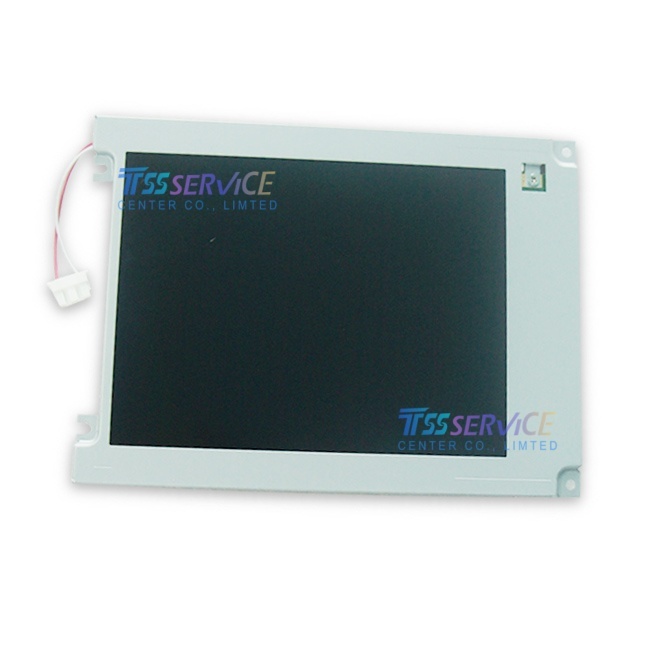

The Kyocera KCS057QV1AJ-G60 is a 5.7-inch CSTN-LCD (Color Super Twisted Nematic) display module engineered for robust performance in demanding industrial environments . As part of Kyocera's legacy KCS057 series, this panel is designed for applications where proven reliability, long-term availability, and ease of integration with embedded controllers are paramount .
| Brand |
Kyocera |
| Model P/N |
KCS057QV1AJ-G60 |
| Diagonal Size |
5.7" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA 70PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
120.2(W)×91.4(H) mm |
| Outline Size |
154.6(W)×114.8(H) ×9(D) mm |
| Surface |
Glare (Haze 0%) |
| Brightness |
130 cd/m² (Typ.) |
| Contrast Ratio |
40:1 (Typ.) (TM) |
| Viewing Angle |
30/30/50/50 (Typ.)(CR≥2) |
| Display Mode |
STN, Normally Black, Transmissive |
| Response Time |
390/100 (Typ.)(Tr/Td) |
| Display Colors |
Color 35% NTSC |
| Lamp Type |
1 pcs CCFL, 10K hours, Without Driver |
| Frequency |
75Hz |
| Touch Screen |
Without |
| Panel Weight |
200g (Typ.) |
| Signal Interface |
Parallel Data (1ch, 8-bit), 15 pins Connector |
| Input Voltage |
5.0V (Typ.) |
| Environment |
Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C |
Application
The KCS057QV1AJ-G60 is specifically designed for industrial applications requiring durable and easily integrated display solutions. Its straightforward parallel interface and wide operating temperature range make it ideal for Human-Machine Interfaces (HMI) , factory automation equipment, CNC machine controls, and industrial instrumentation where system longevity and stable supply chains are critical .
