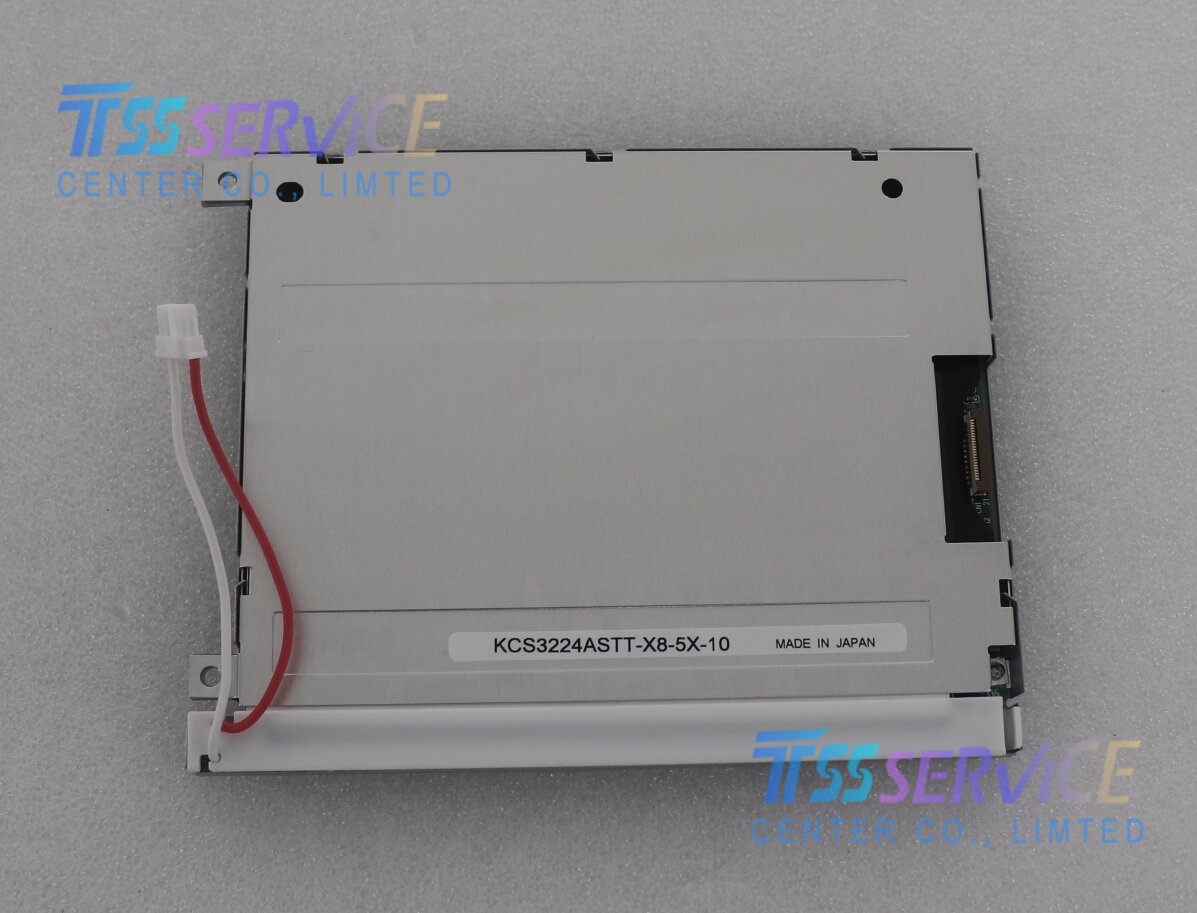

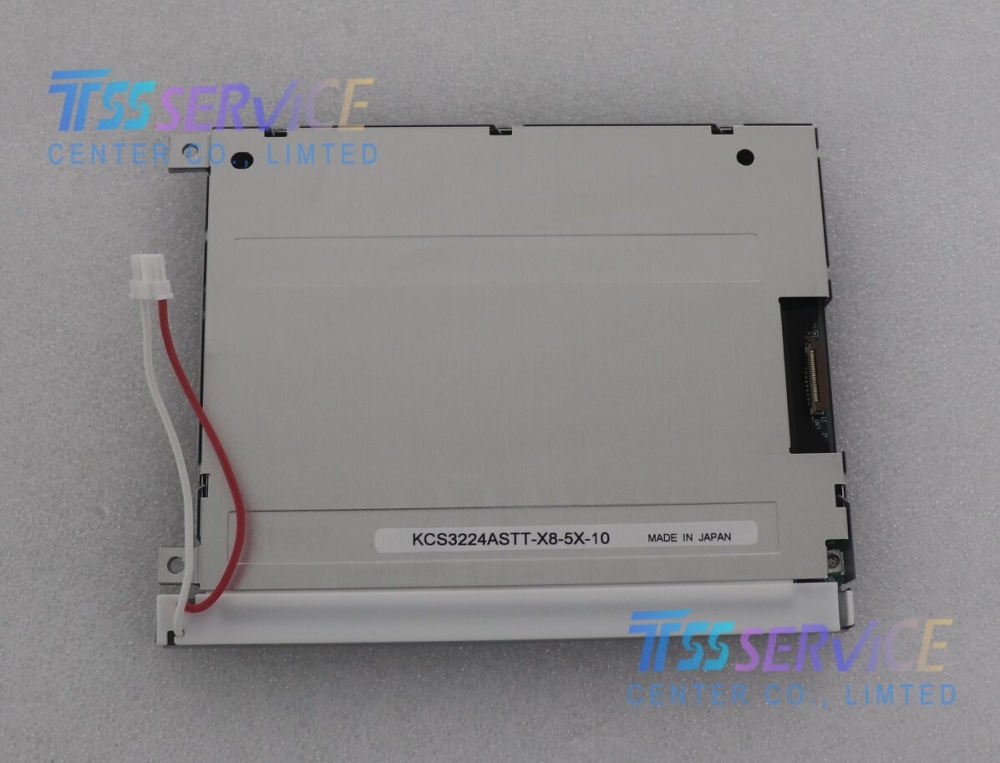

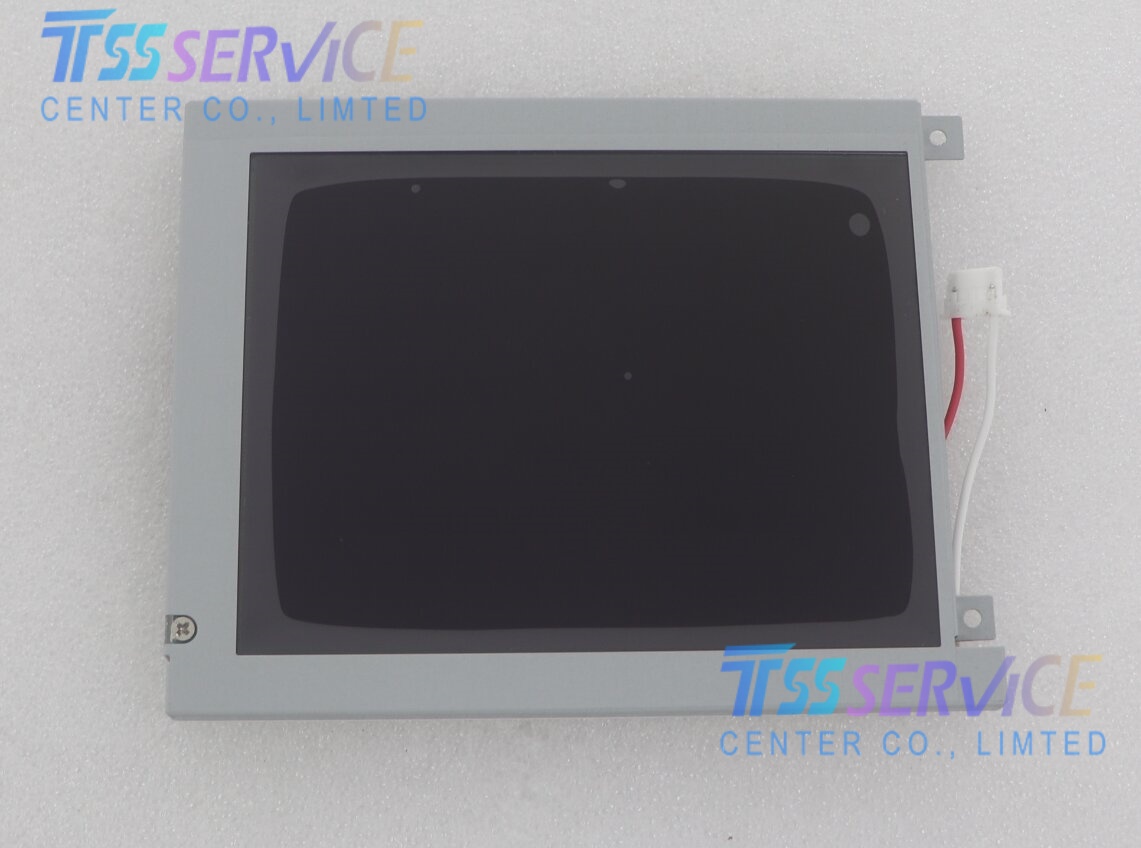

Kyocera KCS3224ASTT-X8 5.7-inch 320×240 QVGA CSTN-LCD Panel

Name: Kyocera KCS3224ASTT-X8 5.7-inch 320×240 QVGA CSTN-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCS3224ASTT-X8
Price: 115 USD
Availability: InStock

SKU: KCS3224ASTT-X8

1，Condition: New，Grade A

2，Description: KCS3224ASTT-X8 5.7 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$120.00~~ $115.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Kyocera KCS3224ASTT-X8 is a 5.7-inch diagonal CSTN-LCD (Color Super-Twisted Nematic Liquid Crystal Display) module designed for industrial and embedded applications. Featuring QVGA (320×240) resolution with an RGB vertical stripe pixel arrangement, this display offers reliable color performance with a standard parallel interface and CCFL backlight for straightforward system integration.

Category	Details
Brand	Kyocera
Model P/N	KCS3224ASTT-X8
Diagonal Size	5.7"
Panel Type	CSTN-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Work Mode	STN, Normally Black, Transmissive
Color Depth	Color
Backlight	1 pcs CCFL
Touchscreen	Without
Signal Type	Parallel Data (1 ch, 8-bit), 15 pins Connector
Voltage Supply	5.0V (Typ.)
Storage Temp.	-20 ~ 60 °C
Operating Temp.	0 ~ 50 °C

Typical Applications

Industrial control panels and HMI (Human-Machine Interface)
Factory automation systems and process controllers
Test and measurement instruments
Medical diagnostic equipment
Point-of-sale (POS) terminals
Embedded systems requiring reliable color display
Legacy system replacements
