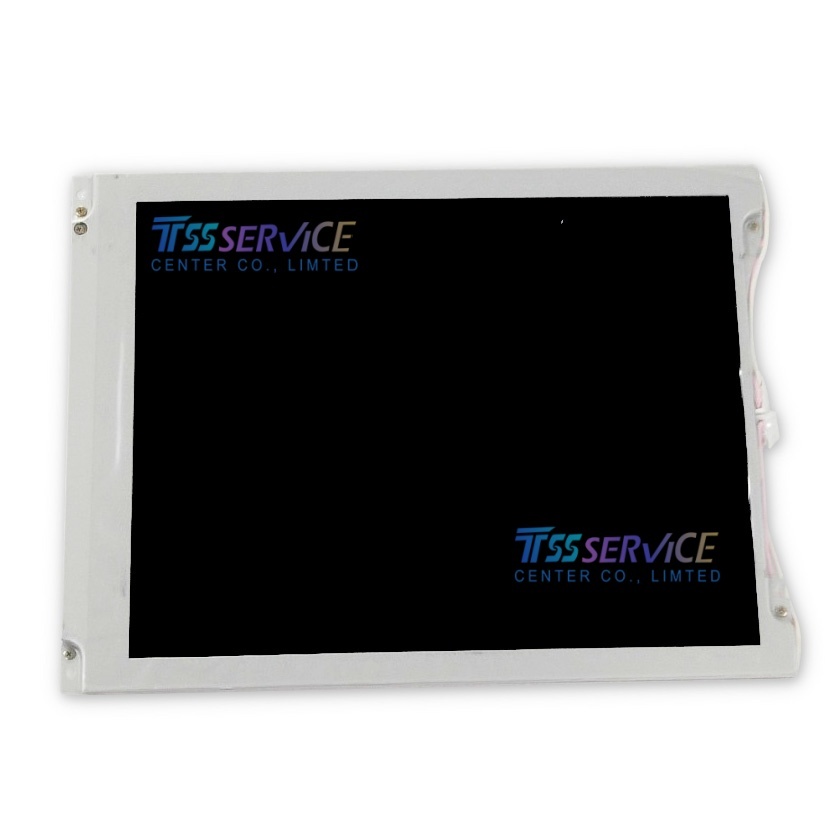

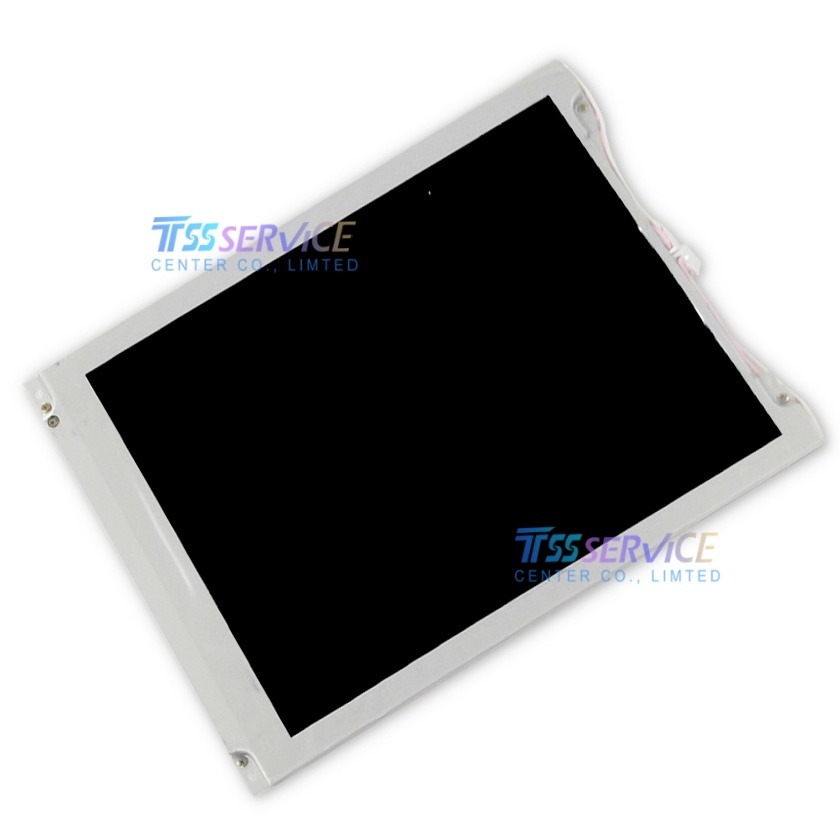

KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality

SKU: KCS6448HSTT-X3

1,Condition: New,Grade A

2,Description: KCS6448HSTT-X3 10.4INCH  LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$338.00 $336.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
1/1
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
  • KCS6448HSTT-X3 10.4INCH 640×480 Kyocera Lcd Display Panel 90% New with good quality
  • Description

The KCS6448HSTT-X3 is a 10.4-inch color LCD module manufactured by Kyocera, a globally recognized leader in industrial display technology. This unit is offered in 90% new condition with good quality, making it an excellent choice for equipment repair, legacy system replacement, or spare parts inventory.

This model utilizes CSTN-LCD (Color Super Twisted Nematic) technology and delivers VGA resolution (640×480) in a classic 4:3 aspect ratio – specifications that were widely adopted in industrial equipment manufactured from the late 1990s through the mid-2000.

Key Technical Specifications

Parameter Specification
Manufacturer Kyocera
Model Number KCS6448HSTT-X3
Display Size 10.4 inches (diagonal)
Panel Type CSTN-LCD, LCM (Liquid Crystal Module)
Resolution 640 × 480 (VGA), 4:3 aspect ratio
Pixel Arrangement RGB Vertical Stripe
Display Area 211.2 (W) × 158.4 (H) mm
Pixel Pitch 0.330 × 0.330 mm
Point Pitch 0.110 × 0.330 mm
Display Mode STN, Normally Black, Transmissive
Display Colors Pseudo-color (Color, approx. 43% NTSC)
Brightness 150 cd/m² (Typ.)
Contrast Ratio 25:1 (Typ.)
Viewing Angle 50/50/50/35 (Typ.)(CR≥2)
Response Time 160/80 (Typ.)(Tr/Td) ms
Backlight Type CCFL (Cold Cathode Fluorescent Lamp), 2 pcs
Backlight Life 10,000 hours (Typ.)
Backlight Position Edge-lit (Top and Bottom)
Interface Parallel Data (1-channel, 8-bit), 29-pin connector
Input Voltage 5.0V (Typ.)
Frame Rate 75Hz
Outline Dimension 253.2 (W) × 187.4 (H) × 11.0 (D) mm
Panel Weight 580g (Typ.)
Surface Treatment Antiglare
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Touch Screen Without
RoHS Status Not RoHS compliant
Product Status Obsolete / End of life

Applications

The KCS6448HSTT-X3 is specifically designed for industrial and legacy equipment replacement. Its 10.4-inch format and VGA resolution make it a standard choice for:

1. Industrial Control & Automation

  • CNC machine tool displays (compatible with systems from FANUC, Siemens, Mitsubishi, KND, GSK, etc.) -10

  • HMI (Human-Machine Interface) panels

  • PLC programming terminals

  • Factory automation equipment

  • Industrial PC monitors

2. Medical Equipment

  • Patient monitoring systems

  • Diagnostic equipment

  • Dental chair control panels

  • Medical imaging terminals

3. Test & Measurement Instruments

  • Oscilloscopes and spectrum analyzers

  • Environmental chamber controllers

  • Industrial testing equipment

4. Commercial & Kiosk Systems

  • POS (Point-of-Sale) terminals

  • Ticketing and vending machines

  • Industrial kiosks
