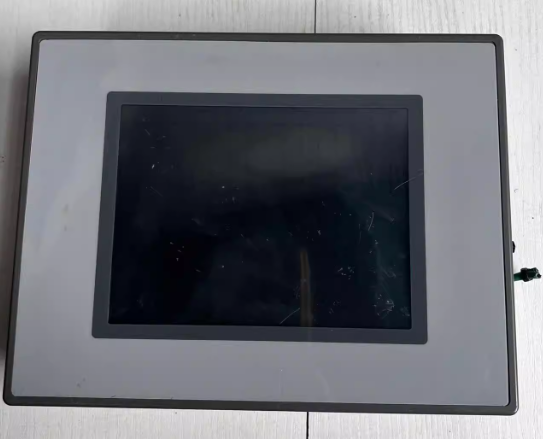

New Touch Screen KDP5320CA-30G
1. Display Specifications
Parameter Specification Notes
Brand KOMATSU Industrial machinery manufacturer
Model Number KDP5320CA-30G
Product Type Industrial HMI / Operator Interface
Display Type STN Color LCD STN (Super Twisted Nematic) color technology
Display Size 5.7 inches Diagonal measurement
Case Color Gray (G suffix indicates gray case)
2. Replacement & Compatibility Information
Parameter Specification Notes
JTEKT ELECTRONICS Replacement GC-53LC2 Direct replacement model from JTEKT ELECTRONICS
Replacement Series GC-A2x series (current) The GC series has been discontinued; current replacement is GC-A2x series
Related Models KDP5320CA-10G, KDP5320CA-31G Other models in the same series with different specifications
3. Series Comparison Information
Model Display Type Notes
KDP5320CA-10G 5.7" STN color LCD Earlier version in series
KDP5320CA-30G 5.7" STN color LCD Current specification version
KDP5320CA-31G 5.7" STN color LCD Later version in series
KDP5320LA-10G 5.7" STN monochrome LCD Monochrome version
KDP5320LA-30G 5.7" STN monochrome LCD Monochrome version
KDP5320LA-31G 5.7" STN monochrome LCD Monochrome version
4. Related Software
Parameter Specification Notes
Drawing Software (KOMATSU) SCREEN MATE5 (KDP50S1-3) Original KOMATSU programming software
Drawing Software (JTEKT) SCREEN CREATOR5 (GC-SGP5) Replacement software from JTEKT ELECTRONICS
5. Key Information Notes
Aspect Details
Product Status Discontinued (original KOMATSU model)
Replacement Path KDP5320CA-30G → GC-53LC2 (JTEKT) → GC-A2x series (current)
Case Color Availability JTEKT ELECTRONICS does not sell the case color white (gray only)
