Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
Industrial Control Panels: HMIs for factory automation, PLCs, and test equipment.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments.
Test & Measurement: Oscilloscopes, spectrum analyzers, and field calibration tools.
Transportation Systems: Dashboard displays, navigation, and fleet management units.
Professional Audio/Video: Broadcast monitoring equipment and portable recording devices.
| Parameter | Specification |
|---|---|

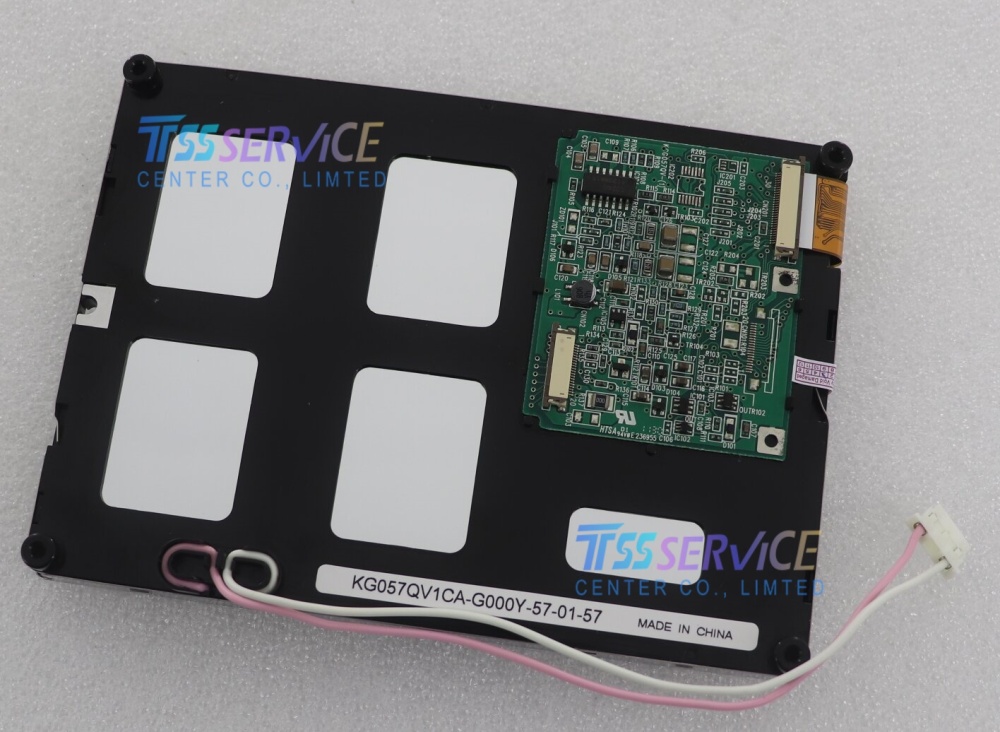

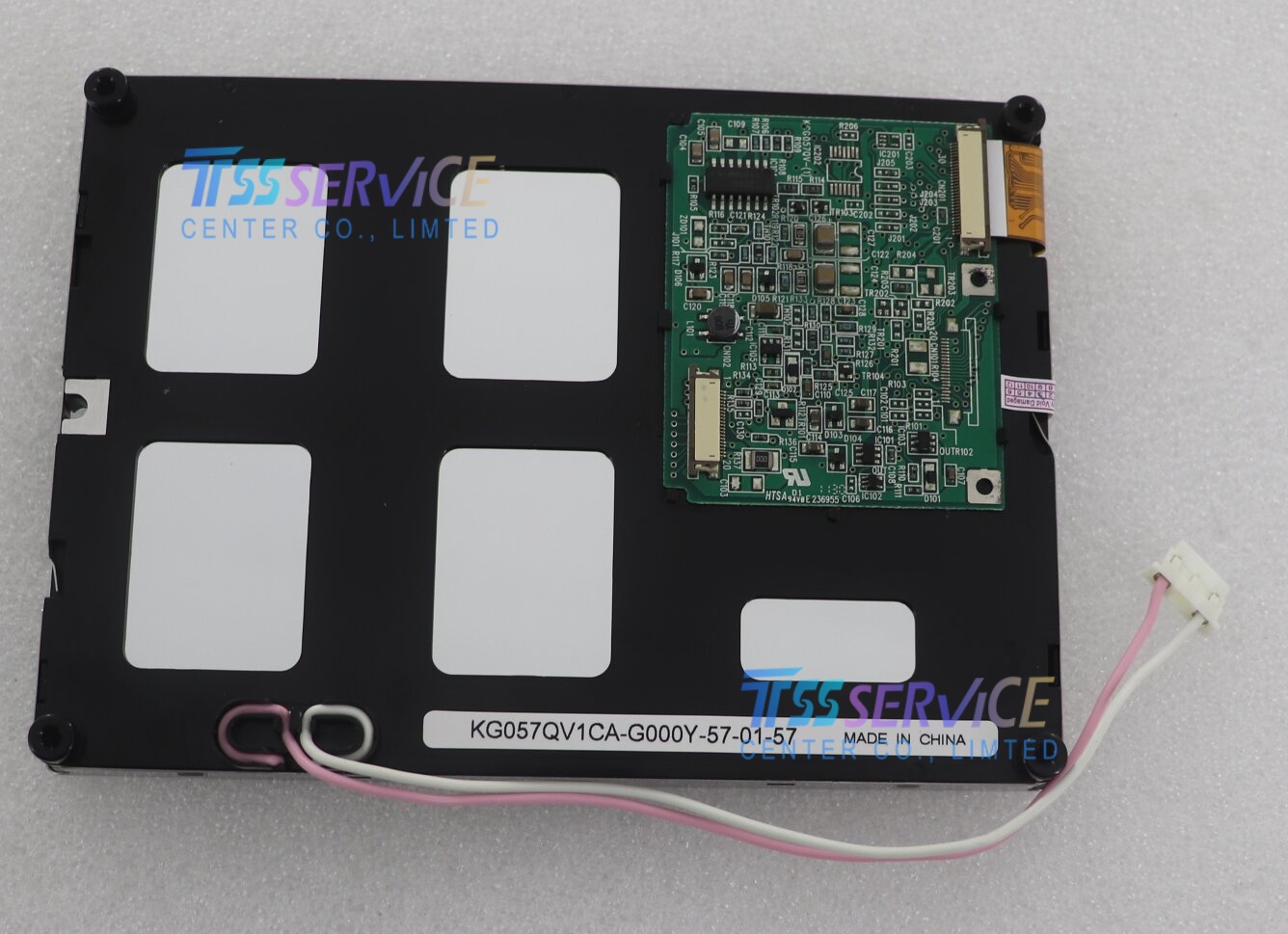

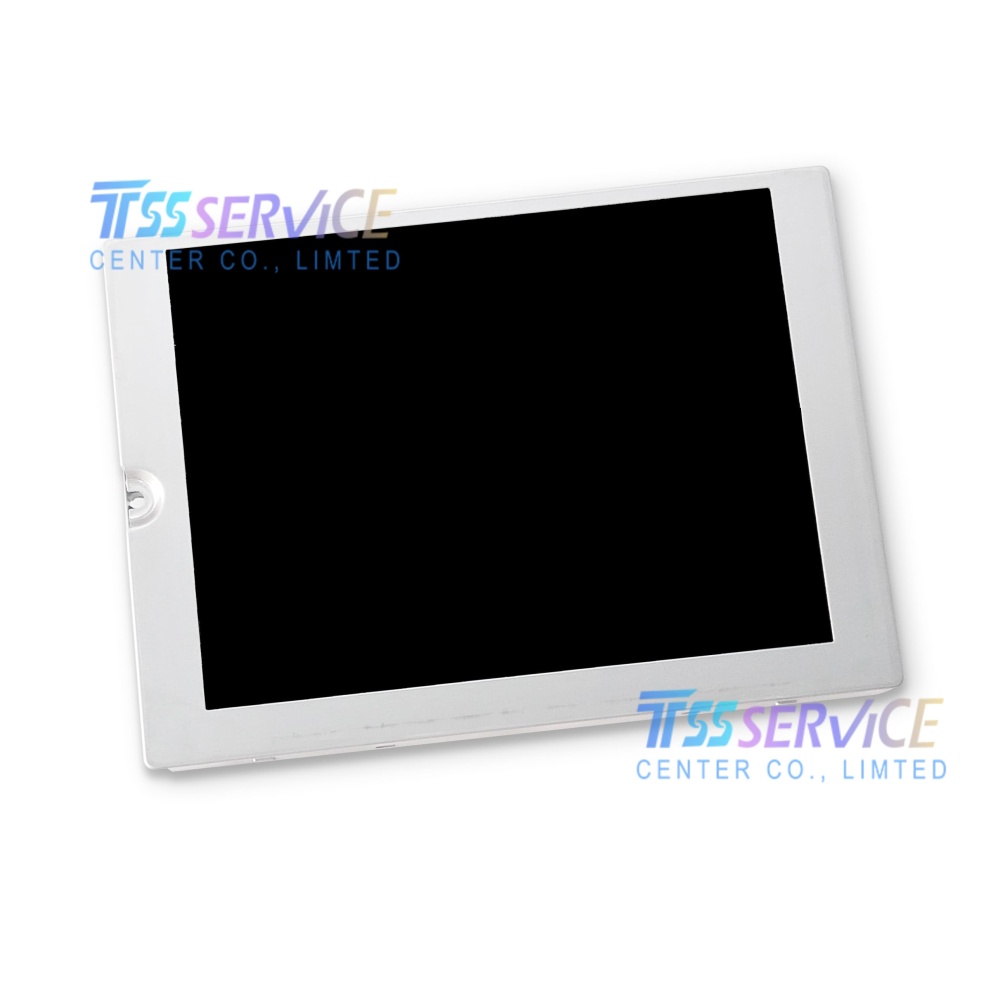

| Model Number | KG057QV1CA-G000Y |
| Manufacturer | Kyocera |
| Display Type | a-Si TFT-LCD, Transmissive |
| Screen Size | 5.7 inches (Diagonal) |
| Resolution | 320×240, QVGA 70PPI |
| Active Area (W×H) | 115.18(W)×86.38(H) mm |
| Brightness (Typical) | 400 cd/m² |
| Contrast Ratio (Typical) | 500:1 |
| Viewing Angle (CR≥10) | 45/45/20/40 (Min.)(CR≥2) |
| Response Time (Typical) | 20-30 ms (Tr+Td) |
| Color Depth | 262K colors (6-bit + FRC) or 16.7M (8-bit) |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Backlight Type | CCFL |
| Backlight Lifetime | 50,000+ hour |
| Interface | Parallel Data , Connector |
| Power Supply (VDD) | 3.3V or 5.0V (Logic) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
