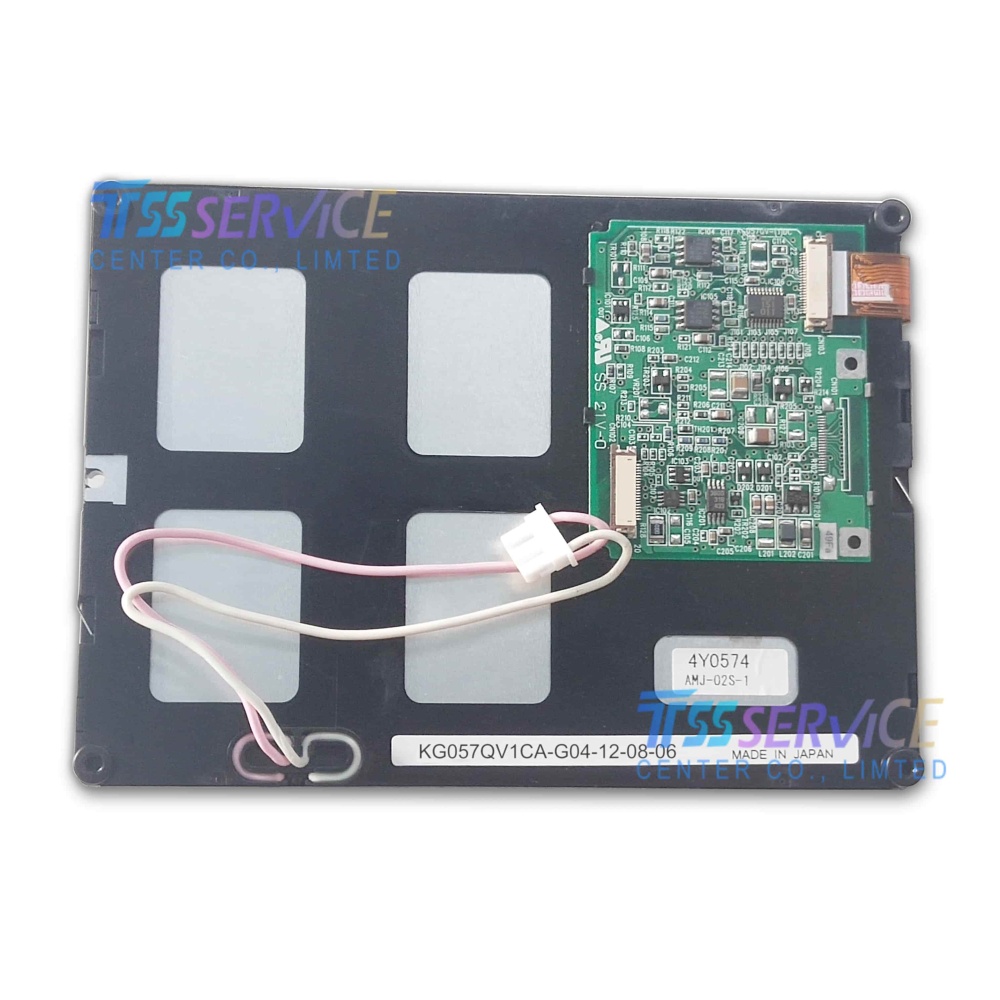

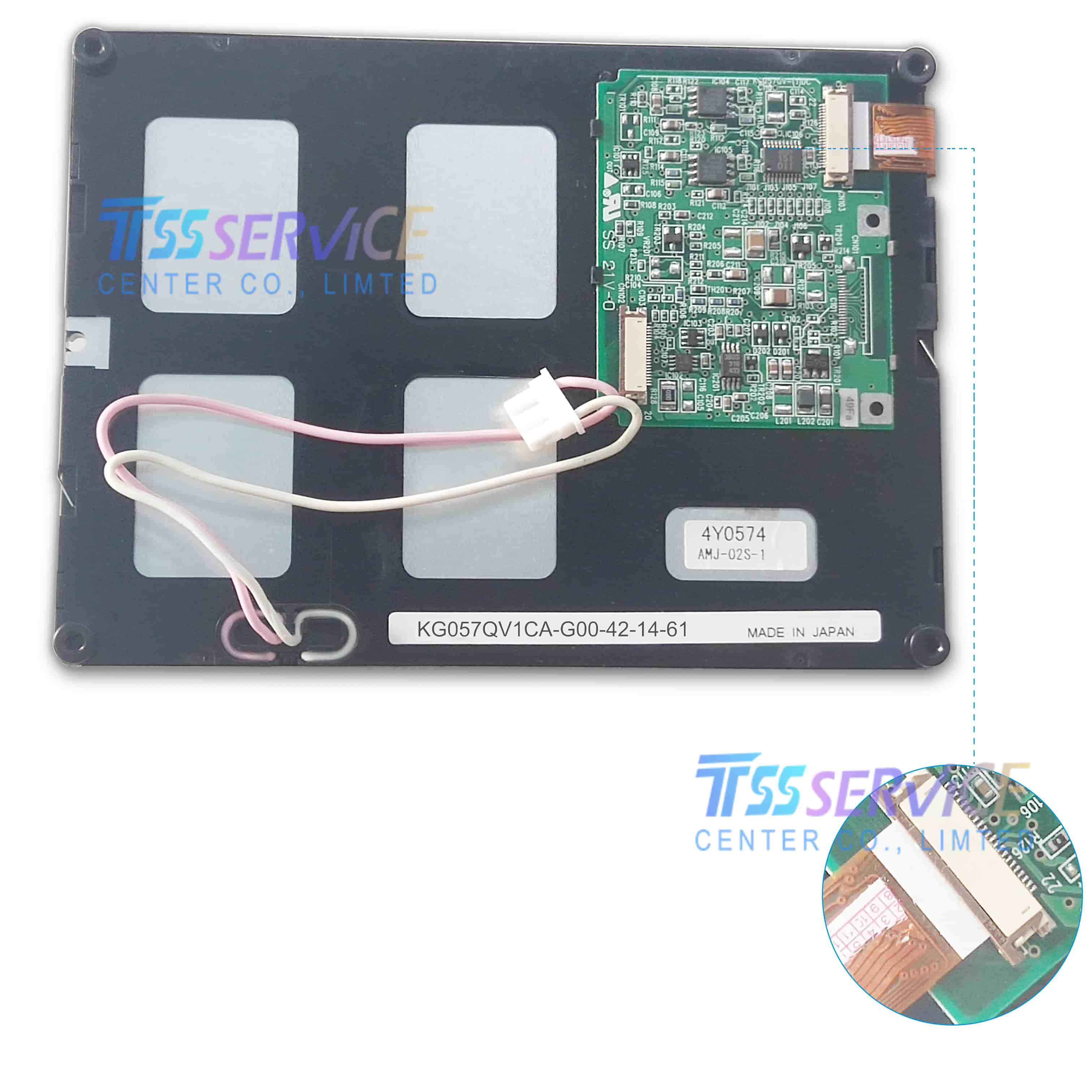

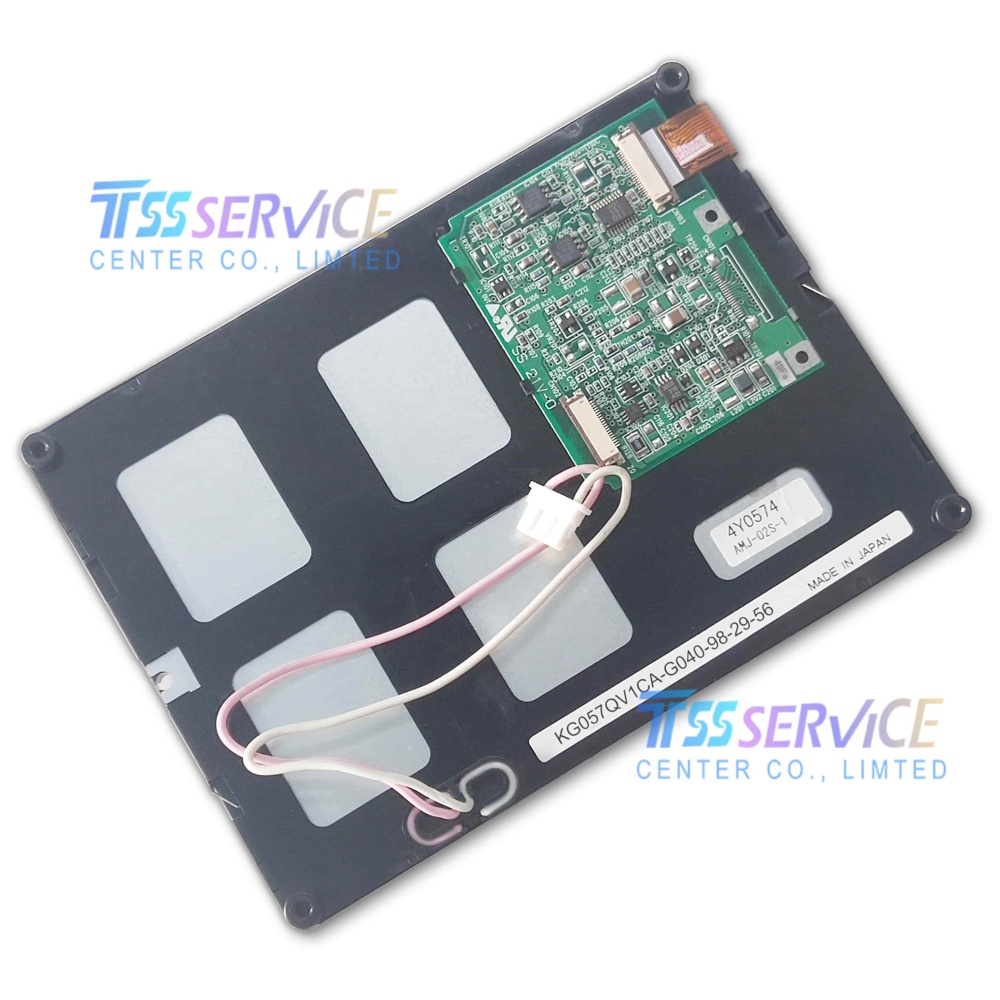

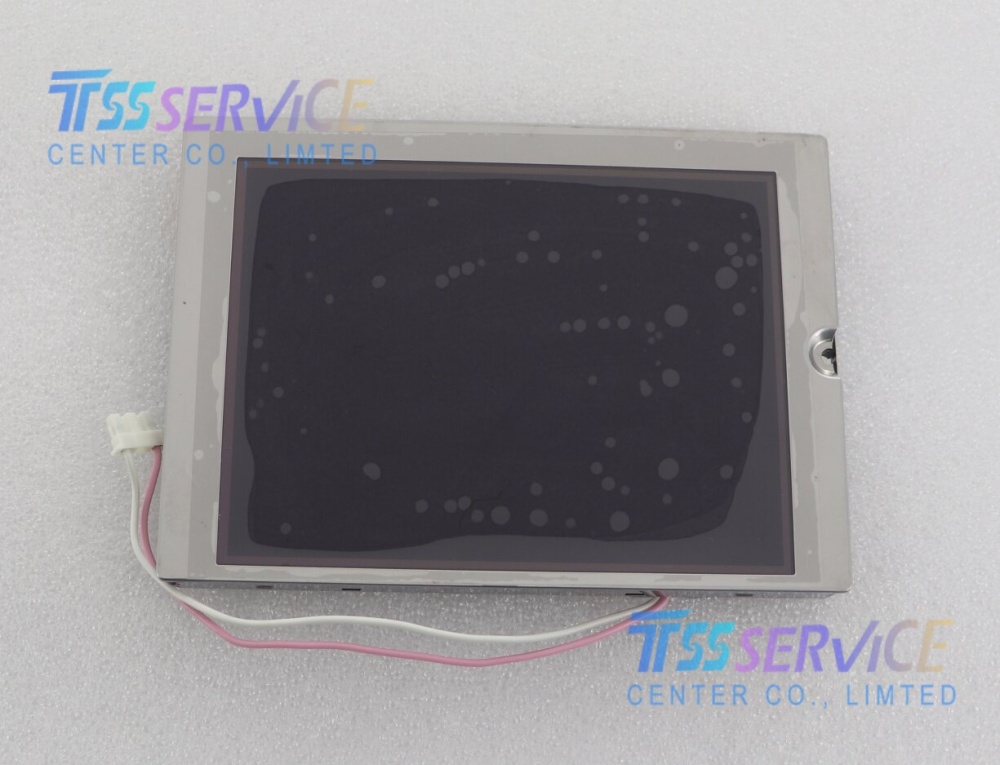

KG057QV1CA-G04 5.7"320*240 industrial Lcd Screen for KYOCERA

Name: KG057QV1CA-G04 5.7"320*240 industrial Lcd Screen for KYOCERA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KG057QV1CA-G04
Price: 92 USD
Availability: InStock

SKU: KG057QV1CA-G04

1，Condition: New，Grade A

2，Item: KG057QV1CA-G04 5.7 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$95.00~~ $92.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The KG057QV1CA-G04 is a 5.7-inch STN-LCD (Super-Twisted Nematic Liquid Crystal Display) module manufactured by KYOCERA. This industrial-grade monochrome display module is specifically designed for applications requiring reliable performance, excellent readability in blue mode negative display, and long-term durability in controlled industrial environments.

Brand	Kyocera
Model P/N	KG057QV1CA-G04
Diagonal Size	5.7"
Panel Type	STN-LCD, LCM
Resolution	320 × 240, QVGA, 70 PPI
Pixel Format	Rectangle
Active Area	115.18(W) × 86.38(H) mm
Bezel Opening	119.4(W) × 90.6(H) mm
Outline Dim.	144(W) × 104.8(H) × 13.2(D) mm
Treatment	Glare (Haze 0%)
Luminance	260 cd/m² (Typ.)
Contrast Ratio	4 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	380/120 (Typ.)(Tr/Td) ms
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Operating Mode	STN, Blue mode (Negative), Transmissive
Support Color	Monochrome
Light Source	CCFL [1 pcs], 58K hours, W/O Driver
Weight	175g
Frame Rate	75Hz
Touch Panel	Without
Interface Type	Parallel Data (1ch, 4-bit), 20-pin Connector
Power Supply	3.3/5.0V (Typ.)(VDD)
Environment	Operating Temp.: 0 ~ 60°C; Storage Temp.: -20 ~ 60°C

Applications

This industrial LCD panel is best suited for applications requiring a reliable monochrome graphical interface:

Human-Machine Interface (HMI) panels for industrial machinery controllers
Factory automation equipment and control systems
Test and measurement instruments
Industrial control systems requiring monochrome displays
Medical diagnostic equipment where monochrome display is sufficient
Communications equipment and infrastructure monitoring
Legacy system maintenance and new designs for controlled industrial environments
