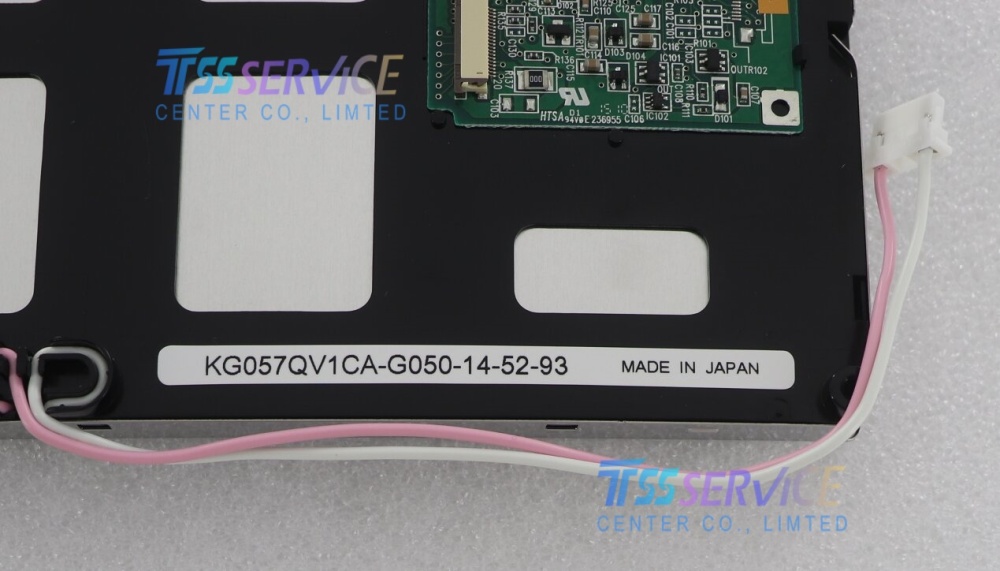

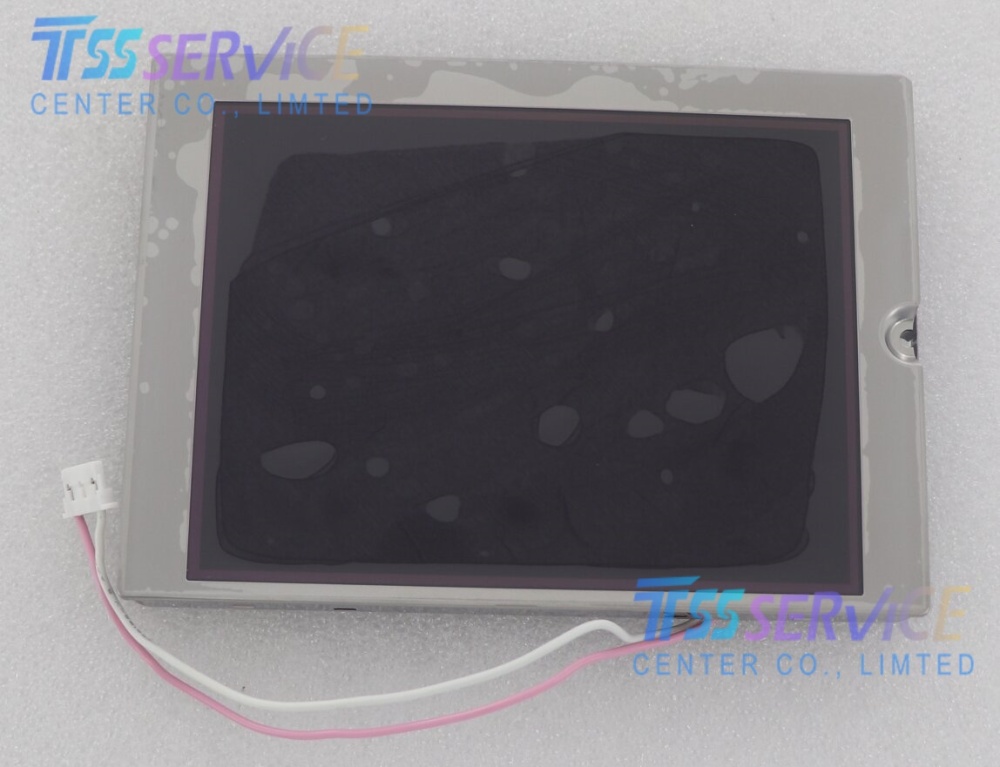

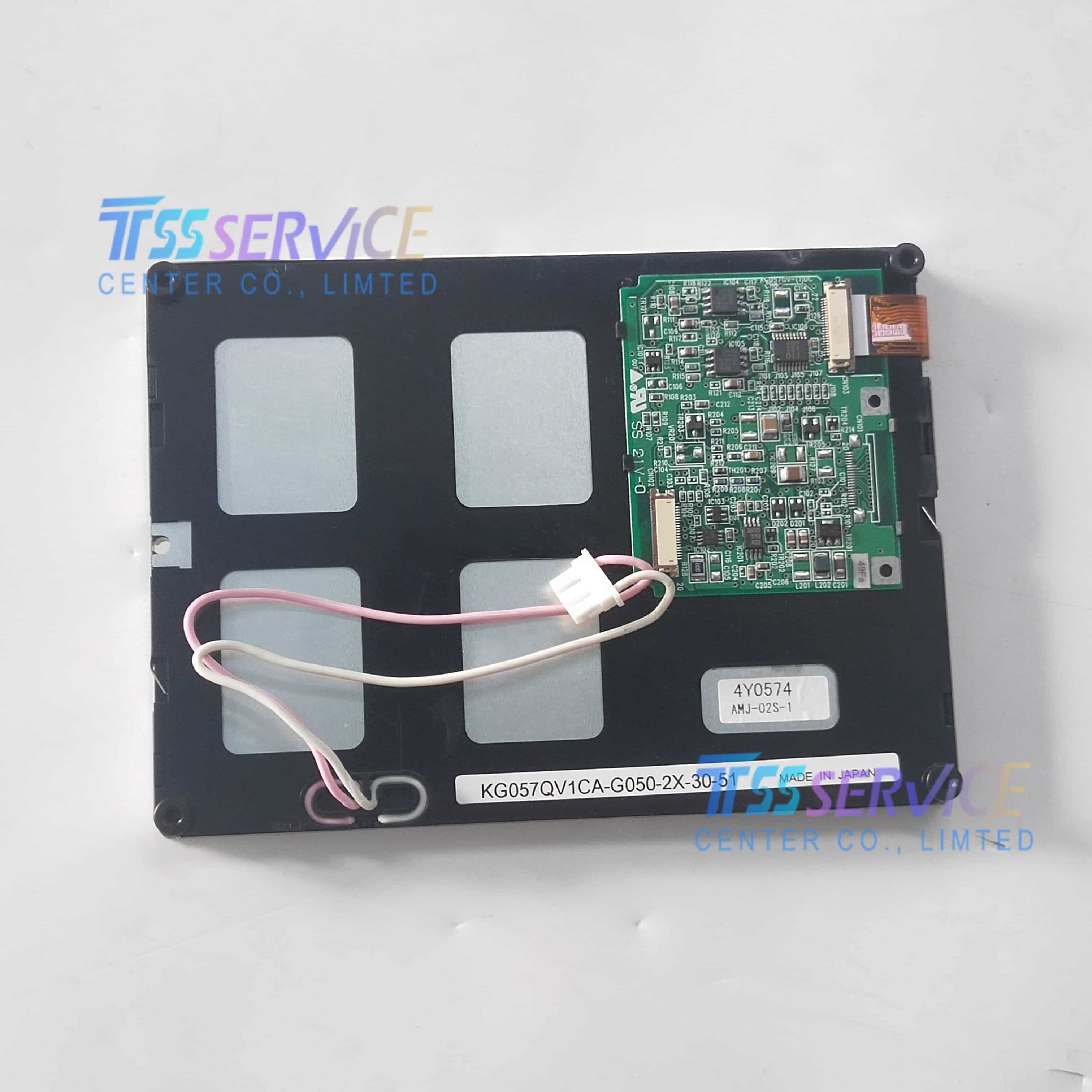

The KG057QV1CA-G050 is a 5.7-inch FSTN-LCD (Film Compensated Super Twisted Nematic Liquid Crystal Display) module manufactured by KYOCERA Corporation. This monochrome display panel is specifically designed for industrial applications that require reliable performance and clear visibility in various lighting conditions
| Brand | Kyocera |
| Model P/N | KG057QV1CA-G050 |
| Diagonal Size | 5.7" |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 320×240, QVGA 70PPI |
| Pixel Format | Rectangle |
| Active Area | 115.2(W)×86.4(H) mm |
| Outline Dim. | 144(W)×104.8(H)×13.2(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) |
| Response Time | 500 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/30/40 (Typ.)(CR≥2) |
| Operating Mode | STN, Transmissive |
| Support Color | Monochrome |
| Light Source | CCFL [1 pcs], 58K hours |
| Weight | 175g |
| Designed For | - |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Power Supply | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 60 °C |
This display panel is ideal for:
Industrial equipment and control panels
Medical devices requiring monochrome displays
Instrumentation and measurement equipment
Gaming machines and entertainment devices
Test and measurement equipment
Building automation systems
Any application requiring reliable monochrome LCD performance in controlled indoor environments
