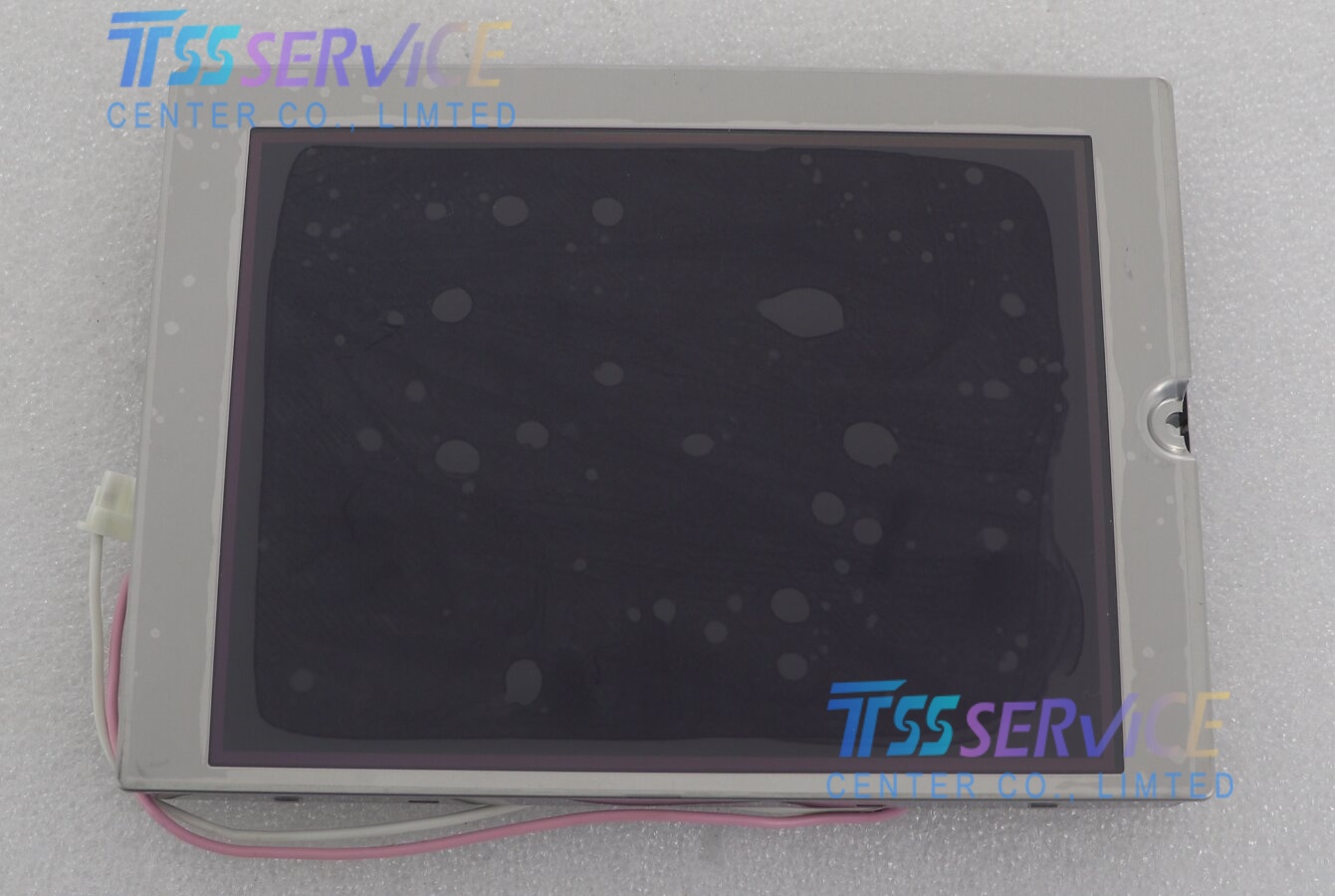

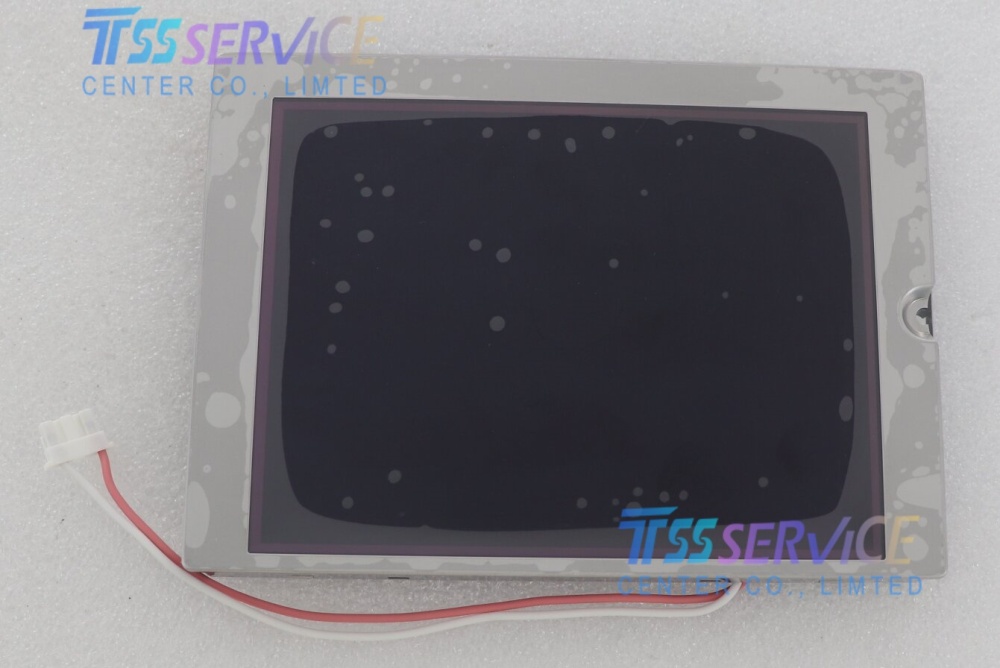

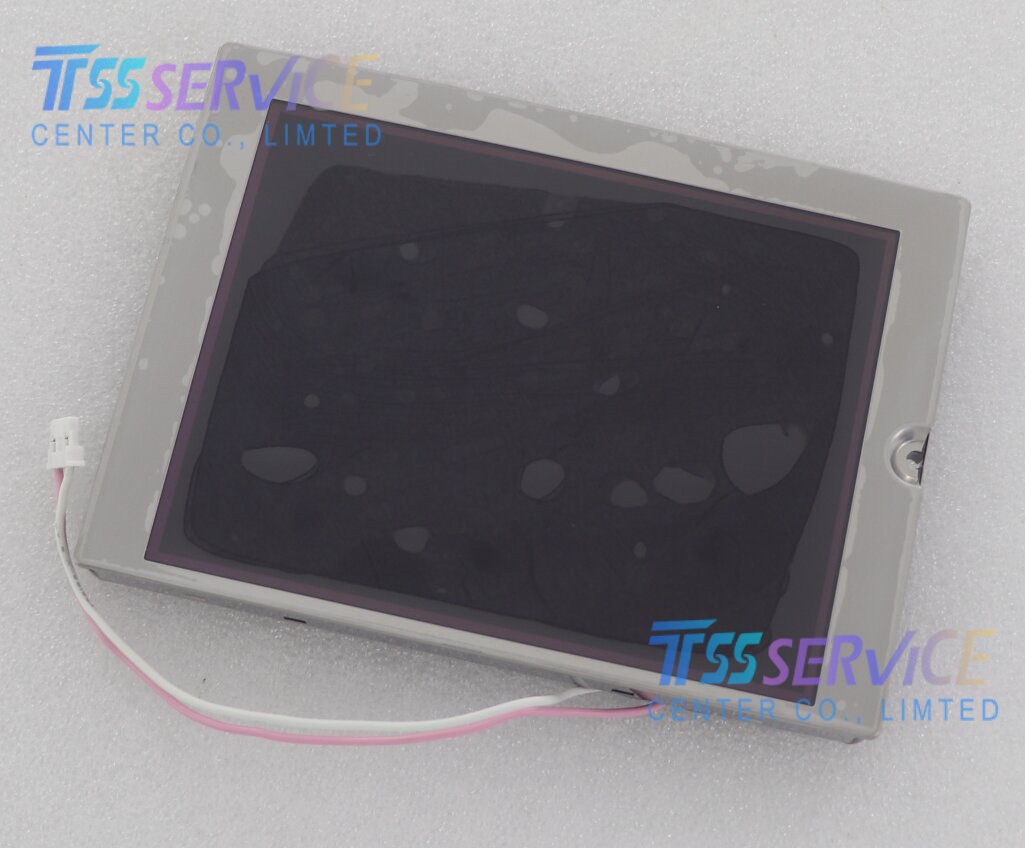

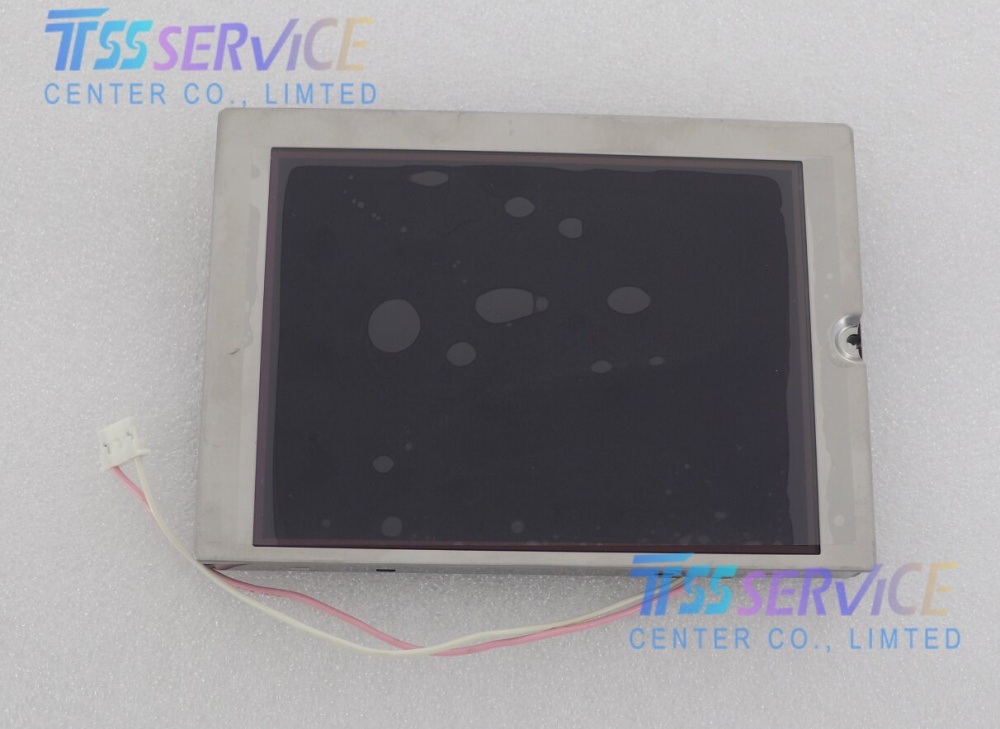

Kyocera KG057QV1CA-G500 5.7" 320×240 LCD Panel Screen For Industrial

Name: Kyocera KG057QV1CA-G500 5.7" 320×240 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KG057QV1CA-G500
Price: 90 USD
Availability: InStock

SKU: KG057QV1CA-G500

Model P/N: KG057QV1CA-G500
Diagonal Size: 5.7"
Panel Type: STN-LCD, LCM
Pixel Number: 320×240, QVGA, 4:3

0.0 (0 Reviews)

0 Sold

~~$92.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera KG057QV1CA-G500 5.7" 320×240 LCD Panel Screen For Industrial

Parameter	Specification
Model	KG057QV1CA-G500
Manufacturer	Kyocera
Diagonal Size	5.7 inches
Resolution	320 × 240 pixels (QVGA)
Panel Type	STN-LCD (Monochrome, Transmissive)
Display Mode	Monochrome (Black/White)
Brightness (Luminance)	220 cd/m² (Typical)
Contrast Ratio	10:1 (Typical)
Response Time	Tr/Td = 210/130 ms (Typical)
Viewing Angle	45/45/30/40 (Typ.)(CR≥2)
Active Area	115.2 mm (W) × 86.4 mm (H)
Outline Dimensions	144 mm (W) × 104.8 mm (H) × 13.2 mm (D)
Interface	Parallel Data (4-bit)
Backlight	1 × CCFL (Cold Cathode Fluorescent Lamp)
Backlight Life	58,000 hours
Operating Voltage	3.3V / 5.0V (Typical)
Operating Temperature	0°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Weight	175g (Typical)
Status	Discontinued (End of Life)

KG057QV1CA-G500 – Typical Applications

Industrial Control & HMI
- PLC displays, machine tools, factory automation
- Injection molding machines, process monitoring
- Industrial controllers, test & measurement equipment
Medical Devices
- Patient monitors, diagnostic equipment
- Portable clinical devices, lab analyzers
Automotive & Transportation
- Dashboard displays, vehicle control units
- Navigation systems, industrial vehicle displays
Consumer & Portable Electronics
- Handheld instruments, data loggers
- Industrial handheld terminals, POS systems
General Purpose Industrial Displays
- Instrumentation, process control, and embedded systems
- Low-power, cost-effective monochrome graphic displays
