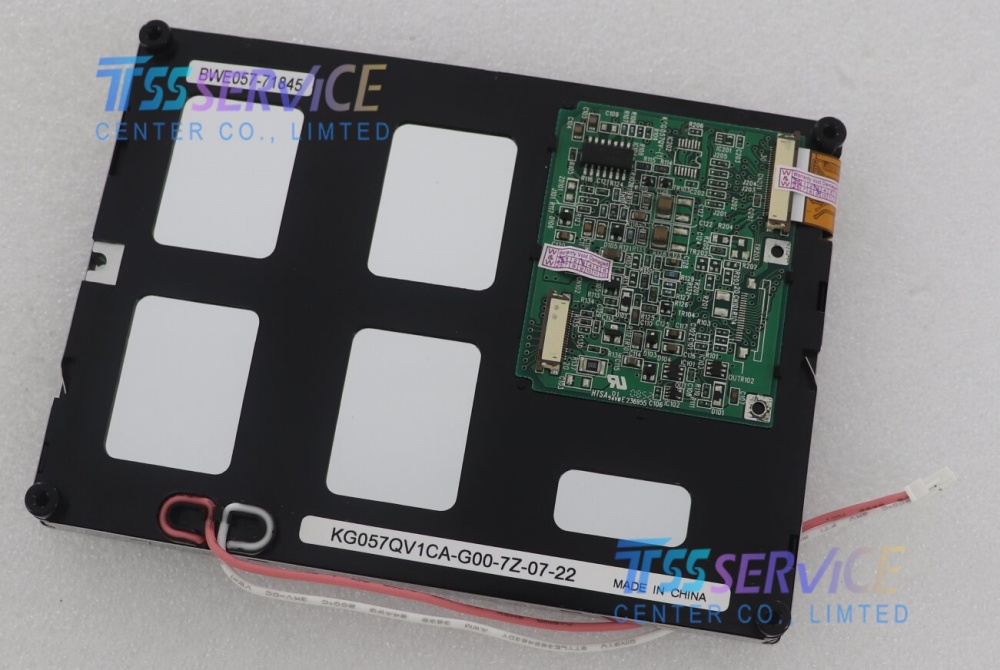

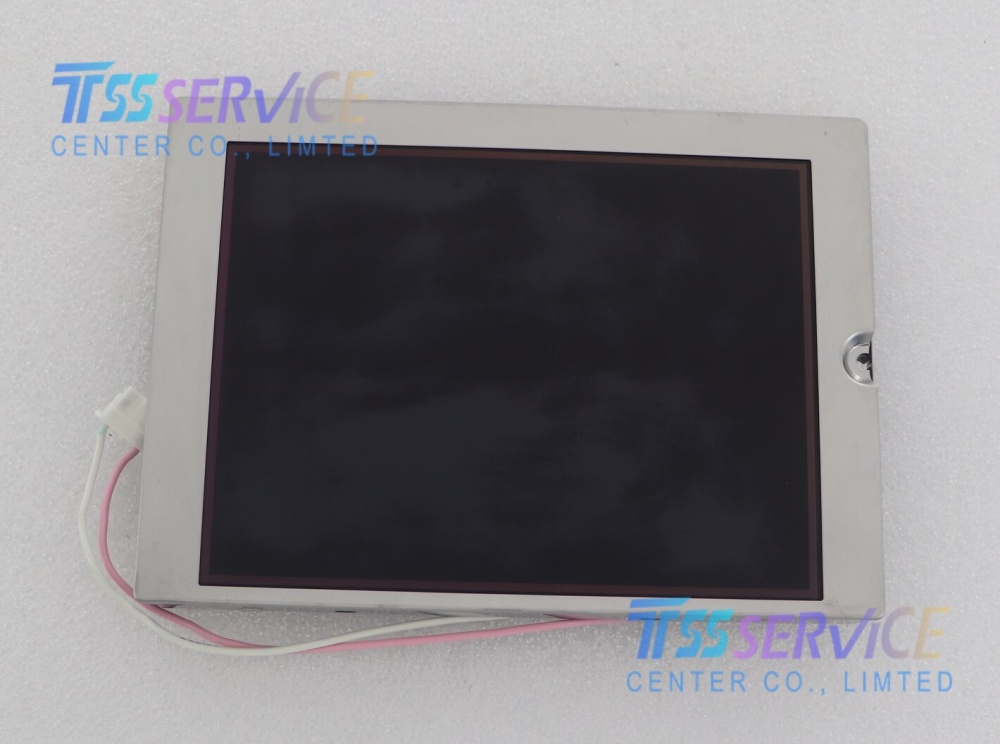

5.7" 320*240 LCD Display Panel for Kyocera KG057QV1CA-G60

Name: 5.7" 320*240 LCD Display Panel for Kyocera KG057QV1CA-G60
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KG057QV1CA-G60
Price: 98 USD
Availability: InStock

SKU: KG057QV1CA-G60

1，Condition: New，Grade A

2，Item: KG057QV1CA-G60 5.7 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The KG057QV1CA-G60 is a 5.7-inch STN-LCD (Super-Twisted Nematic Liquid Crystal Display) module manufactured by KYOCERA . This industrial-grade monochrome display module is designed for applications requiring reliable performance in industrial environments .

Brand	Kyocera
Model P/N	KG057QV1CA-G60
Diagonal Size	5.7"
Panel Type	STN-LCD, LCM
Resolution	320 × 240, QVGA, 70 PPI
Pixel Format	Rectangle
Active Area	115.2(W) × 86.4(H) mm
Outline (mm)	144 × 104.8 × 13.2 (H×V×D)
Viewing Angle	45/45/30/40 (Typ.)(CR≥2)
Response Time	500 ms (Typ.)(Tr+Td)
Work Mode	STN, Transmissive
Color Depth	Monochrome
Backlight	1 pcs CCFL, 58K hours
Mass	175g
Touchscreen	Without
Voltage Supply	3.3/5.0V (Typ.)(VDD)
Max. Ratings	Operating Temp.: 0 ~ 60°C
