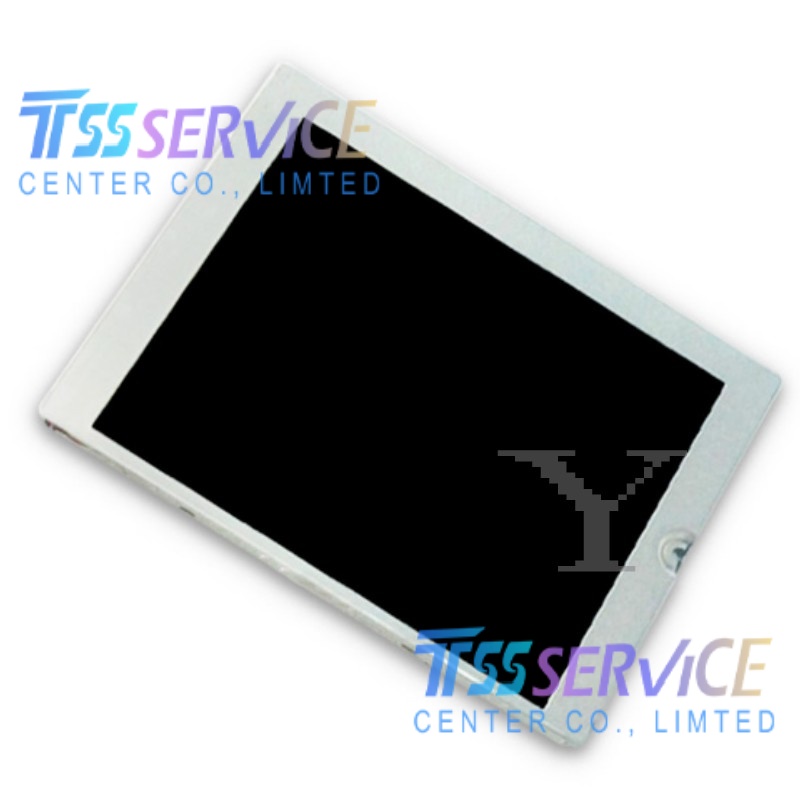

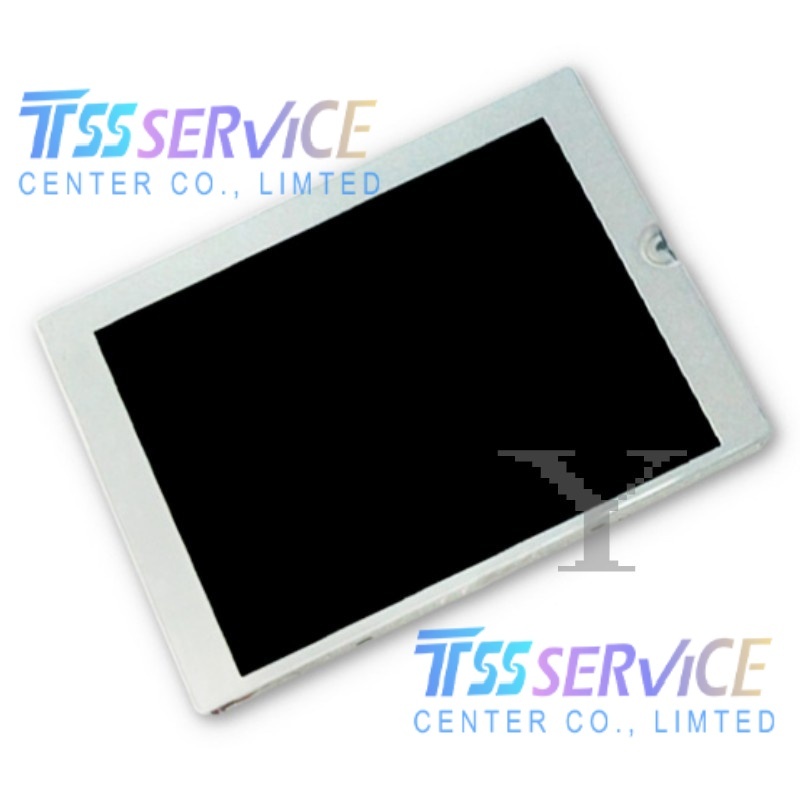

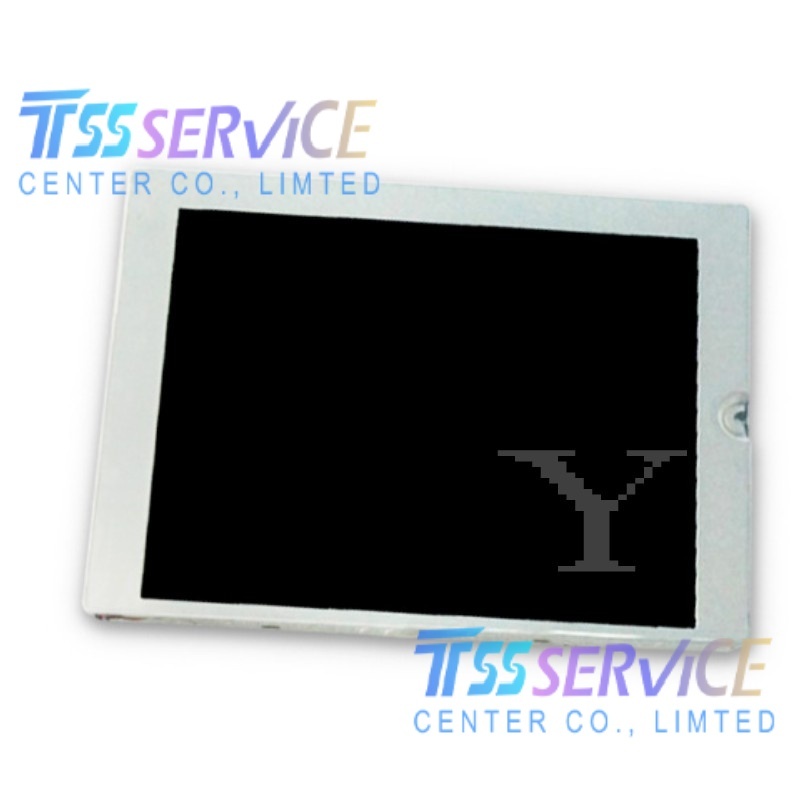

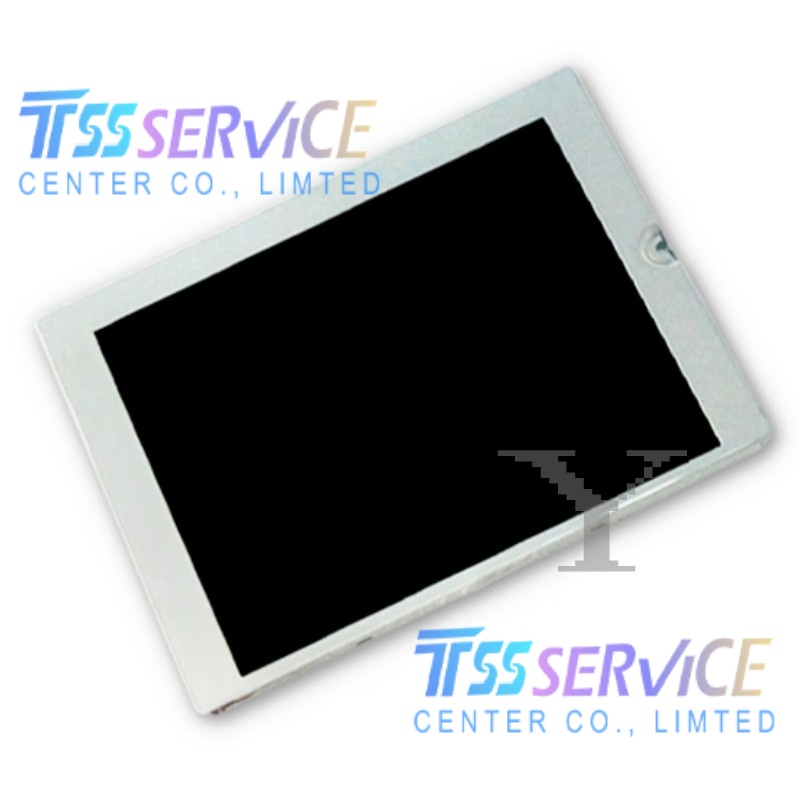

Kyocera KG057QVLCD-G060 5.7" QVGA STN-LCD Industrial Display Panel

Name: Kyocera KG057QVLCD-G060 5.7" QVGA STN-LCD Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KG057QVLCD-G060
Price: 100 USD
Availability: InStock

SKU: KG057QVLCD-G060

Model: KG057QVLCD-G060
Size: 5.7 inches
Panel Type; STN-LCD (FSTN)
Resolution 320 × 240 (QVGA)

0.0 (0 Reviews)

0 Sold

~~$105.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera KG057QVLCD-G060 5.7" QVGA STN-LCD Industrial Display Panel

Parameter	Details
Model	KG057QVLCD-G060
Brand	Kyocera
Size	5.7 inches
Panel Type	STN-LCD (FSTN)
Resolution	320 × 240 (QVGA)
Brightness	150 cd/m² (Typ.)
Contrast Ratio	40:1 (Typ.)
Viewing Angle	35/35/20/35 (Typ.)(CR≥2)
Display Colors	Monochrome / 262k
Display Area	115.2 × 86.4 mm
Outline Size	135 × 105 × 12 mm
Backlight	LED, 50,000 hours
Interface	Parallel, 20 pins
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Weight	175 g (Typ.)

Applications

Industrial HMI & Control Panels: Factory automation, PLC, and CNC machinery displays.
Embedded & Portable Systems: Medical devices, handheld terminals, and test equipment.
Commercial & Kiosk Systems: POS terminals, vending machines, and information displays.
Transportation: Marine, railway, and heavy-duty vehicle dashboard displays.
Legacy System Replacement: Ideal for upgrading or replacing older 5.7-inch STN-LCD panels.
