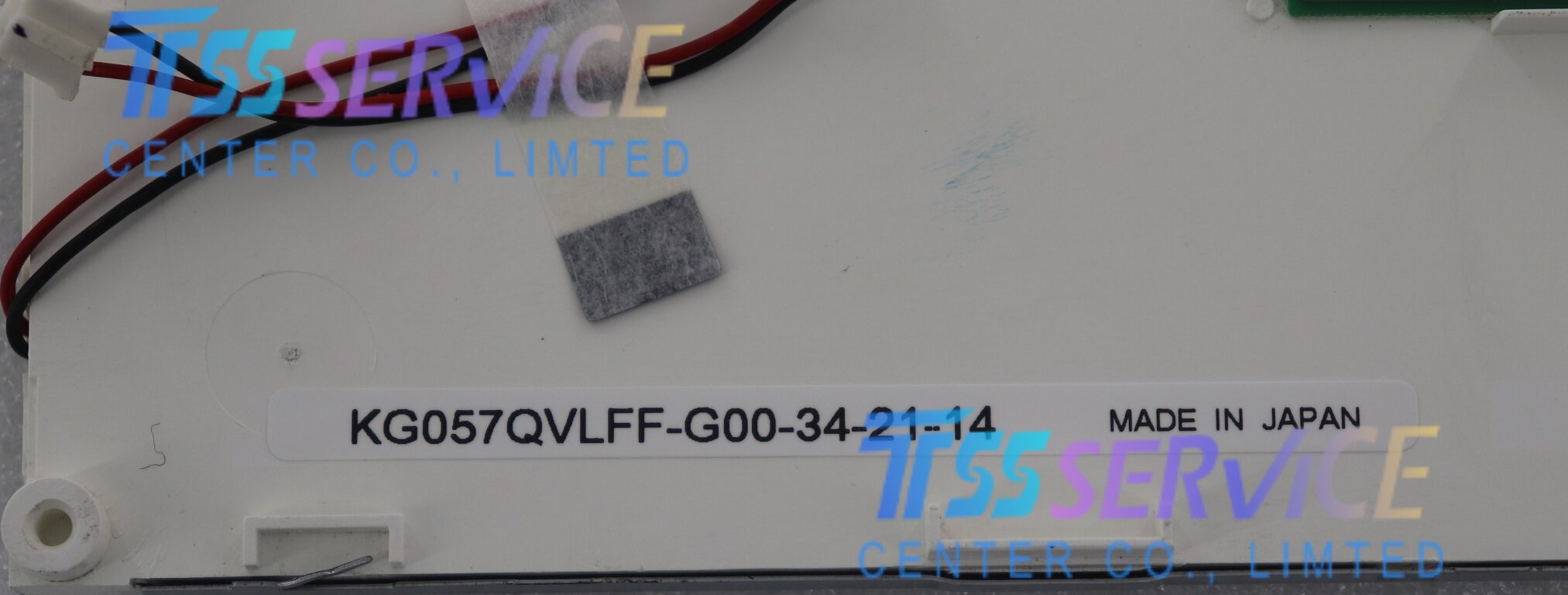

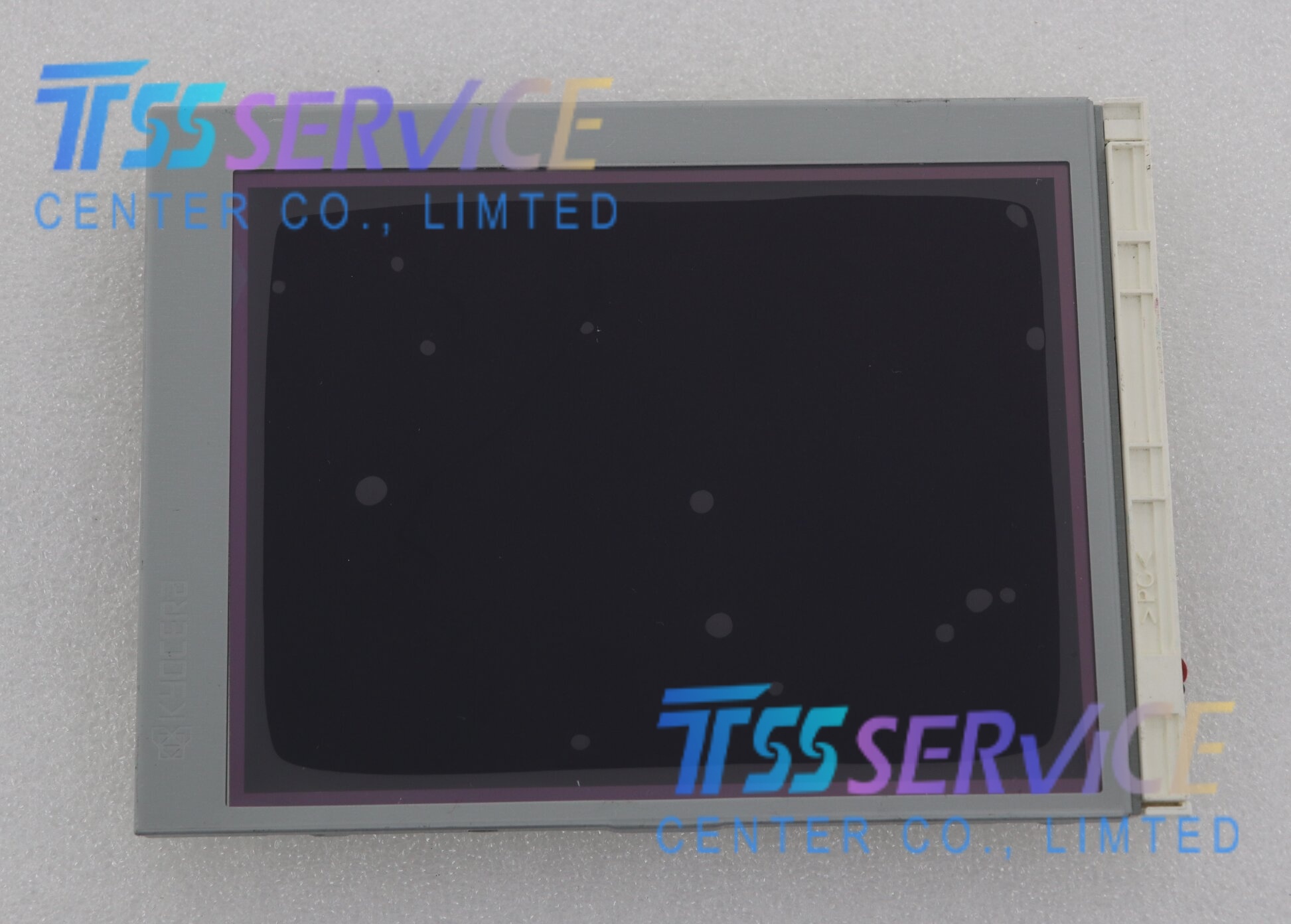

Kyocera 5.7 inch KG057QVLFF-G00 320×240 LCD Display Panel

Name: Kyocera 5.7 inch KG057QVLFF-G00 320×240 LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KG057QVLFF-G00
Price: 160 USD
Availability: InStock

SKU: KG057QVLFF-G00

Model P/N: KG057QVLFF-G00
Diagonal Size: 5.7"
Panel Type: FSTN-LCD, LCM
Pixel Number: 320×240, 4:3, QVGA

0.0 (0 Reviews)

0 Sold

~~$162.00~~ $160.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera 5.7 inch KG057QVLFF-G00 320×240 LCD Display Panel

Item	Specification	Unit
Manufacturer	Kyocera	–
Model	KG057QVLFF-G00	–
Display Size	5.7 (Diagonal)	inch
Resolution	320 × 240 (QVGA)	dots
Aspect Ratio	4:3 (Landscape)	–
Display Type	STN, Monochrome, Transmissive	–
Active Area	115.2 × 86.4	mm
Outline Dimensions	144 × 104.8 × 5.1 (Typ.) / 9.2 (Max.)	mm
Dot Pitch	0.36 × 0.36	mm
Brightness	170 (Typ.)	cd/m²
Contrast Ratio	10:1 (Typ.)	–
Viewing Angle (L/R/U/D)	45/45/20/40 (CR≥2)	deg
Response Time (Tr+Td)	500 (Typ.)	ms
Backlight	WLED (White LED)	–
Interface	Parallel Data (4-bit)	–
Surface Treatment	Glare (Haze 0%)	–
Weight	130 (Typ.)	g
Operating Temperature	0 ~ +60	°C
Storage Temperature	-20 ~ +70	°C
Power Supply	3.3 V (Logic)	–
RoHS Compliance	Yes	–

General Applications

Industrial Control Panels: Factory automation, PLC HMIs, and machine control interfaces.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments.
Office Automation: POS terminals, printers, copiers, and industrial scanners.
Consumer Appliances: High-end home appliances, audio/visual equipment, and smart home control panels.
Transportation: Marine displays, industrial vehicle dashboards, and public information screens.
