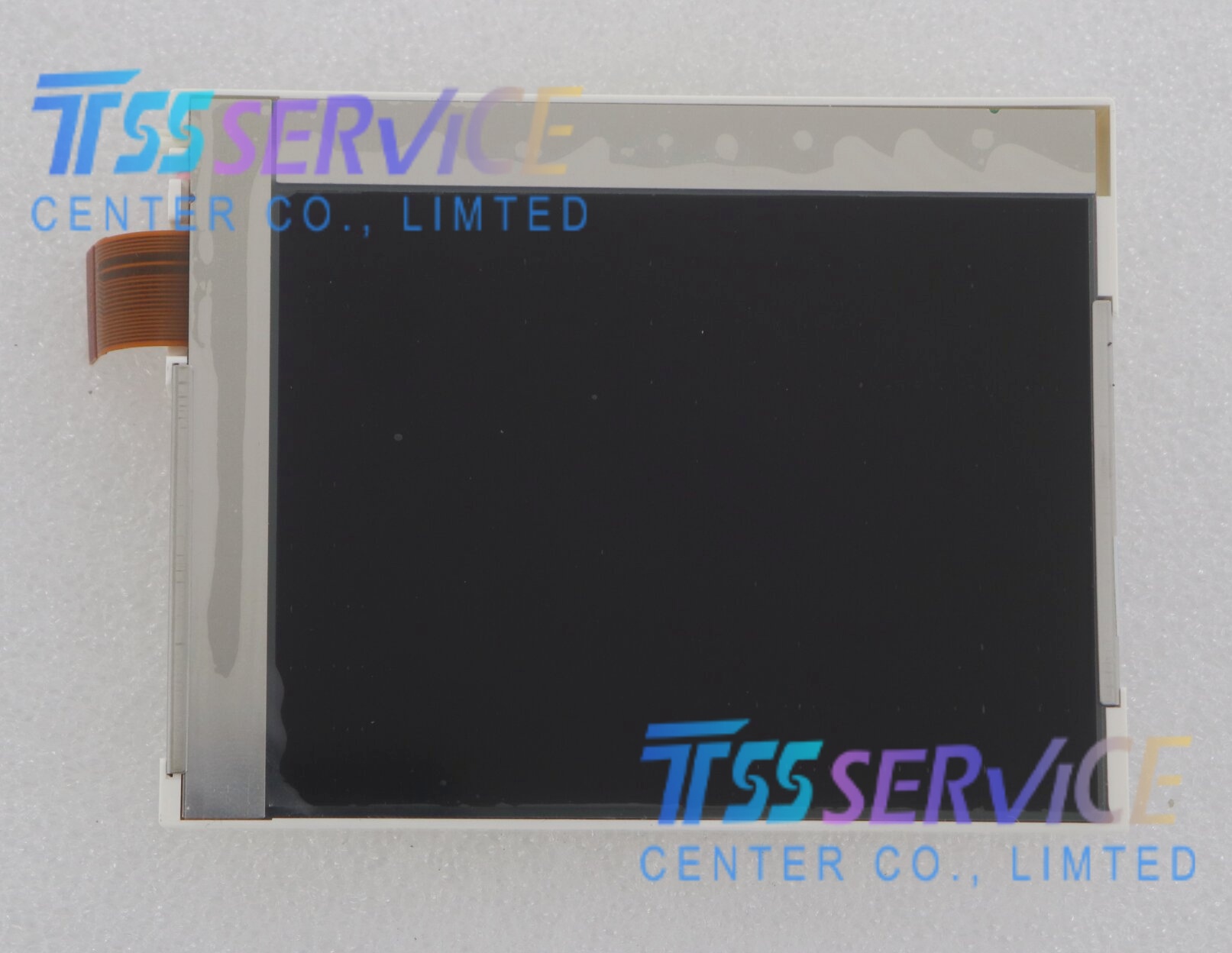

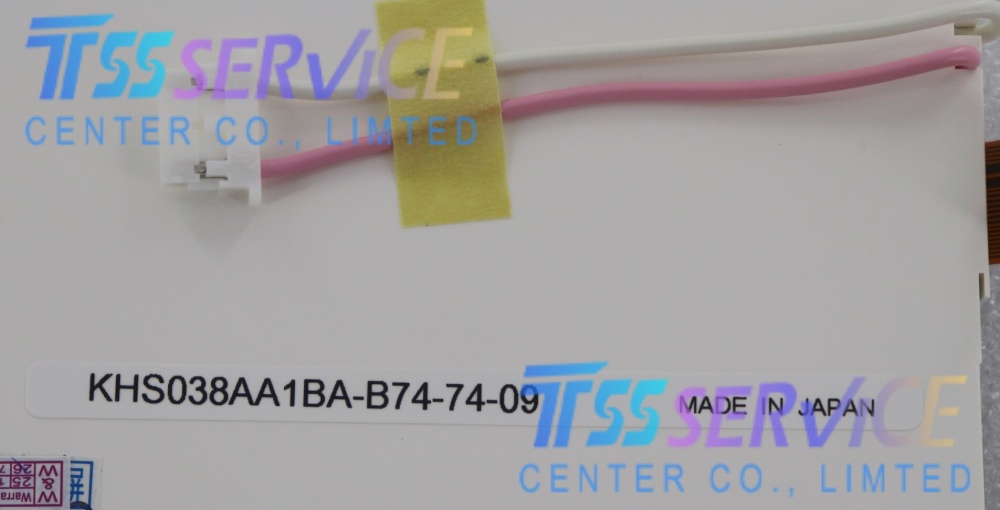

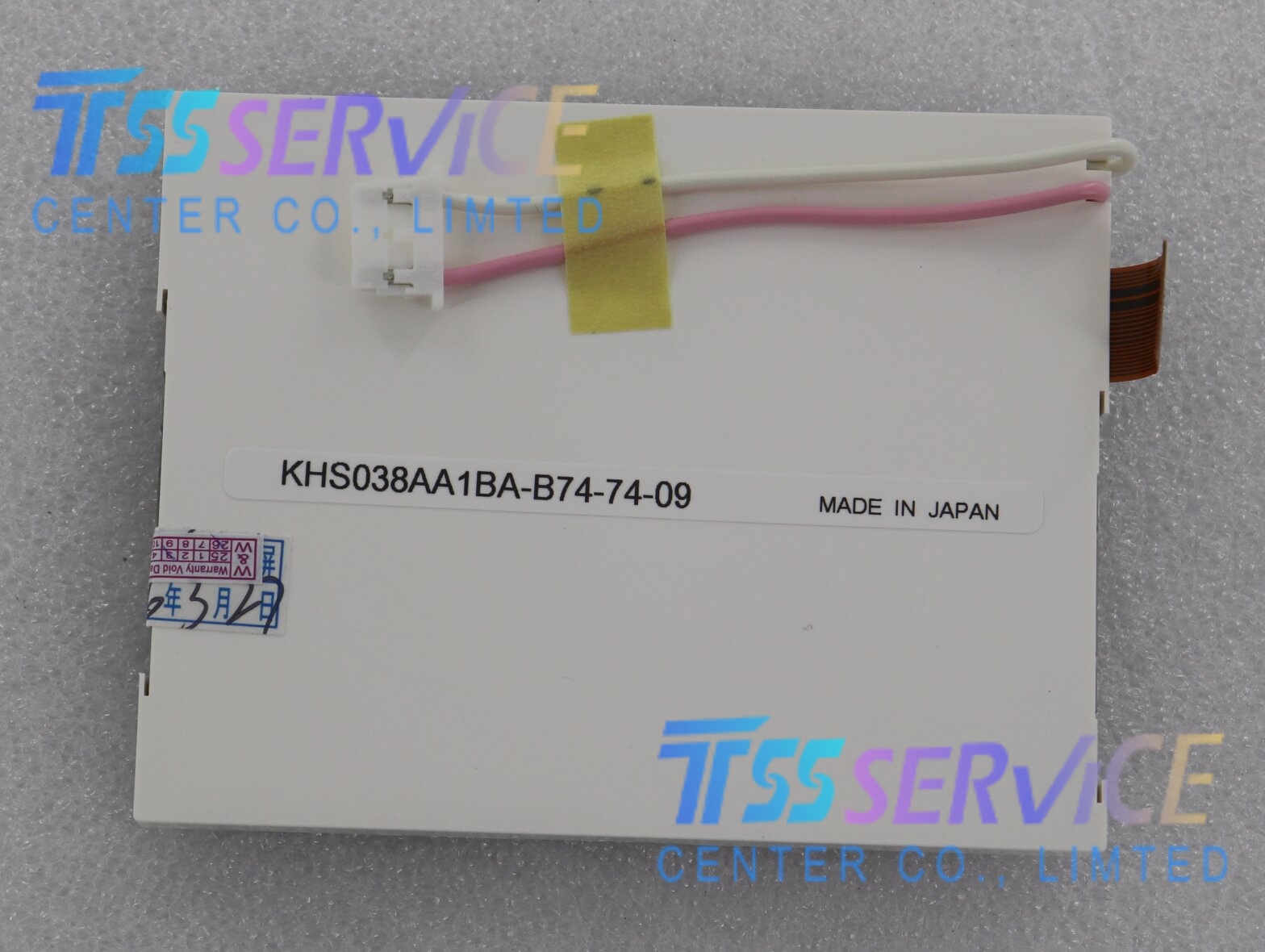

KHS038AA1BA-B74 Kyocera 3.8 INCH Industrial LCD Display

Name: KHS038AA1BA-B74 Kyocera 3.8 INCH Industrial LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KHS038AA1BA-B74
Price: 330 USD
Availability: InStock

SKU: KHS038AA1BA-B74

Model P/N: KHS038AA1BA-B74
Diagonal Size: 3.8"
Panel Type: CSTN-LCD
Pixel Number: 240 × 320

0.0 (0 Reviews)

0 Sold

~~$335.00~~ $330.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KHS038AA1BA-B74 Kyocera 3.8 INCH Industrial LCD Display

Parameter	Specification
Diagonal Size	3.8 inches
Resolution	240 × 320 pixels (Portrait)
Panel Type	CSTN-LCD (Color, Transflective)
Display Mode	Color (16-bit, 65K colors)
Contrast Ratio	15:1 (Typical)
Luminance (Brightness)	16 cd/m² (Typical)
Response Time	Tr/Td = 250/150 ms (Typical)
Active Area	57.58 mm (W) × 76.78 mm (H)
Outline Dimensions	85 mm (W) × 110 mm (H) × 6.5 mm (D)
Interface	Parallel Data (8-bit), 22 pins (FPC)
Backlight	CCFL (Cold Cathode Fluorescent Lamp), 40,000 hours
Operating Voltage	VDD = 3.3 V (Typical)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Weight	85 g (Typical)
Status	Discontinued (End of Life)

KHS038AA1BA-B74 – Typical Applications

Industrial Control & HMI
- PLC displays, machine tools, factory automation
- Test/measurement equipment, process monitoring
Medical Devices
- Patient monitors, diagnostic equipment
- Portable clinical devices, lab analyzers
Automotive & Transportation
- Dashboard displays, vehicle control units
- Navigation systems, industrial vehicle displays
Consumer & Portable Electronics
- Handheld instruments, data loggers
- Industrial handheld terminals, POS systems
General Purpose Industrial Displays
- Instrumentation, process control, and embedded systems
- Low-power, cost-effective color graphic displays
