The TX13D06VM2BBA is a 5.0-inch industrial-grade TFT-LCD display module manufactured and full-process quality-controlled by KOE, a global leading supplier of high-reliability industrial display solutions. With a WVGA resolution of 800×480 pixels, this module adopts energy-efficient long-life WLED backlight technology, delivering sharp image details, stable color reproduction, and uninterrupted reliable operation in harsh industrial and vehicle-mounted environments.
With over 10 years of professional experience in industrial display distribution and technical services, TSS Service Center provides 100% original KOE genuine TX13D06VM2BBA modules. This product can be directly used as a perfect replacement or upgrade for original equipment, and has been widely verified and applied in portable medical devices, automotive dash displays, industrial HMIs, advanced handheld terminals and other embedded scenarios by global customers.
| Brand | KOE (Original Genuine Guaranteed) |
| Model Number | TX13D06VM2BBA |
| Panel Type | a-Si TFT-LCD, LCM |
| Diagonal Size | 5.0 Inch |
| Native Resolution | 800(RGB)×480 [WVGA] |
| Aspect Ratio | 16:9 (H:V) |
| Pixel Pitch | 0.13575×0.13575 mm (H×V) |
| Active Display Area | 108.6(H) × 64.8(V) mm |
| Outline Dimension | 120.0(H) × 76.0(V) × 8.5(D) mm (Typ.) |
| Display Mode | TN, Normally White, Transmissive |
| Typical Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) |
| Response Time | 30 ms (Max.) (Tr+Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Colors | 262K, 60% NTSC Color Gamut |
| Backlight Type | WLED, 70,000 Hours Lifetime, Built-in LED Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 40-pin FPC Connector |
| Touch Screen | Without (Customizable with capacitive/resistive touch solution) |
| Typical Input Voltage | 3.3V DC |
| Operating Temperature Range | -30℃ ~ +80℃ |
| Storage Temperature Range | -30℃ ~ +80℃ |
This KOE TX13D06VM2BBA display module has been fully tested and widely used in the following scenarios by our global industrial customers:
A: Yes. All TX13D06VM2BBA modules we sell are directly supplied by KOE official authorized channel, 100% original genuine, fully compliant with KOE factory specifications. We can provide the official complete KOE datasheet upon request, and all products come with a 12-month standard warranty.
A: We have no strict MOQ limit for this model. We support 1pcs sample order for your performance and compatibility testing. The price difference between sample and bulk orders can be partially refunded when you place a formal bulk order later.
A: Yes. Our technical team has more than 10 years of experience in industrial display solutions. We can provide full technical support including official datasheet, interface definition, driver debugging, replacement compatibility verification, to help you complete the product integration smoothly.

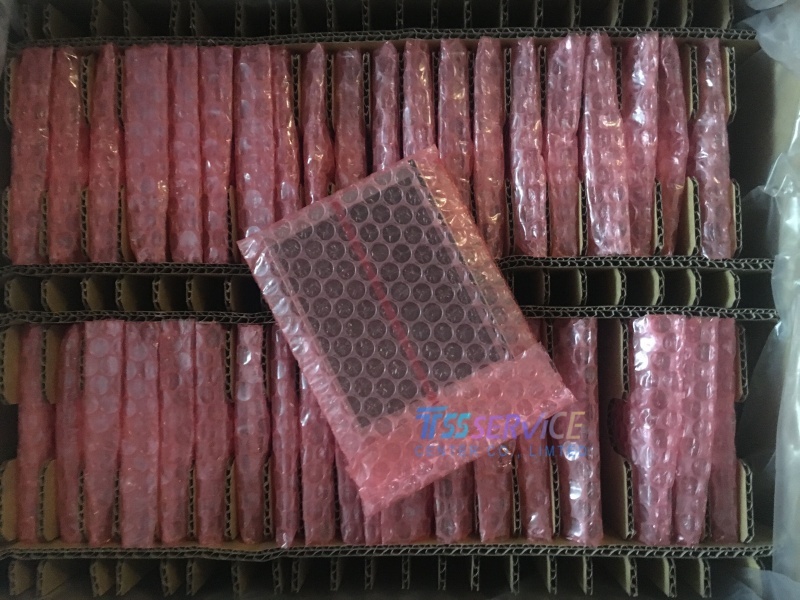

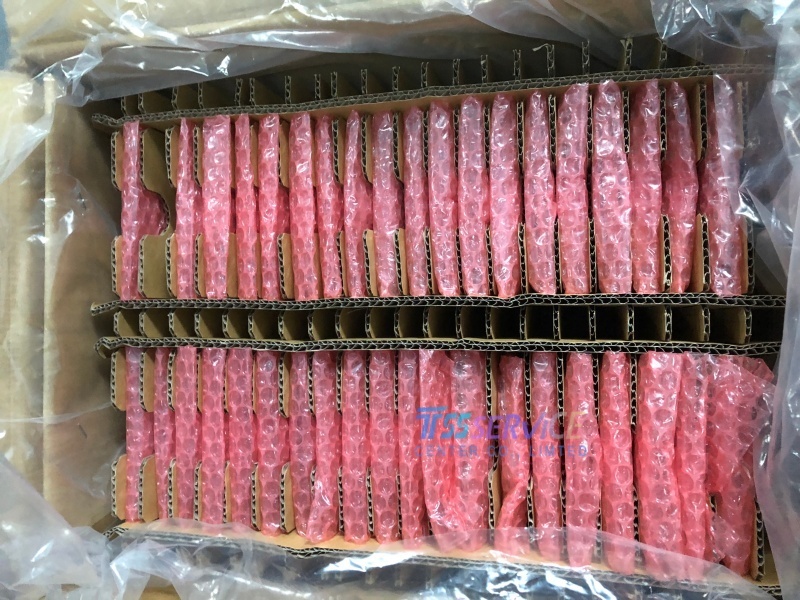

A: We strictly follow IPC international industrial electronic component packaging standards. Each TX13D06VM2BBA module is individually packed in an anti-static bag, fixed with a custom shock-absorbing foam tray to fully protect the screen glass and backlight unit. Bulk orders use reinforced cartons and optional palletizing service to ensure the goods arrive intact during long-distance international transportation.
A: Yes. This TX13D06VM2BBA module is a direct-fit KOE original product, fully consistent with the original specifications of the same model. No need to change the structure or circuit of your original equipment, it can be directly installed to restore high-quality display output.
