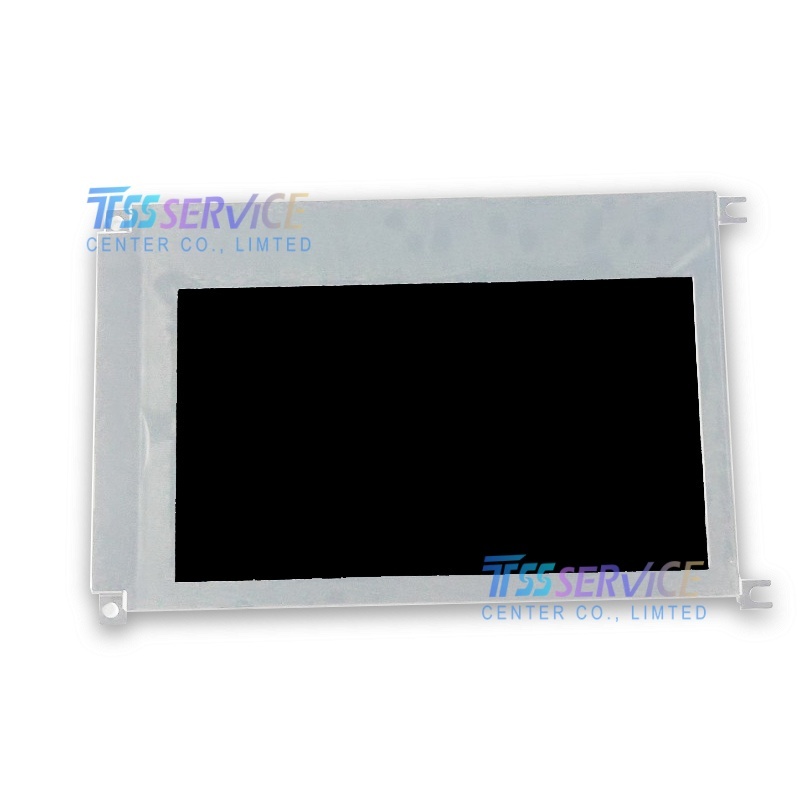

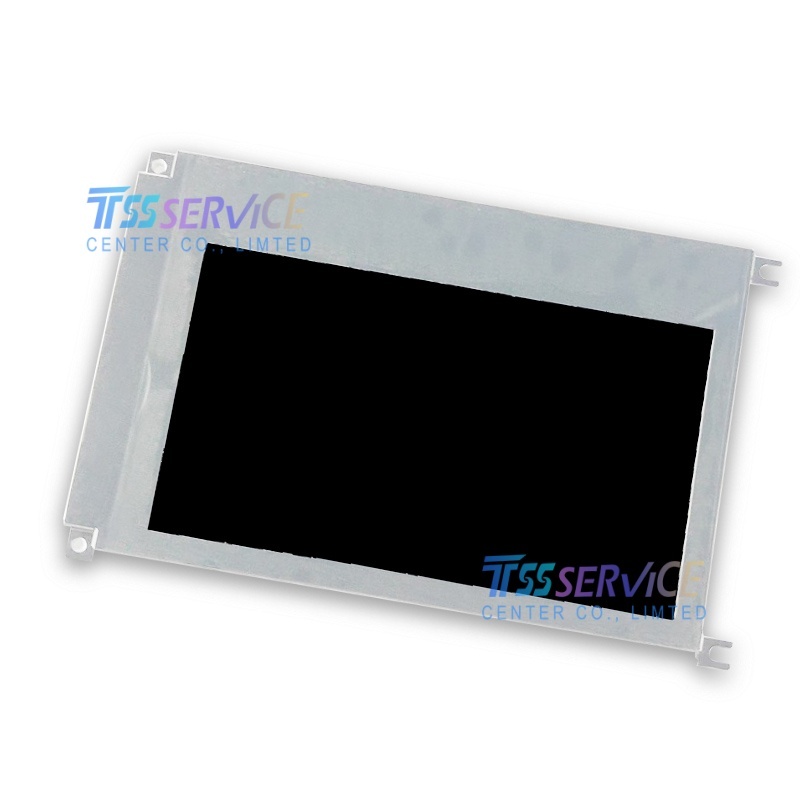

SP14N001-Z1 KOE panel lcd for HITACHI

Name: SP14N001-Z1 KOE panel lcd for HITACHI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SP14N001-Z1
Price: 60 USD
Availability: InStock

SKU: SP14N001-Z1

Model:SP14N001-Z1
Size:5.7"
Resolution:240x128
Interface:26 pins 8-bit parallel , Connector
Temperature(℃):-10 ~ 60 °C

0.0 (0 Reviews)

0 Sold

~~$65.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display SP14N001-Z1 General Features
SP14N001-Z1 is a KOE-manufactured LCD panel designed as a compatible replacement for HITACHI display systems. This high-quality component ensures reliable performance and clear visual output, making it suitable for a variety of industrial and commercial applications. Engineered to meet the specifications of the original HITACHI part, it offers seamless compatibility and straightforward integration, serving as an efficient solution for repairing or upgrading equipment. By utilizing this direct-fit panel, system functionality and display clarity can be effectively restored, maintaining the operational integrity of HITACHI-compatible devices in fields such as instrumentation, control panels, and embedded systems.

Brand	KOE
Model	SP14N001-Z1
Panel-type	FSTN-LCD , LCM
Size	5.1"
Resolution	240×128
Aspect Ratio	17:9 (H:V)
Dot Pitch(mm)	0.50×0.50 mm (H×V)
Pixel Pitch(mm)	0.50×0.50 mm (H×V)
Display Area	119.98×63.98 mm (H×V)
Bezel Opening	124.0×70.0 mm (H×V)
Outline Size	159.4×101 mm (H×V)
Surface	Antiglare
Display Mode	STN, Black/White (Negative), Transmissive
Brightness	150 cd/m² (Typ.)
Contrast Ratio	20:1 (Typ.) (TM)
Response Time	120/150 (Typ.)(Tr/Td) ms
Viewing Angle	40 (Typ.)(CR≥2, Φ2-Φ1)
Best View on	6 o'clock
Display Colors	Monochrome
Lamp Type	CCFL [1 pcs] , W/O Driver
Signal Interface	26 pins 8-bit parallel , Connector
Touch Screen	Without
Input Voltage	5.0V (Typ.)
Operating Temp	-10 ~ 60 °C
Storage Temp	-20 ~ 70 °C

1.Question: This is a bare panel. How do you prevent glass breakage or pin damage during transport?
h Answer: We use industrial-grade anti-static and shock-proof packaging. Each panel is first wrapped in an anti-static bag and then individually embedded in a custom EVA foam tray. This tray precisely secures the panel’s position, preventing the glass panel and rear conductive pins from being damaged by vibration or compression during transit.

2.Question: We need this screen for urgent repair of factory equipment. Is it currently in stock? How long does shipping take?
Answer: We currently have stock of this SP14N001-Z1 in our warehouse. For regular orders, we will arrange shipment within 24 hours after payment receipt. If your equipment is down and needs urgent repair, please contact customer service when placing your order, and we can arrange priority expedited shipping.
