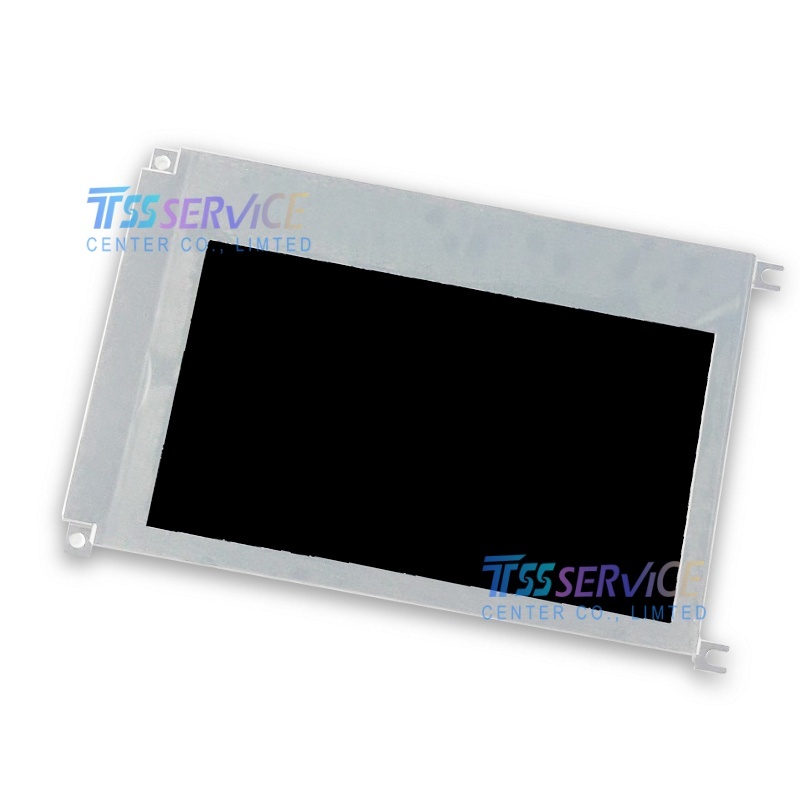

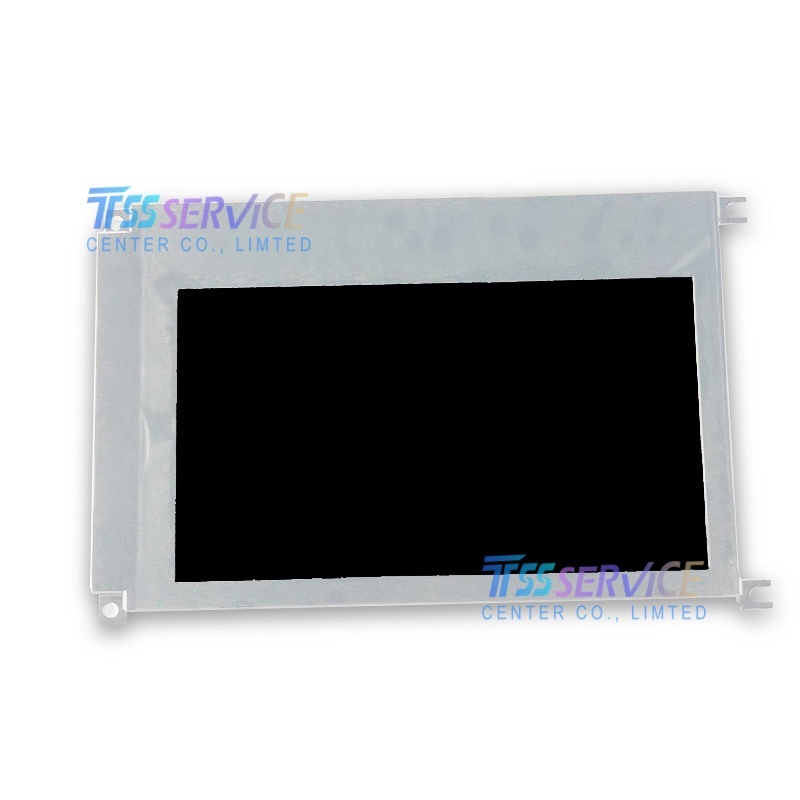

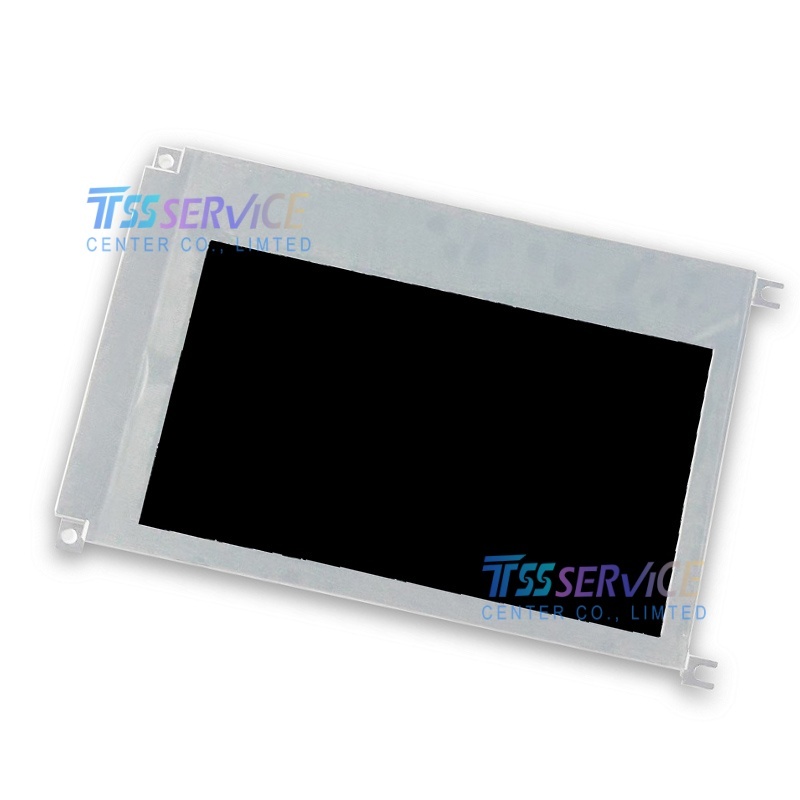

Name: SP14N01L6VLCZ KOE 5.1 inch 240x128 tft display for KOE
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SP14N01L6VLCZ
Price: 198 USD
Availability: InStock

SP14N01L6VLCZ KOE 5.1 inch 240x128 tft display for KOE

SKU: SP14N01L6VLCZ

Model:SP14N01L6VLCZ
Size:5.1"
Resolution:240x128
Interface:8-bit parallel , 26 pins , Connector
Temperature(℃):-10 ~ 60 °C

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $198.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Koe Display SP14N01L6VLCZ General Features
SP14N01L6VLCZ is a 5.1-inch TFT-LCD display manufactured by KOE, featuring a resolution of 240 × 128 pixels. This compact and reliable display module offers clear image quality and stable performance, making it well-suited for integration into a variety of embedded and industrial applications. It is ideal for use in portable devices, handheld terminals, instrumentation panels, and control systems where a small, functional display is required. Engineered for durability, it ensures consistent operation in diverse environmental conditions. As a direct-fit KOE component, it provides seamless compatibility and serves as a practical replacement or upgrade, effectively restoring crisp and functional visual output to equipment designed for this specific model.

Brand	KOE
Model	SP14N01L6VLCZ
Panel-type	FSTN-LCD , LCM
Size	5.1"
Resolution	240×128
Aspect Ratio	17:9
Dot Pitch(mm)	0.50×0.50 mm
Pixel Pitch(mm)	0.50×0.50 mm
Display Area	119.98×63.98 mm
Bezel Opening	124.0×70.0 mm
Outline Size	159.4×101 mm
Display Mode	STN, Black/White (Positive), Transmissive
Brightness	200 cd/m² (Typ.)
Contrast Ratio	20:1 (Typ.) (TM)
Viewing Angle	40/40/35/55 (Typ.)(CR≥2)
Display Colors	Monochrome
Lamp Type	1S7P WLED , 40K hours , Without Driver
Signal Interface	8-bit parallel , 26 pins , Connector
Touch Screen	Without
Input Voltage	5.0V (Typ.)
Operating Temp	-10 ~ 60 °C
Storage Temp	-20 ~ 70 °C

1.Question: What is the interface type of this screen? If I use it to replace an older SP14N01 series STN screen, is it directly interchangeable?
Answer: This screen typically comes with a standard parallel interface (such as SPI or MCU interface, please refer to the datasheet). Note that although the model prefix is similar, the driving commands and timing of the TFT screen are completely different from the STN screen, so they cannot be directly swapped unless your software program and hardware circuit are specifically designed for this TFT module.

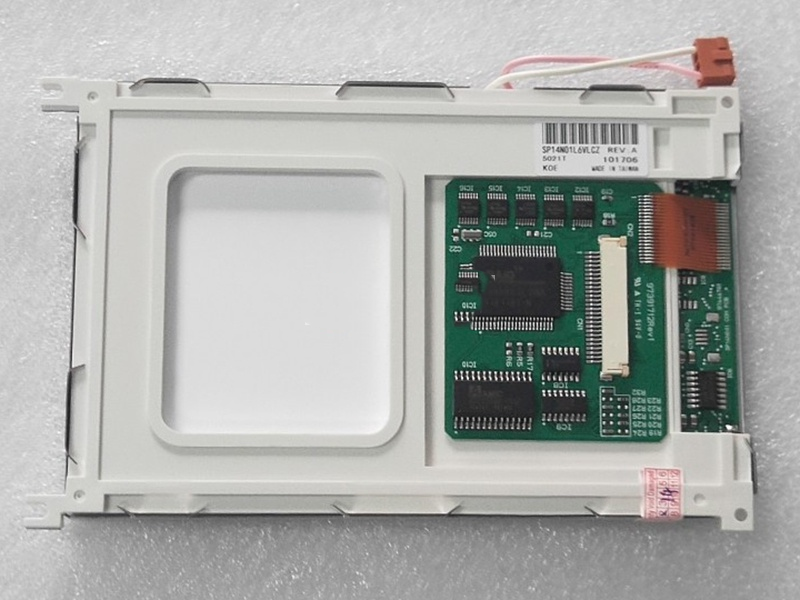

2.Question: This is a module with an FPC flexible cable. How do you prevent the cable from breaking or the glass from breaking during transport?
Answer: We use professional industrial-grade shock-proof packaging. Each screen is first wrapped in an anti-static bag and then precisely placed in a custom EVA foam tray. The tray is designed with specific slots to protect the FPC cable, preventing it from bending or being compressed during transit, ensuring the product arrives intact.
