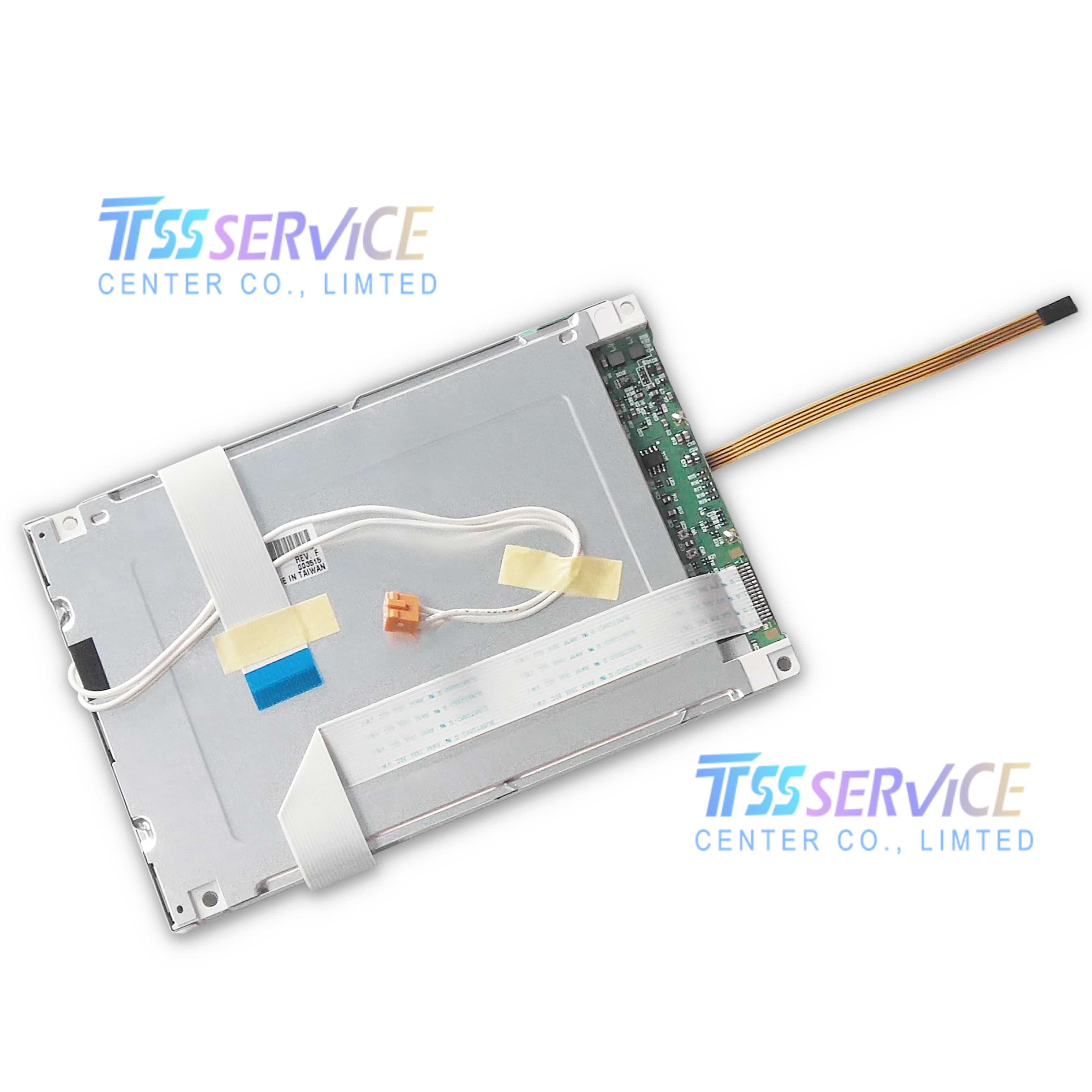

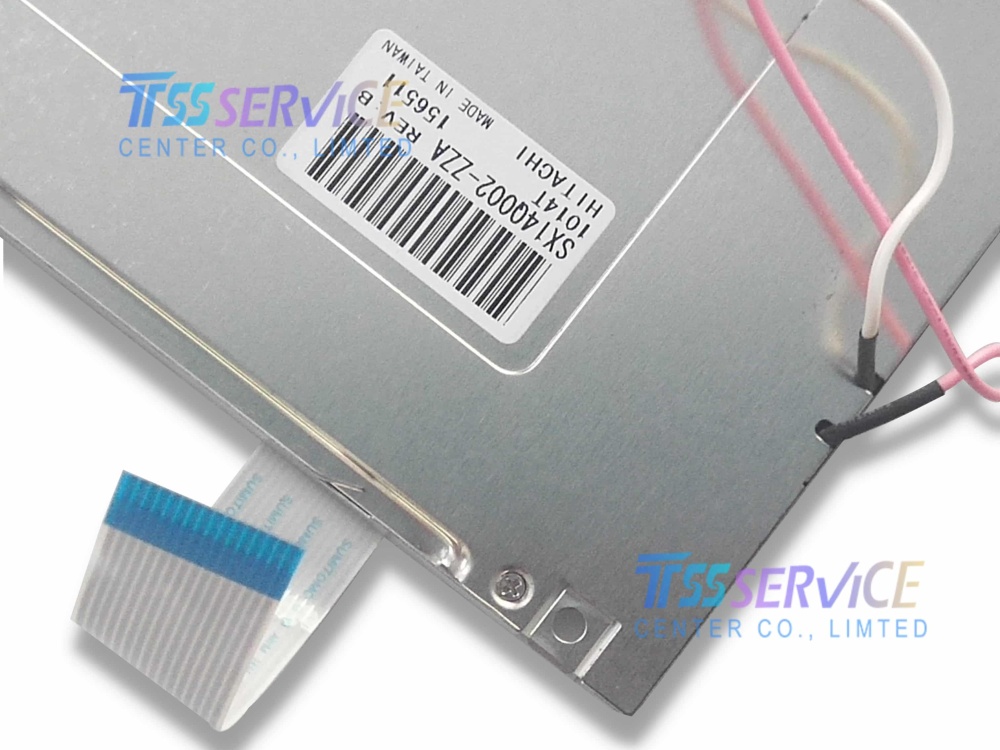

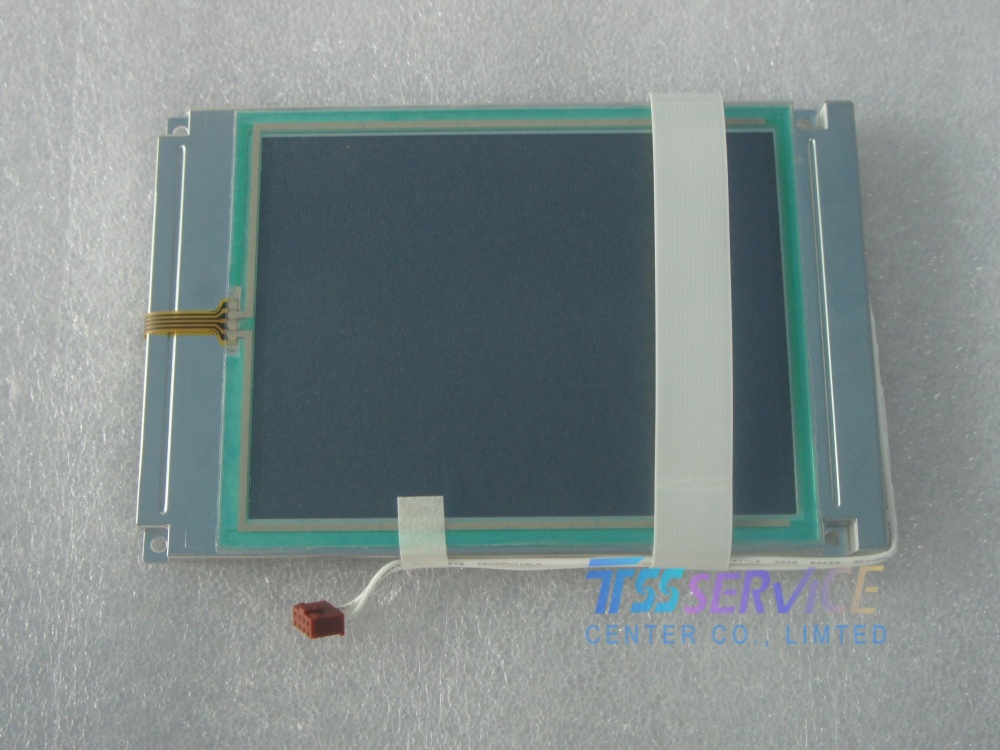

SX14Q002-ZZA is a cost-effective 5.7-inch Color Super Twisted Nematic (CSTN) LCD display module launched by KOE (Kyocera Display Corporation) from Japan. It features QVGA resolution of 320×240 pixels and a standard industrial 4:3 aspect ratio. With low power consumption design, a simple 8-bit parallel interface and outstanding environmental adaptability, this module has become a classic solution widely applied in industrial control, medical equipment, avionics and other industries.
As an officially authorized supplier of original industrial display components for KOE, all SX14Q002-ZZA units supplied by TSS Service Center are brand-new and 100% original genuine products. It can directly replace old screens of the same model without any hardware or software modifications, quickly restoring the color display function of your equipment. With more than 10 years of professional experience in industrial display screen supply, we provide reliable display solutions and technical support for thousands of enterprises across the globe.
| Parameter |
Detailed Specification |
| Brand |
KOE (Kyocera Display, Japan) |
| Model Number |
SX14Q002-ZZA |
| Panel Type |
LCM, CSTN-LCD (Color Super-Twisted Nematic) |
| Diagonal Size |
5.7 inches |
| Resolution |
320(RGB)×240 pixels (QVGA) |
| Aspect Ratio |
4:3 (Standard Industrial Ratio) |
| Dot Pitch |
0.120×0.360 mm |
| Pixel Pitch |
0.360×0.360 mm |
| Active Display Area |
115.2(W)×86.4(H) mm |
| Display Mode |
Normally Black, Transmissive |
| Backlight Type |
1× CCFL (Cold Cathode Fluorescent Lamp) |
| Signal Interface |
8-bit Parallel Data Interface |
| Touch Function |
Integrated 4-Wire Resistive Touchscreen |
| Operating Temperature Range |
-10℃ ~ +60℃ (Industrial Grade) |
| Storage Temperature Range |
-20℃ ~ +70℃ |
Key Product Advantages
- Industrial-Grade Reliability: Adopts KOE's mature CSTN technology, rigorously tested for industrial environments, ensuring stable operation across wide temperature ranges
- Ultra-Low Power Consumption: Consumes over 30% less power than equivalent size TFT-LCDs, ideal for battery-powered portable devices
- Plug-and-Play Compatibility: Standard 8-bit parallel interface works directly with most industrial controllers, no additional driver development required
- Integrated Touch Solution: Built-in 4-wire resistive touchscreen supports glove operation, perfect for industrial on-site interaction
- Long Product Lifecycle: KOE guarantees a minimum 5-year product lifecycle for industrial models, eliminating costly frequent redesigns
Typical Application Scenarios
The SX14Q002-ZZA is widely used in applications requiring high reliability without high-resolution graphics:
- Medical Equipment: Ultrasound scanners, patient monitors, portable medical instruments
- Industrial Automation: PLC Human-Machine Interfaces (HMIs), operator terminals, equipment control panels
- Aviation & Transportation: Avionics systems, in-vehicle navigation, railway display terminals
- Test & Measurement: Oscilloscopes, signal generators, data acquisition instruments
- Embedded Systems: Legacy equipment upgrades and replacements requiring 4:3 aspect ratio
Quality Assurance & Services
- Genuine Product Guarantee: All units are 100% brand new original from KOE, accompanied by the original manufacturer's quality certificate
- Stock Guarantee: SX14Q002-ZZA is kept in regular stock, orders ship within 1-3 business days after payment confirmation
- Professional Packaging: Each module is individually sealed in an anti-static bag, secured in a custom foam tray, and shipped in a thickened rigid cardboard box with shock-absorbing materials
- After-Sales Support: 12-month standard warranty, free replacement for non-human-induced quality defects
- Technical Services: Our team of professional display engineers provides product selection, installation guidance and troubleshooting support
Frequently Asked Questions (FAQ)
Q1: Is the KOE SX14Q002-ZZA currently in stock? How long does shipping take after order placement?
A: This product is fully in stock now. Orders are processed and shipped within 1-3 business days after payment confirmation. For urgent delivery needs, please contact our team in advance to confirm expedited shipping options.
Q2: How do you package the LCD module to ensure safe transportation?
A: Each SX14Q002-ZZA display is individually sealed in an anti-static bag first, then fixed in a custom foam tray to prevent sliding. The outer package uses thickened rigid cardboard with extra shock-absorbing cushioning materials, fully protecting the product from vibration and damage during long-distance transit.
Q3: Can this display directly replace my old LCD screen without modifications?
A: Yes. As an original KOE component, SX14Q002-ZZA is a direct drop-in replacement for the same model and compatible SX14Q series displays (such as SX14Q001-ZZA, SX14Q003-ZZA). It maintains full consistency in physical size and electrical interface, requiring no hardware or software changes.
Q4: What warranty policy do you offer for this product?
A: We provide a 12-month standard warranty for all original SX14Q002-ZZA units. Non-human-induced quality defects within the warranty period are eligible for free replacement. We also offer permanent technical support for product installation and compatibility verification.
