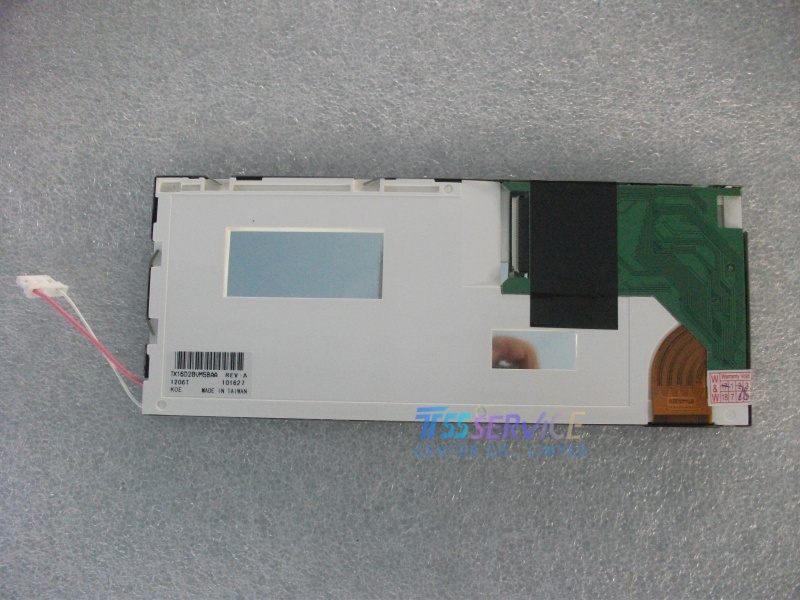

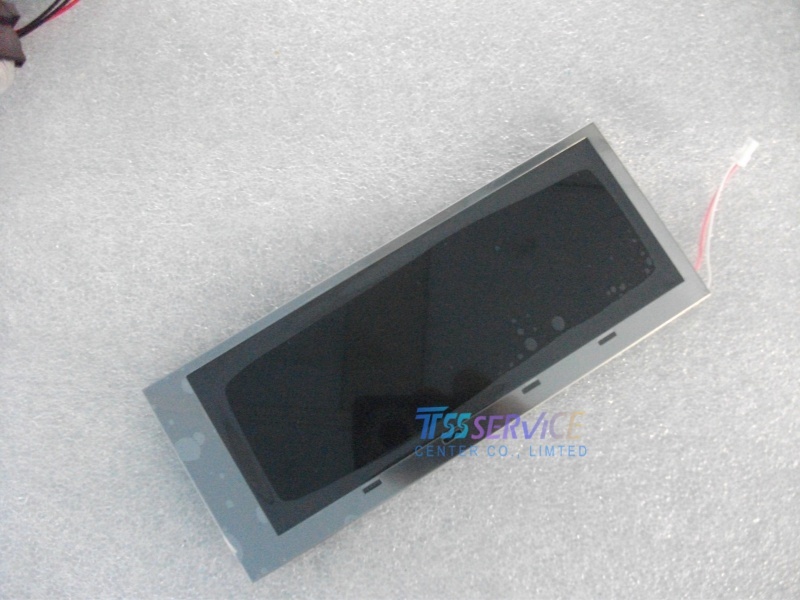

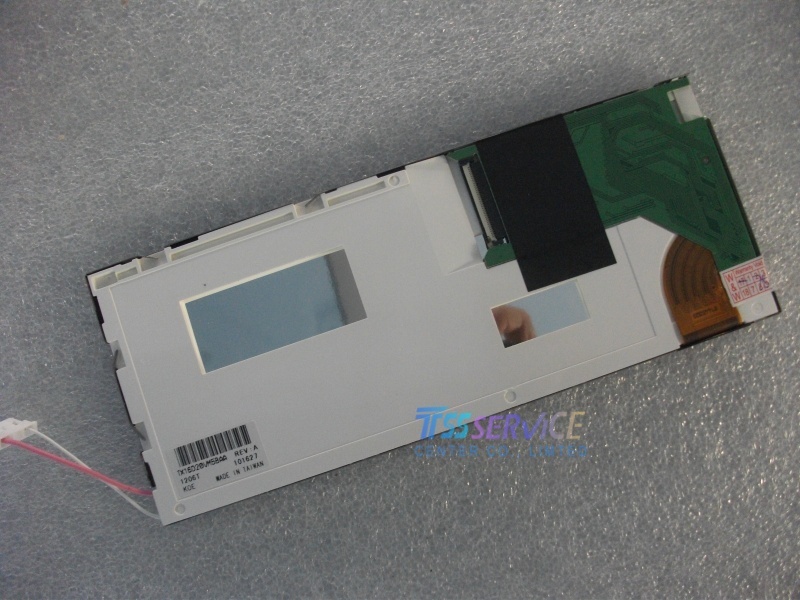

TX16D20VM5BAA KOE 6.2 inch 640x240 LCD Display Panel Module

Name: TX16D20VM5BAA KOE 6.2 inch 640x240 LCD Display Panel Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX16D20VM5BAA
Price: 135 USD
Availability: InStock

SKU: TX16D20VM5BAA

Model:TX16D20VM5BAA
Size:6.2"
Resolution:640x240
Interface:40 pins CMOS (1 ch, 6-bit) , Connector
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$140.00~~ $135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display TX16D20VM5BAA General Features
TX16D20VM5BAA is a 6.2-inch TFT-LCD display module manufactured by KOE, featuring an elongated resolution of 640 × 240 pixels. This wide-format module is specifically designed for applications requiring a panoramic or slim display layout, such as automotive dashboards, industrial meter panels, portable handheld devices, and specialized instrumentation. It offers clear image quality, reliable performance, and a compact form factor suitable for space-constrained integration. Engineered for stable operation in various environmental conditions, this KOE module serves as a direct-fit component, ensuring seamless compatibility and providing a practical replacement or upgrade to restore functional wide-screen visual output to compatible equipment.

Target Applications:
Medical monitors (e.g., diagnostic workstations, patient monitoring)
Industrial Human-Machine Interfaces (HMIs)
Test and measurement equipment
Factory automation and control panels
Ruggedized embedded computers
Transportation displays (non-certified unless customized)

Brand	KOE
Model	TX16D20VM5BAA
Panel-type	a-Si TFT-LCD , LCM
Size	6.2"
Resolution	640(RGB)×240[HVGA]
Aspect Ratio	8:3 (H:V)
Dot Pitch(mm)	0.0775×0.224 (H×V)
Pixel Pitch(mm)	0.2325×0.224 (H×V)
Display Area	148.8(H) × 53.76(V)
Bezel Opening	152.8(H) × 57.76(V)
Outline Size	173(H) × 70(V)
Display Mode	TN, Normally White, Transmissive
Brightness	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	45 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K , 60% NTSC
Frequency	60Hz
Lamp Type	WLED [3S7P] , 40K hours , W/O Driver
Signal Interface	40 pins CMOS (1 ch, 6-bit) , Connector
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C

1.Question: I need to buy one TX16D20VM5BAA unit as a sample for testing first. Is there a Minimum Order Quantity (MOQ) restriction?
Answer: We support single sample purchases, and there is no strict MOQ. You can order one unit for functional verification first. The sample price may differ slightly from the bulk price, but we can recalculate the price if you place a bulk order later.

2.Question: After purchasing this screen, can you provide the full datasheet and initialization codes?
Answer: Yes, we will provide complete technical documentation after you place an order, including pin definitions, timing parameters, and initialization settings. This screen is a standard industrial module and is easy to integrate. If you encounter technical issues during debugging, our engineering team can also provide support.
