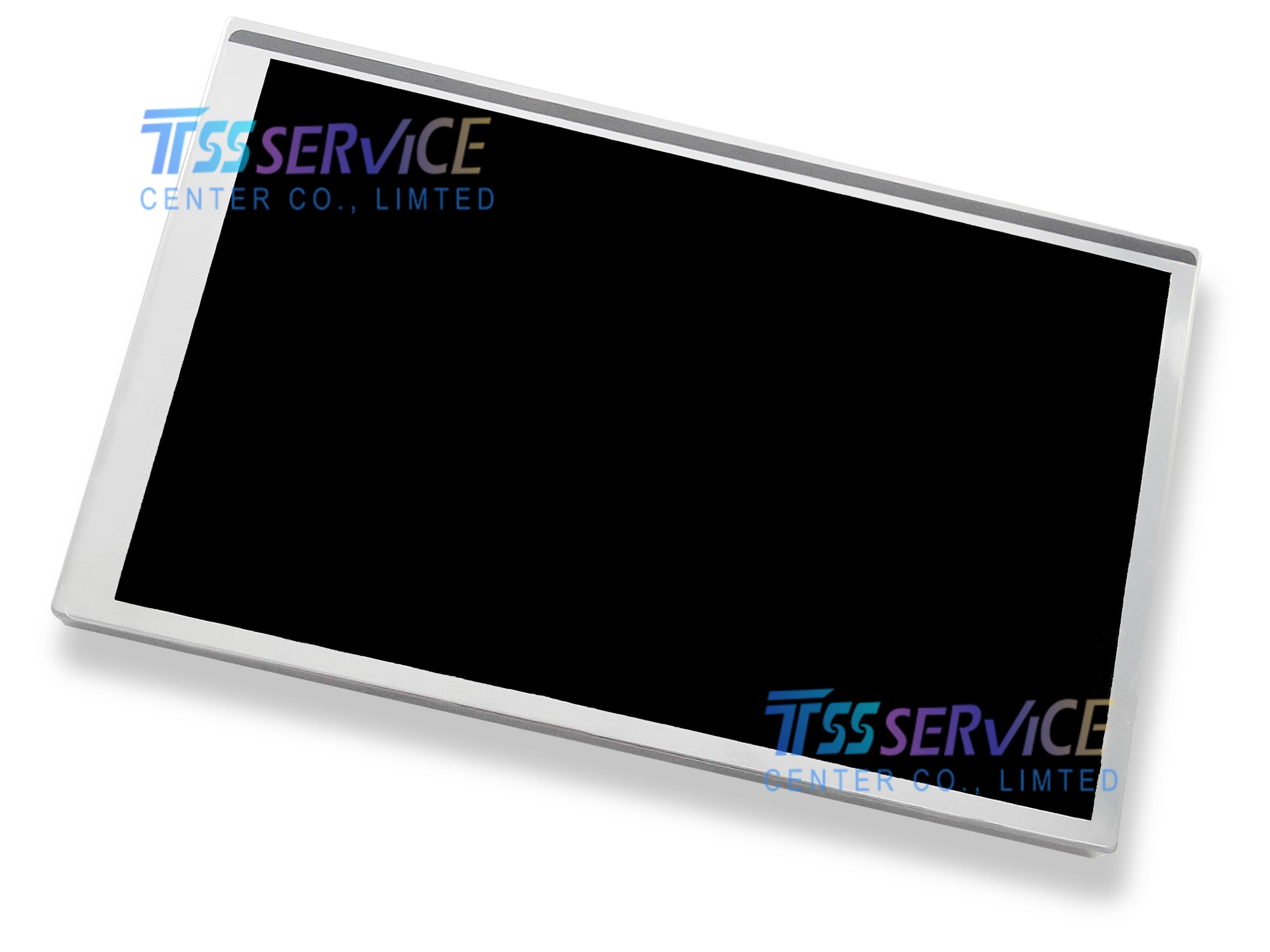

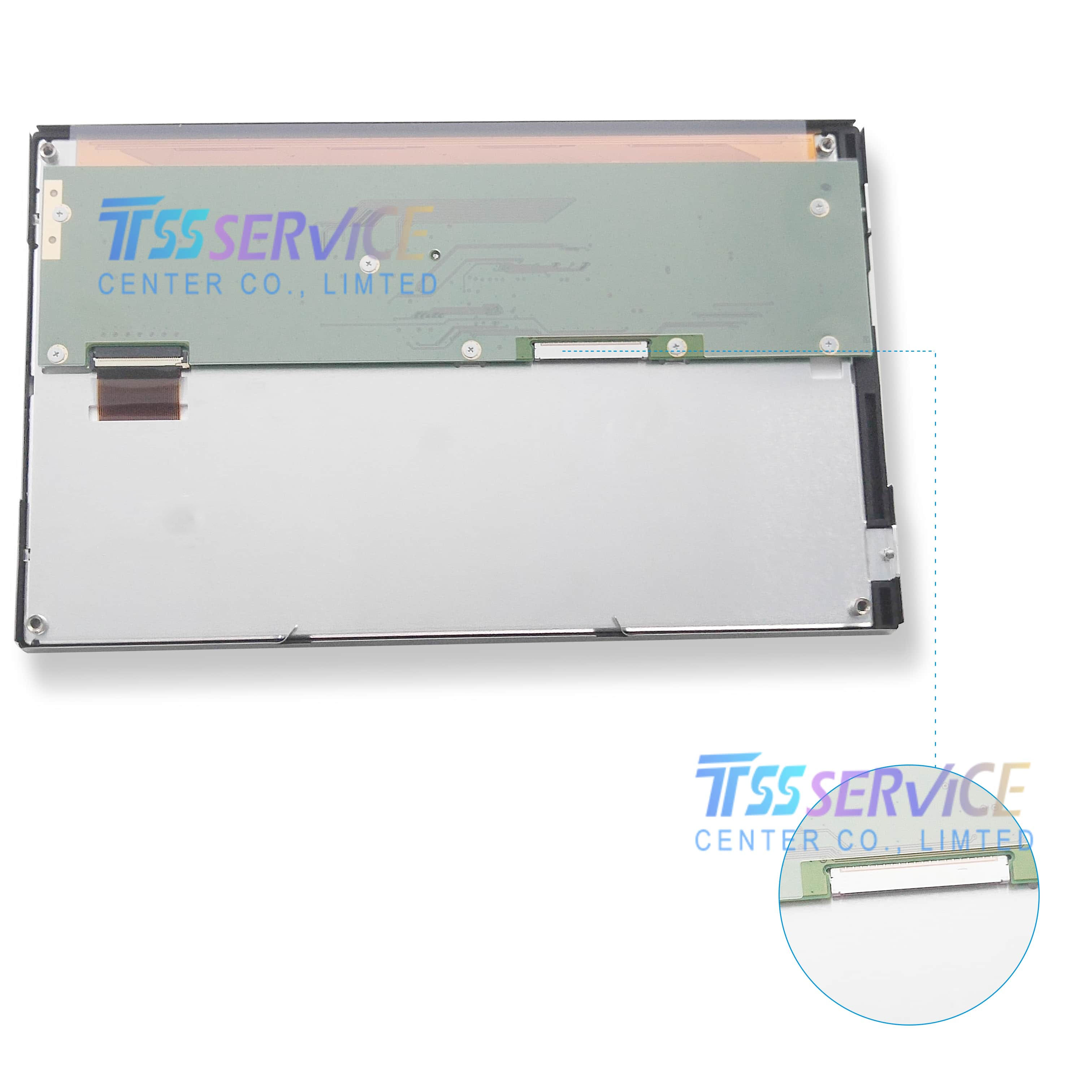

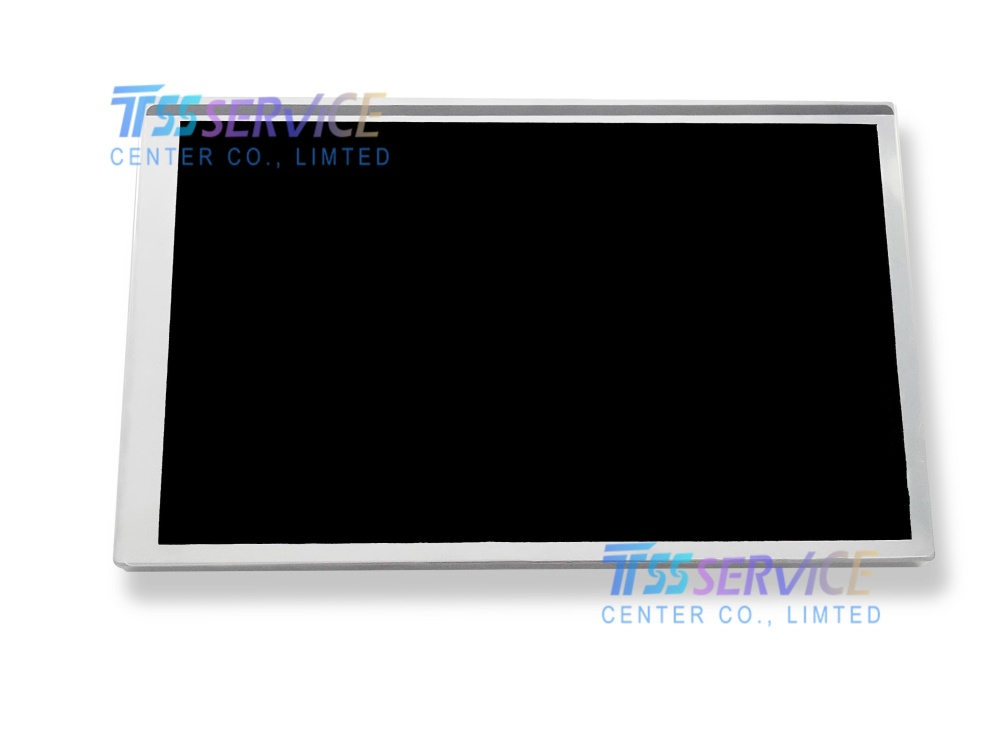

TX23D202VM0BAA KOE 9" 800×480 a-Si TFT-LCD Panel Display Screen

Name: TX23D202VM0BAA KOE 9" 800×480 a-Si TFT-LCD Panel Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX23D202VM0BAA
Price: 286 USD
Availability: InStock

SKU: TX23D202VM0BAA

Model:TX23D202VM0BAA
Size:9.0"
Resolution:800x480
Interface:LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Temperature(℃):-30 ~ 80 °C

0.0 (0 Reviews)

0 Sold

~~$288.00~~ $286.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display TX23D202VM0BAA General Features

TX23D202VM0BAA is a 9-inch a-Si TFT-LCD module (LCM) manufactured by KOE, featuring a WVGA resolution of 800 (RGB) × 480 pixels. This display module utilizes amorphous silicon (a-Si) technology to deliver stable performance, good color consistency, and reliable operation for a variety of industrial and commercial applications. Its design is well-suited for integration into human-machine interfaces (HMIs), portable instruments, automotive displays, and other embedded systems. As a direct-fit component, it ensures seamless compatibility and serves as a practical replacement or upgrade, effectively restoring clear and dependable visual performance to equipment designed for this specific KOE LCM.

Brand	KOE
Model	TX23D202VM0BAA
Panel-type	a-Si TFT-LCD , LCM
Size	9.0"
Resolution	800(RGB)×480 , WVGA
Aspect Ratio	15:9 (H:V)
Dot Pitch(mm)	0.082×0.246 mm (H×V)
Pixel Pitch(mm)	0.246×0.246 mm (H×V)
Display Area	196.8×118.08 mm (H×V)
Bezel Opening	200×121.28 mm (H×V)
Outline Size	218×135 mm (H×V)
Display Mode	IPS, Normally Black, Transmissive
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	40 (Typ.)(Tr+Tf)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 72% NTSC
Frequency	60Hz

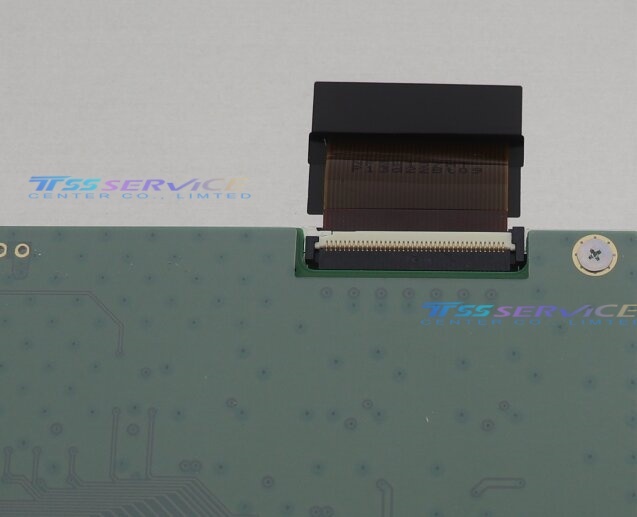

Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-30 ~ 80 °C
Storage Temp	-40 ~ 90 °C

1.Question: How do you package this TFT-LCM module during transport to ensure its safety?
Answer: Each module is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure the product is not damaged during transit.

2.Question: Will this 800x480 resolution screen be tested before shipment?
Answer: Yes, every TX23D202VM0BAA undergoes strict quality control before shipment. We perform visual inspections and screen lighting tests to ensure the display area is free of scratches and dead pixels, and that the color and functionality are fully normal.
