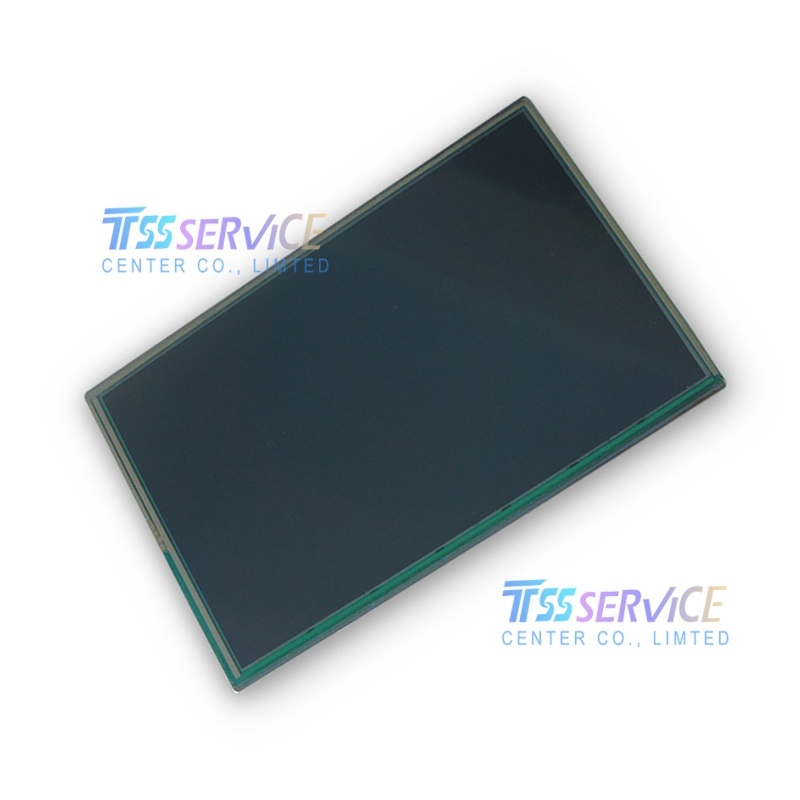

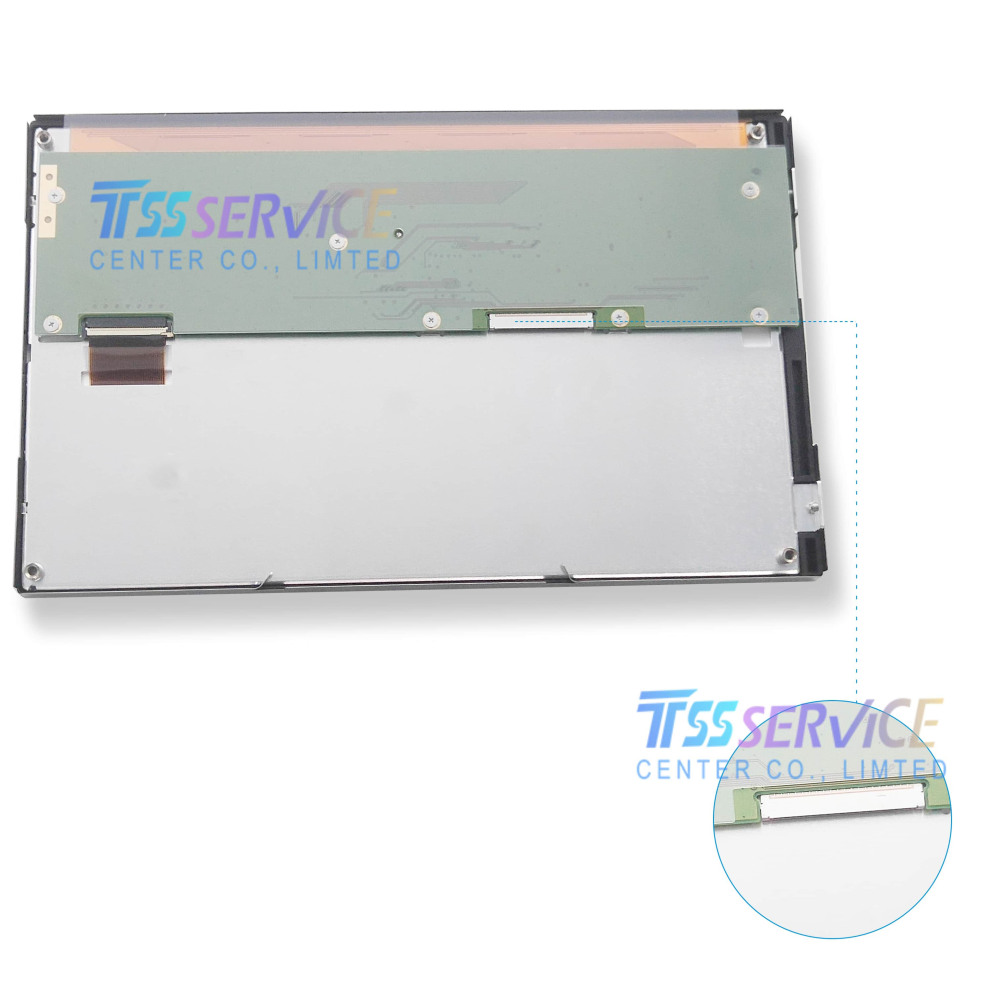

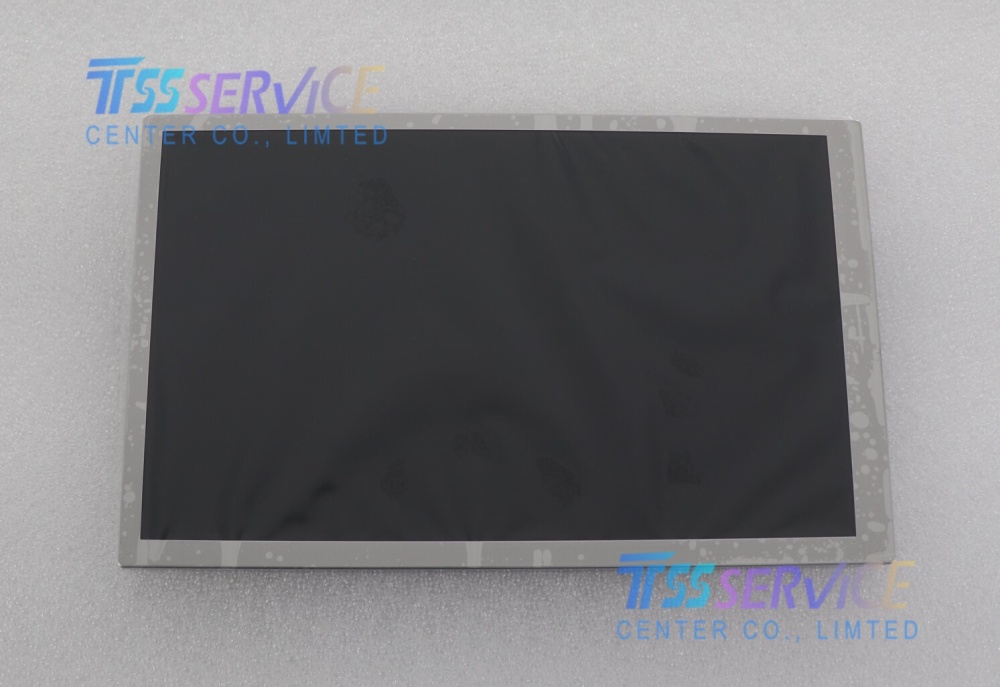

TX23D202VM0BPA KOE 9 inch 800x480 WLED TFT-LCD Display Panel with Touch Screen

Name: TX23D202VM0BPA KOE 9 inch 800x480 WLED TFT-LCD Display Panel with Touch Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX23D202VM0BPA KOE 9.0 inch 800x480 WLED TFT-L
Price: 301 USD
Availability: InStock

SKU: TX23D202VM0BPA KOE 9.0 inch 800x480 WLED TFT-L

Model:TX23D202VM0BPA
Size:9.0"
Resolution:800x480
Interface:LVDS (1 ch, 8-bit) , Connector , 20 pins
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$305.00~~ $301.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display TX23D202VM0BPA General Features
TX23D202VM0BPA is a 9.0-inch integrated WLED TFT-LCD display module manufactured by KOE, featuring an 800 × 480 pixel WVGA resolution and a built-in resistive or capacitive touch screen. This all-in-one unit combines a bright, energy-efficient display with intuitive touch functionality, making it an ideal ready-to-install solution for interactive human-machine interfaces (HMIs). It is designed for reliable performance in applications such as industrial control panels, portable diagnostic devices, point-of-sale systems, and kiosks. As a direct-fit component, it offers seamless compatibility and simplifies system integration, providing both high-quality visual output and responsive touch input in a single, durable package.

Brand	KOE
Model	TX23D202VM0BPA
Panel-type	a-Si TFT-LCD , LCM
Size	9.0"
Resolution	800(RGB)×480 , WVGA
Aspect Ratio	15:9 (H:V)
Dot Pitch(mm)	0.082×0.246(H×V)
Pixel Pitch(mm)	0.246×0.246(H×V)
Display Area	196.8(H) × 118.08(V)
Outline Size	218(H) × 135(V)
Display Mode	IPS, Normally Black, Transmissive
Brightness	450 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	40 (Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72% NTSC
Lamp Type	WLED , 7K hours , With LED Driver
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Touch Screen	4-wire Resistive Touch
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~80 °C

Question: What is the current stock status of this KOE 9.0-inch WLED TFT-LCD display with touch screen? How soon can it be shipped after placing an order?
Answer: We currently have the item in stock. Typically, orders are processed and shipped within 1-3 business days after payment is received. If you have urgent delivery requirements, please contact us to confirm before placing your order.

Question: How do you package this 9.0-inch module with touch panel during transport to ensure its safety?
Answer: Each module is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure that both the touch screen and LCD are not damaged during transit.
