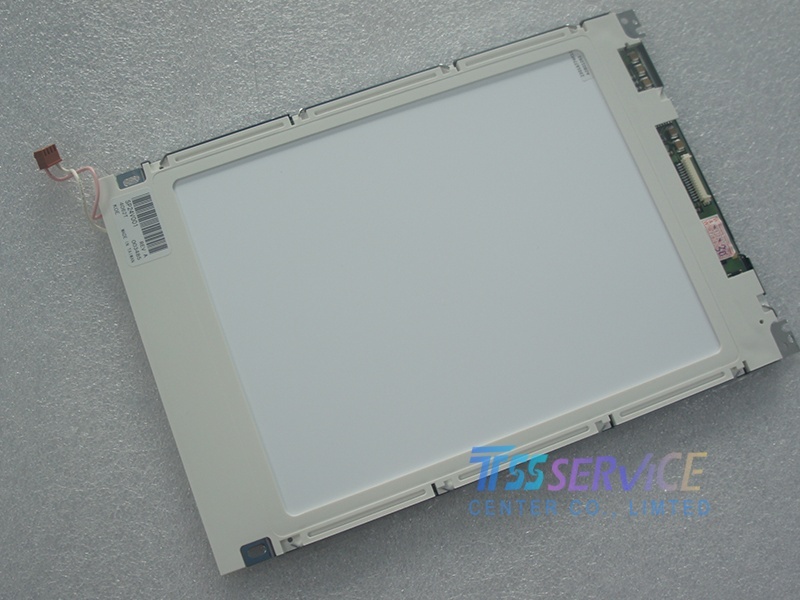

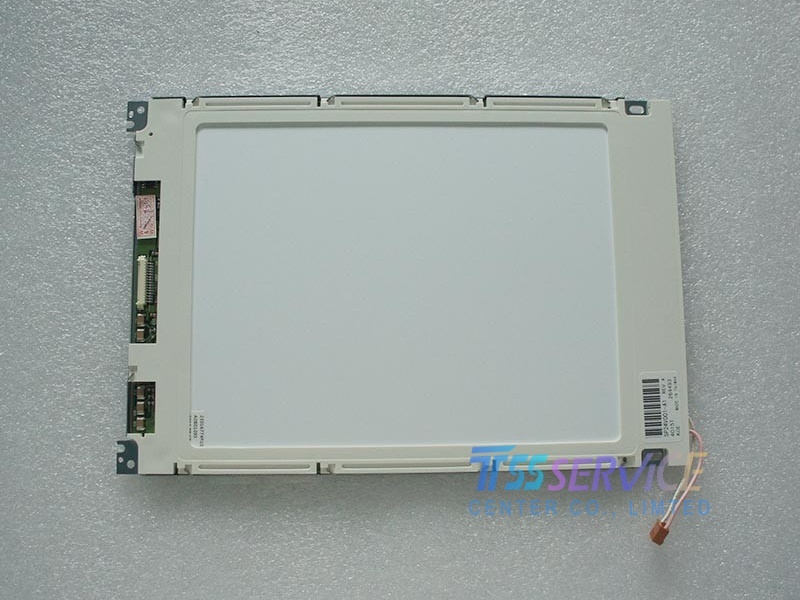

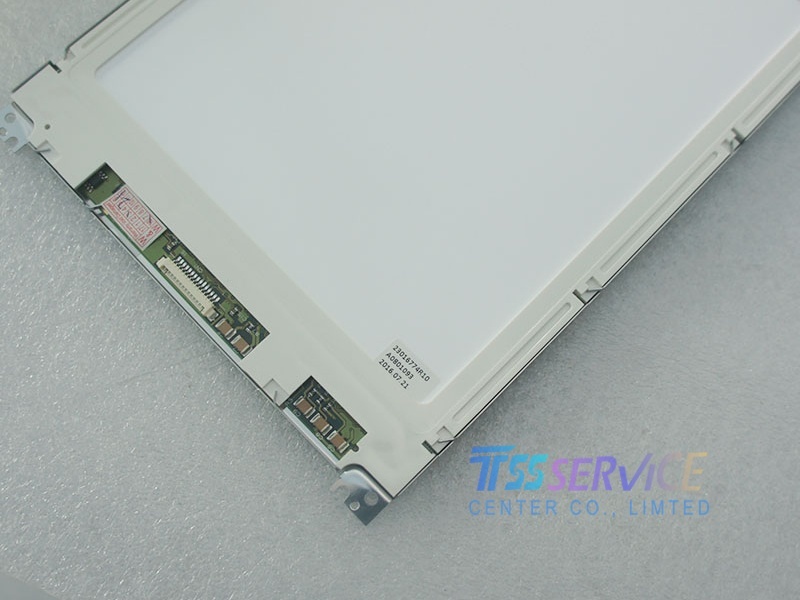

SP24V001 KOE 9.4 inch 640x480 FSTN-LCD Display

Name: SP24V001 KOE 9.4 inch 640x480 FSTN-LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SP24V001
Price: 210 USD
Availability: InStock

SKU: SP24V001

Quality:test ok before ship it
Stock Location:China
Warranty : 1 year
Delivery:WorldWide
Lead Time:1-3 Days
Shipping : DHL , FEDEX , EMS , UPS ..

0.0 (0 Reviews)

0 Sold

~~$215.00~~ $210.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display SP24V001 General Features
SP24V001 is a 9.4-inch FSTN (Film Super-Twisted Nematic) LCD display manufactured by KOE, featuring a resolution of 640 x 480 pixels (VGA). This monochrome display module offers high contrast, wide viewing angles, and excellent readability under various lighting conditions, making it a reliable choice for cost-sensitive industrial applications such as handheld terminals, instrumentation panels, and legacy control systems. Its low-power design and durable construction ensure stable and long-term performance. As a direct replacement component, it provides seamless compatibility and serves as a practical solution for repairing or upgrading equipment that utilizes this specific KOE FSTN display, thereby restoring clear and functional visual feedback.

Typical Applications

Medical Handhelds: Glucose meters, pulse oximeters, thermometer displays.
Industrial Tools: Digital multimeters, laser distance measurers, clamp meters.
Consumer Electronics: MP3 players (legacy), digital photo frames (small), remote controls with screens.
Appliances: Microwave ovens, washing machine control panels.

Brand	KOE
Model	SP24V001
Panel-type	LCM, FSTN-LCD
Size	9.4"
Resolution	640×480[VGA]
Aspect Ratio	4:3 (H:V)
Dot Pitch(mm)	0.30×0.30
Pixel Pitch(mm)	0.30×0.30
Display Area	191.97(H) × 143.97(V)
Bezel Opening	200.0(H) × 152.0(V)
Outline Size	257.5(H) × 174(V)
Display Mode	STN, Black/White (Negative), Transmissive
Brightness	110 (Typ.)
Contrast Ratio	20:1 (Typ.) (TM)
Response Time	160/110 (Typ.)(Tr/Td) ms
Viewing Angle	40 (Typ.)(CR≥2, Φ2-Φ1)
Display Colors	Color
Lamp Type	WLED , 50K hours , No Driver
Signal Interface	Parallel Data (4-bit) , 15 pins , Connector
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	0 ~ 45 °C
Storage Temp	-25 ~ 60 °C

1.Question: How do you package this 9.4-inch FSTN screen to ensure safety during transport?
Answer: Each screen is sealed in an anti-static bag and placed in a customized high-density shock-proof foam box. The outer box uses thickened corrugated cardboard filled with cushioning materials to ensure the product can withstand compression and vibration during long-distance transit, preventing screen breakage.

2.Question: Will this 640x480 resolution screen be tested before shipment?
Answer: Yes, every SP24V001 undergoes strict quality control before shipment. We perform a power-on lighting test, focusing on the display contrast, viewing angle range, and absence of dead pixels of the FSTN screen to ensure full display functionality.
