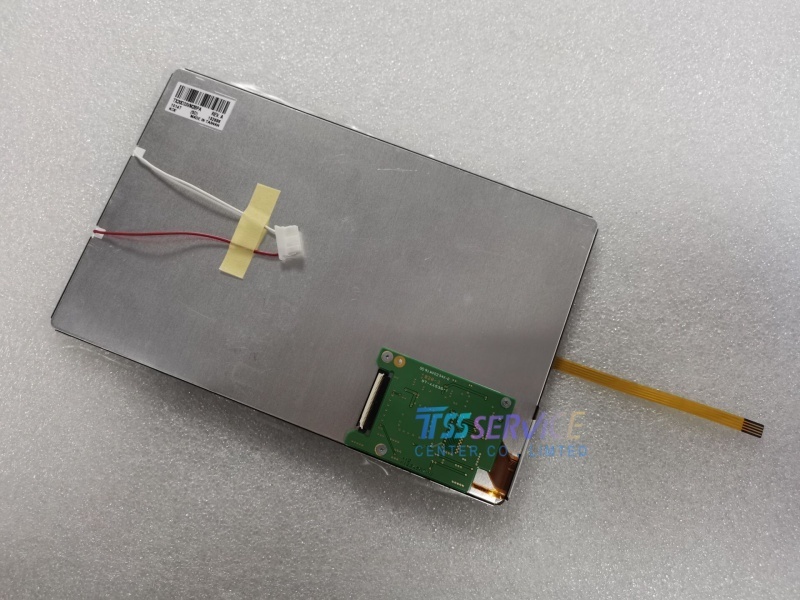

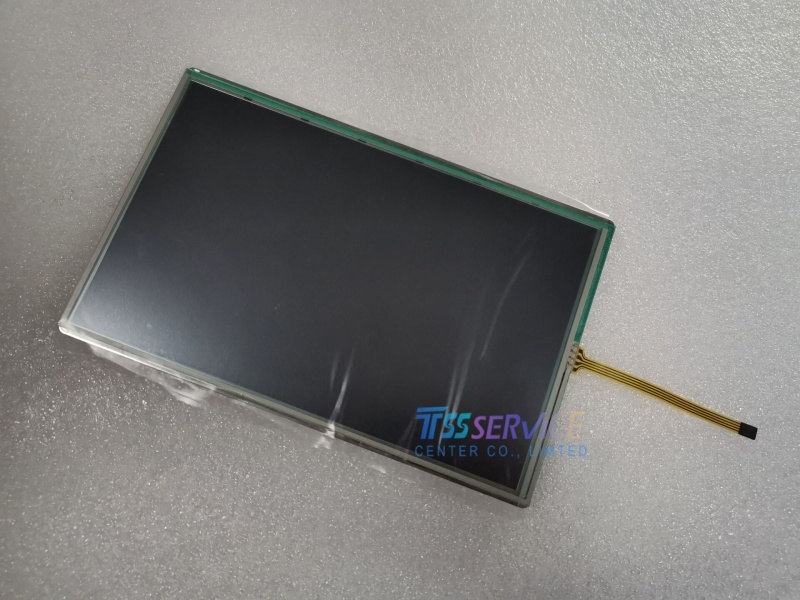

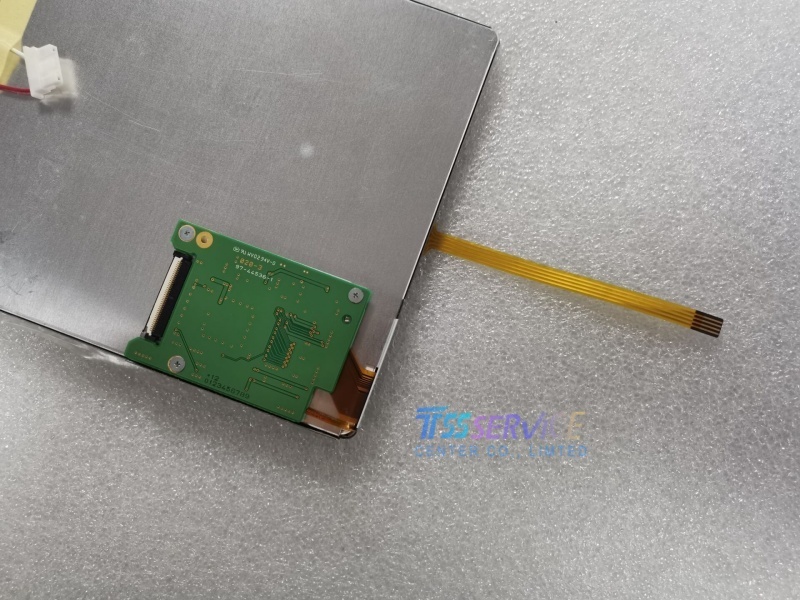

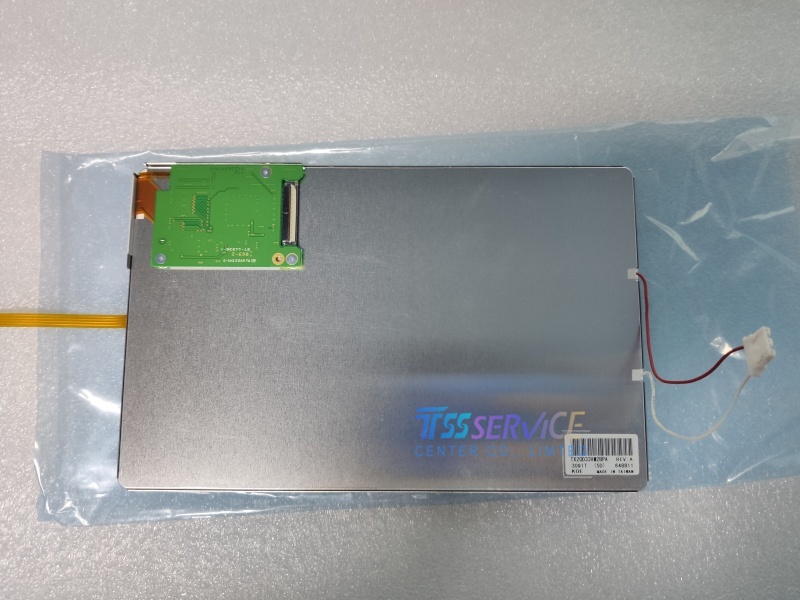

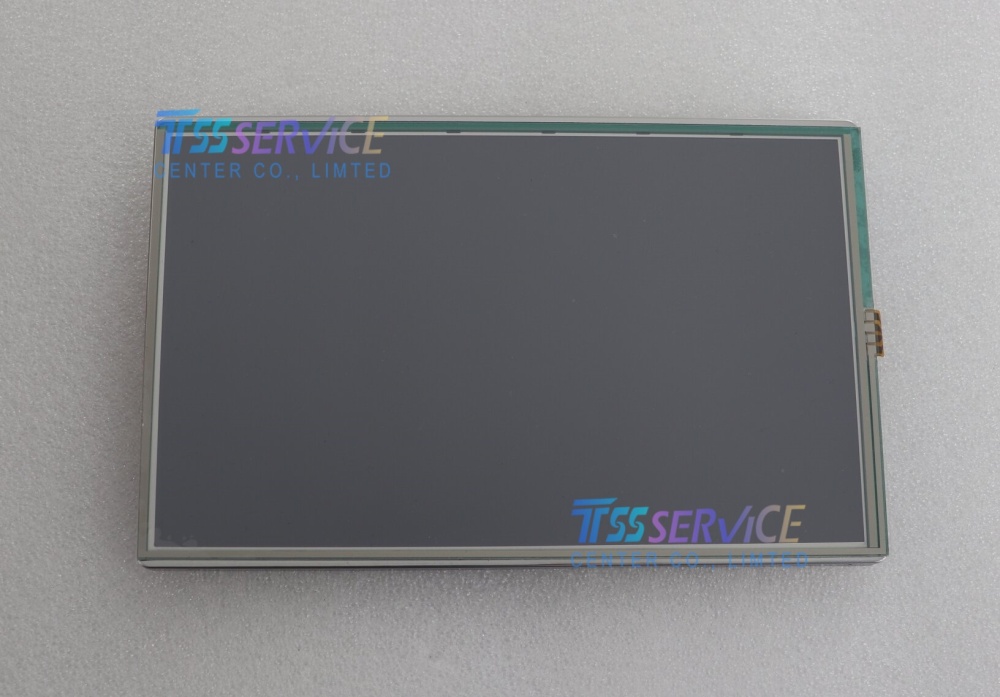

TX20D33VM2BPA KOE 8 inch 800×480 a-Si TFT-LCD Panel Display Screen

Name: TX20D33VM2BPA KOE 8 inch 800×480 a-Si TFT-LCD Panel Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX20D33VM2BPA
Price: 190 USD
Availability: InStock

SKU: TX20D33VM2BPA

Model:TX20D33VM2BPA
Size:8.0"
Resolution:800x480
Interface:CMOS (1 ch, 6-bit) , Connector , 40 pins
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$195.00~~ $190.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display TX20D33VM2BPA General Features
TX20D33VM2BPA is an 8-inch a-Si TFT-LCD module (LCM) manufactured by KOE, featuring a standard resolution of 800 (RGB) × 480 pixels (WVGA). Utilizing amorphous silicon (a-Si) technology, this display delivers reliable performance, consistent image quality, and stable operation for various embedded and industrial applications. Its compact design makes it ideal for integration into space-constrained devices such as portable human-machine interfaces (HMIs), handheld instruments, automotive displays, and consumer electronics. As a direct-fit KOE component, it ensures seamless compatibility and serves as an efficient replacement or upgrade, effectively restoring clear and dependable visual functionality to equipment designed for this specific LCM model.

Brand	KOE
Model	TX20D33VM2BPA
Panel-type	a-Si TFT-LCD , LCM
Size	8.0"
Resolution	800(RGB)×480 , WVGA
Aspect Ratio	15:9 (H:V)
Dot Pitch(mm)	0.0725×0.2175 (H×V)
Pixel Pitch(mm)	0.2175×0.2175 (H×V)
Display Area	174(H) × 104.4(V)
Outline Size	189(H) × 120(V)
Display Mode	TN, Normally White, Transmissive
Brightness	320 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Response Time	20 (Typ.)(Tr+Tf)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K , 60% NTSC
Frequency	60Hz
Lamp Type	3S9P WLED , 50K hours , No Driver
Signal Interface	CMOS (1 ch, 6-bit) , Connector , 40 pins
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C

1.Question: I need to purchase one TX20D33VM2BPA unit as a sample for testing first. Is there a Minimum Order Quantity (MOQ) restriction?
Answer: We support single sample purchases, and there is no strict MOQ. You can buy one unit for functional testing first. The sample price may differ slightly from the bulk price, but we can recalculate the price if you place a bulk order later.

2.Question: Is the interface type of this 8-inch screen LVDS or RGB? Does it come with a resistive touch screen?
Answer: The TX20D33VM2BPA is a standard TFT-LCM module, typically equipped with an LVDS interface (please refer to the datasheet for pin definitions). This model usually does not include a touch screen; it is a display-only module. If you need a version with a touch screen, please contact us to check for alternative models.
