TX23D203VM0BPA KOE 9 inch 800x480 LCD Display Panel Module

Name: TX23D203VM0BPA KOE 9 inch 800x480 LCD Display Panel Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX23D203VM0BPA
Price: 380 USD
Availability: InStock

SKU: TX23D203VM0BPA

Model:TX23D203VM0BPA
Size:9.0"
Resolution:800x480
Interface:LVDS (1 ch, 8-bit)
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$385.00~~ $380.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display TX23D203VM0BPA General Features

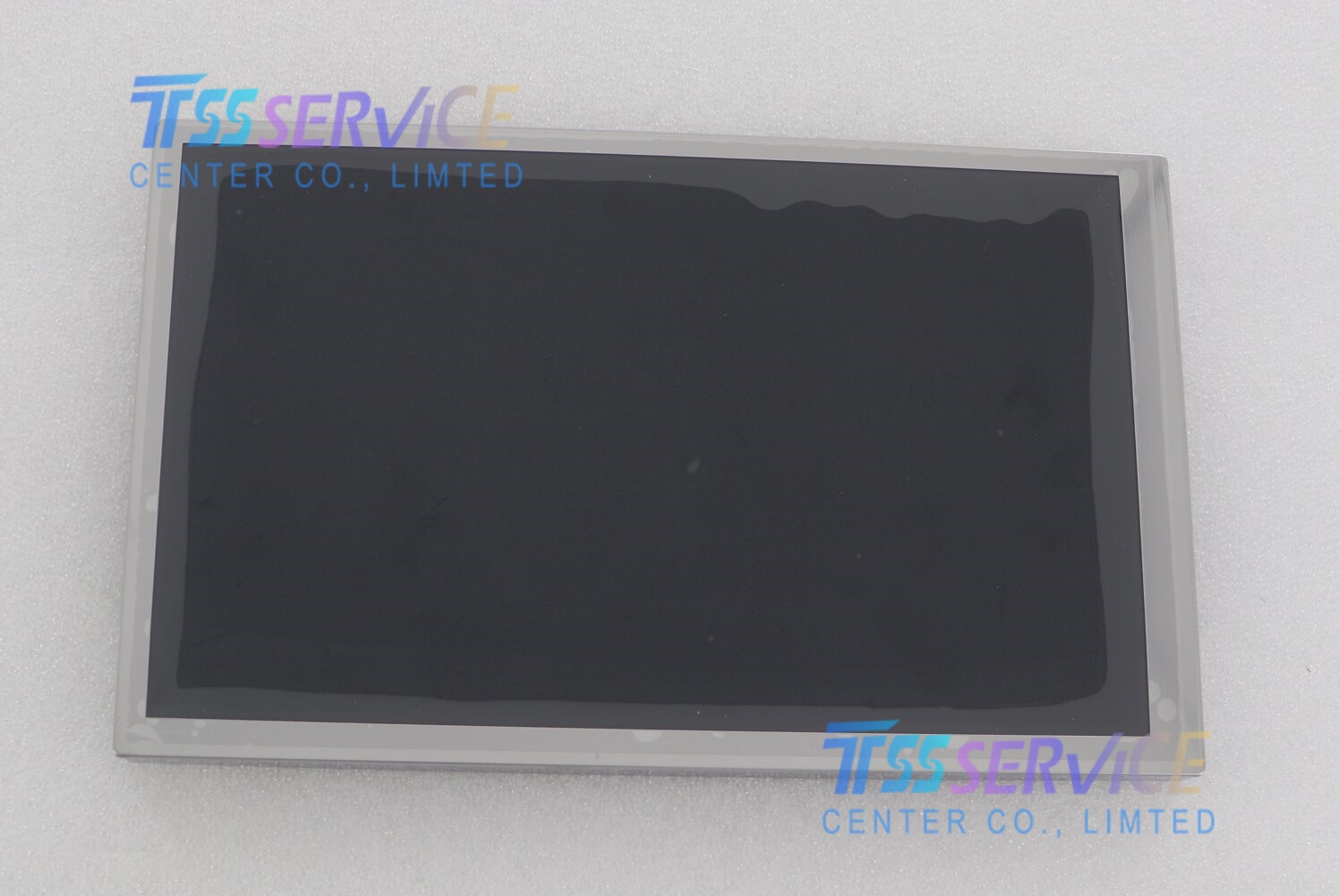

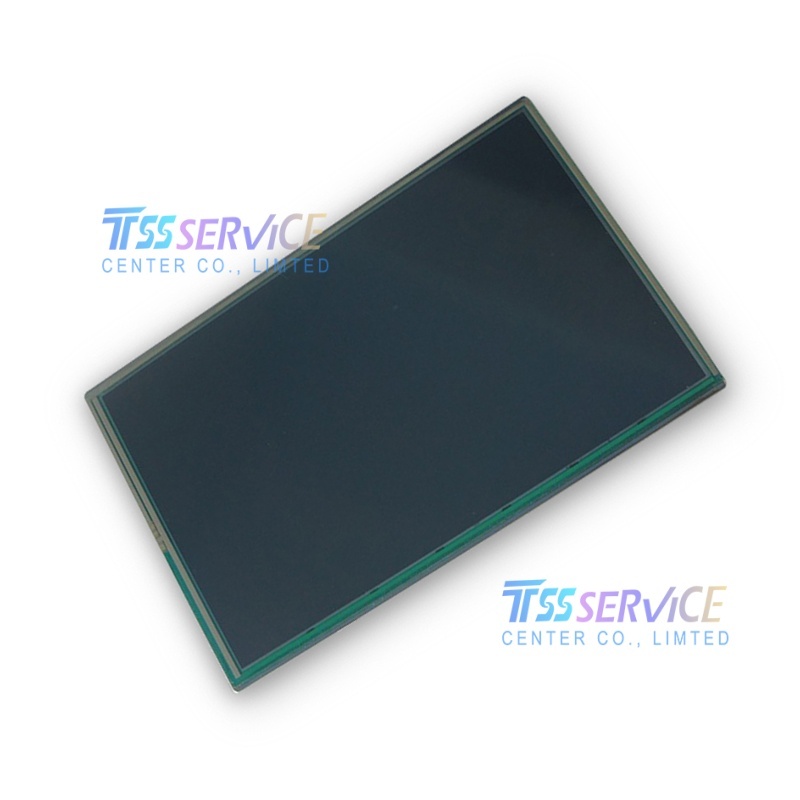

TX23D203VM0BPA is a 9.0-inch TFT-LCD display module manufactured by KOE, featuring a resolution of 800 × 480 pixels (WVGA). Designed for versatile integration, this module delivers reliable visual performance with good brightness and color clarity, making it suitable for a range of applications including industrial control interfaces, portable medical devices, automotive displays, and consumer electronics. Its compact form factor and robust construction ensure stable operation in various environments. As a direct-fit KOE component, it provides seamless compatibility and serves as a practical replacement or upgrade, effectively restoring clear and functional display output to equipment designed for this specific model.

Brand	KOE
Model	TX23D203VM0BPA
Panel-type	a-Si TFT-LCD , LCM
Size	9.0"
Resolution	800(RGB)×480 , WVGA
Aspect Ratio	15:9 (H:V)
Display Mode	IPS, Normally Black, Transmissive
Brightness	900(Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M
Lamp Type	WLED , With LED Driver

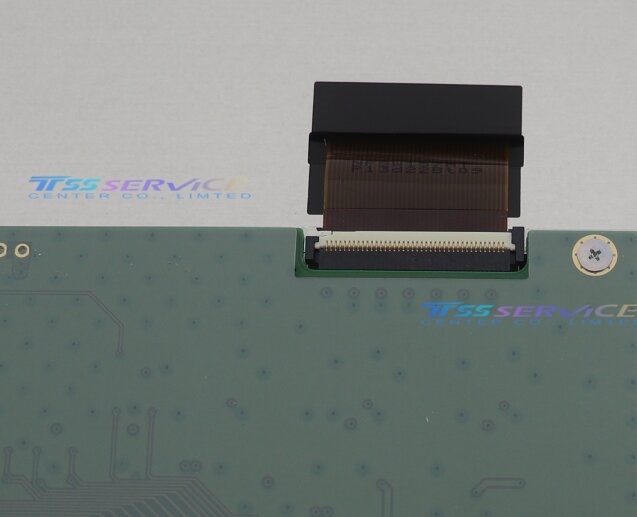

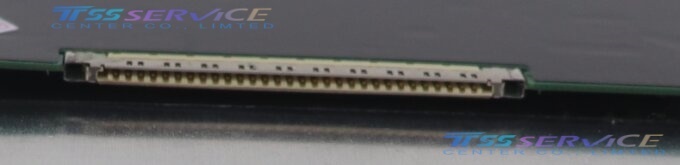

Signal Interface	LVDS (1 ch, 8-bit)
Touch Screen	4-wire Resistive Touch
Operating Temp	-20 ~ 70 °C

1.Question: Can you confirm that this KOE 9.0-inch screen has a resolution of 800x480? Does it use a WLED backlight?
Answer: Yes, the TX23D203VM0BPA model is confirmed to have a resolution of 800x480 (WVGA) and is equipped with a WLED (White Light LED) backlight system.
