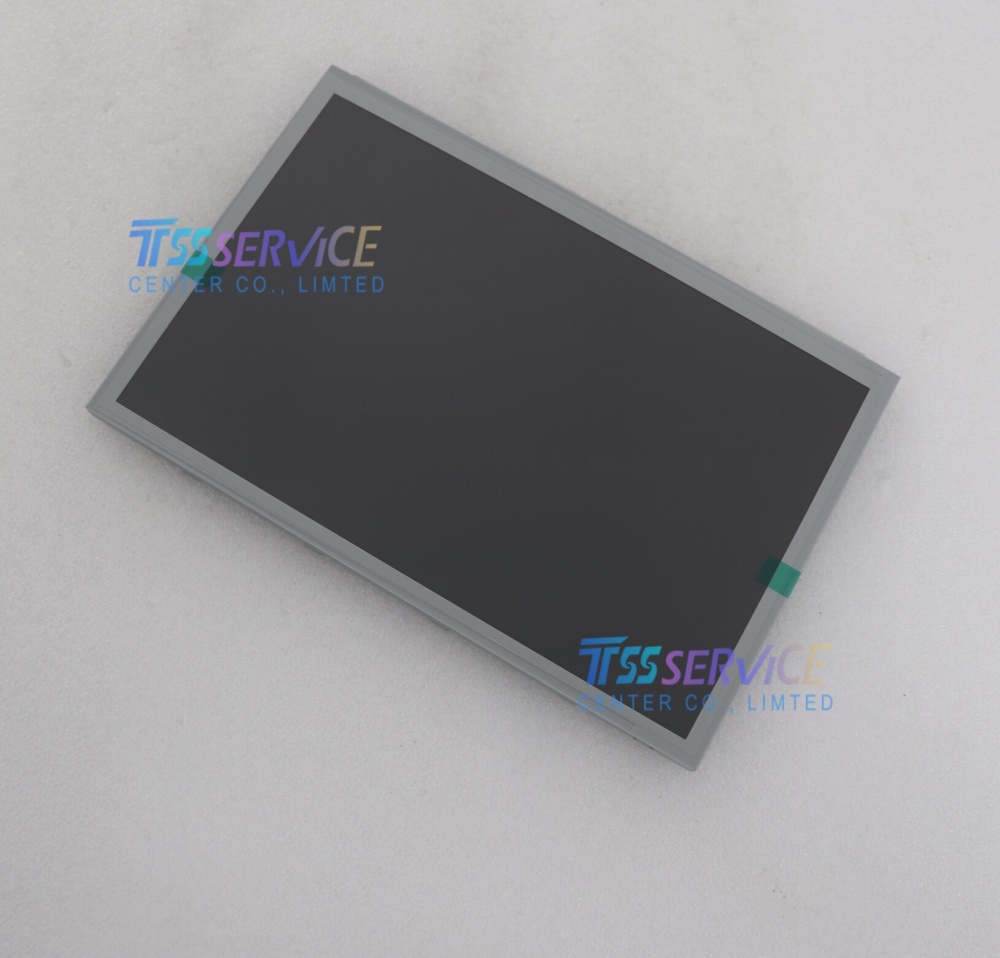

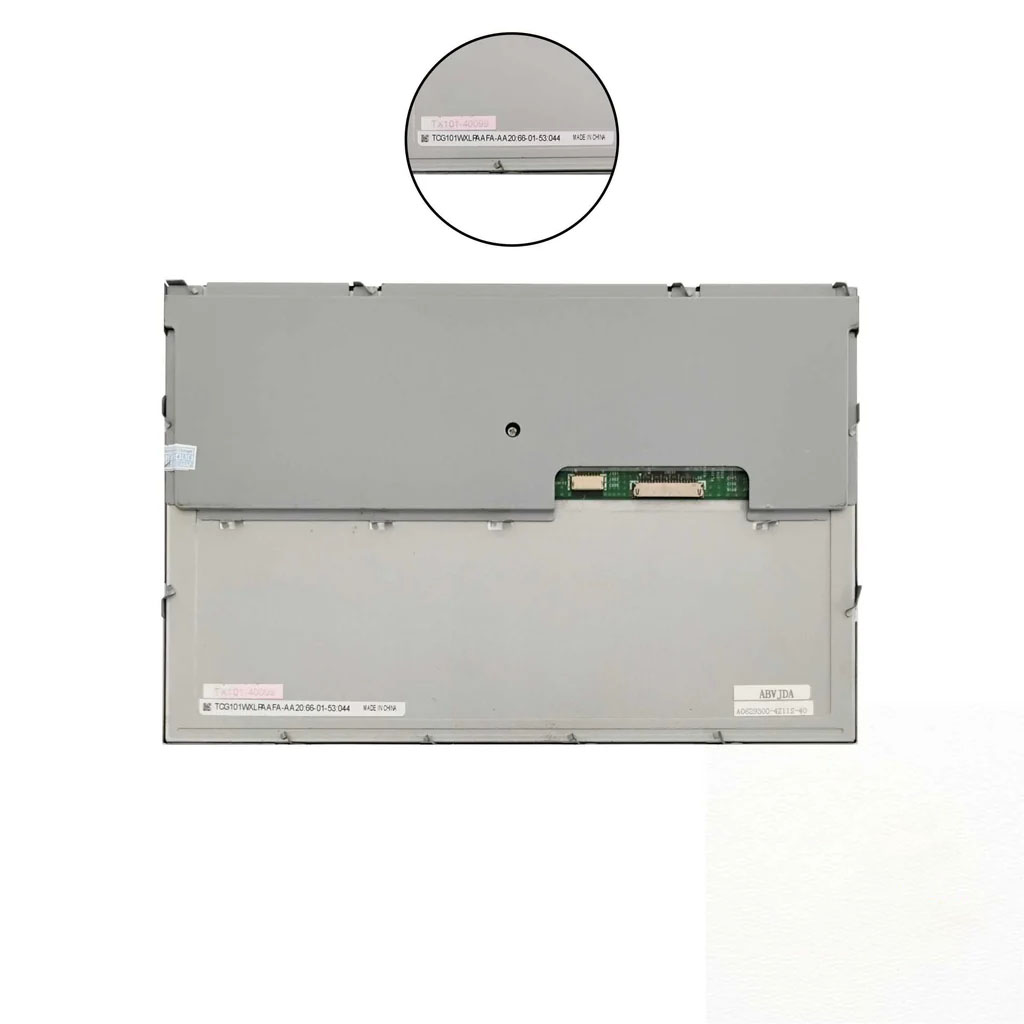

TCG101WXLPAAFA-AA20 Kyocera 10.1 inch 1280x800 TFT-LCD Display Panel

Name: TCG101WXLPAAFA-AA20 Kyocera 10.1 inch 1280x800 TFT-LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG101WXLPAAFA-AA20
Price: 300 USD
Availability: InStock

SKU: TCG101WXLPAAFA-AA20

Model:TCG101WXLPAAFA-AA20
Size:10.1"
Resolution:1280x800
Interface:LVDS (1 ch, 8-bit) , 20 pins Connector
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$305.00~~ $300.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display TCG101WXLPAAFA-AA20 General Features
TCG101WXLPAANN-AN20 is a 10.1-inch TFT-LCD panel module developed by Kyocera. It features a high-definition WXGA resolution of 1280 x 800 pixels, providing a crisp and detailed visual experience suitable for both graphics and data-intensive applications. Designed with industrial-grade reliability, this panel is built to ensure stable and durable performance in demanding environments. Typical applications include industrial human-machine interfaces (HMI), medical monitors, portable instrumentation, and transportation systems. As part of Kyocera's electronic components lineup, this module benefits from the company's manufacturing expertise, offering a trusted solution for system integrators requiring a robust and high-performance LCD panel.

Brand	KYOCERA
Model	TCG101WXLPAAFA-AA20
Panel-type	LCM , a-Si TFT-LCD
Size	10.1"
Resolution	1280(RGB)×800 , WXGA
Aspect Ratio	16:10 (H:V)
Display Area	216.96(W)×135.6(H) mm
Bezel Opening	219.96(W)×138.6(H) mm
Outline Size	236(W)×156.8(H) ×12(D) mm
Surface	Glare (Haze 0%), Hard coating (2H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	8/22 (Typ.)(Tr/Td)
Display Colors	16.7M 50% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch
Panel Weight	605g (Typ.)
Signal Interface	Signal Interface
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

1.Question: How do you package this 10.1-inch panel during transport to ensure its safety?
Answer: Each panel is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure the product is not damaged during transit.

2.Question: Will this 1280x800 resolution screen be tested before shipment?
Answer: Yes, every TCG101WXLPAAFA-AA20 undergoes strict quality control before shipment. We perform visual inspections and screen lighting tests to ensure the display area is free of scratches and dead pixels, and that the color and functionality are fully normal.
