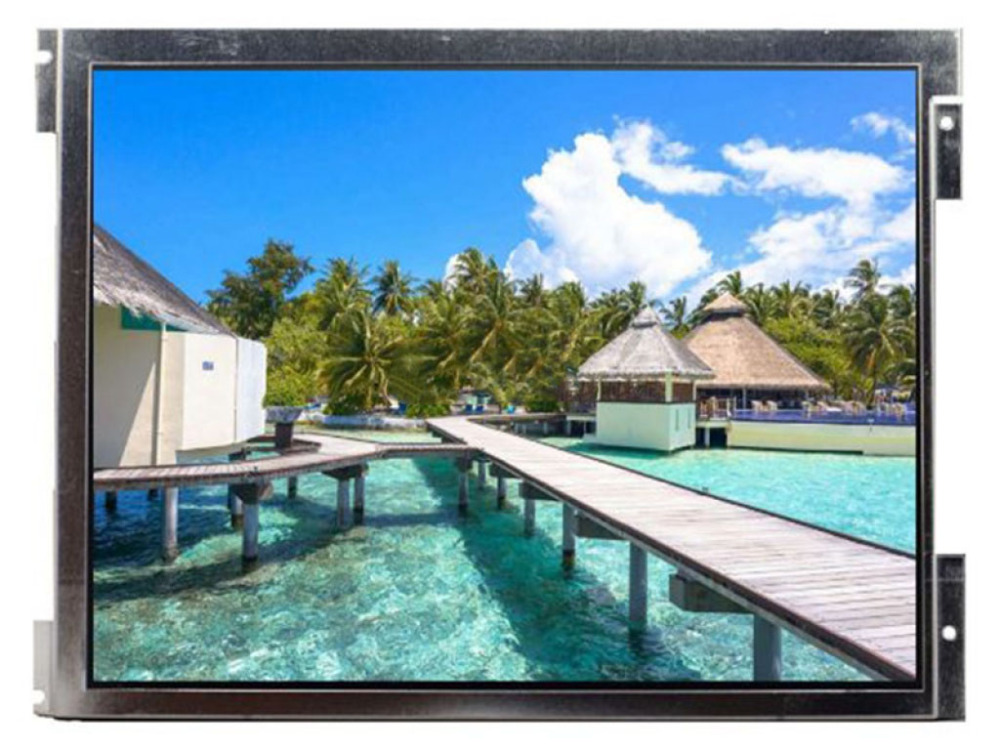

TCG104VGLAAAFA-AA20 Kyocera 10.4 inch 640x480 LCD Display Panel Screen

Name: TCG104VGLAAAFA-AA20 Kyocera 10.4 inch 640x480 LCD Display Panel Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG104VGLAAAFA-AA20
Price: 269 USD
Availability: InStock

SKU: TCG104VGLAAAFA-AA20

Model:TCG104VGLAAAFA-AA20
Size:10.4"
Resolution:640x480
Interface:40 pins Parallel RGB (1 ch, 6-bit) , Connector
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$275.00~~ $269.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display TCG104VGLAAAFA-AA20 General Features
TCG104VGLAAAFA-AA20 is a 10.4-inch LCD display panel manufactured for integration into Kyocera's robust line of electronic devices. Designed with a resolution of 640 x 480 pixels (VGA), this panel delivers clear, sharp monochrome or grayscale imagery, ideal for displaying detailed data, text, and basic graphics in industrial, medical, or point-of-sale terminals. The part number suffix "AA20" denotes a specific configuration and revision, ensuring precise compatibility and performance within designated Kyocera systems. Built to meet stringent durability and reliability standards, this display module offers consistent performance and excellent readability for critical applications where longevity and clarity are paramount.

Brand	KYOCERA
Model	TCG104VGLAAAFA-AA20
Panel-type	LCM , a-Si TFT-LCD
Size	10.4"
Resolution	640(RGB)×480 , VGA
Aspect Ratio	4:3(H : V)
Dot Pitch(mm)	0.110×0.330 (H×V)
Pixel Pitch(mm)	0.330×0.330 (H×V)
Display Area	211.2(H) × 158.4(V)
Bezel Opening	215.4(H) × 162.2(V)
Outline Size	240.7(H) × 180.2(V)
Surface	-
Display Mode	TN, Normally White, Transmissive
Brightness	320 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	10/20Typ.)(Tr/Td) ms
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Best View on	-
Display Colors	262K , 48% NTSC
Frequency	-
Lamp Type	WLED , 100K hours , With LED Driver

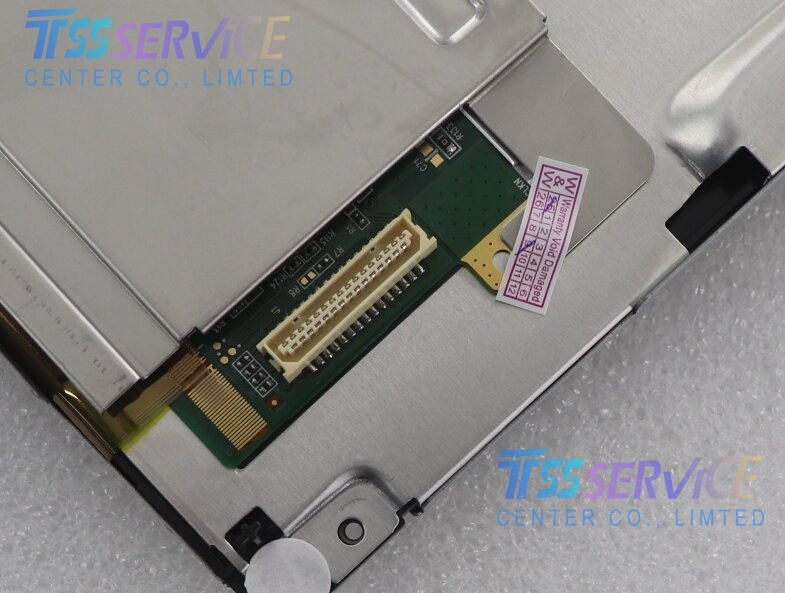

Signal Interface	40 pins Parallel RGB (1 ch, 6-bit) , Connector
Touch Screen	4-wire Resistive Touch
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C
