Name: TCG035QVLPDANN-GN50 Kyocera 3.5 inch 320x240 LCD Panel Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG035QVLPDANN-GN50
Price: 130 USD
Availability: InStock

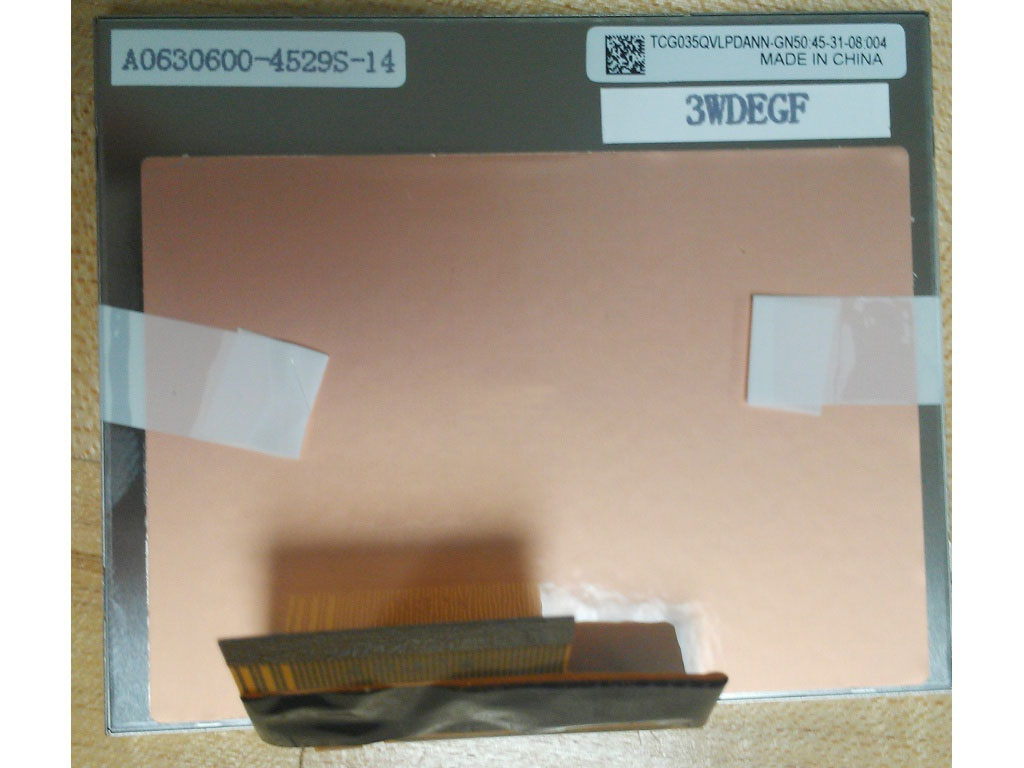

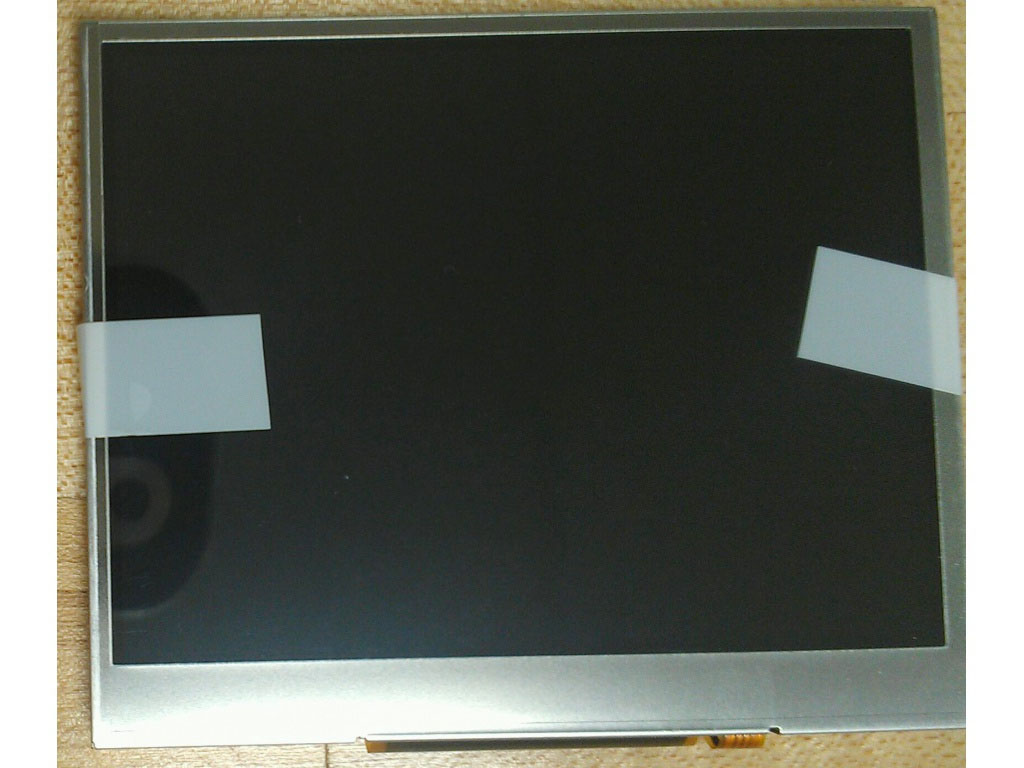

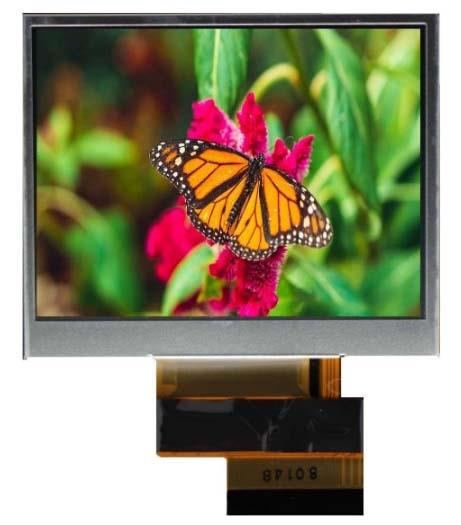

TCG035QVLPDANN-GN50 Kyocera 3.5 inch 320x240 LCD Panel Display

SKU: TCG035QVLPDANN-GN50

Model:TCG035QVLPDANN-GN50
Size:3.5"
Resolution:320x240
Interface:50 pins Parallel RGB (1 ch, 8-bit) + SPI , FPC
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Kyocera Display TCG035QVLPDANN-GN50 General Features
TCG035QVLPDANN-GN50 is a compact 3.5-inch TFT-LCD panel from Kyocera, delivering clear QVGA resolution of 320 × 240 pixels for sharp text and reliable graphics. Engineered for durability and stable performance in demanding industrial environments, this panel is ideal for integration into portable medical devices, handheld terminals, control panels, and instrumentation. Kyocera’s high-quality manufacturing ensures robust construction, consistent visual output, and long-term operational reliability. This panel provides a dependable and cost-effective solution for applications requiring a compact, resilient display with clear visual performance in challenging conditions.

Brand	KYOCERA
Model	TCG035QVLPDANN-GN50
Panel-type	LCM , a-Si TFT-LCD
Size	3.5"
Resolution	320(RGB)×240 [QVGA]
Aspect Ratio	4:3 (H : V)
Outline Size	76.9(W)×63.9(H) mm
Display Mode	TN, Normally White, Transmissive
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	8/22 (Typ.)(Tr/Td) ms
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Display Colors	16.2M , 50% NTSC
Lamp Type	2 strings WLED , 40K hours , No Driver
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI , FPC , 50 pins
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C

1.Question: What is the current stock status of this Kyocera 3.5-inch LCD panel? How soon can it be shipped after placing an order?
Answer: We currently have the item in stock. Typically, orders are processed and shipped within 1-3 business days after payment is received. If you have urgent delivery requirements, please contact us to confirm before placing your order.

2.Question: How do you package this 3.5-inch panel during transport to ensure its safety?
English Answer: Each panel is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure the product is not damaged during transit
