TCG035QVLPDANN-GN50-S for Kyocera 3.5 inch 320x240 LCD Panel Display

Name: TCG035QVLPDANN-GN50-S for Kyocera 3.5 inch 320x240 LCD Panel Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG035QVLPDANN-GN50-S
Price: 35 USD
Availability: InStock

SKU: TCG035QVLPDANN-GN50-S

Model:TCG035QVLPDANN-GN50-S
Size:3.5"
Resolution:320x240
Interface:Parallel RGB (1 ch, 8-bit) + SPI , FPC , 50 pins
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$38.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

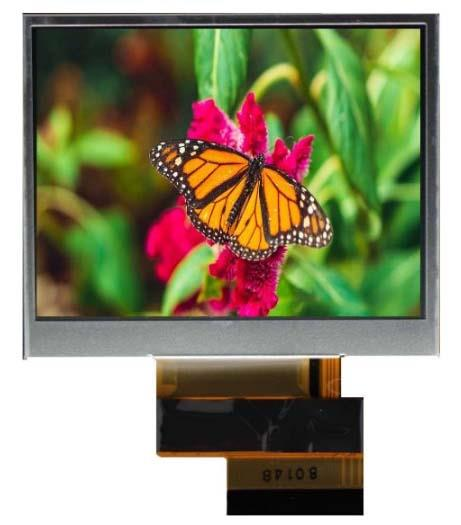

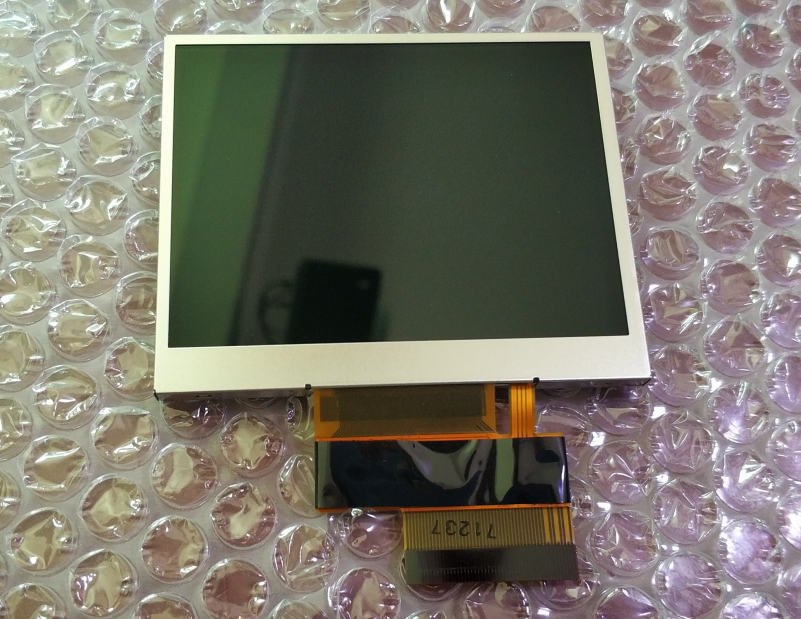

Kyocera Display TCG035QVLPDANN-GN50-S General Features
TCG035QVLPDANN-GN50-S is a 3.5-inch TFT-LCD panel from Kyocera, engineered for high brightness and excellent sunlight readability. Featuring a QVGA resolution of 320 × 240 pixels, it delivers crisp text and graphics even under direct outdoor lighting. Designed for durability and reliable performance in demanding industrial and outdoor environments, this panel is ideal for applications such as handheld terminals, portable medical devices, industrial HMIs, and transportation displays. Kyocera's robust construction ensures stable operation, long-term reliability, and superior visibility, making it an optimal solution for professional systems requiring a sunlight-readable display.

Brand	KYOCERA
Model	TCG035QVLPDANN-GN50-S
Panel-type	LCM , a-Si TFT-LCD
Size	3.5"
Resolution	320(RGB)×240 [QVGA]
Aspect Ratio	4:3 (W : H)
Outline Size	76.9(W)×63.9(H) mm
Display Mode	TN, Normally White, Transmissive
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	8/22 (Typ.)(Tr/Td) ms
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Display Colors	16.7M , 50% NTSC
Lamp Type	2 strings WLED , 40K hours , No Driver
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI , FPC , 50 pins
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C

1.Question: How do you package this industrial-grade panel during transport to ensure its safety?
Answer: Each panel is individually sealed in an anti-static bag and placed in a custom high-density foam tray to secure its position. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure the product is not damaged during transit.

2.Question: Will this 320x240 resolution screen undergo strict quality testing before shipment?
Answer: Yes, every screen undergoes strict quality testing before shipment. We perform a full screen lighting test to check pixels, display colors, and the high brightness backlight to ensure there are no dead pixels or functional defects.
